PROFILED LED profile light 1000 mm dimmable 27W 5700K, GST18 IP40 - LED2WORK 150714-08

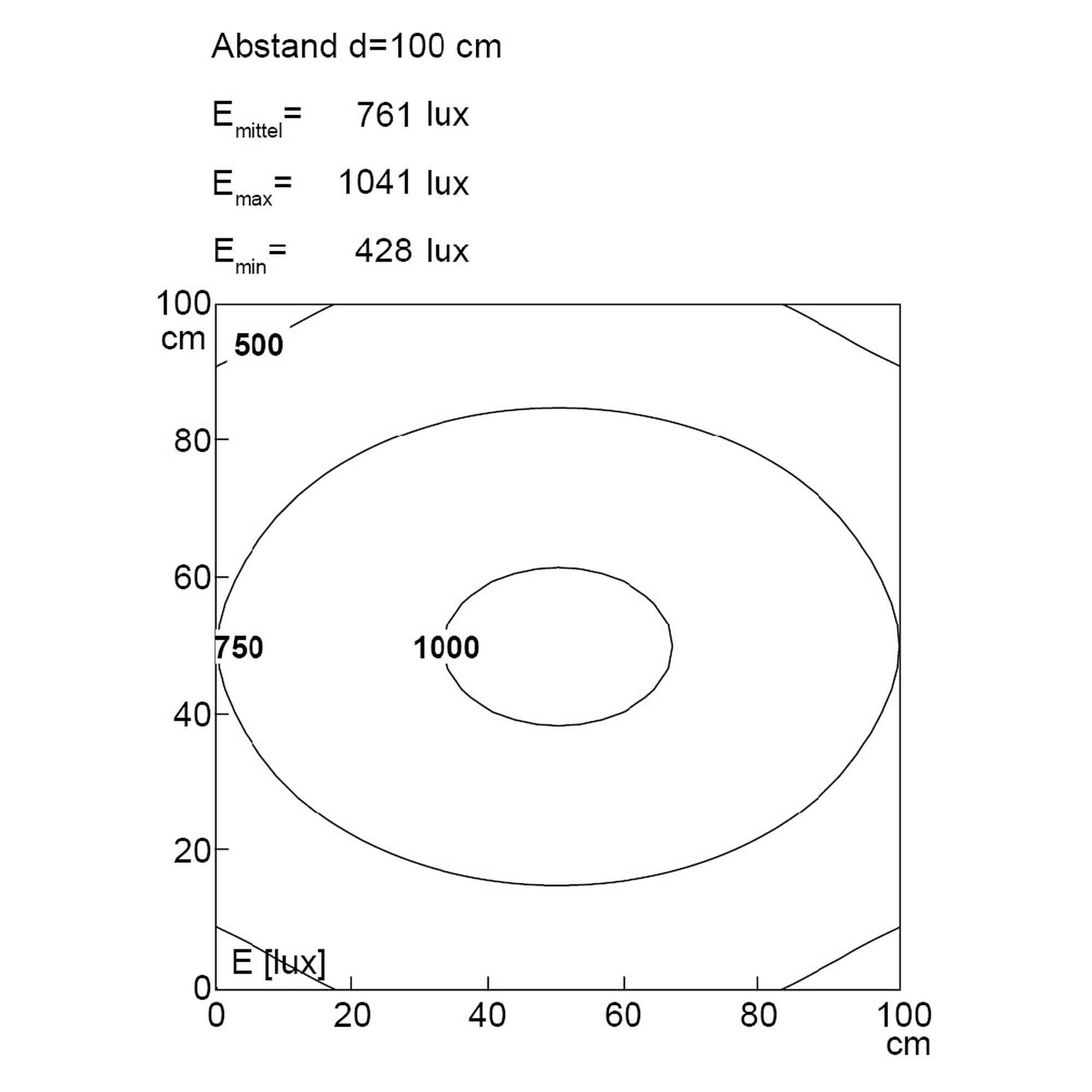

The PROFILED delivers even area lighting over workbenches and system workstations. With 3674 lm from around 27 W and a 100° beam angle, the 1000 mm light covers the working area with low shadowing.

Key benefits

• 3674 lm output at only ~27 W, around 155 lm/W
• Micro-prism cover for uniform, low-glare light distribution
• Internal dimmer for stepless adjustment of brightness

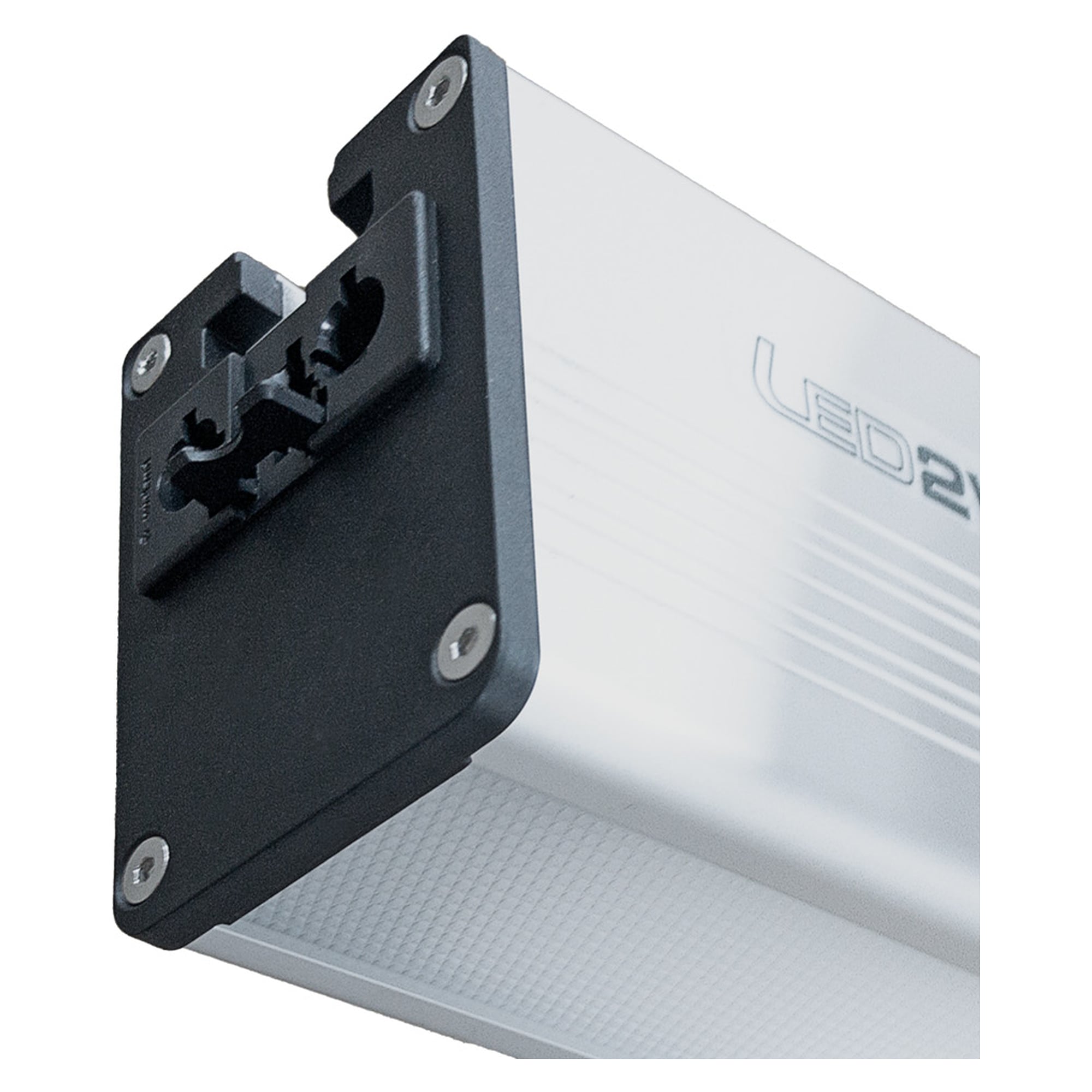

• Connection via Wieland GST18 for straightforward installation
• Rear T-slot for mounting on machine or bench profiles
• Long service life of more than 100,000 h (L80/B10)

Technical data

• Model: PROFILED
• Light source: SMD LED
• Power: ~27 W (lamp ~23 W)
• Luminous flux: 3674 lm
• Luminous efficacy: ~155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering: Ra >85

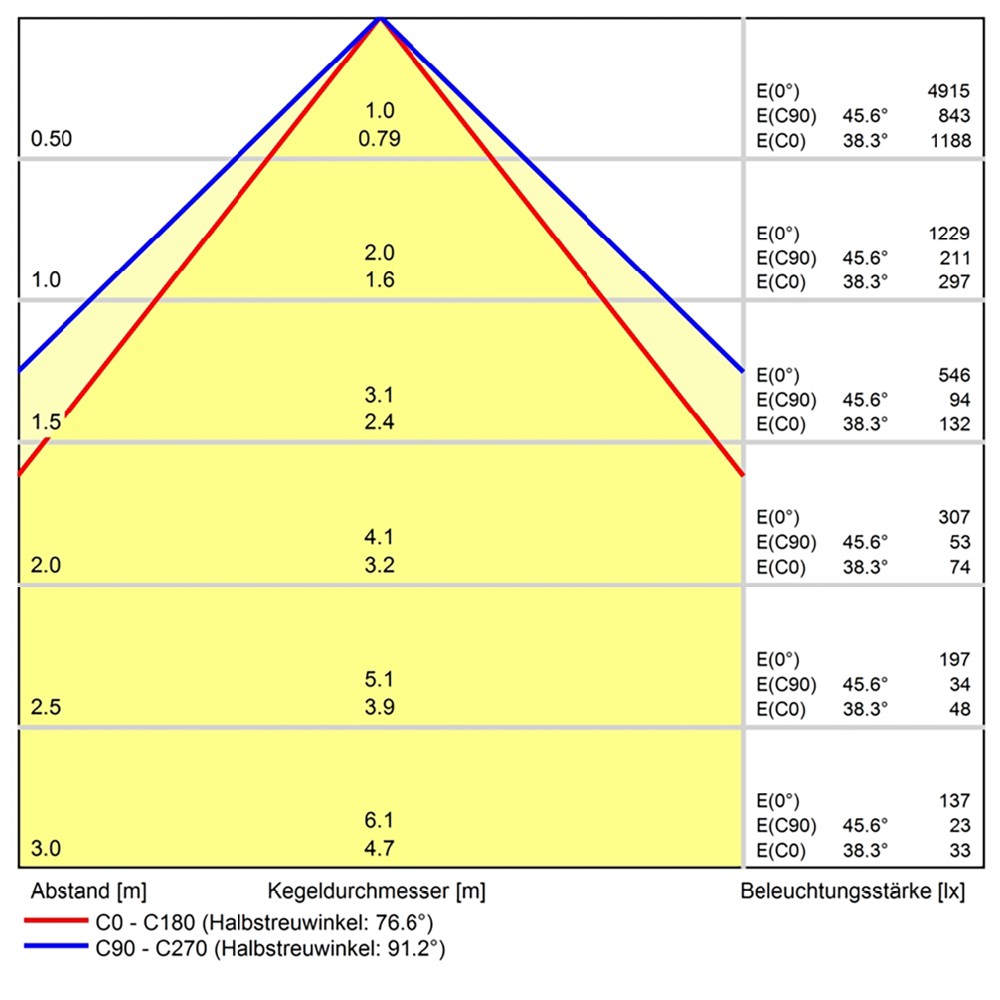

• Beam angle: 100°
• Supply voltage: 120-277V AC ± 10%, 50-60 Hz
• Connection: Wieland GST18
• Protection rating: IP40
• Protection class: I
• Operating temperature: -10 °C to +45 °C
• Service life: > 100,000 h (L80/B10)
• Housing: aluminium
• Cover: plastic (micro-prism)

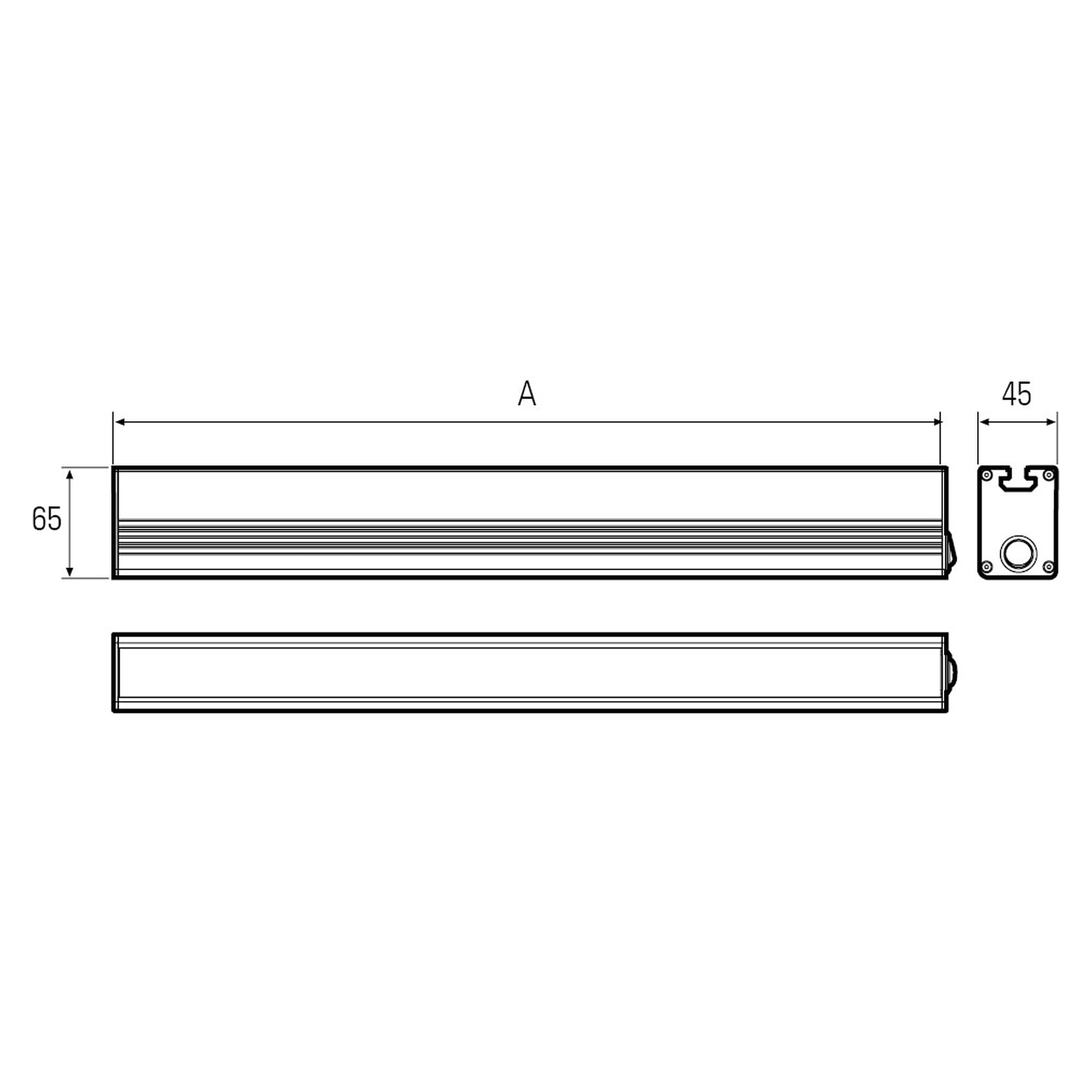

• Dimensions: 1000 x 65 x 45 mm
• Weight: 2440 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA
• Made in: Germany

Applications

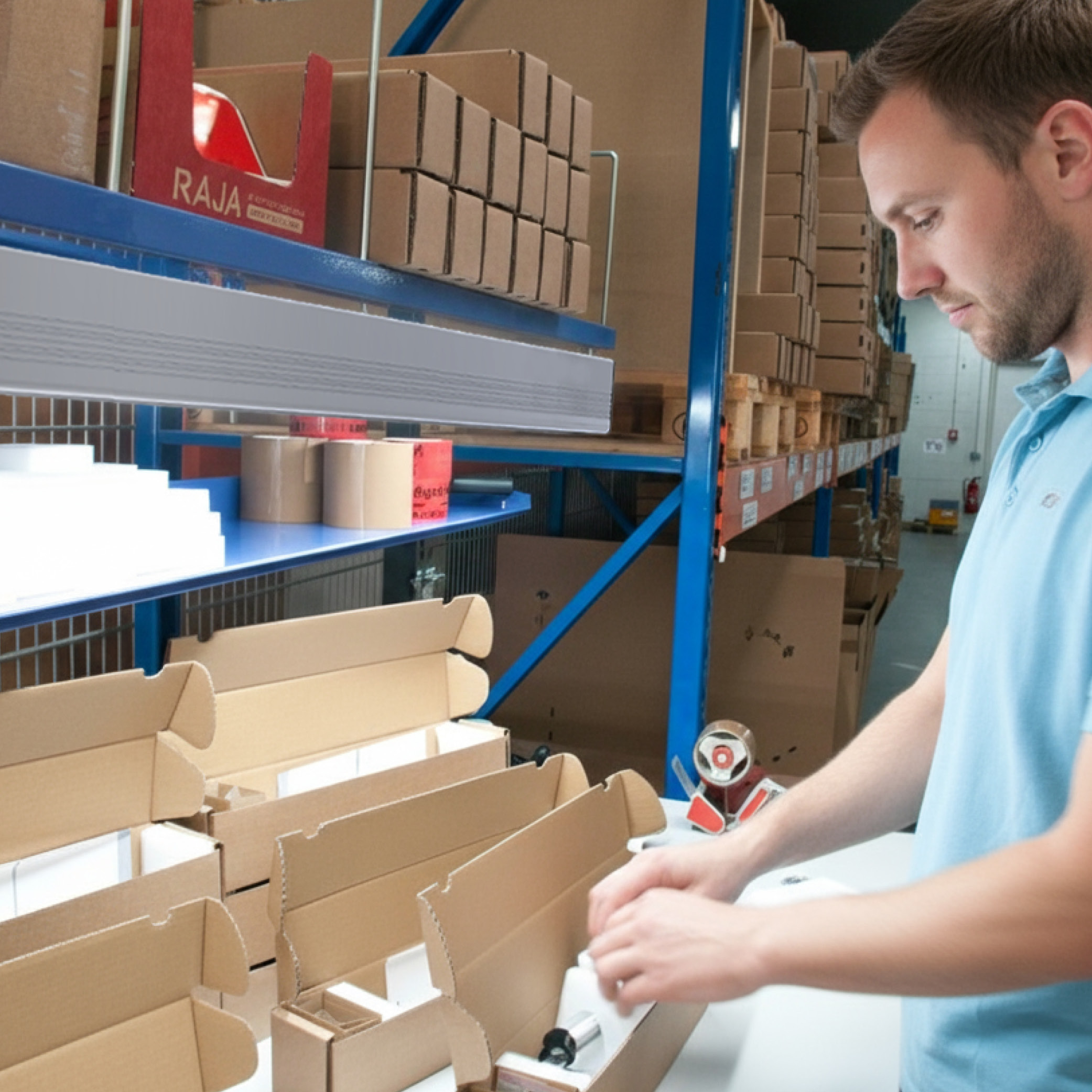

Suited to manual workstations, assembly and packing lines, workshops and logistics areas that need even general lighting.

Supply and standards

Mounting accessories optional. Compliant with CE, UKCA, exempt risk group per DIN EN 62471. Made in Germany.
