TUBELED_25 machine light 540 mm, 13W, 2015 lm, 5700K, IP67 - LED2WORK 154310-01

For bright illumination of work areas on CNC machines and automated plants, the TUBELED_25 in 540 mm length delivers 2015 lm at a mounting height of just 23 mm. The slim, low-profile light fits even tight installation spaces, whether for original equipment or retrofit.

Key benefits

• 2015 lm output at 155 lm/W for brightly lit work areas.
• Very slim, low profile of only about 23 mm for tight installation spaces.
• Light Forming Technology for an even, low-glare light distribution.
• IP67 rating, dust- and liquid-tight for harsh machine environments.
• Shock- and vibration-resistant, up to 50 g shock, with over 100,000 h service life.

Technical data

• Model: TUBELED_25
• Type: LED surface-mounted light for machines and plants
• Light source: SMD LED
• Power: ~13 W
• Luminous flux: 2015 lm
• Luminous efficacy: 155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85

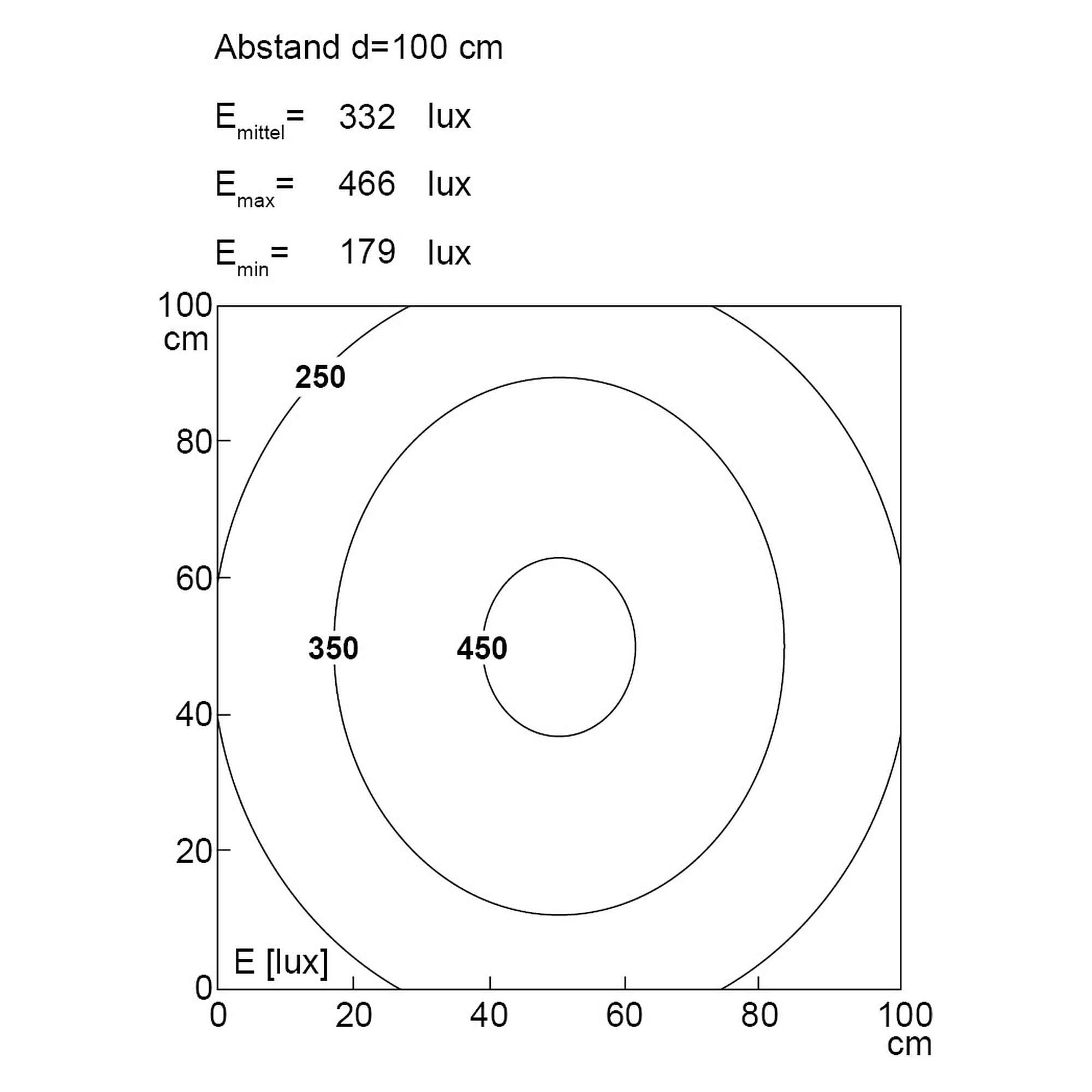

• Light distribution: Light Forming Technology
• Supply voltage: 24 V DC ± 10%
• Connection: M8 A-coded
• Protection rating: IP67
• Protection class: III

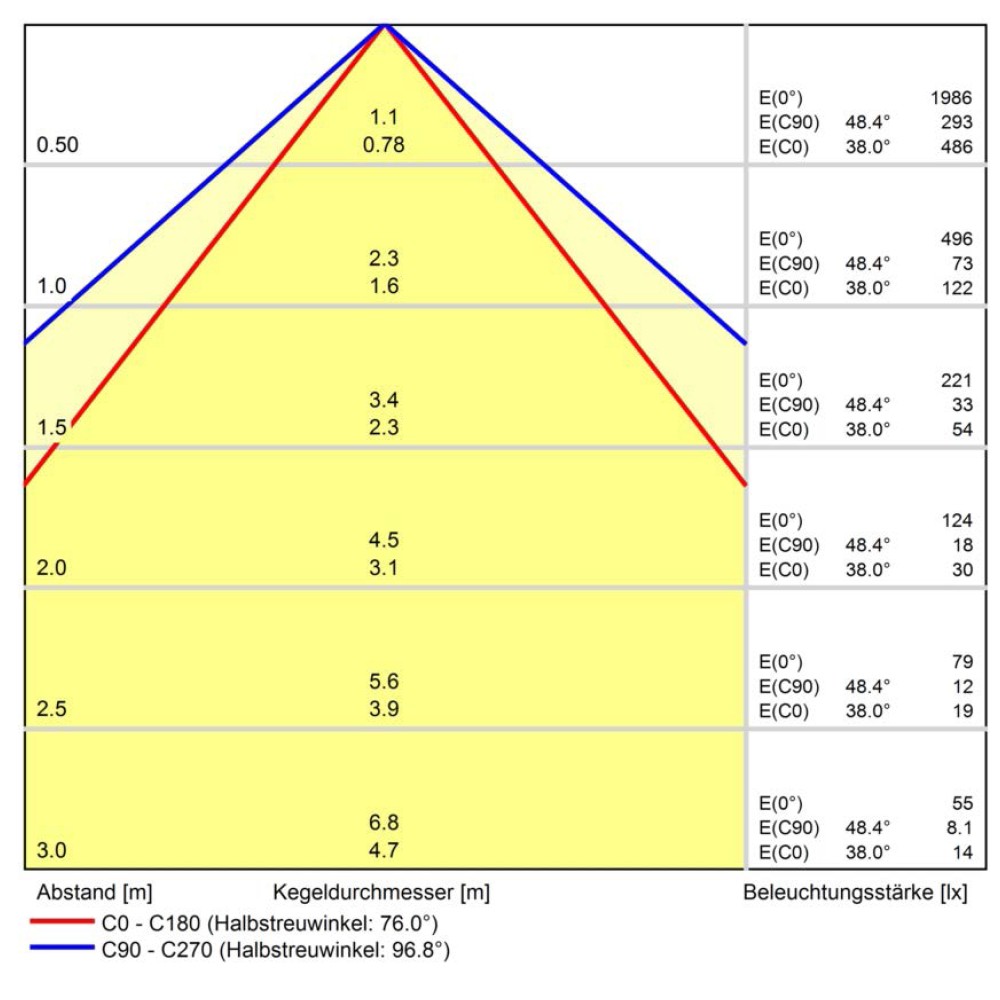

• Beam angle: 100°
• Operating temperature: -30 °C to +55 °C
• Service life: > 100,000 h (L80/B10)
• Vibration resistance: 10 to 55 Hz (amplitude 0.35 mm)
• Shock resistance: up to 50 g
• Housing material: aluminium
• Cover material: safety glass, 4 mm

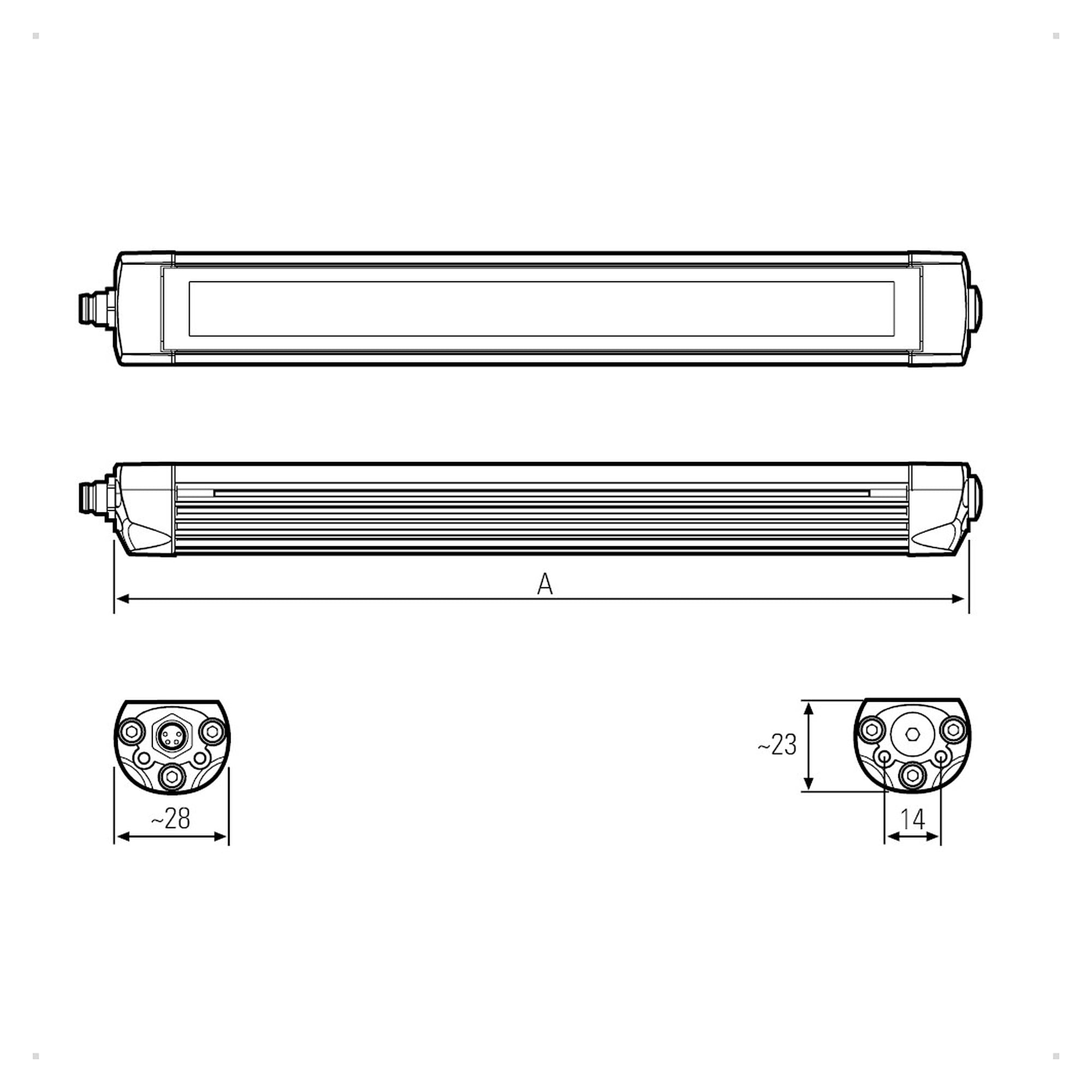

• Dimensions (H x W): ~23 mm x ~28 mm, length 540 mm
• Weight: 50 g
• Dimmable: optional via accessory
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

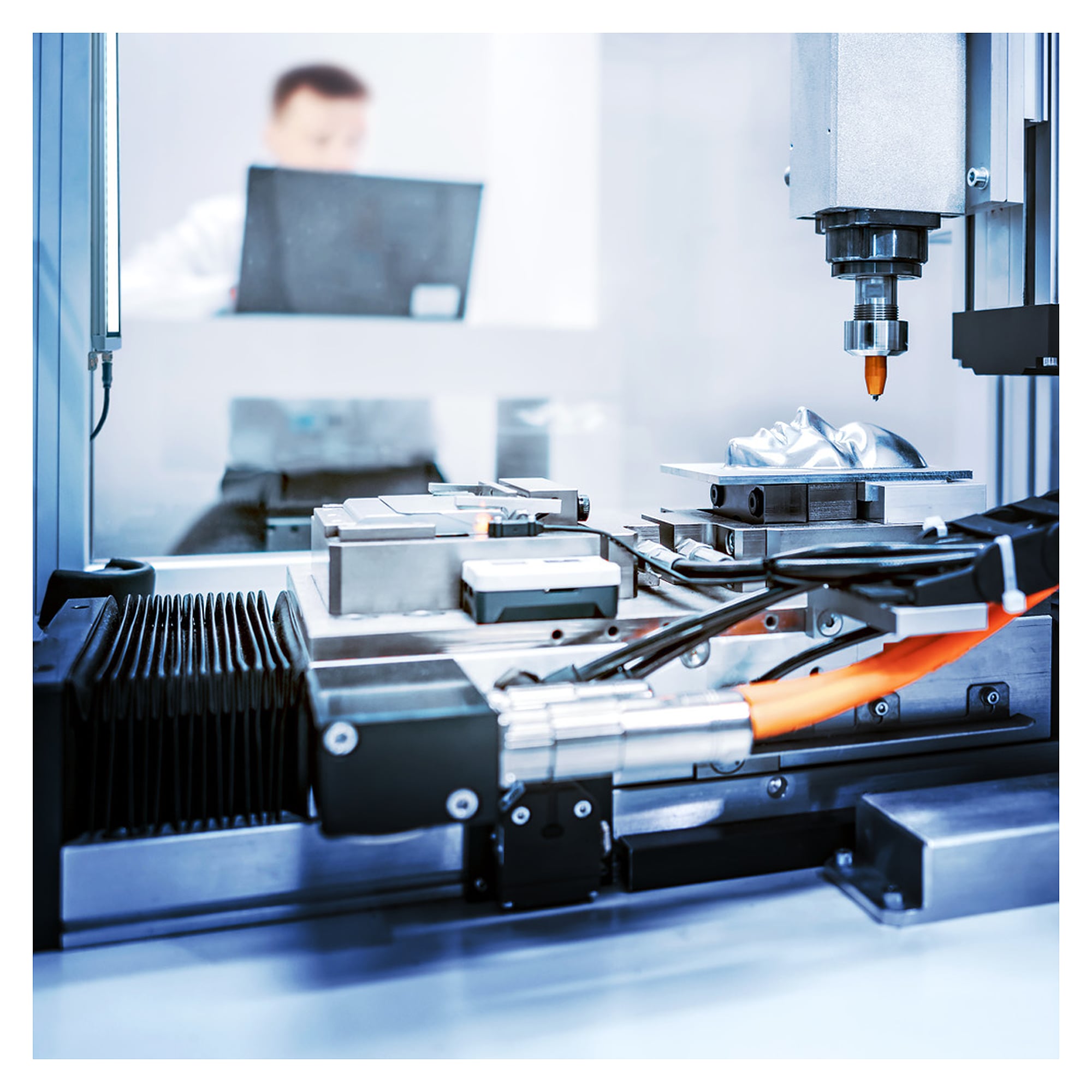

Applications

A universal standard for lighting work areas on CNC machines and automated plants, in original equipment or as a retrofit.
