SYSTEMLED EVO ECO system light 1342mm 38W 4000K neutral white - LED2WORK 155320-02

Images are examples, some edited with AI. The technical data are authoritative. AI notice

SYSTEMLED EVO ECO system light 1342mm 38W 4000K neutral white - LED2WORK 155320-02

Name: SYSTEMLED EVO ECO system light 1342mm 38W 4000K neutral white - LED2WORK 155320-02
Brand: LED2WORK
SKU: L2W-155320-02
Price: 337.48 EUR
Availability: InStock

LED2WORK ✓ Original product Brand new Made in Germany

Efficient LED system light for assembly, lab and production. Over 1342 mm it delivers 5970 lm of 4000K neutral white at around 38 W and mounts quickly via the rear T-slot.

Net

€337.48

excl. VAT

Item L2W-155320-02

Manufacturer no. 155320-02

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

For evenly lit, longer workstations, the SYSTEMLED EVO - ECO delivers 5970 lm over 1342 mm at only around 38 W total power. The neutral-white 4000K light and high colour rendering create conditions for precise work in production, laboratory and assembly.

Key benefits

5970 lm at ~38 W, high efficacy of 173 lm/W.
Neutral-white 4000K light (3-step MacAdam) with high colour consistency.
Colour rendering Ra >90 (typ. 95) for reliable colour recognition.
Microprism glare control for glare-free work at a 90° beam angle.

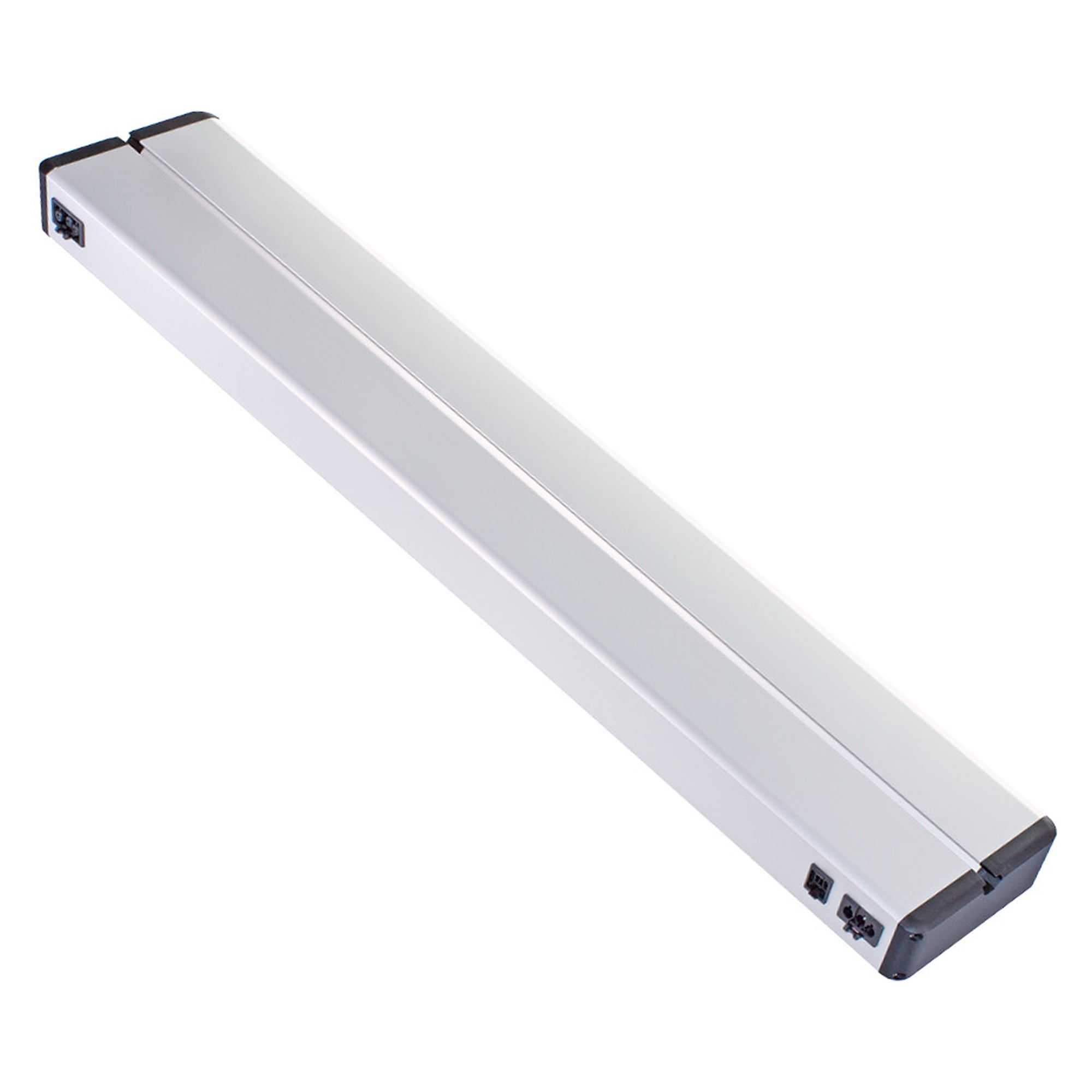

Quick mounting via the rear T-slot, compatible with size-8 T-slots.

Applications

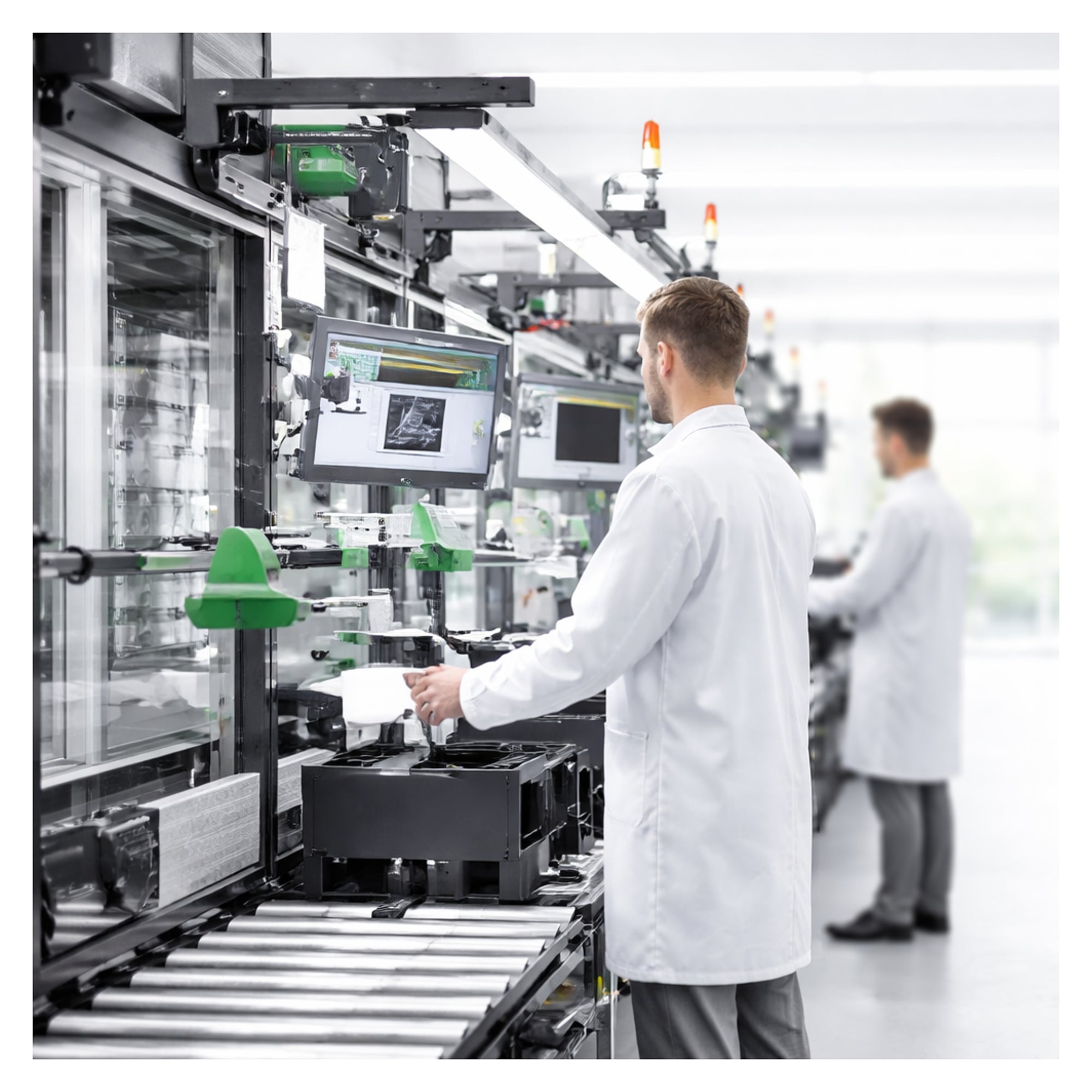

Suited to production lines, laboratories and assembly stations requiring even, glare-free illumination. Dimming is optional via accessories, and fixing accessories are available as an option.

Technical data

Model	SYSTEMLED EVO - ECO neutral white
Design	LED system light, SMD LED
Total power incl. driver	~38 W (lamp power ~34.5 W)
Luminous flux	5970 lm, efficacy 173 lm/W
Light colour	4000K 3-step MacAdam
Colour rendering	Ra >90 (typ. 95)
Supply voltage	120-277V AC ± 10%, 50-60 Hz, integrated driver

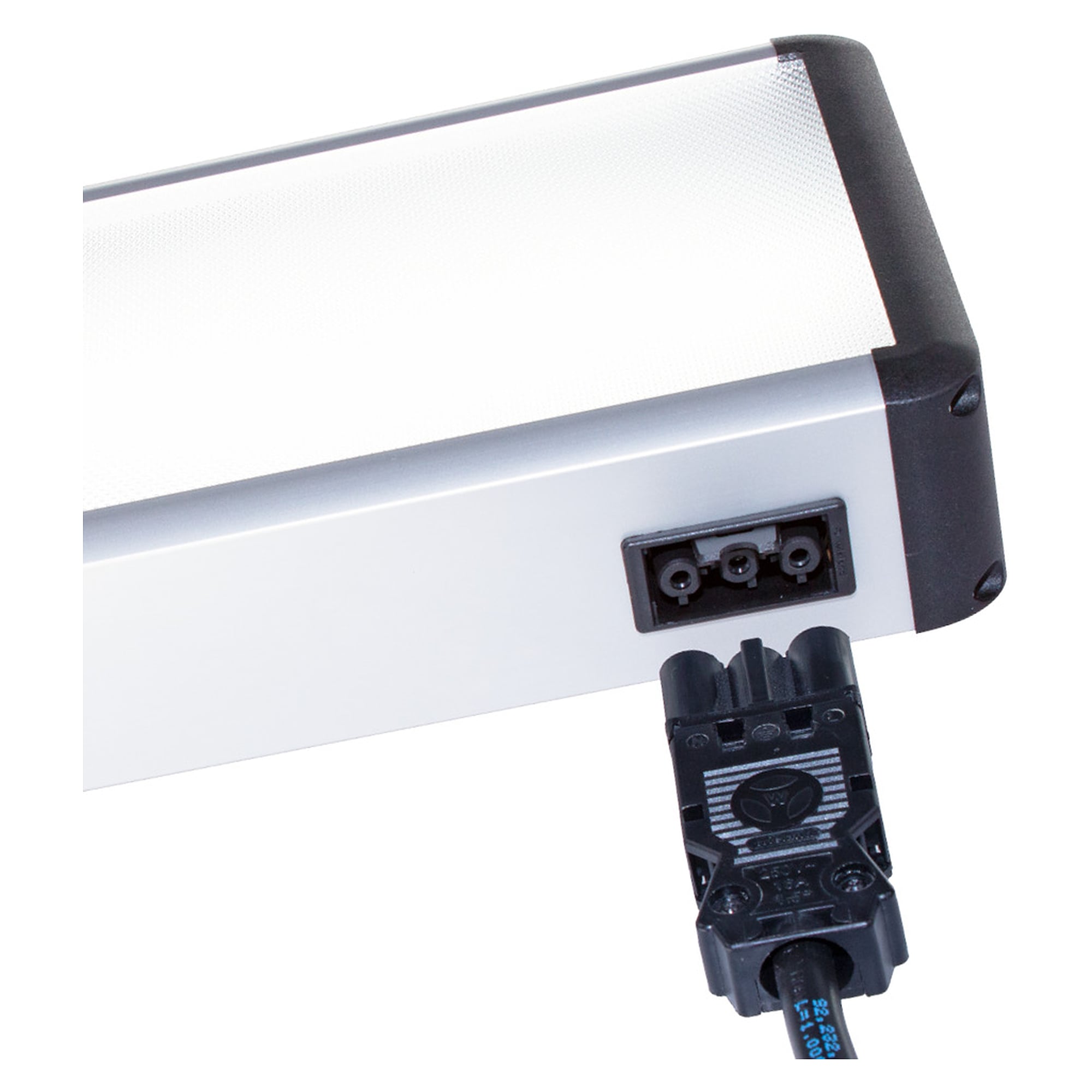

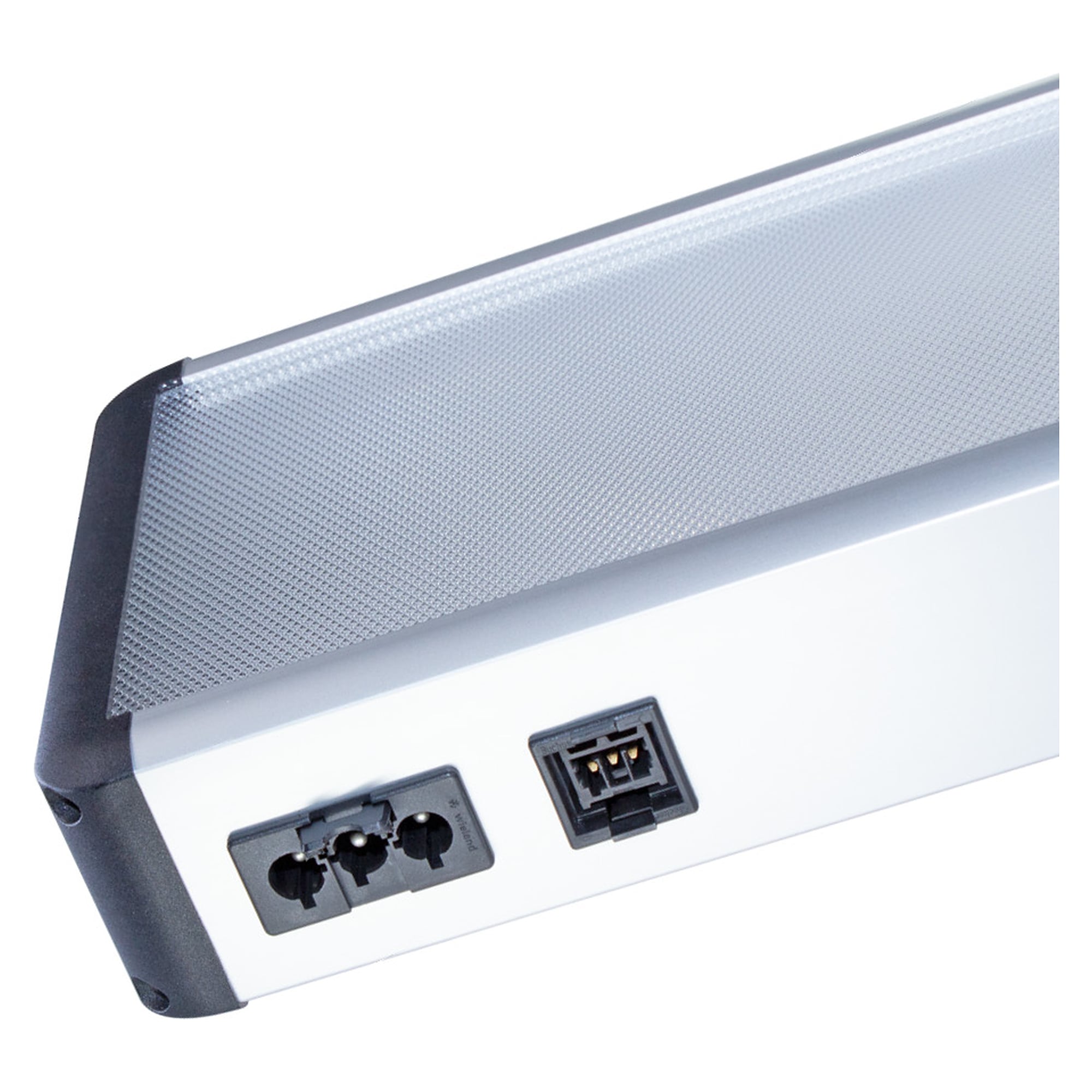

Connection	Wieland GST18
Protection rating	IP40, protection class I

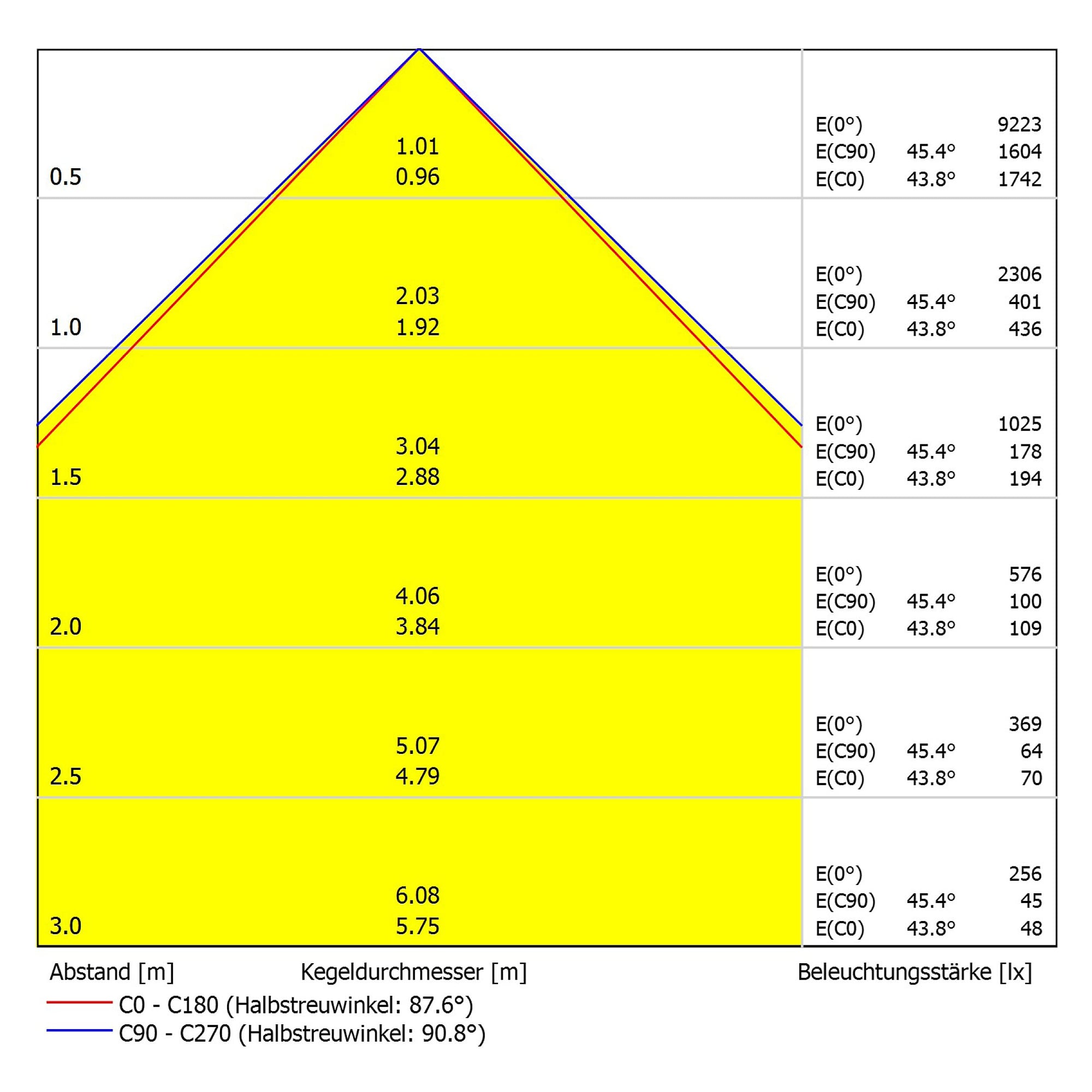

Beam angle	90°, glare control via microprisms
Operating temperature	-10 °C to +50 °C
Service life	> 100,000 h (L80/B10)
Material	aluminium and PMMA

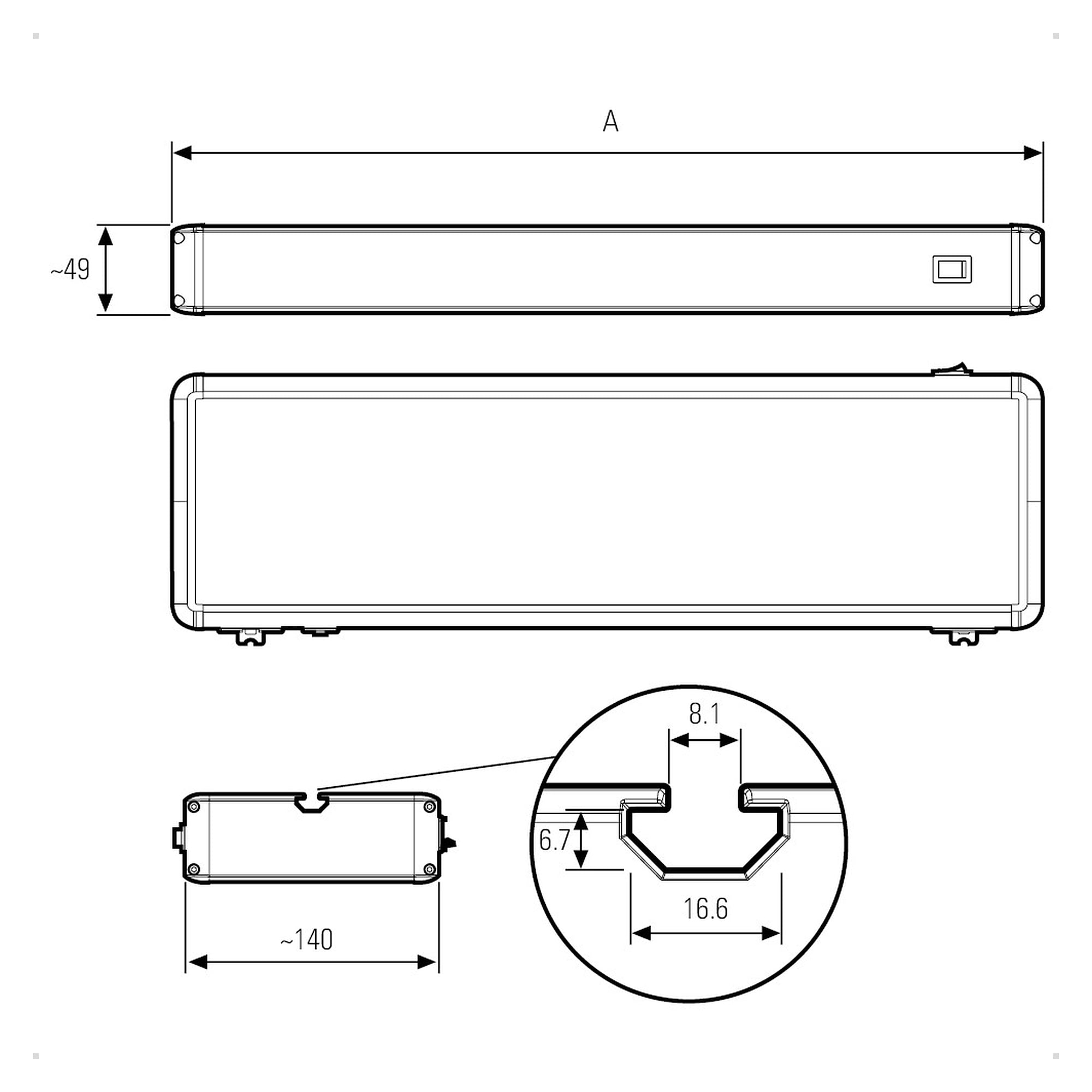

Dimensions	1342 mm x 139 mm x 48 mm (L x W x H), weight 3650 g
Risk group (DIN EN 62471)	exempt group
Certifications	CE, UKCA
Made in	Germany
Weight	3.65 kg
Manufacturer	LED2WORK
Manufacturer Nr.	155320-02
HS-Code	94054239
GPSR manufacturer information	LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Norm	DIN EN 62471
Luminous flux (lumen)	5970 lm
Power (W)	38 W
Colour temperature	4000K
Colour rendering (Ra)	Ra 90
Mounting type	T-slot / profile
Operating voltage	120-277 V
Protection class (IP)	IP40
