SYSTEMLED EVO ECO system light 1782mm 51W 4000K neutral white - LED2WORK 155420-02

For long, evenly lit workstations, the SYSTEMLED EVO - ECO delivers 7960 lm over 1782 mm at only around 51 W total power. The neutral-white 4000K light and high colour rendering create conditions for precise work in production, laboratory and assembly.

Key benefits

• 7960 lm at ~51 W, high efficacy of 173 lm/W.
• Neutral-white 4000K light (3-step MacAdam) with high colour consistency.
• Colour rendering Ra >90 (typ. 95) for reliable colour recognition.
• Microprism glare control for glare-free work at a 90° beam angle.
• Quick mounting via the rear T-slot, compatible with size-8 T-slots.

Technical data

• Model: SYSTEMLED EVO - ECO neutral white
• Design: LED system light, SMD LED
• Total power incl. driver: ~51 W (lamp power ~46 W)
• Luminous flux: 7960 lm, efficacy 173 lm/W
• Light colour: 4000K 3-step MacAdam
• Colour rendering: Ra >90 (typ. 95)
• Supply voltage: 120-277V AC ± 10%, 50-60 Hz, integrated driver

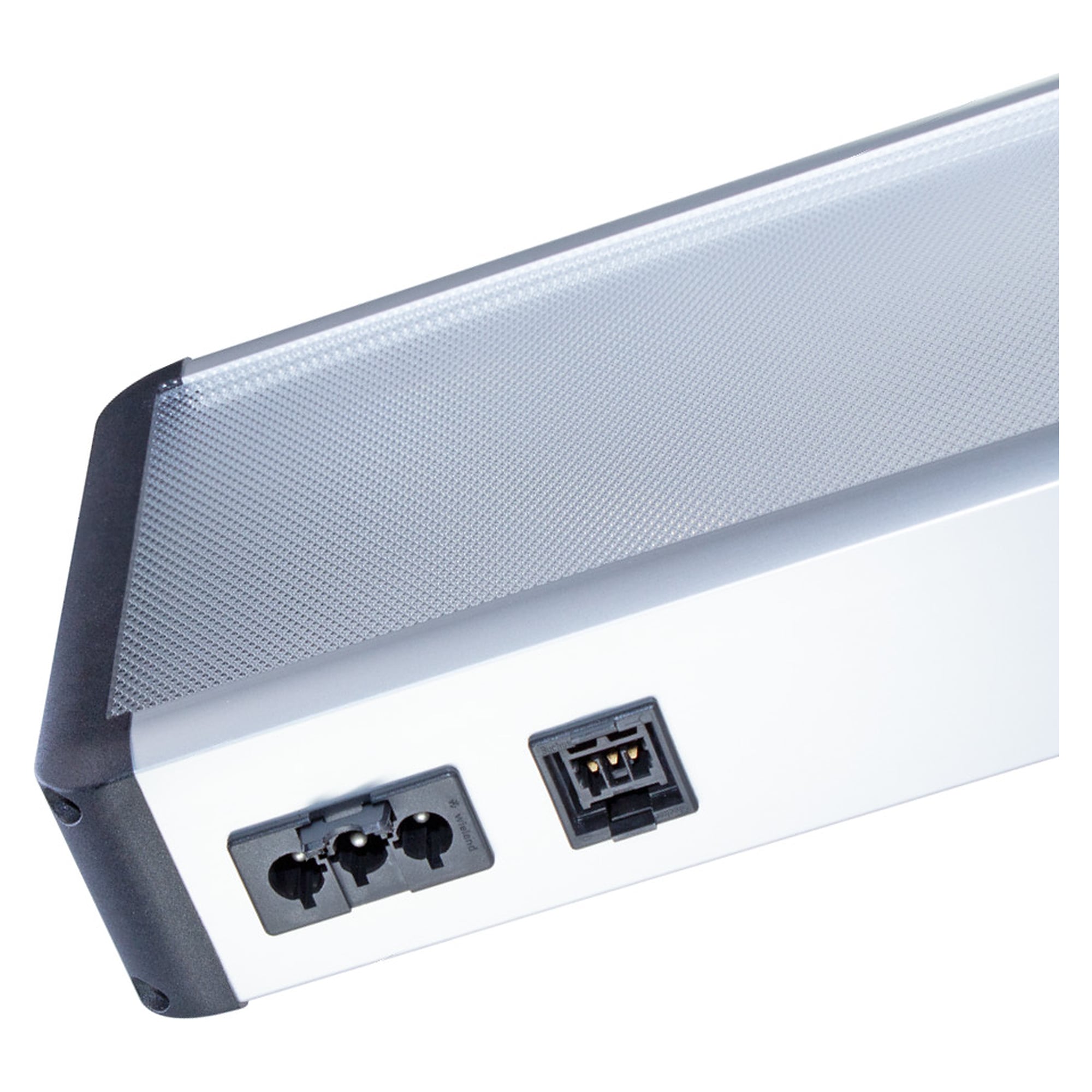

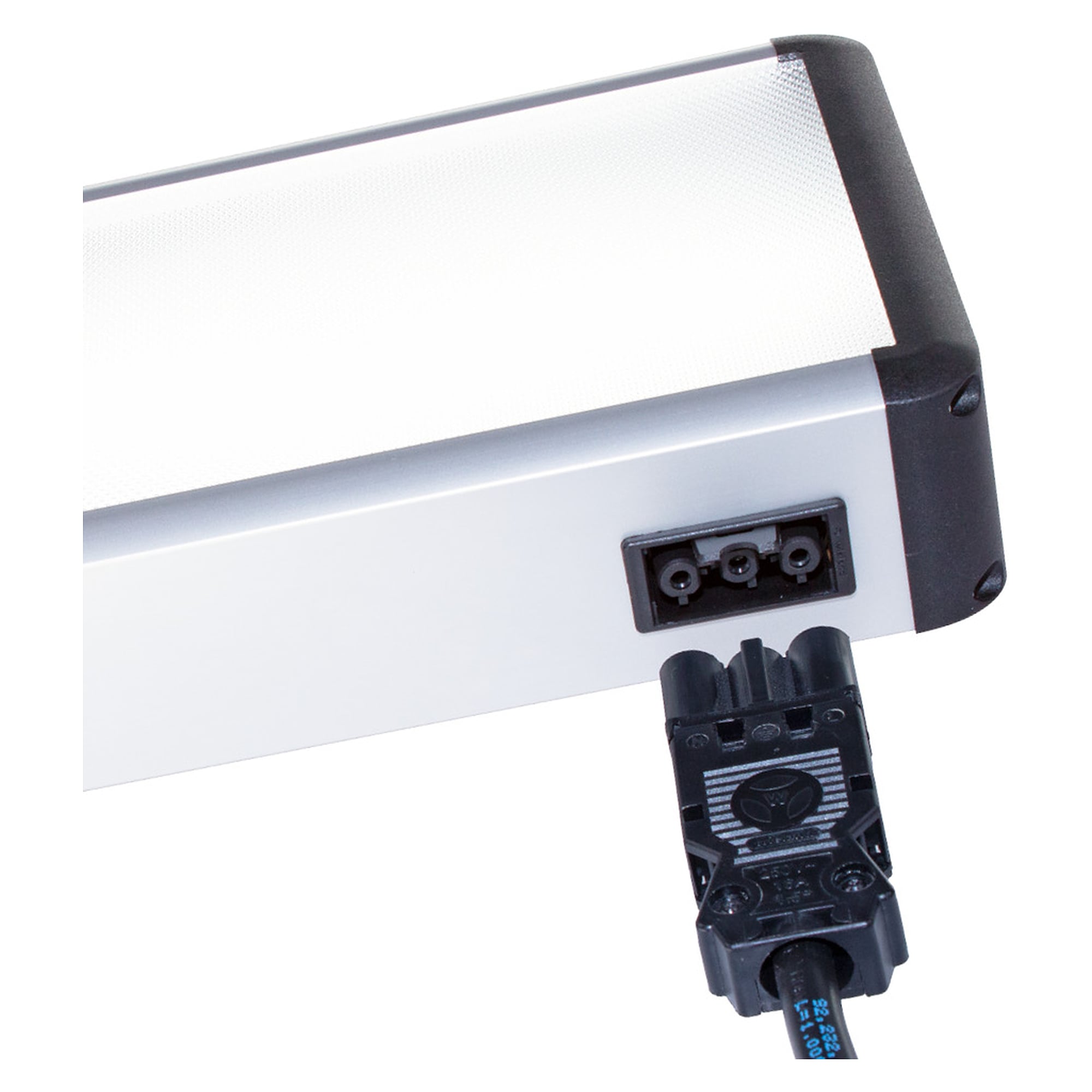

• Connection: Wieland GST18
• Protection rating: IP40, protection class I

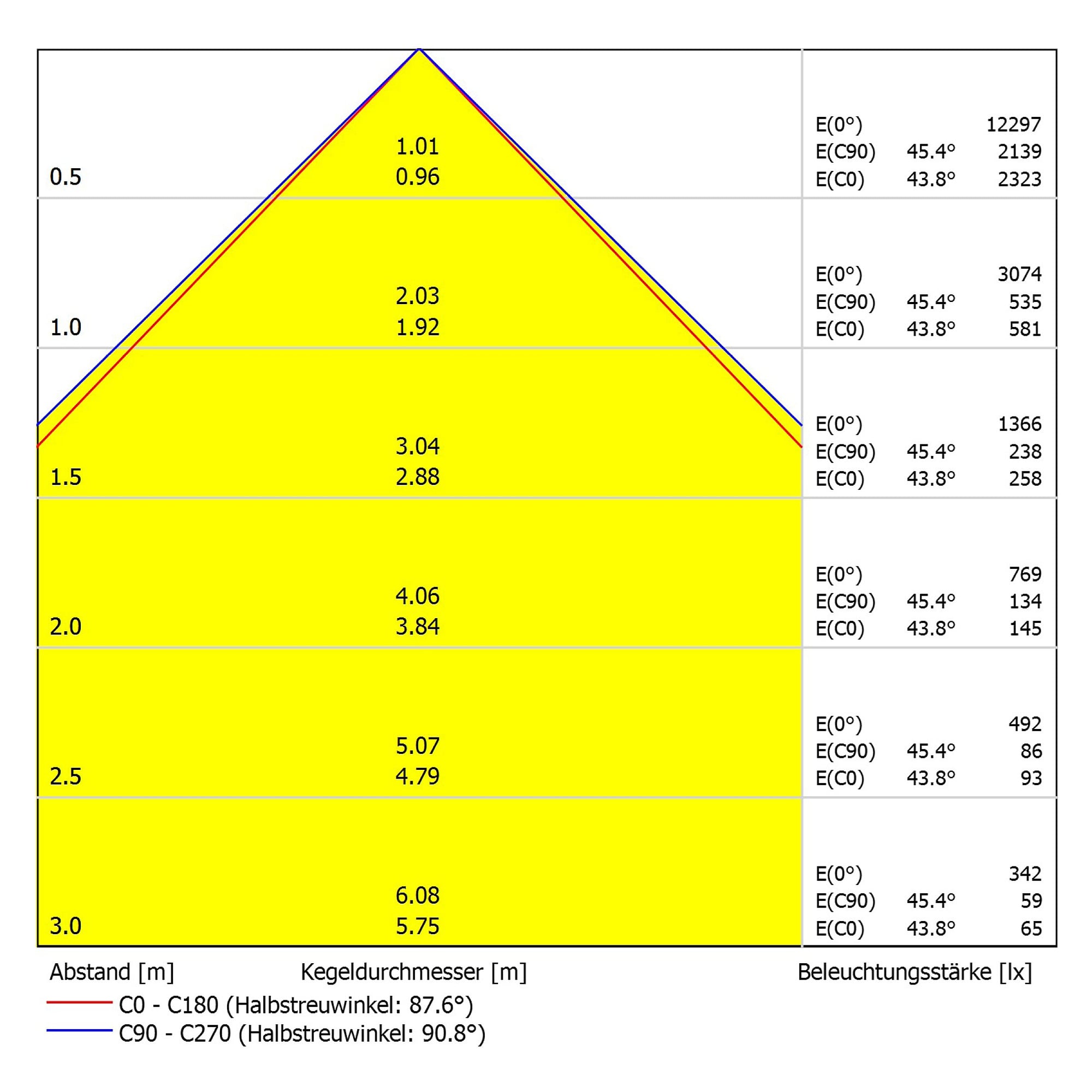

• Beam angle: 90°, glare control via microprisms
• Operating temperature: -10 °C to +50 °C
• Service life: > 100,000 h (L80/B10)
• Material: aluminium and PMMA

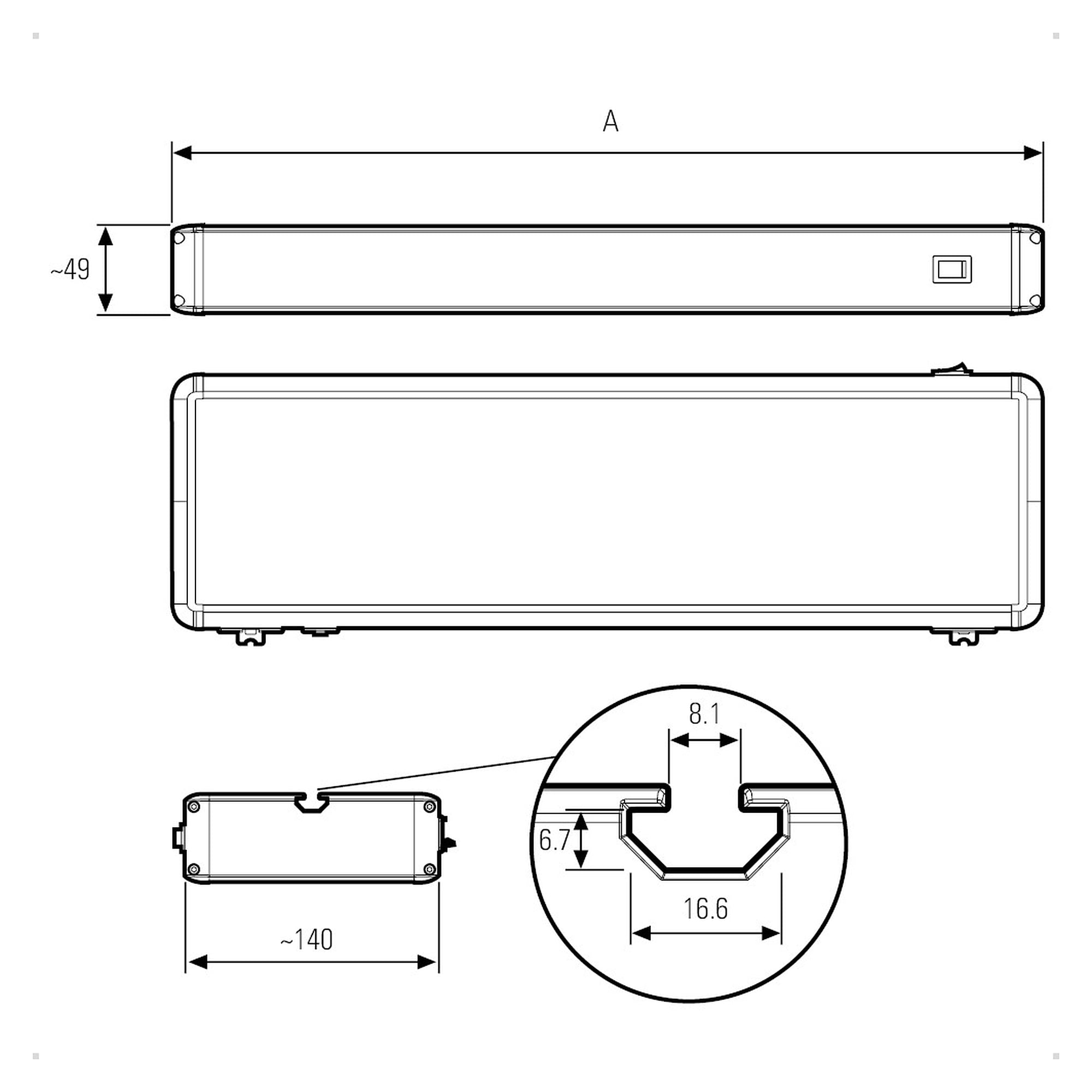

• Dimensions: 1782 mm x 139 mm x 48 mm (L x W x H), weight 4700 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA
• Made in: Germany

Applications

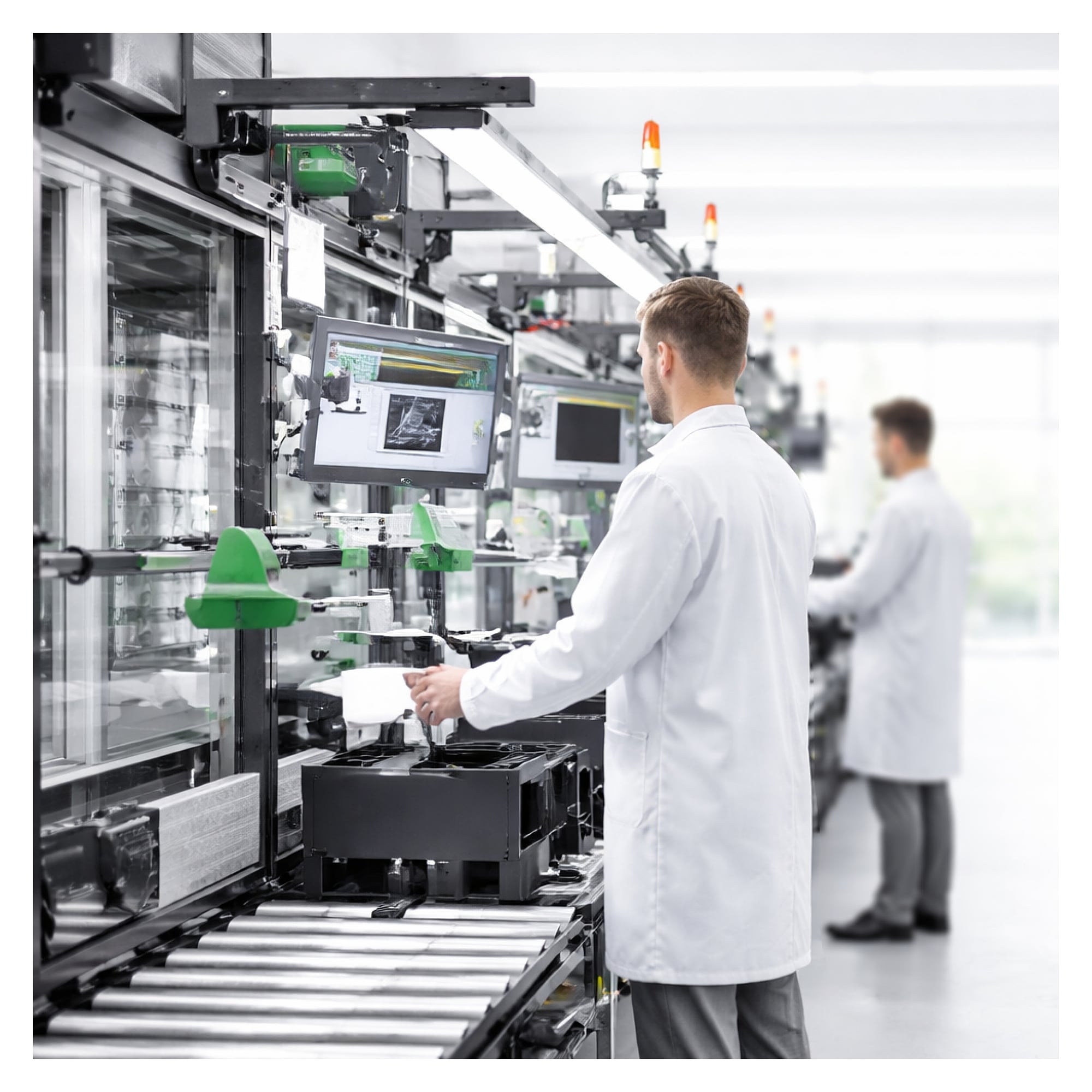

Suited to production lines, laboratories and assembly stations over long spans requiring even, glare-free illumination. Dimming is optional via accessories, and fixing accessories are available as an option.
