TUBELED_70 EVO machine light 510 mm, 23W, 3164 lm, 100°, 120-277V AC, IP69K - LED2WORK 156110-11

The 510 mm TUBELED_70 EVO AC is a powerful LED machine light with an integrated driver for direct connection to 120-277 V AC. With IP67/IP69K protection it is dust-tight and protected against high-pressure cleaning, delivering 3164 lm at 21 W lamp power, an efficiency of 155 lm/W.

Key benefits

• Integrated driver for direct connection to 120-277 V AC
• 3164 lm at 21 W lamp power, high efficiency of 155 lm/W
• Daylight white 5700K with colour rendering Ra >85 for even, flicker-free light
• IP67/IP69K, dust-tight and resistant to high-pressure cleaning
• Aluminium housing with shatter-resistant safety glass
• Service life over 100,000 h (L80/B10), low maintenance

Technical data

• Model: TUBELED_70 EVO AC
• Light source: SMD LED
• Total power incl. driver: 23 W
• Lamp power: 21 W
• Luminous flux: 3164 lm
• Luminous efficacy: 155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85
• Beam angle: 100°
• Supply voltage: 120-277 V AC ±10 %, 50-60 Hz, integrated driver
• Connection: M12 S-coded, 3-pin
• Protection rating: IP67/IP69K
• Protection class: I
• Operating temperature: -20 °C to +60 °C
• Service life: > 100,000 h (L80/B10)
• Housing material: aluminium, glass

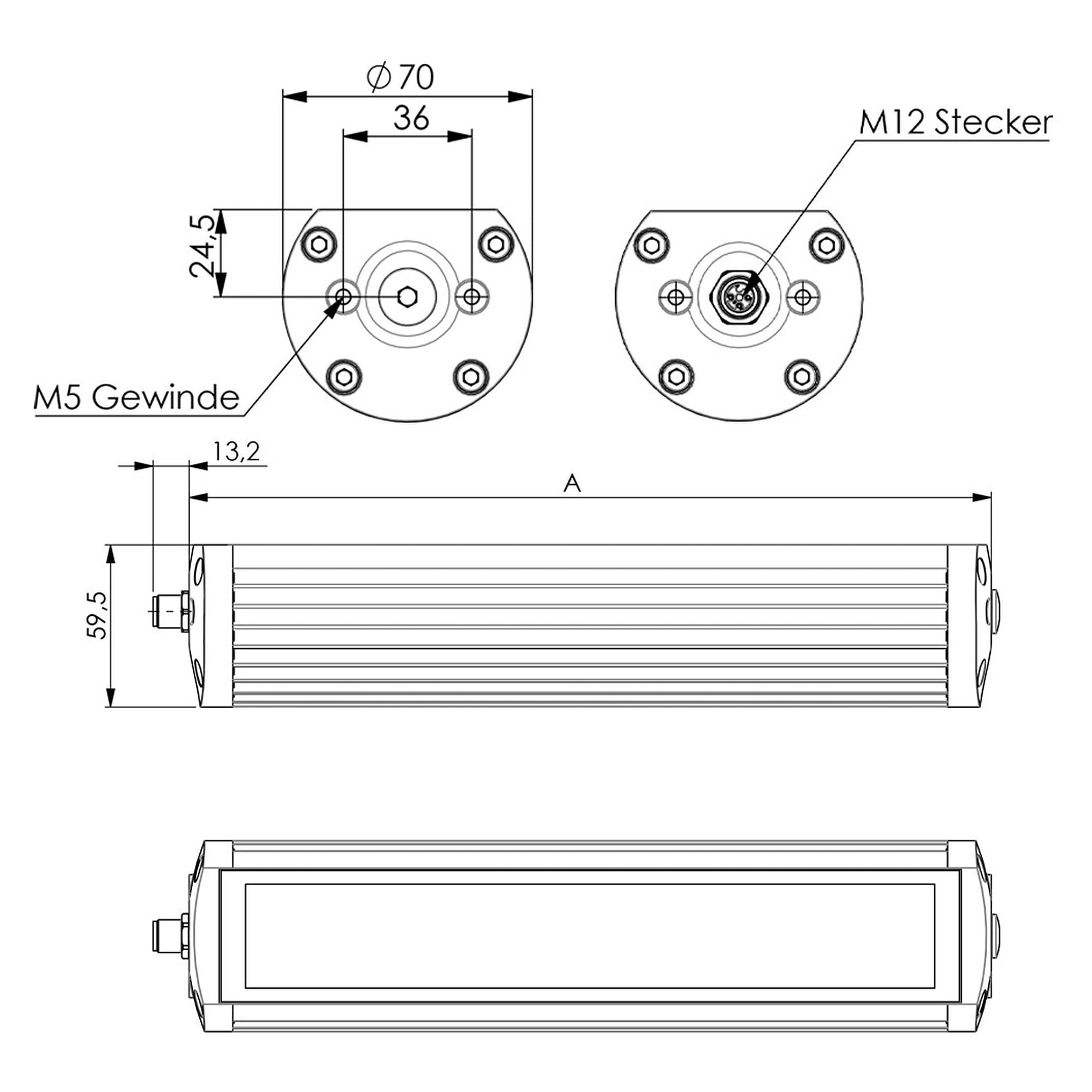

• Dimensions: 510 mm x 70 mm x 59.5 mm
• Weight: 1650 g
• Dimmable: no
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

For lighting large work areas in machine tools and plants with a 120-277 V AC mains supply, including under harsh conditions with coolants, dust and high-pressure cleaning. Mounting accessories optional.
