Accessories for ball bushing guides
Ball bushing guides

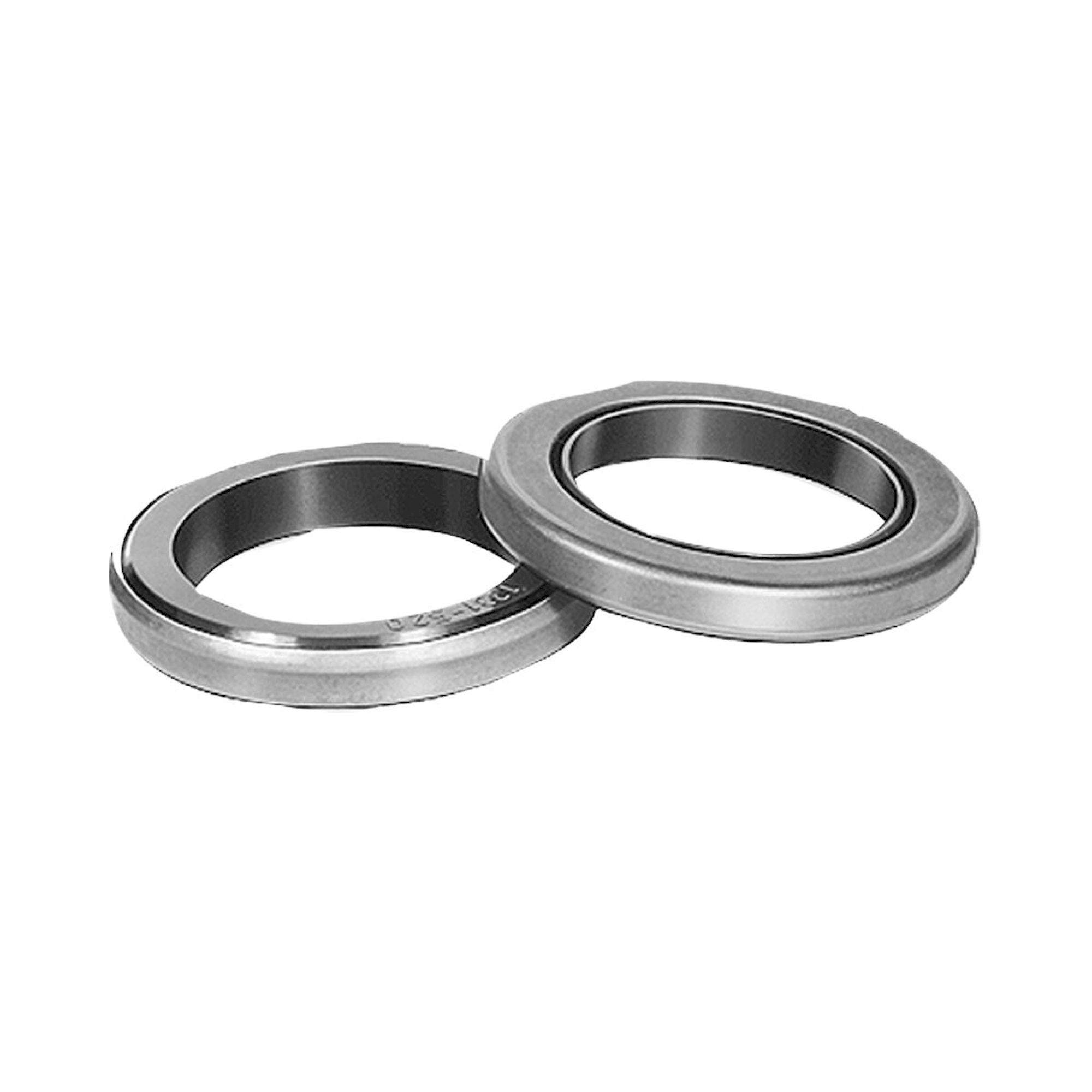

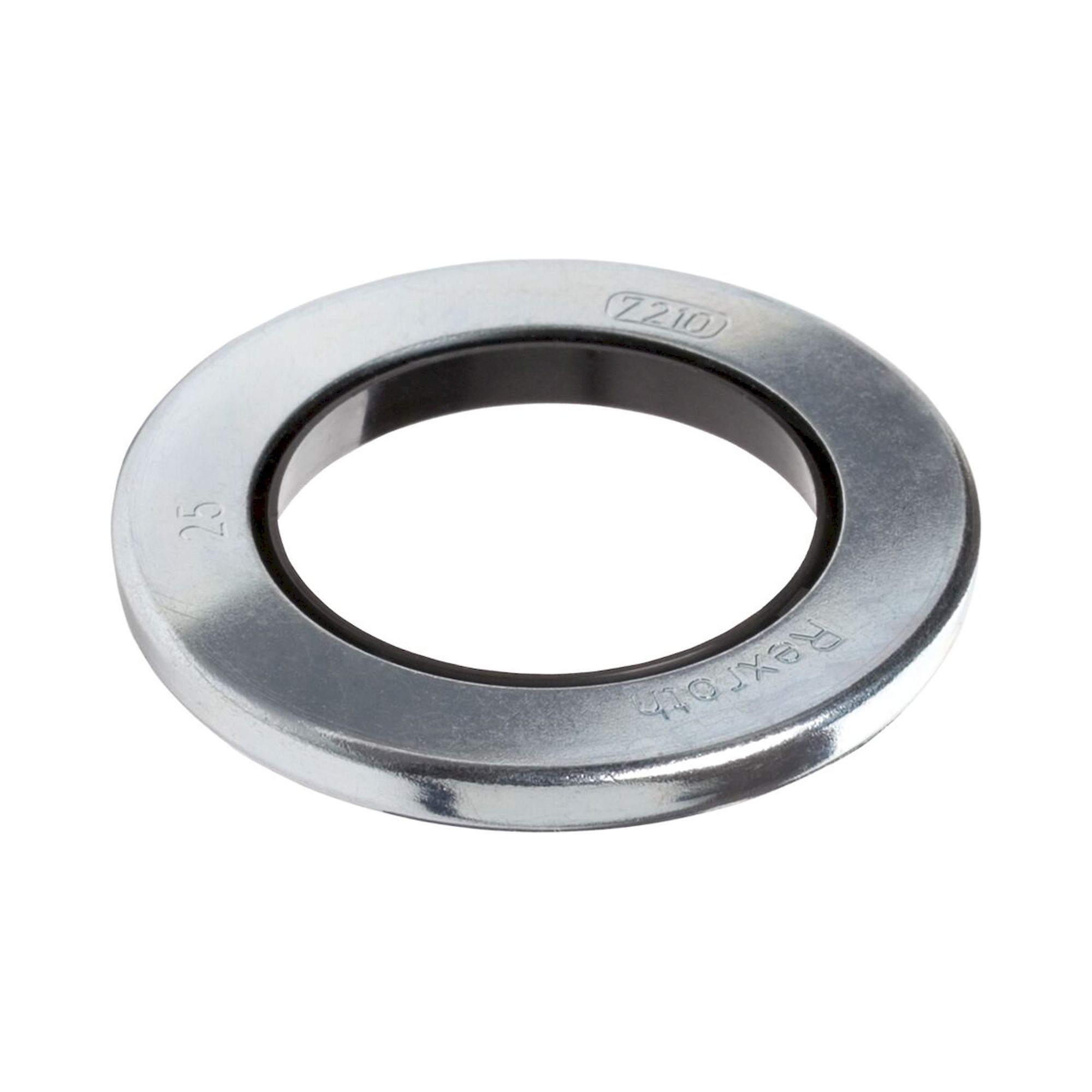

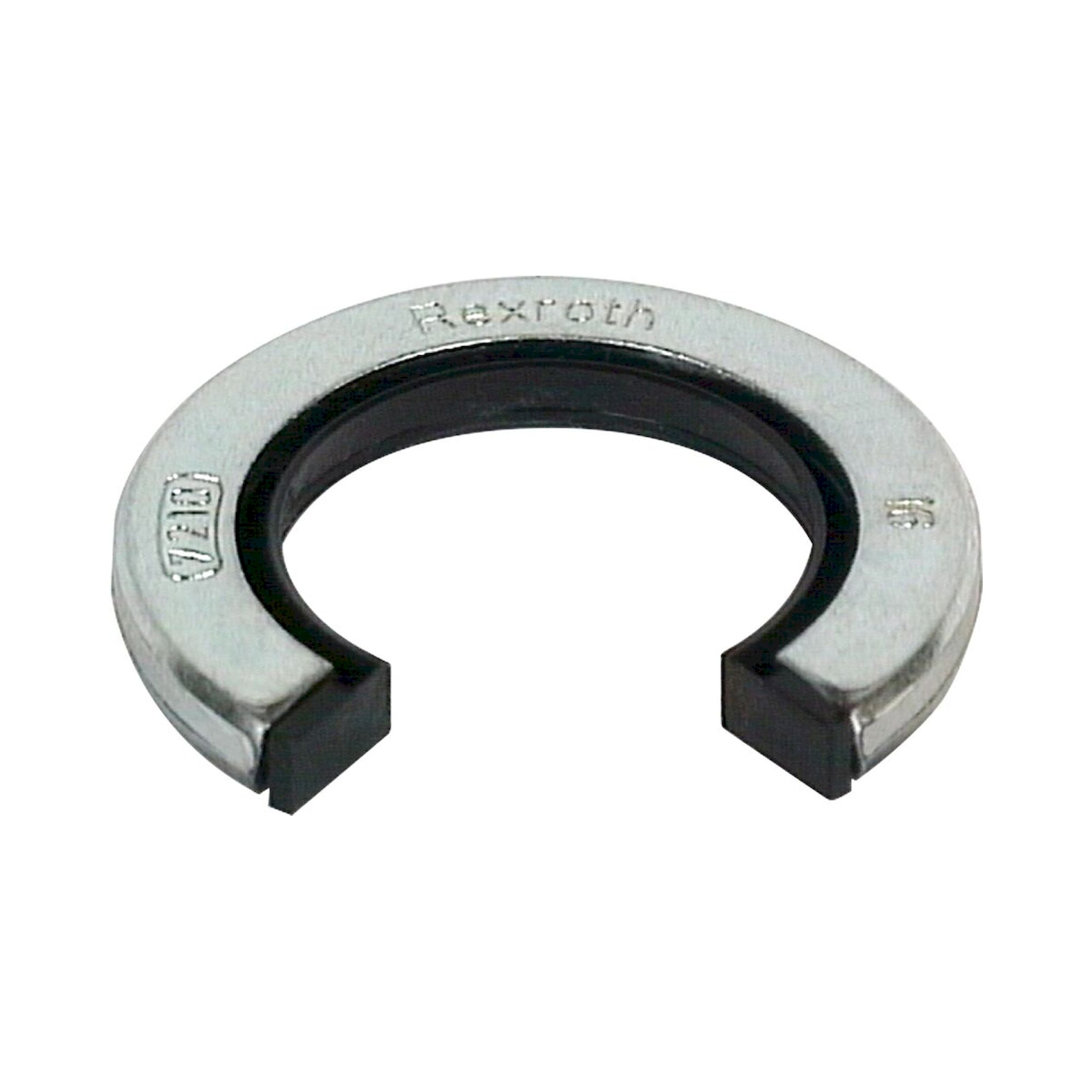

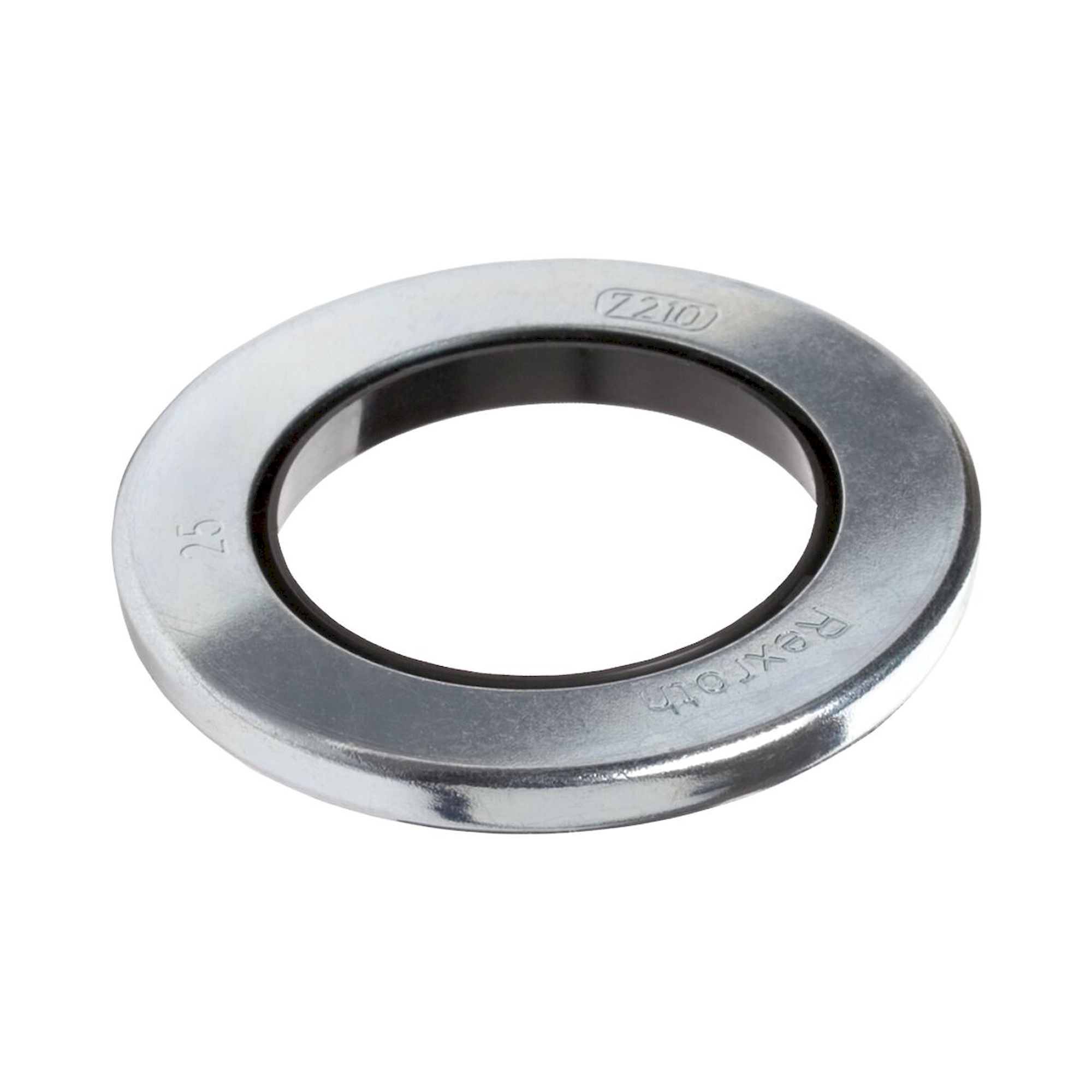

The accessories range for Bosch Rexroth ball bushing guides covers sealing rings, wipers and further mounting parts that ensure reliable operation and maintenance of linear guide units. Sealing rings are available for shaft diameters from 10 to 30 mm, protecting the rolling elements against contamination and moisture ingress. All parts are matched precisely to Bosch Rexroth ball bushing guides and maintain dimensional accuracy throughout the service life of the unit.
| Shaft diameter | Part example | Note |
|---|---|---|
| 10 mm | R133161000 | Standard sealing ring |
| 12 mm | R133111200 / R133151200 | Standard and version with bore |
| 16 mm | R133111600 / R133151630 | Standard, with bore, ground variant |
| 20 mm | R133112000 / R133182010 | Several sealing ring types available |
| 25 mm | R133112500 / R133182510 | Standard and version with bore |

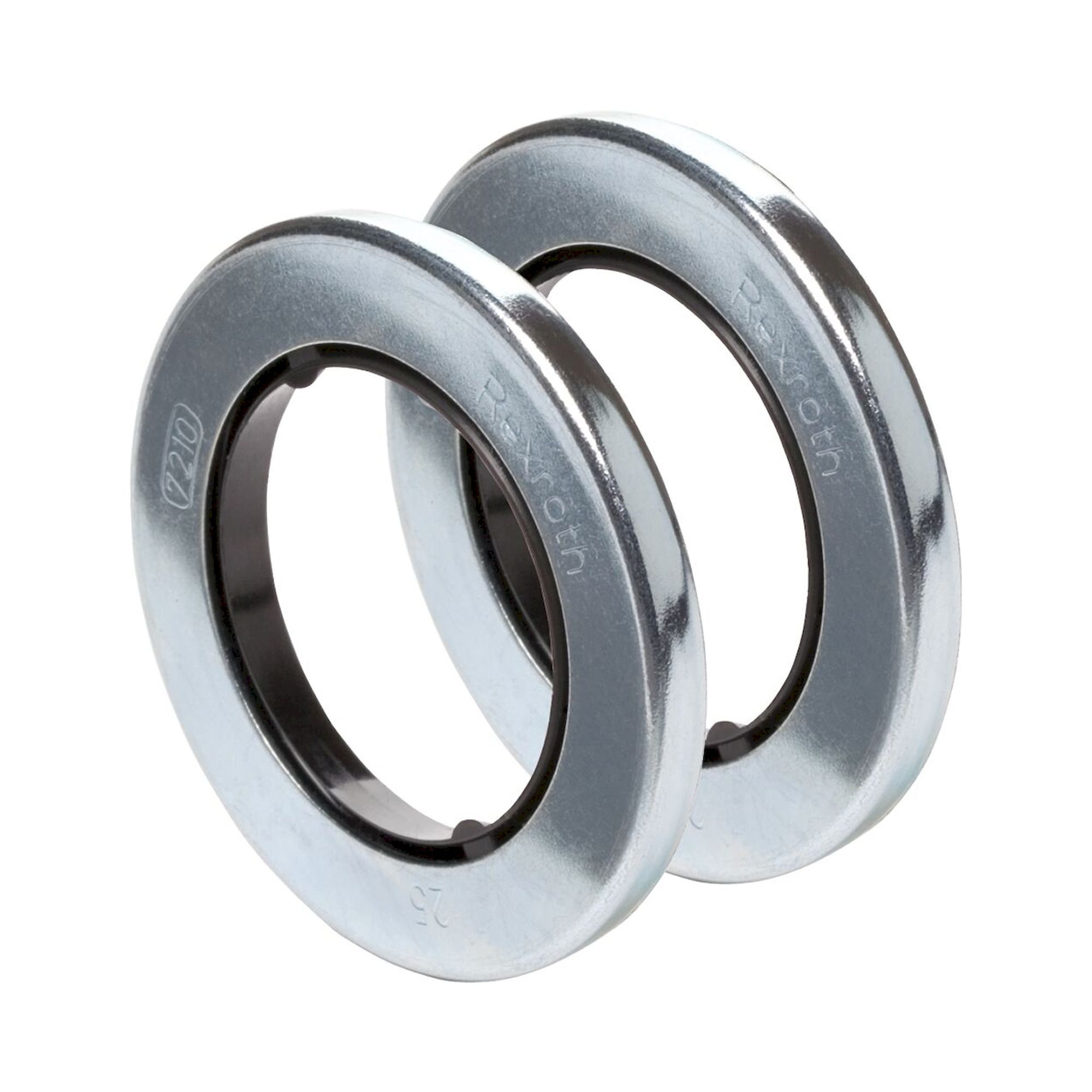

| 30 mm | R133113000 / R133193000 | Standard, with bore, ground variant |
Typical applications: Maintenance and servicing of linear guide systems in machine tools and handling automation, seal replacement at prescribed service intervals, retrofitting wipers in environments with elevated dust levels, and spare-parts holding for existing ball bushing systems.
