ISO 15407-1

Valves and valve systems according to standard

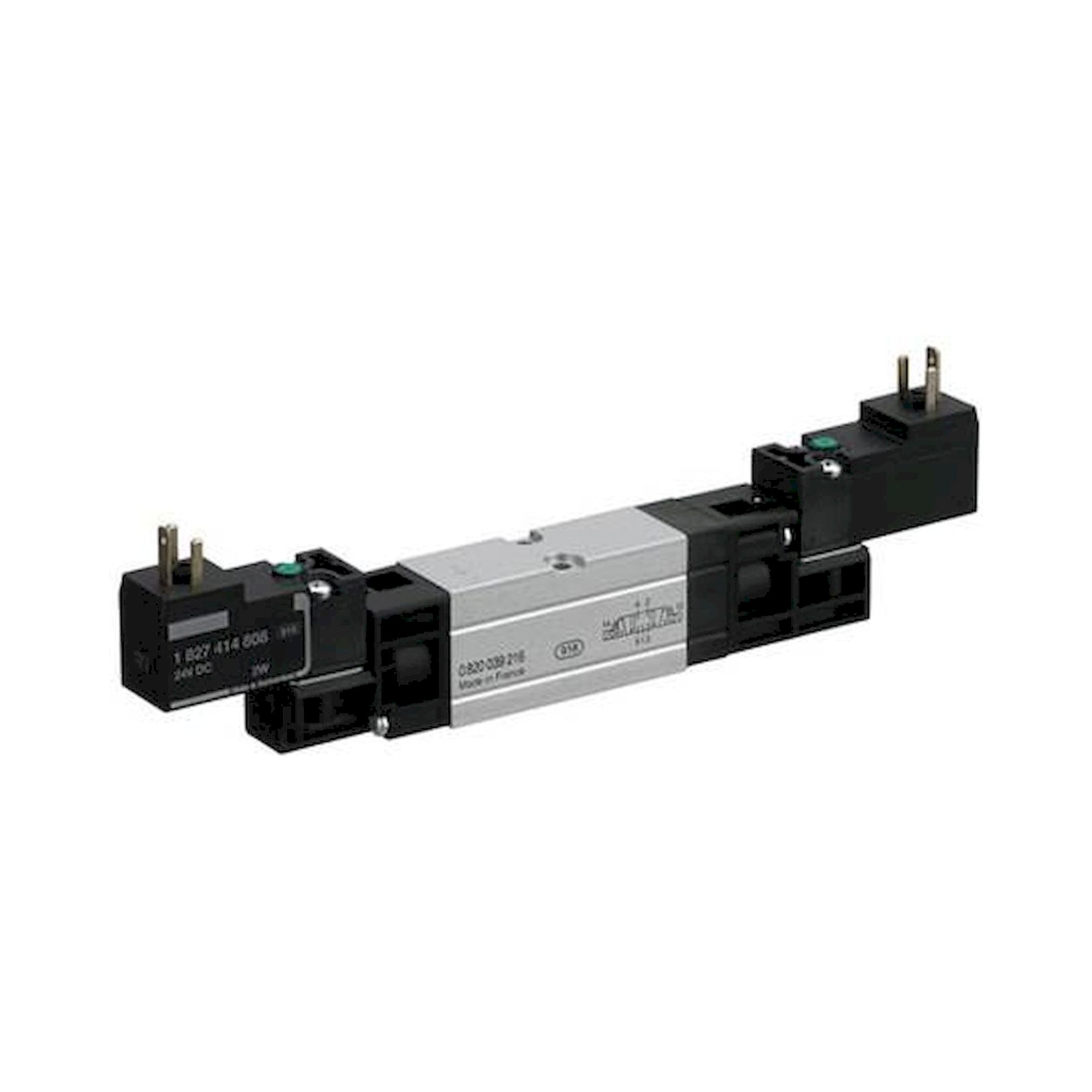

Aventics ISO 15407-1 valves from the CD02-AL series are standard-compliant directional control valves in a dual 3/2-way configuration for size 1. The series is available in several switching positions: 3/2CC (both channels closed), 3/2OO (both channels open), and 3/2OC (one channel open, one closed). Voltage classes available are 24 VDC, 110 VAC, and 230 VAC. Connecting cables from the CN2 series (M12x1.75, 3 m and 5 m) and socket assemblies from the CN1 series are available to simplify electrical installation.

✓ ISO 15407-1 compliant - flange and bolt pattern per standard, compatible with ISO 15407-1 sub-bases from other manufacturers
⚙ Dual 3/2-way function - both directional valves integrated in one body; CC, OO, and OC variants for different normal positions
⚡ Voltage classes 24 VDC, 110 VAC, 230 VAC - CD02 solenoids for all common supply voltages
↕ Connecting cables CN2 (3 m / 5 m, M12x1.75) - pre-wired leads for fast electrical installation
🛡 Socket assemblies CN1 - connector sockets with integrated cable for direct field connection without junction box

Type codeNormal position channel ANormal position channel BVoltage
CD02-3/2CCBlockedBlocked24 VDC, 110/230 VAC
CD02-3/2OOOpen (pass-through)Open (pass-through)24 VDC, 110/230 VAC
CD02-3/2OCOpen (pass-through)Blocked24 VDC, 110/230 VAC

Typical applications: Compact pneumatic islands for handling automation and assembly cells; systems where ISO 15407-1 sub-base plates are already installed and replacement valves are needed; control circuits for single-acting cylinders (normal position blocked) and dual-channel applications in confined spaces; food-processing and packaging machinery requiring quick and simple valve replacement.

We can't find products matching the selection.
What is ISO 15407-1?
ISO 15407-1 specifies standards for pneumatic valves and valve systems ensuring compatibility and interoperability.
Who manufactures ISO 15407-1 compliant valves?
Aventics is one of the manufacturers that produce ISO 15407-1 compliant valves for pneumatic applications.
Where can I find Aventics valves and valve systems?
Aventics valves and valve systems can be found on the ESD Equipment website under the pneumatic section.
Why are standardized valves important?
Standardized valves ensure compatibility, reliability, and efficiency in pneumatic systems across different manufacturers.
Are ISO 15407-1 valves used in all industries?
ISO 15407-1 valves are commonly used in industries requiring pneumatic systems, including manufacturing and automation.
How do ISO 15407-1 valves improve system performance?
These valves provide reliable and efficient operation, ensuring seamless integration and consistent performance in pneumatic systems.
Can I purchase Aventics valves online?
Yes, Aventics valves can be purchased online through authorized distributors like ESD Equipment.
