Valves Tiger 2000
Universal directional control valves

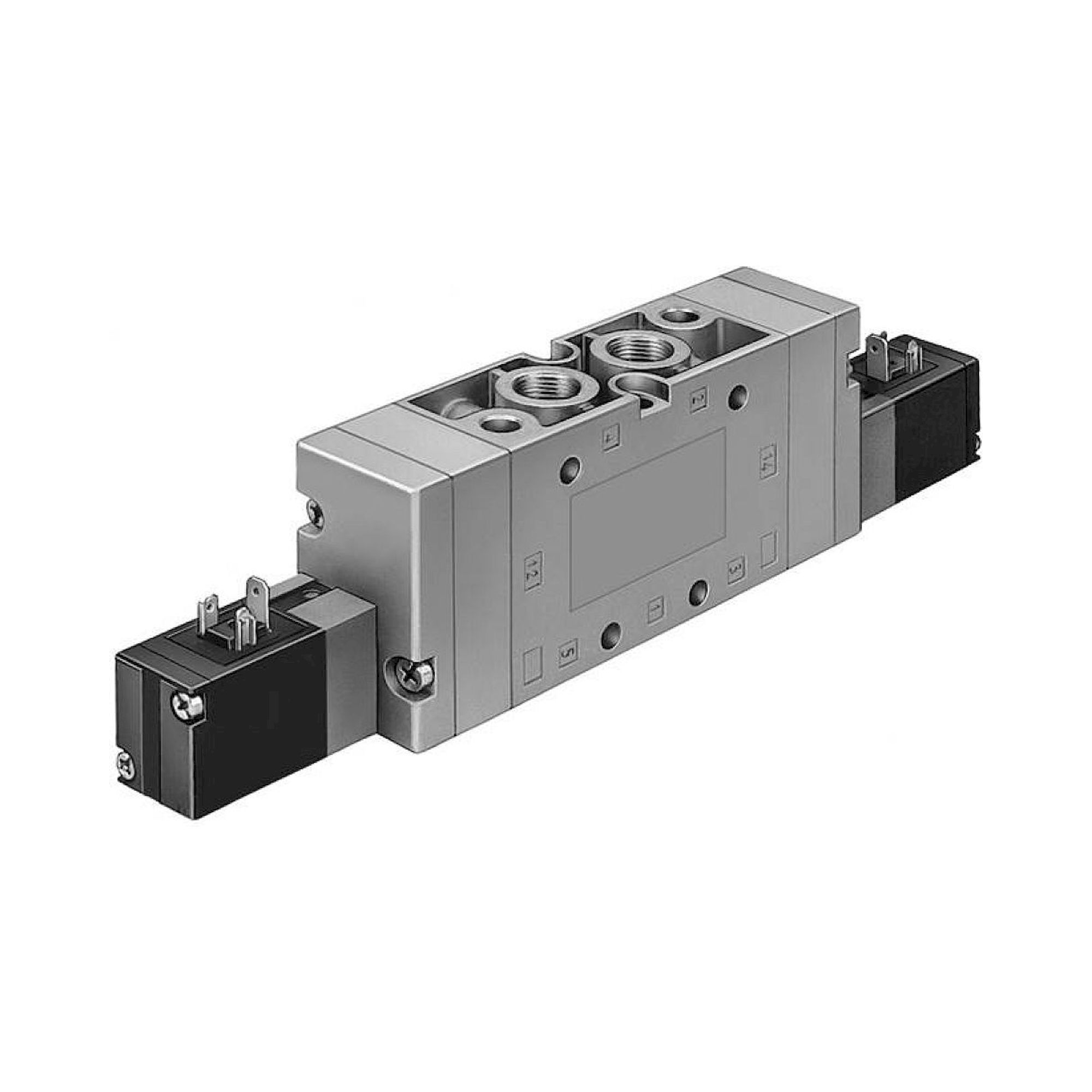

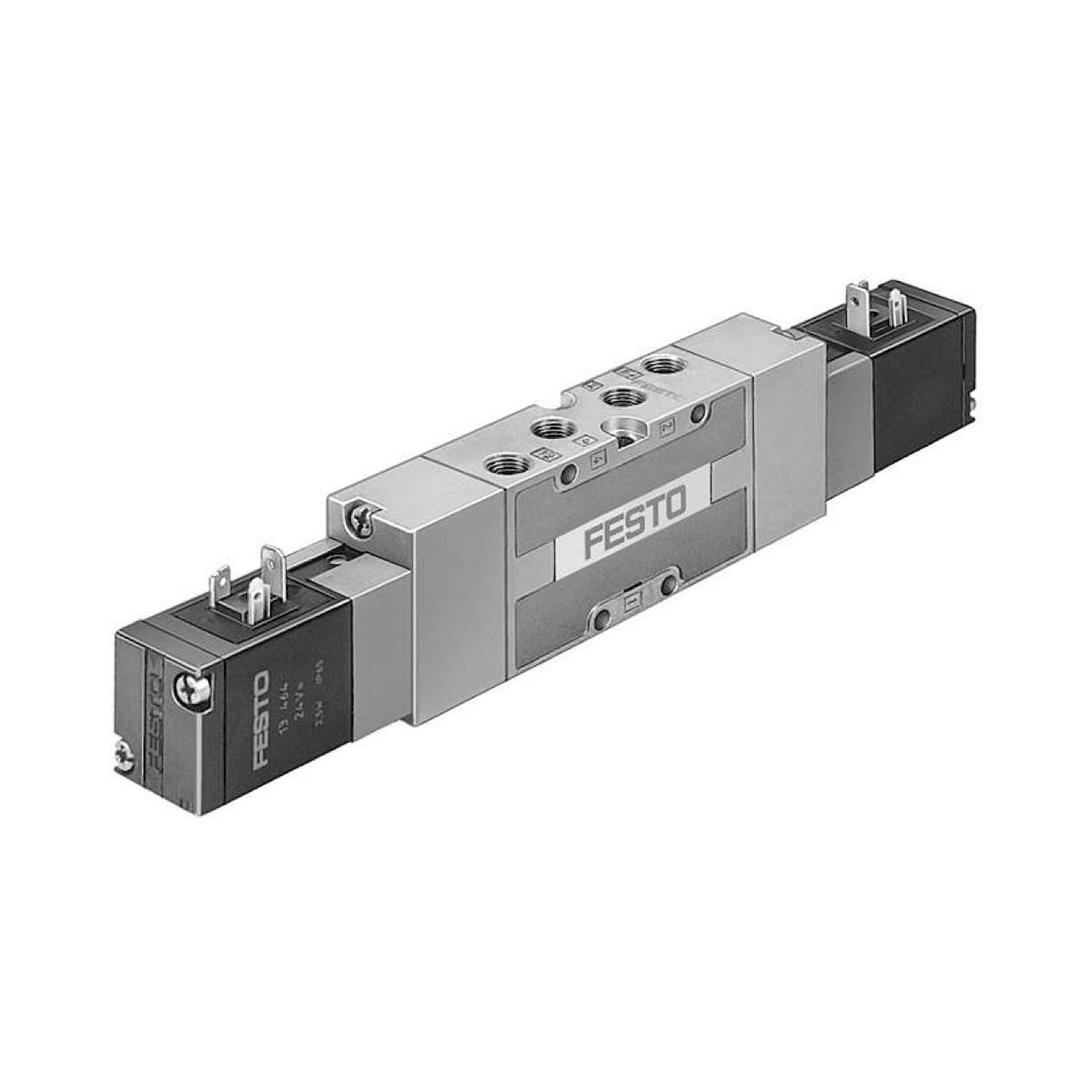

The Festo Tiger 2000 valves are compact 5/2- and 5/3-way solenoid valves from the J, JMFH, JMVH and MFH series in port sizes 1/8, 1/4 and 3/8 inch. They are supplied both as purely pneumatically actuated basic valves (J series) and as single- and double-actuated solenoid valves (JMFH, JMVH, MFH series). The construction supports individual and manifold connection via sub-base plates to ISO 5599-1, as well as direct pipe connection.

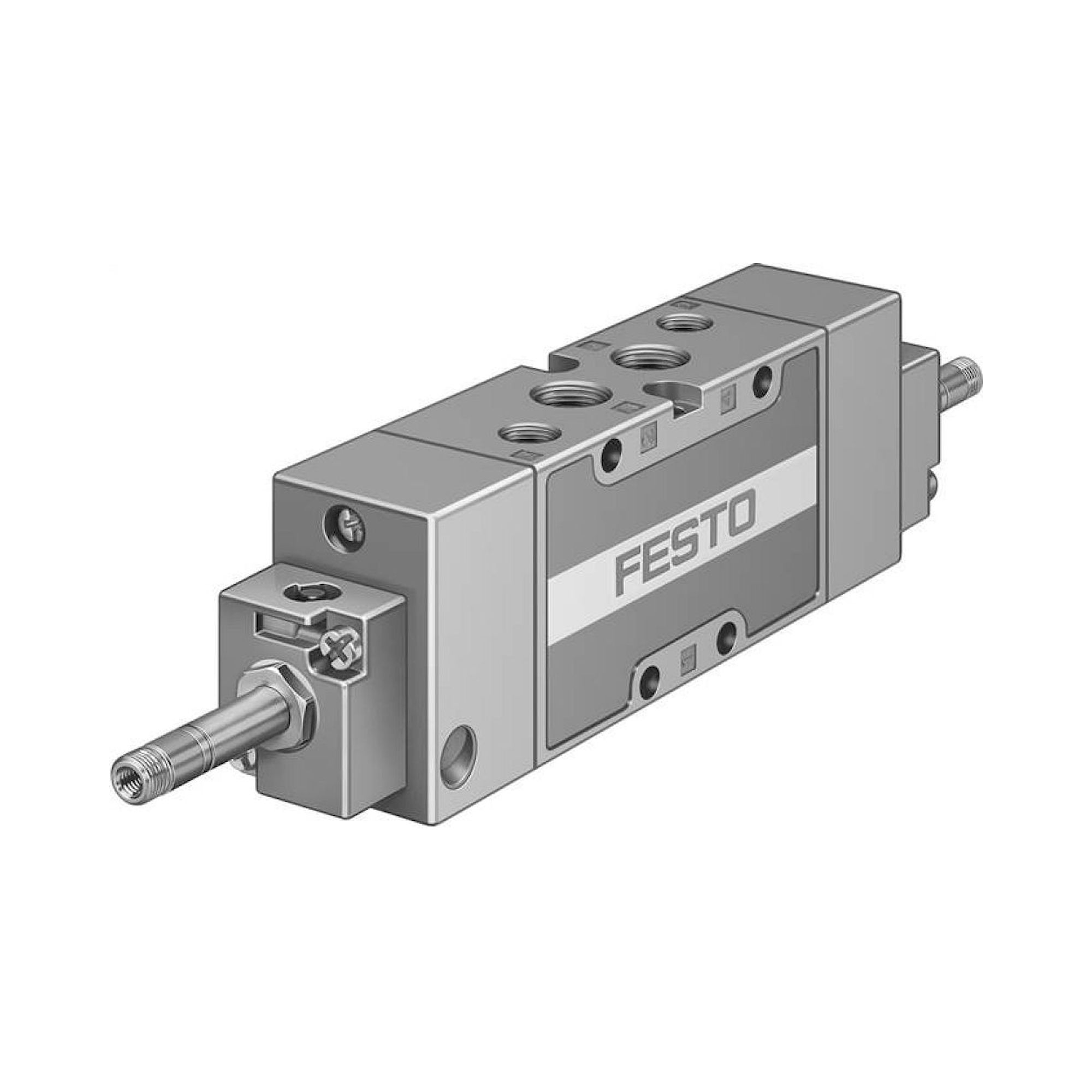

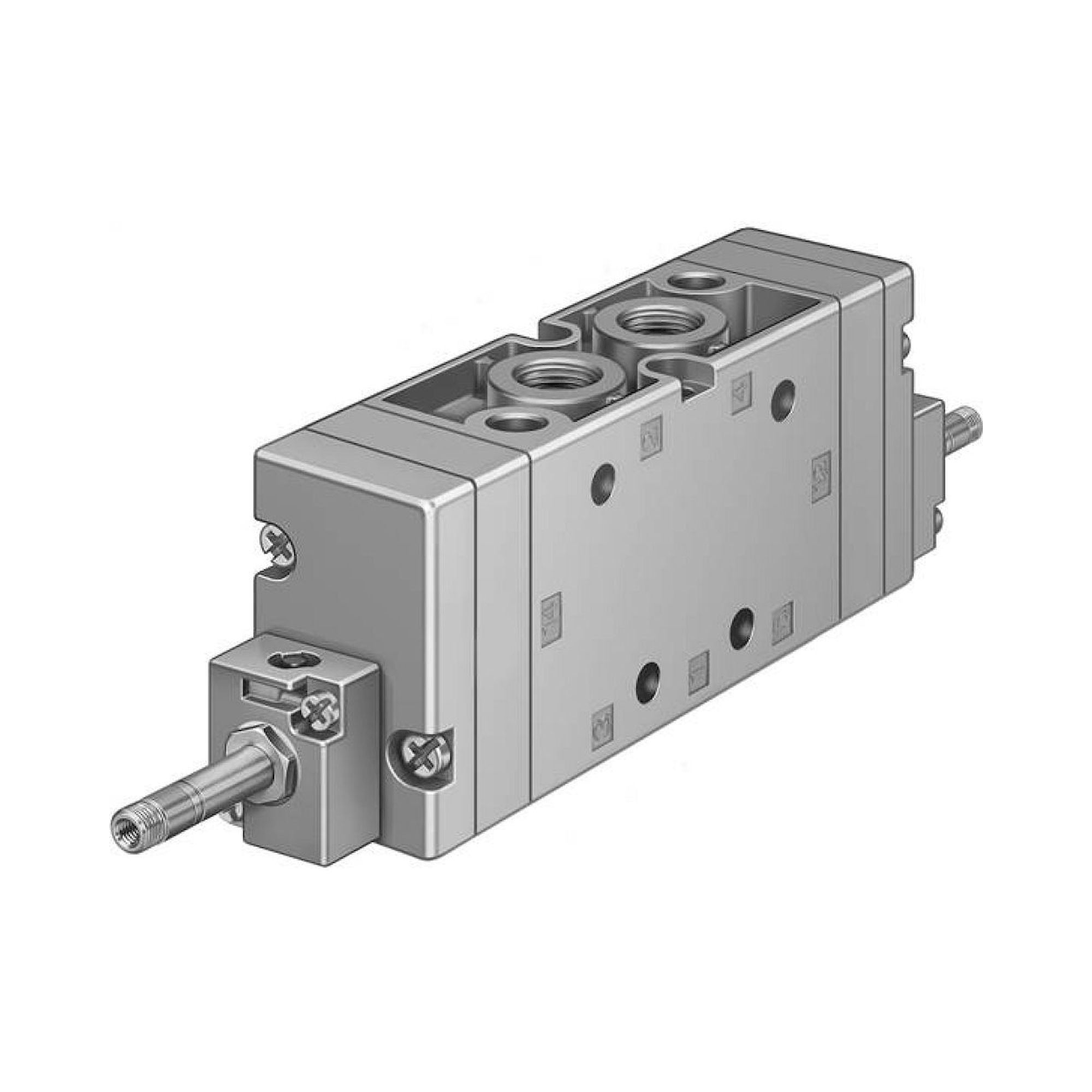

For ATEX areas, EX versions are available, identified by the -EX suffix in the type code (e.g. JMFH-5-1/4-B-EX), covering gas-hazardous zones 1 and 2.
| Series | Function | Ports | Note |
|---|---|---|---|
| J-5-x-B | 5/2, pneumatically actuated | 1/8, 1/4, 3/8" | Basic valve, no solenoid |
| JMFH-5-x-B | 5/2, single solenoid | 1/8, 1/4, 3/8" | Spring return |
| JMFH-5-x-S-B | 5/2, single solenoid | 1/8, 1/4, 3/8" | Spring return, special version |

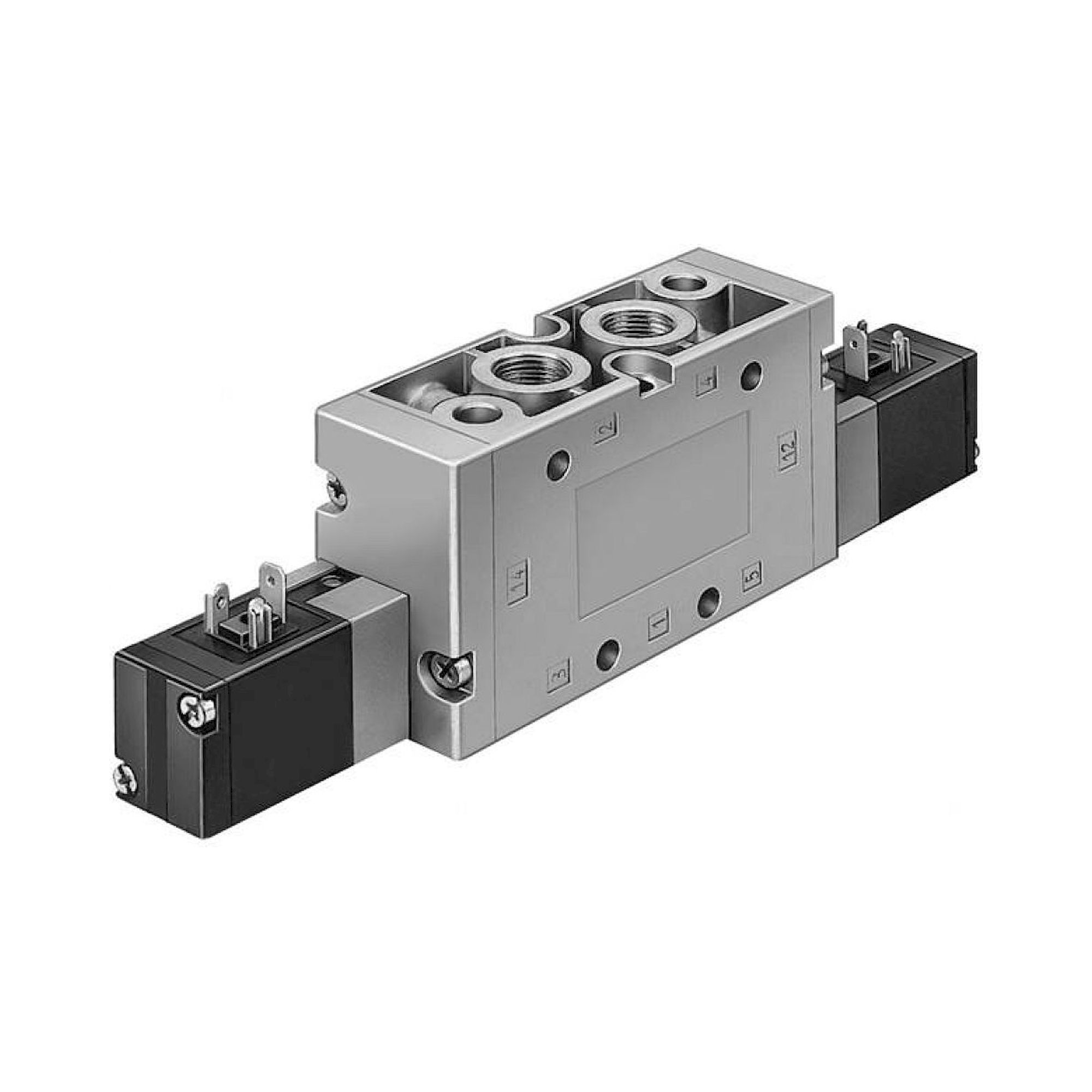

| JMVH-5-x-B | 5/2, double-pilot | 1/8, 1/4, 3/8" | Double-sided, no spring |
| MFH-5-x-B | 5/2, single solenoid | 1/8, 1/4, 3/8" | Classic Tiger 2000 design |
| x-EX | All types | as standard | ATEX zone 1/2 |
Typical applications: Control of pneumatic cylinders and grippers in assembly automation, switching of vacuum circuits, machine control in general mechanical engineering, and applications in gas-hazardous areas using the EX variants (chemical, oil and gas industries).
