Valves VUVS
Universal directional control valves
The Festo VUVS valves are solenoid valves from the VUVG platform in the larger L20 body size with G1/8 port and F7 device interface. The 272-article range offers the widest function programme within the VUVG family. The F7 interface allows direct mounting on compatible CPX/MPA valve terminal sub-plates as well as individual connection use.
The range covers spring-return types (M52-AD, M52-MD), bistable 5/2-way (B52-D), 5/3-way mid-position variants (P53E, P53U, P53C) and manual-override types (M32C, M32U). Each function is also available in the -1C1 version (integrated central connector).
| Code | Function | Note |
|---|---|---|
| M52-AD / M52-MD | 5/2-way, spring return | AD = individual, MD = mid actuation |
| B52-D | 5/2-way, bistable | D = direct connection |

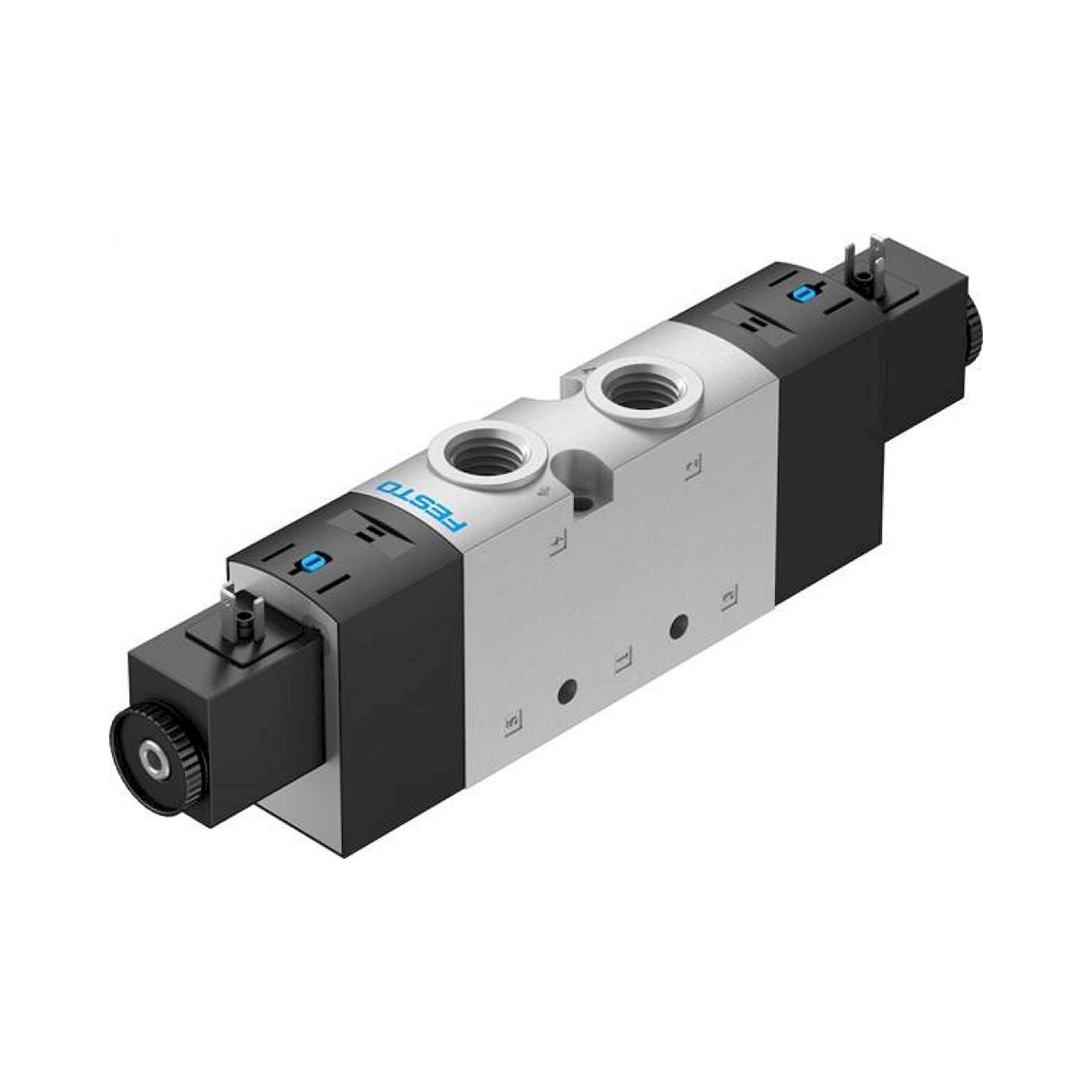

| P53E-MD / P53U-MD / P53C-MD | 5/3-way | Mid-position E / U / C |
| M32C-AD / M32U-AD | 3/2-way | Manual override with detent |
| M32C-AZD / M32C-MZD | 3/2-way, ZT outlet | Spring-sealed outlet |
| x-1C1 | As standard | Central connector version |
Typical applications: Control of cylinders with medium to large piston areas via G1/8 port, flexible valve terminal architecture on CPX/MPA platform with F7 sub-plate, multi-axis handling with 5/3-way mid-position control, and decentralised robot axis supply in manufacturing automation.
