What are Festo cassette valves and what industrial applications do they serve?

Festo cassette valves are compact 5/2-way directional control valves designed for integration into pneumatic manifold systems and automation equipment. These valves feature interchangeable cassette construction allowing solenoid, pneumatic, or manual actuation variants like the CJM, CJ, and CL series with standardized mounting interfaces. Primary applications include packaging machinery, automotive assembly lines, material handling systems, and process automation where space-efficient pneumatic control is required. Industries utilizing these valves include automotive manufacturing, food processing, pharmaceutical production, and semiconductor fabrication where precise directional control of compressed air actuators is essential.

What are the key technical specifications for selecting Festo cassette valves?

Festo cassette valves operate at working pressures from 2 to 10 bar with port connections available in 1/4 inch and 1/2 inch thread sizes as shown in models like the C-5/2-1/4 and C-5/2-1/2 variants. Flow rates typically range from 900 to 2000 l/min depending on valve size and pressure differential. Selection criteria include actuation type with solenoid versions requiring 24V DC control voltage, pneumatic pilot pressure requirements of 2.5 bar minimum, and ambient temperature range of -10°C to +60°C. The 5/2-way configuration provides double-acting cylinder control with spring return or pilot return functionality depending on the specific model variant chosen.

Which international standards and certifications apply to Festo cassette valves?

Festo cassette valves comply with ISO 5599-1 for pneumatic valve mounting interfaces ensuring interchangeability between manufacturers and standardized manifold integration. Electrical variants meet IEC 60204-1 safety requirements for electrical equipment in machinery applications with IP65 protection class against dust and water ingress. ATEX certification is available for explosive atmosphere applications in Zone 2 environments when specified, meeting Directive 2014/34/EU requirements. The valves also conform to REACH regulation for chemical substance compliance and carry CE marking indicating conformity with European machinery safety directives including EN ISO 13849 for safety-related control systems.

What are the differences between Festo CJM, CM, CJ, and C series cassette valve variants?

The C-5/2 series represents the basic valve body without integrated actuation requiring separate pilot valves or manual operators. CJ variants add integrated pneumatic actuation with internal pilot control requiring external pilot pressure for switching operations. CJM models combine the pneumatic base with solenoid override capability allowing both pneumatic and electrical control options for maximum flexibility. CM series valves provide pure solenoid actuation with 24V DC coils and optional manual override functions, designed for direct electrical control applications without pneumatic pilot requirements.

What installation requirements and system compatibility considerations apply to Festo cassette valves?

Festo cassette valves require mounting on standardized manifold blocks conforming to ISO 5599-1 with M5 through-holes for valve installation screws and proper O-ring sealing between valve and manifold surfaces. Supply pressure must be filtered to 40 μm particle size with oil content below 1 mg/m³ to prevent internal contamination and ensure valve longevity. Electrical connections on solenoid variants use M8 or M12 connector systems rated for industrial environments with cable bend radius requirements of minimum 10 times cable diameter. Manifold blocks must provide adequate heat dissipation for solenoid variants generating approximately 8 watts per coil during continuous operation.

What safety ratings and operating parameters define Festo cassette valve performance?

Festo cassette valves achieve IP65 protection rating against solid particles and water jets making them suitable for industrial washdown environments and outdoor applications. Operating temperature range spans -10°C to +60°C for standard versions with extended temperature variants available for extreme conditions up to +80°C. Maximum working pressure reaches 10 bar with burst pressure tested to 40 bar according to ISO 5599 standards, while minimum operating pressure starts at 2 bar for reliable switching performance. Solenoid variants incorporate Class F insulation rated for 155°C maximum coil temperature with built-in suppression diodes for electrical spike protection during switching operations.

What maintenance schedule and service life expectations apply to Festo cassette valves?

Festo cassette valves require inspection every 1 million switching cycles or annually whichever occurs first, with particular attention to O-ring seal integrity and pilot orifice cleanliness. Expected service life reaches 10 million switching cycles under normal operating conditions with filtered air at recommended pressure levels and proper installation procedures. Preventive maintenance includes quarterly compressed air quality verification ensuring maximum 40 μm particle filtration and oil content below 1 mg/m³ to prevent internal wear. Solenoid coil replacement intervals depend on duty cycle with continuous operation reducing lifespan to approximately 5 years while intermittent duty extends service life beyond 10 years in typical industrial applications.

Cassette valves

Universal directional control valves

Festo cassette valves are 5/2-way directional control valves in cassette format for direct mounting on manifold plates or valve blocks without pipe connections. The range includes basic valves (C-5/2, CJ-5/2, CL-5/2), solenoid valves with manual override -CH and spring return -FH (CJM, CM) in port sizes 1/4 and 1/2 inch. The 14 articles cover single- and double-actuated versions.

Cassette-type directional valves can be fitted to the base plate without tools and locked by a fastener, making valve replacement possible without disconnecting the pipework.

⚙ Cassette construction, 5/2-way - direct placement on manifold plate, no external pipe connections

✓ Port sizes 1/4 and 1/2 inch - two nominal bore sizes for different flow requirements

⚡ -CH and -FH actuation options - CH (manual override) and FH (spring return) available

📦 Fast valve exchange - cassette replaceable without dismantling the pipework

Series	Function	Port size	Actuation

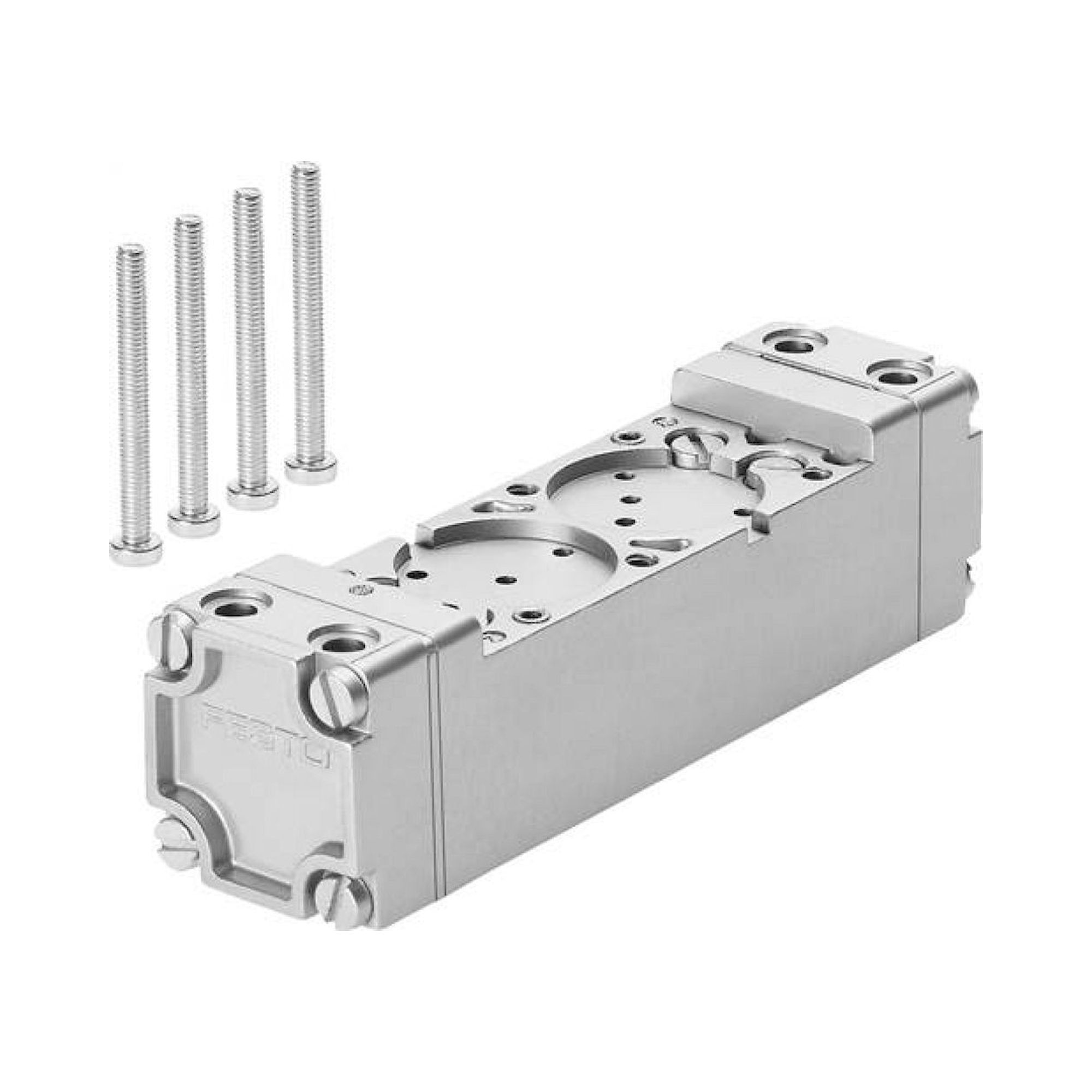

C-5/2-1/4, C-5/2-1/2	5/2-way, basic valve	1/4, 1/2"	Pneumatic

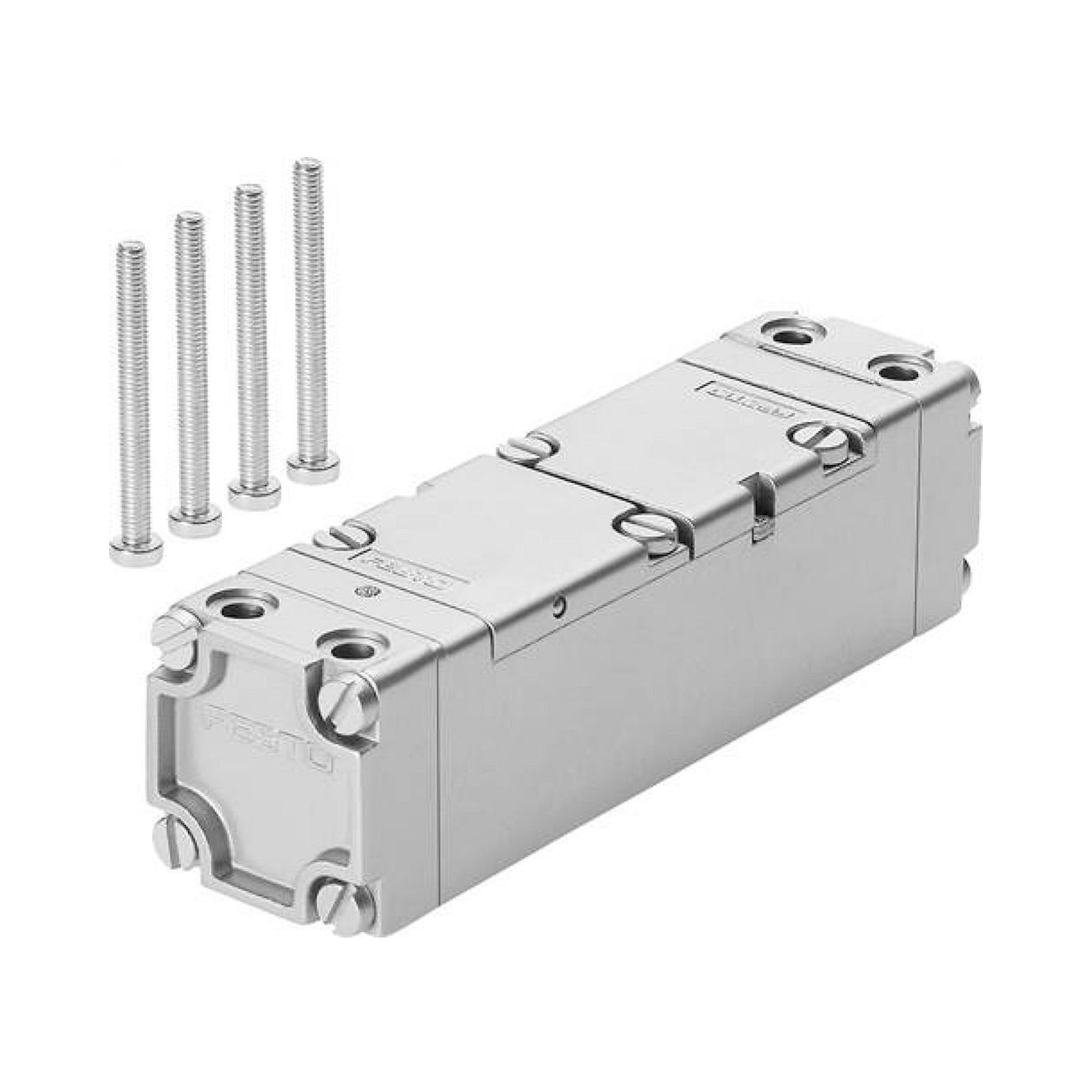

CJ-5/2-1/4, CJ-5/2-1/2	5/2-way	1/4, 1/2"	Pneumatic

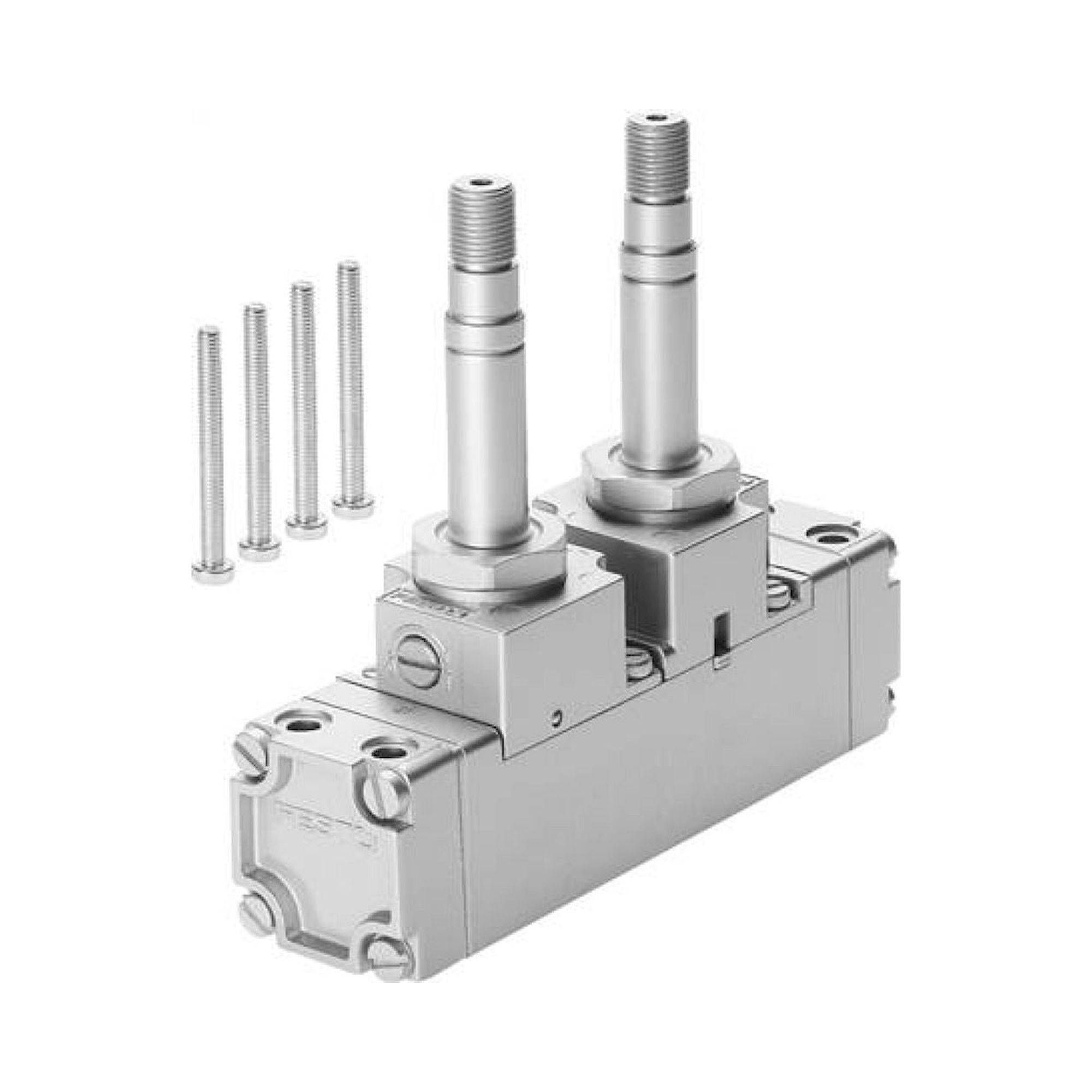

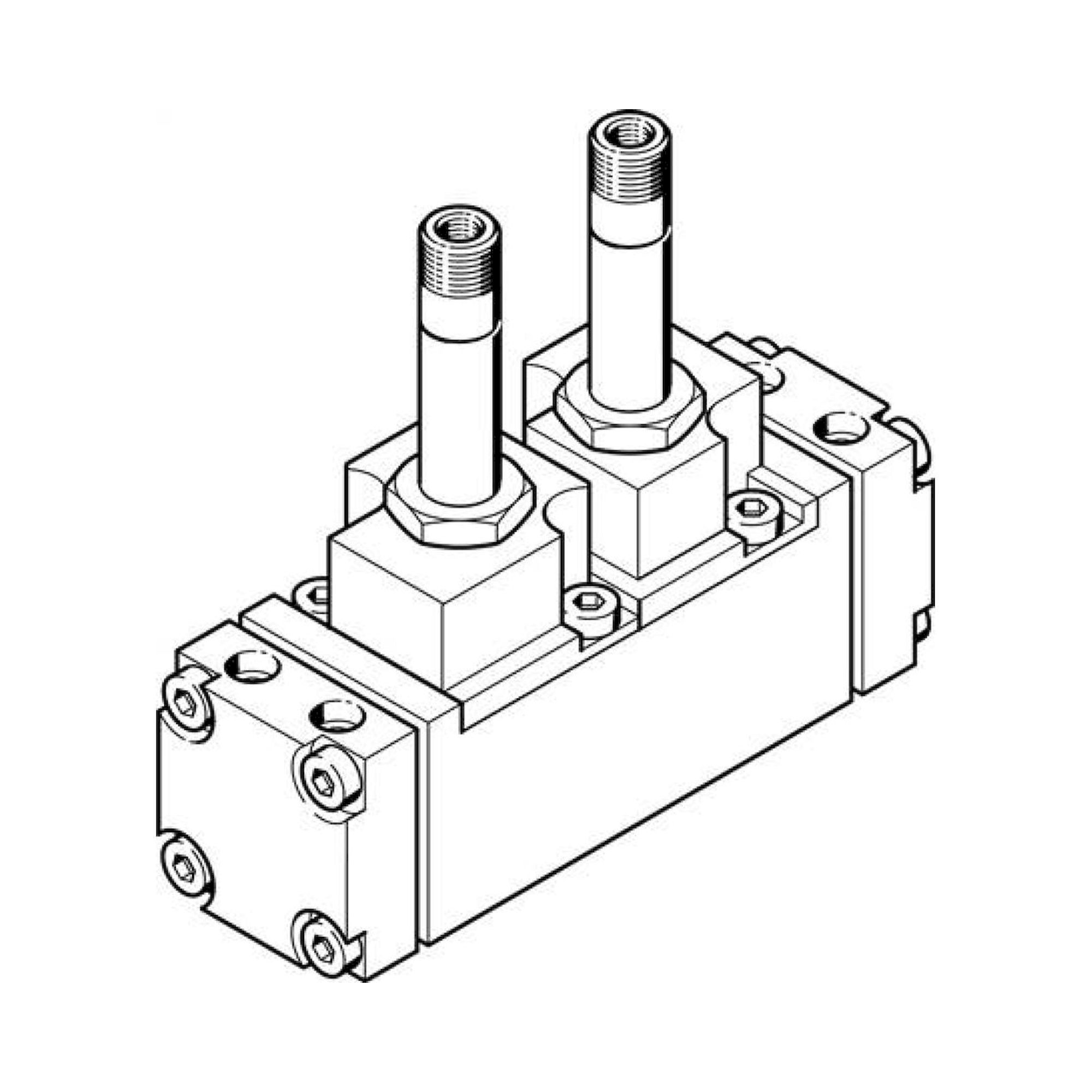

CJM-5/2-1/4-CH / -FH	5/2-way	1/4"	Solenoid, CH / FH
CJM-5/2-1/2-CH / -FH	5/2-way	1/2"	Solenoid, CH / FH

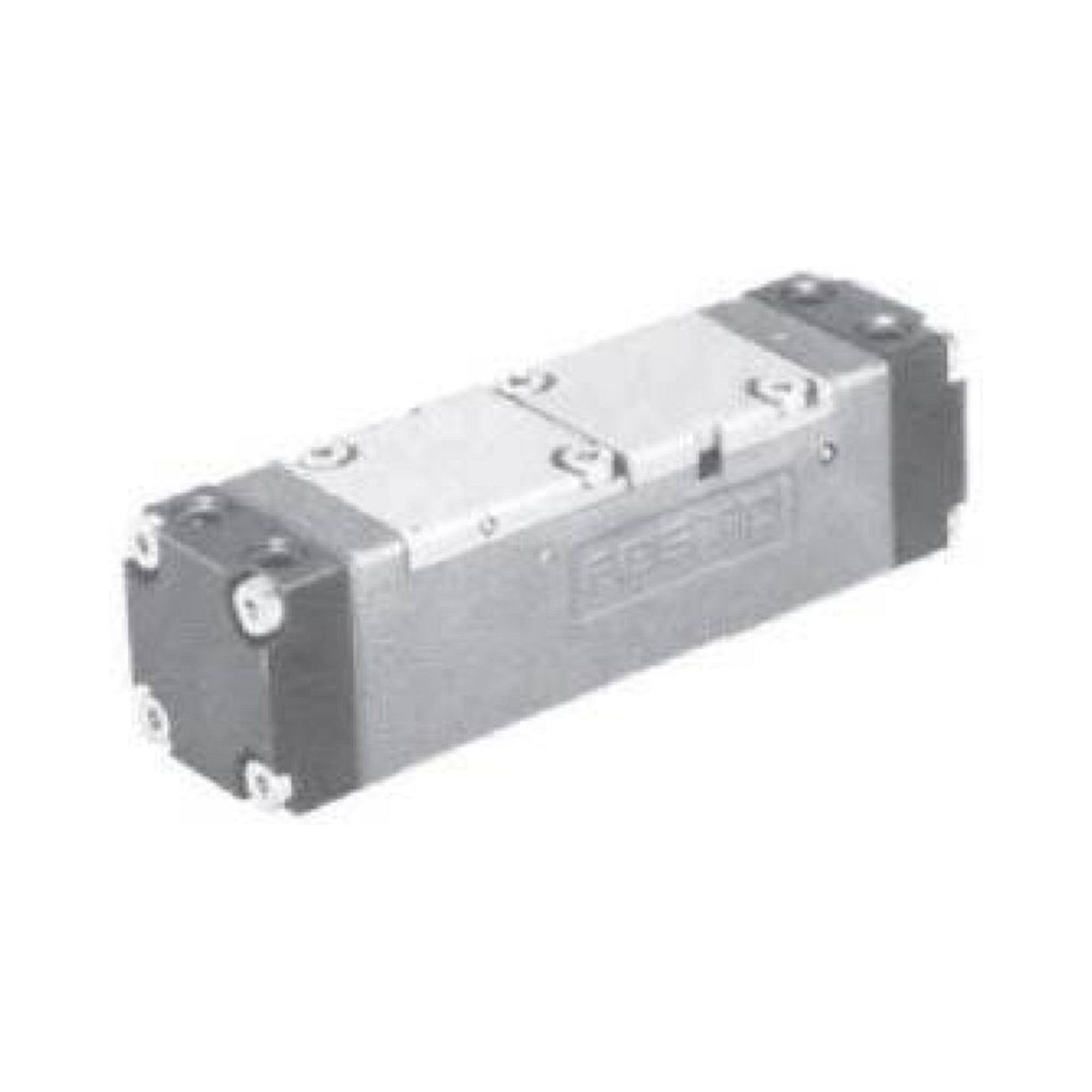

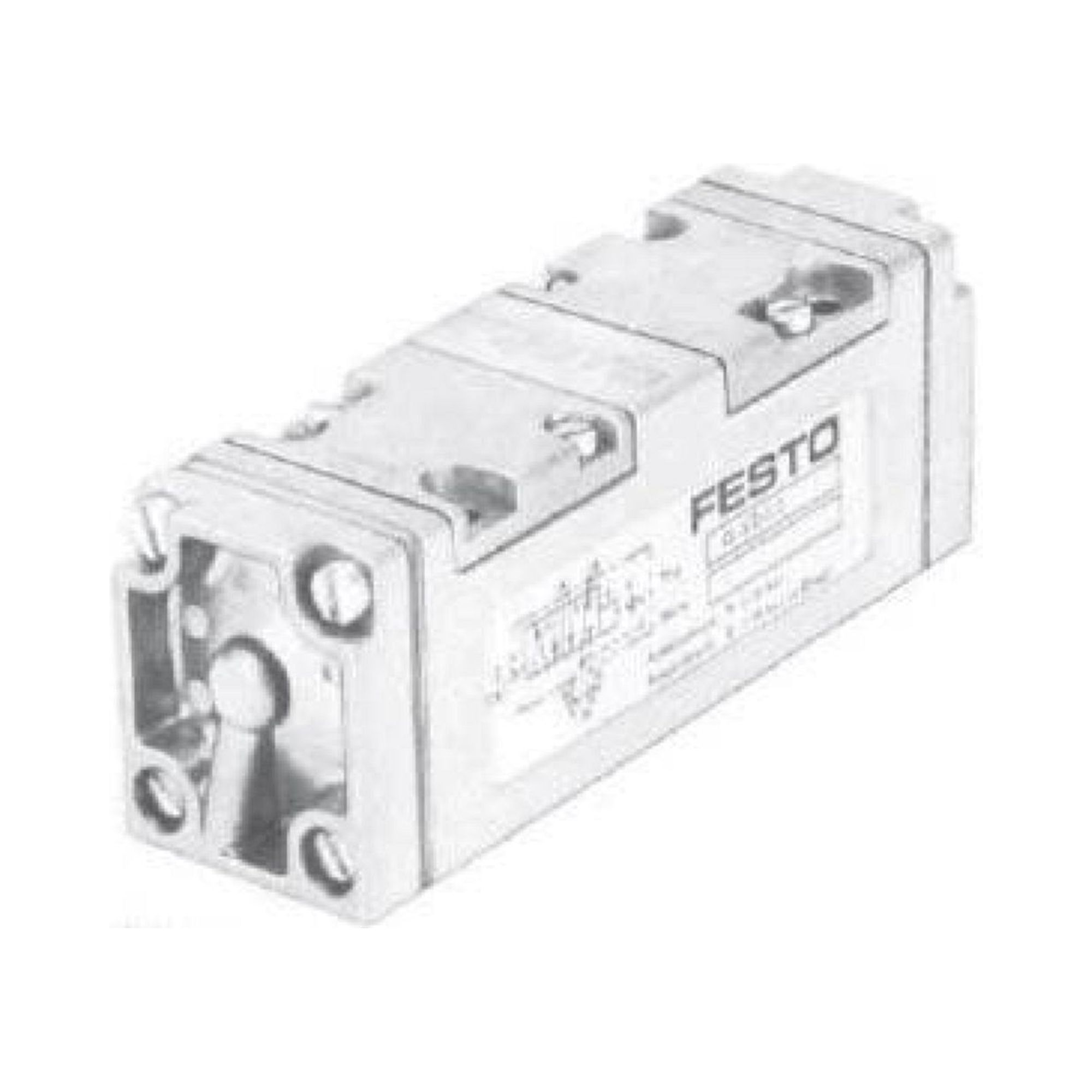

CL-5/2-1/4, CL-5/2-1/2	5/2-way	1/4, 1/2"	Pneumatic, lightweight

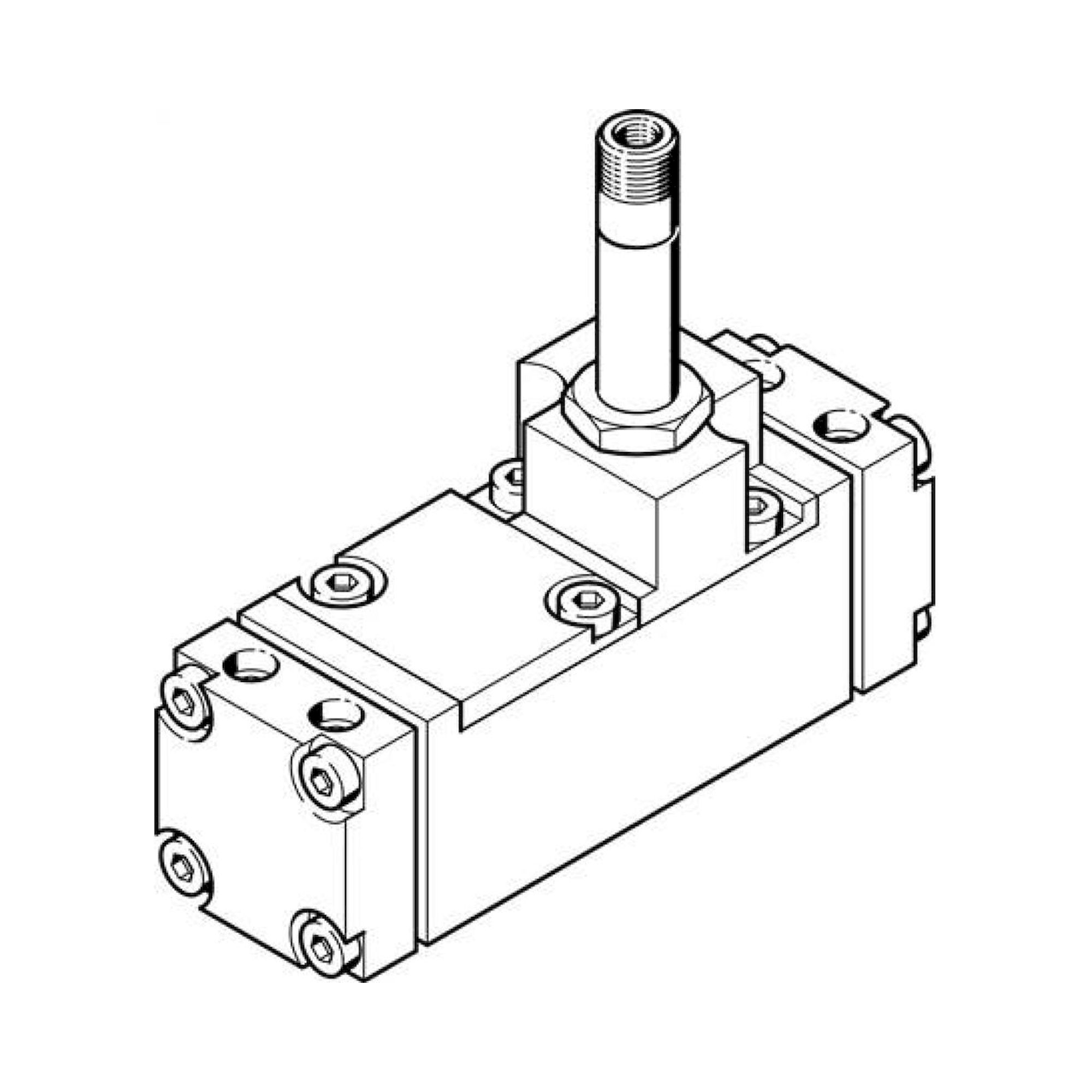

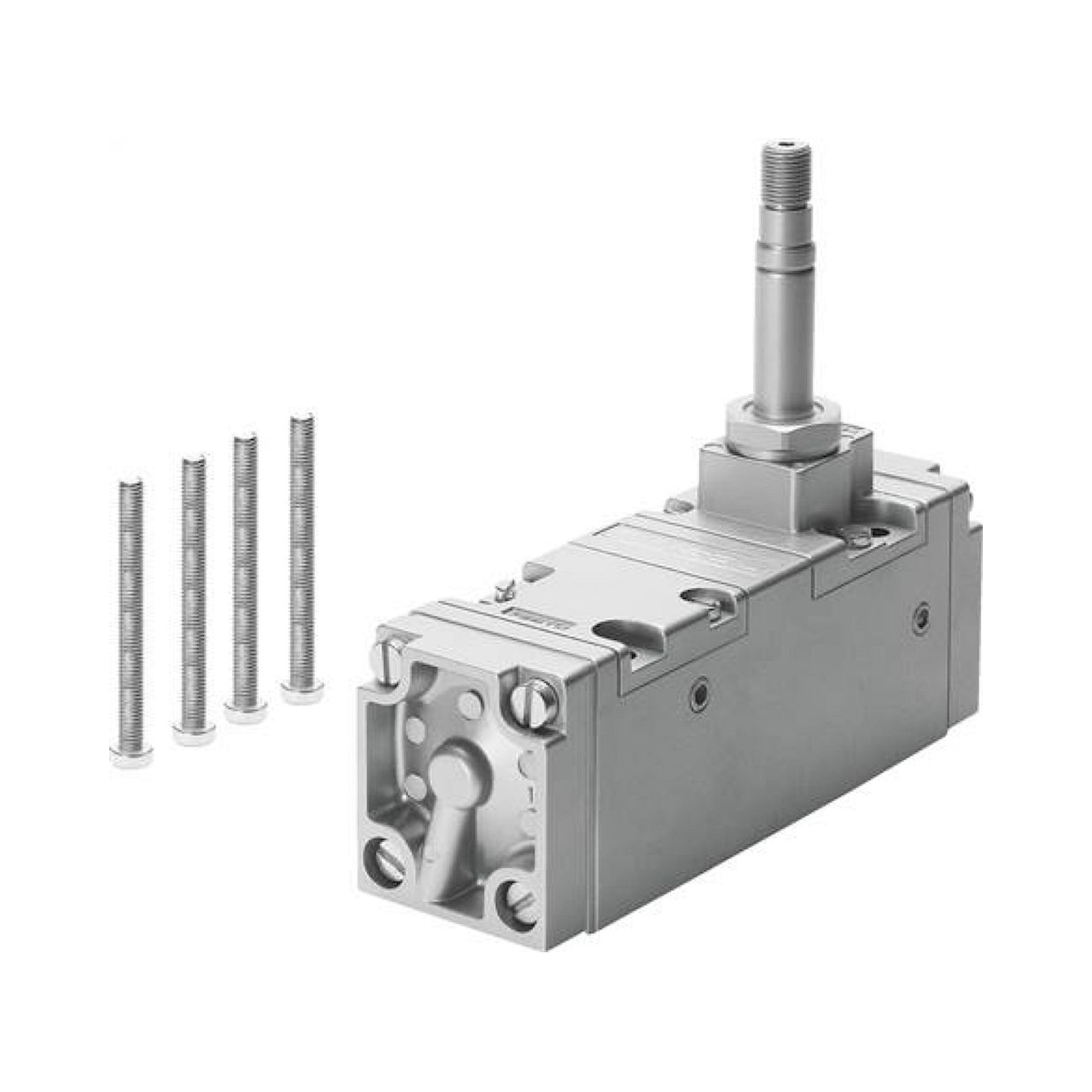

CM-5/2-1/4-CH / -FH	5/2-way	1/4"	Solenoid, CH / FH
CM-5/2-1/2-CH / -FH	5/2-way	1/2"	Solenoid, CH / FH

Typical applications: Manifold plate valve arrangements in machine building, plant requiring frequent valve changes without disconnecting pipework, pneumatic control blocks in presses and handling systems, and retrofit of existing valve blocks to electropneumatic actuation.
