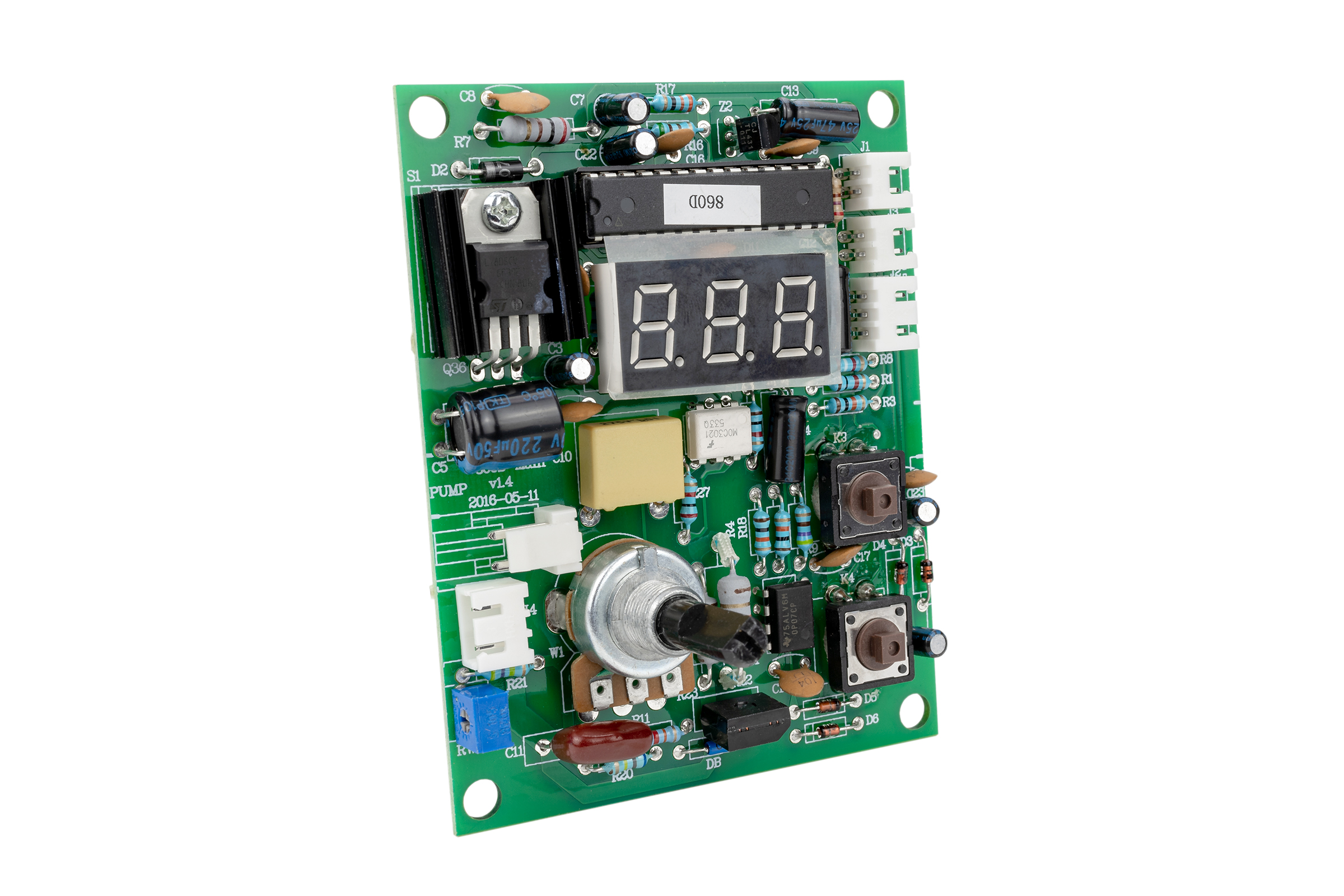

Main board for the Quick 860DA hot air soldering station. The 90 x 80 mm assembly holds the station control and is the first thing to check when heater or blower stay dead despite sound wiring. A service part for shops repairing 860DA units in house.
Haupt-Platine für Heißluft-Lötstation 860DA - Quick QUHP860DA
QUICK
Original product
Net price (excl. VAT)
€6.00
Item
QCK-QUHP860DA
Manufacturer no.
QUHP860DA
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.QUHP860DA
ConditionNew
Article
QCK-QUHP860DA
Frequently Bought Together
-
This Item:
€6.00
-
Gehäusefront 3101 grau für Lötstation 3104 - Quick QUGHF3104
€3.28
-
Hot-air rework station digital 1000W ESD, 100-500°C, 1-60 L/min - Quick 861DW
€251.26
Total price
On a hot air station the heater, the blower and the temperature control all depend on a single control board. If it fails, the 860DA stays silent even though the handpiece and the heating element are fine. This replacement board of 90 x 80 mm and 0.07 kg puts the station back to work without buying a new unit.
Key points
- Main board of the 860DA hot air soldering station
- Dimensions 90 x 80 mm, weight 0.07 kg
- Central assembly driving heater and air flow
- Economic alternative to replacing the complete station
Technical data
| Manufacturer number | QUHP860DA |
| Brand | Quick |
| Component | Main board |
| Dimensions | 90 x 80 mm |
| Weight | 0.07 kg |
| Fits | Quick 860DA |
| Equipment type | Hot air soldering station |
Application
Fitting belongs to a qualified electronics technician, since the station has to be opened and disconnected from mains. Check fuse, mains lead and handpiece connector first so that the wrong assembly is not replaced.
Scope of delivery
One main board. Housing, handpiece, heating element, cables and operating elements are not included.
Compatibility
For the Quick 860DA. Other Quick hot air stations such as the TR1300A use their own control assemblies.
| Manufacturer Nr. | QUHP860DA |
|---|---|
| Manufacturer | Quick |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
