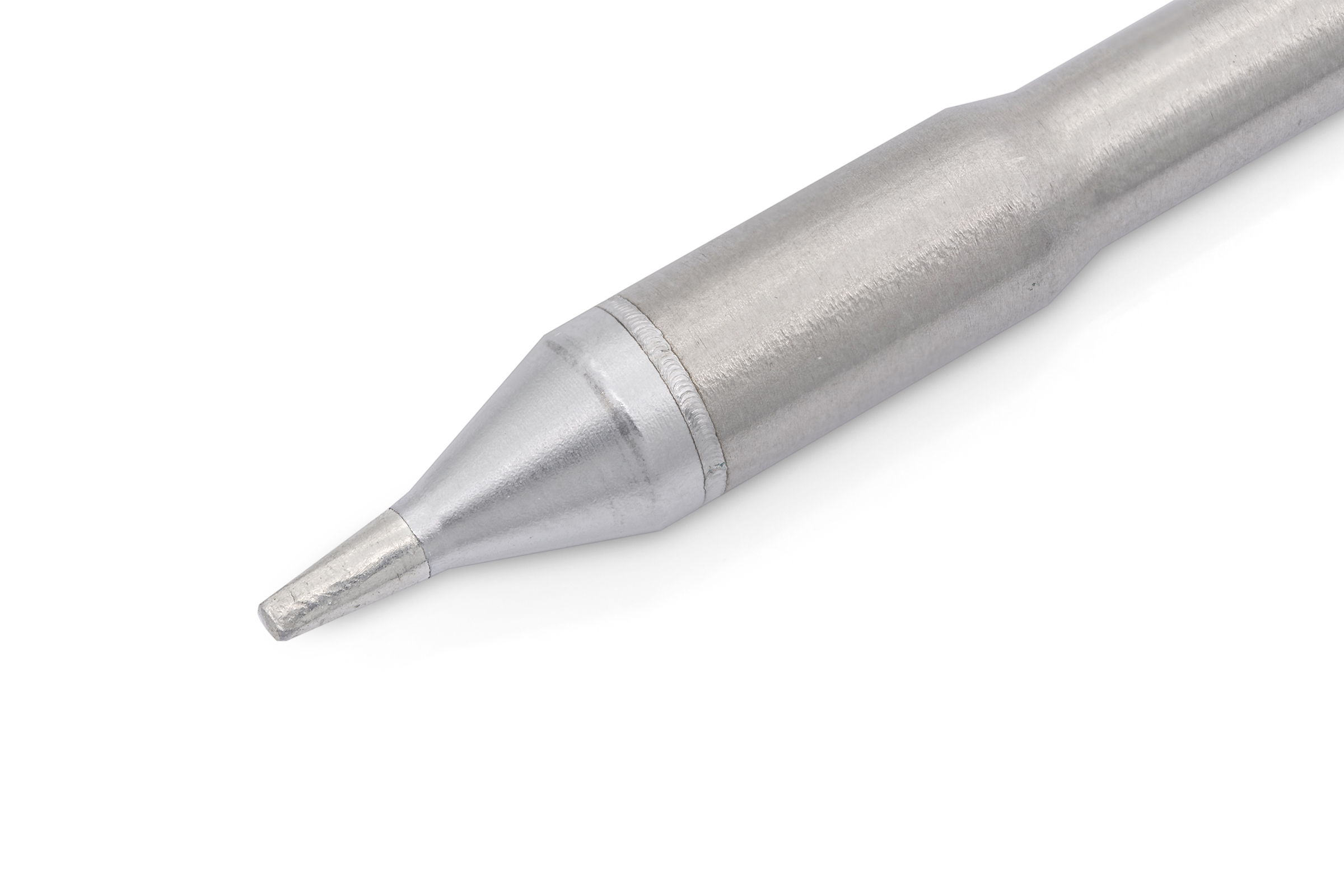

Chisel blade 1.2 mm wide and only 0.6 mm thick, so it reaches a single pin in a SOIC or SOT row without heating its neighbours. Tinning runs over 4 mm, enough reservoir to drag a whole pin row in one pass. Suited to 0603 and 0805 chips and fine drag soldering.
Kartuschenlötspitze für TS8, gerade, meißelförmig stumpf 1,2 mm breit x 0,6 mm, 4 mm Lot-benetzt - Quick TSS08-1.2D
QUICK
Original product
Net price (excl. VAT)
€15.08
Item
QCK-TSS08-1.2D
Manufacturer no.
TSS08-1.2D
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TSS08-1.2D
ConditionNew
Article
QCK-TSS08-1.2D
Frequently Bought Together
A round tip transfers too little heat to a flat lead, a wide one bridges to the neighbour. The TSS08-1.2D sits between the two, with a blade 1.2 mm wide and 0.6 mm thick that lies flat on the lead and still stays inside a 1.27 mm pitch.
Key points
- Blade width 1.2 mm covers pad and component termination of an 0603 or 0805 chip at the same time.
- Blade thickness of only 0.6 mm lets the tip enter between closely spaced pins without resting on them.
- Tinning over 4 mm carries a working reservoir when dragging along a pin row.
- Thermocouple inside the cartridge, so the station regulates at the blade rather than at the heater.
- Calibration chip in the tip, station readout is correct after a change with no manual trimming.
Specifications
| Brand | Quick |
| Manufacturer part number | TSS08-1.2D |
| Series | TSS08R rapid cartridge tip |
| Tip shape | chisel, flat face |
| Version | straight |
| Dimensions | 1.2 mm wide x 0.6 mm |
| Tinned length | 4 mm |
| Temperature sensing | thermocouple inside the cartridge |
| Calibration | chip in the tip stores the calibration value |
| Compatible station | Quick TS8, TS8+ |
| Compatible iron | QUELKTSS80A |
| RoHS | compliant |
Use and scope of delivery
Intended for hand placement and rework on 0603 and 0805 chips, SOT packages and SOIC pin rows, and for thin stranded wire on solder lugs. The tip fits the QUELKTSS80A iron of the Quick TS8 and TS8+ stations. Supplied as one cartridge tip without iron or station.
| Manufacturer Nr. | TSS08-1.2D |
|---|---|
| Manufacturer | Quick |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
