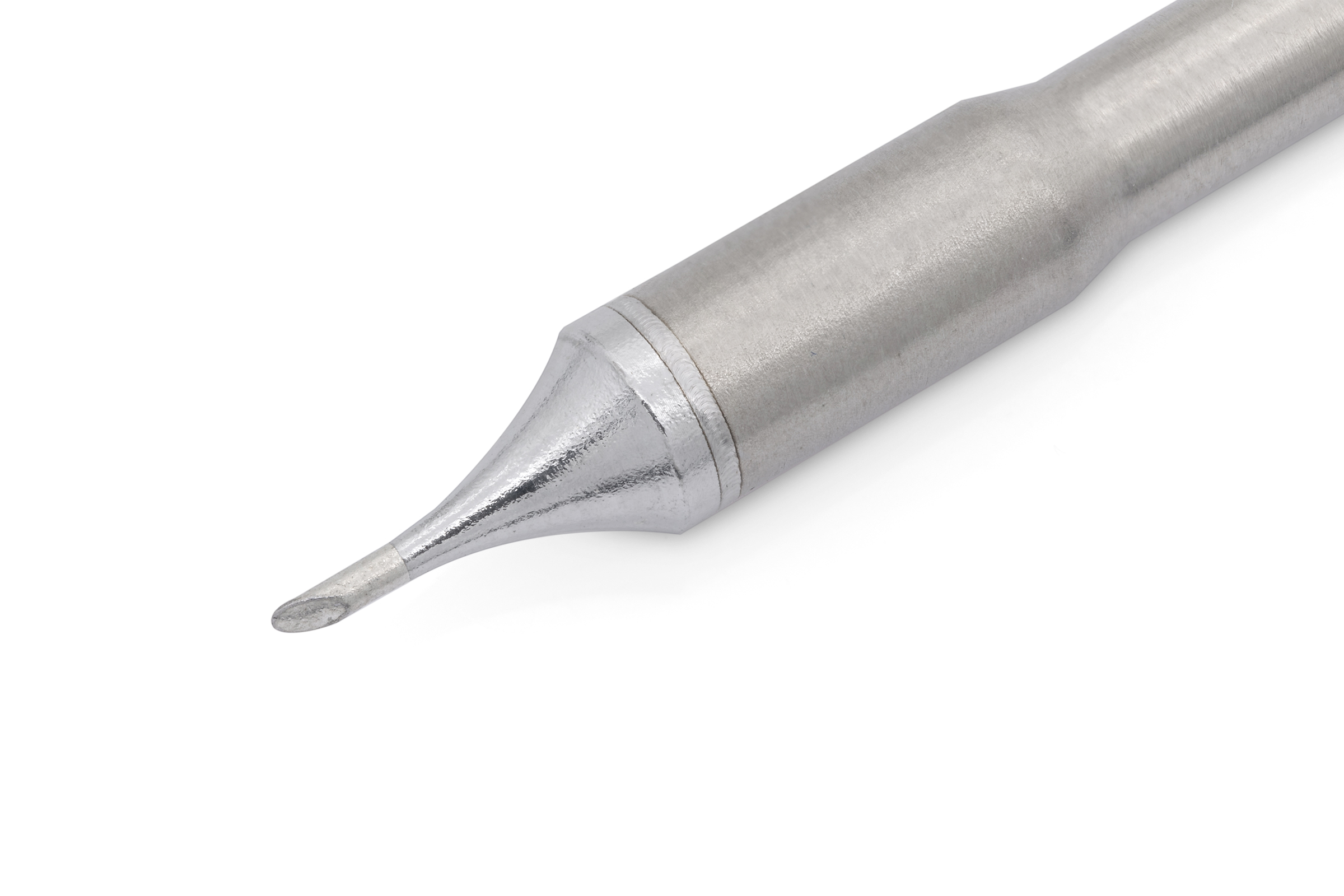

Kartuschenlötspitze für TS8, gerade, angeschrägt 60°, Ø 1 mm rund, 3 mm Lot-benetzt - Quick TSS08-1C

A 60 degree bevel turns the 1 mm round shank into an oval working face. That face holds a small pool of solder which feeds forward as the tip is drawn along the pins, while the narrow leading edge sets the position.

Key points

• Bevel of 60 degrees, the angled face acts as a solder carrier while the leading edge still allows precise placement.
• Round shank of 1 mm keeps the profile compact for access between parts without dropping to the heat transfer of a plain needle point.
• Tinning over 3 mm keeps the reservoir on the bevel instead of letting it run up the shank.
• The bevel picks up excess solder, so bridges between pins can be drawn off without reaching for braid.
• Thermocouple in the cartridge and calibration chip in the tip keep the station reading valid after a change.

Specifications

Use and scope of delivery

For drag soldering fine QFP and SOIC rows, tinning stranded wire and contact pins, and reworking solder bridges. The tip fits the QUELKTSS80A iron of the Quick TS8 and TS8+ stations. Supplied as one cartridge tip without iron or station.
