The 30 degree bent needle at Ø 0.5 mm reaches joints beside tall components and under shielding frames without holding the iron upright. The cartridge brings the QUICK TS11 to 300 °C in 3 seconds and regulates up to 450 °C via the built-in thermocouple. For repairs on populated assemblies with little clearance.

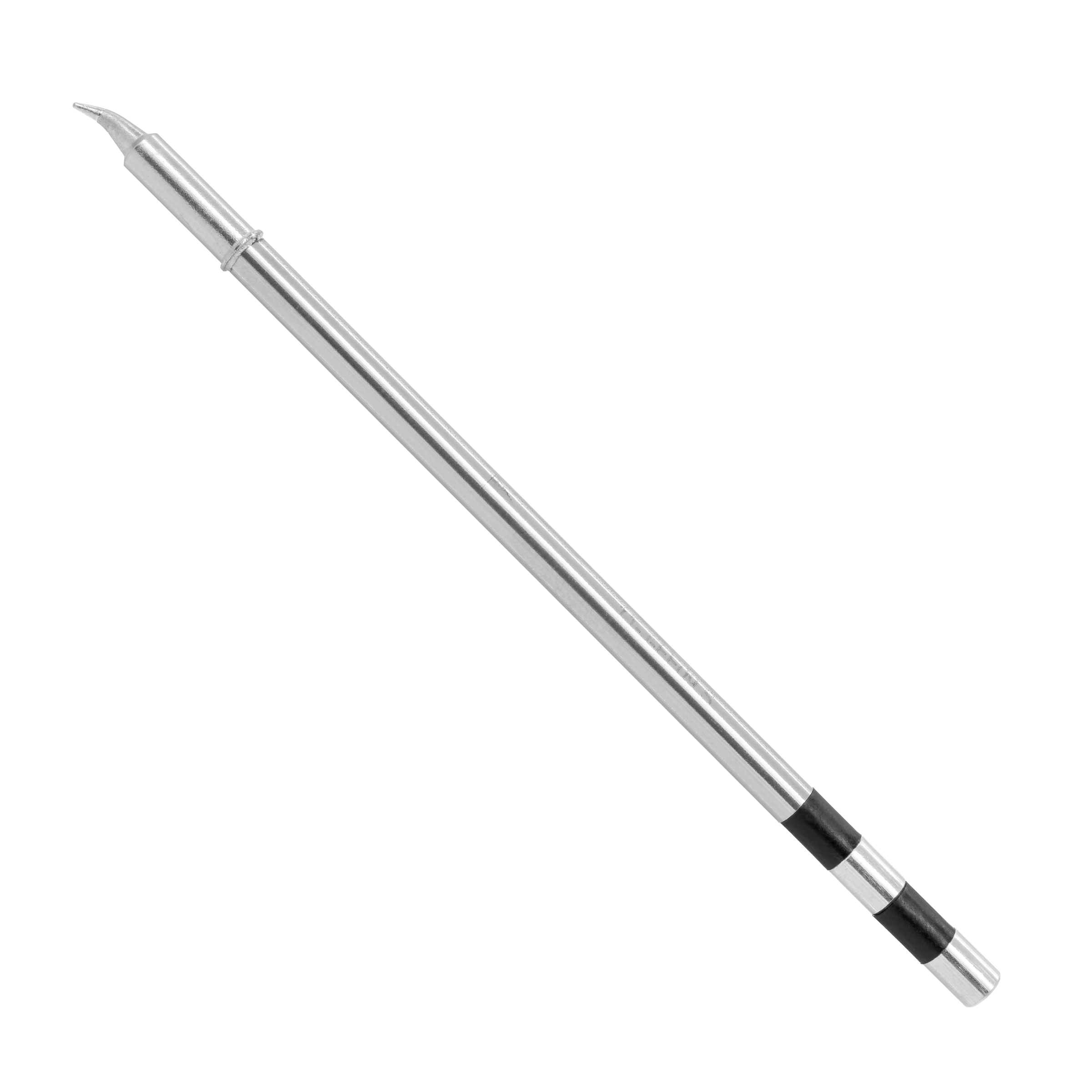

Kartuschenlötspitze TS11 gebogen 30° Nadelspitze Ø 0,5 mm - extrem schnelle Aufheizzeit - Quick TSS11-J
QUICK
Original product
Net price (excl. VAT)
€6.30
Item
QCK-TSS11-J
Manufacturer no.
TSS11-J
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TSS11-J
ConditionNew
Article
QCK-TSS11-J
Frequently Bought Together
On a fully populated board the joint is rarely the problem, the route to it is. The 30 degree bend lets the Ø 0.5 mm needle approach flat, while the cartridge reaches 300 °C on the QUICK TS11 in 3 seconds.
Benefits
- Needle tip bent by 30 degrees at Ø 0.5 mm, access next to tall parts and inside recesses.
- Flat approach angle keeps the joint in sight while working.
- Heat-up time of 3 seconds from 20 °C to 300 °C with the TS11 station.
- Thermocouple in the cartridge, correction happens at the needle itself.
- Working range 100 to 450 °C for leaded and lead-free solder.
- Overall length 91.5 mm, shank 3.4 mm to 3.5 mm, tool-free change.
Technical data
| Tip shape | bent needle |
| Version | bent 30 degrees |
| Tip diameter | Ø 0.5 mm |
| Overall length | 91.5 mm |
| Shank diameter | 3.4 mm / 3.5 mm |
| Temperature range with TS11 | 100 to 450 °C |
| Heat-up time with TS11 | 3 seconds from 20 °C to 300 °C |
| Tip series | TSS11 |
| RoHS | compliant |
| Manufacturer number | TSS11-J |
Applications
Very fine soldering on small joints, narrow pads, single pins and SMD parts. The bend helps wherever a straight tip fouls neighbouring components or the hand blocks the view.
Scope of delivery and compatibility
1x cartridge soldering tip TSS11-J. Fits the QUICK TS11 soldering station and the TSS11 tip holder.
| Manufacturer Nr. | TSS11-J |
|---|---|
| Manufacturer | Quick |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
