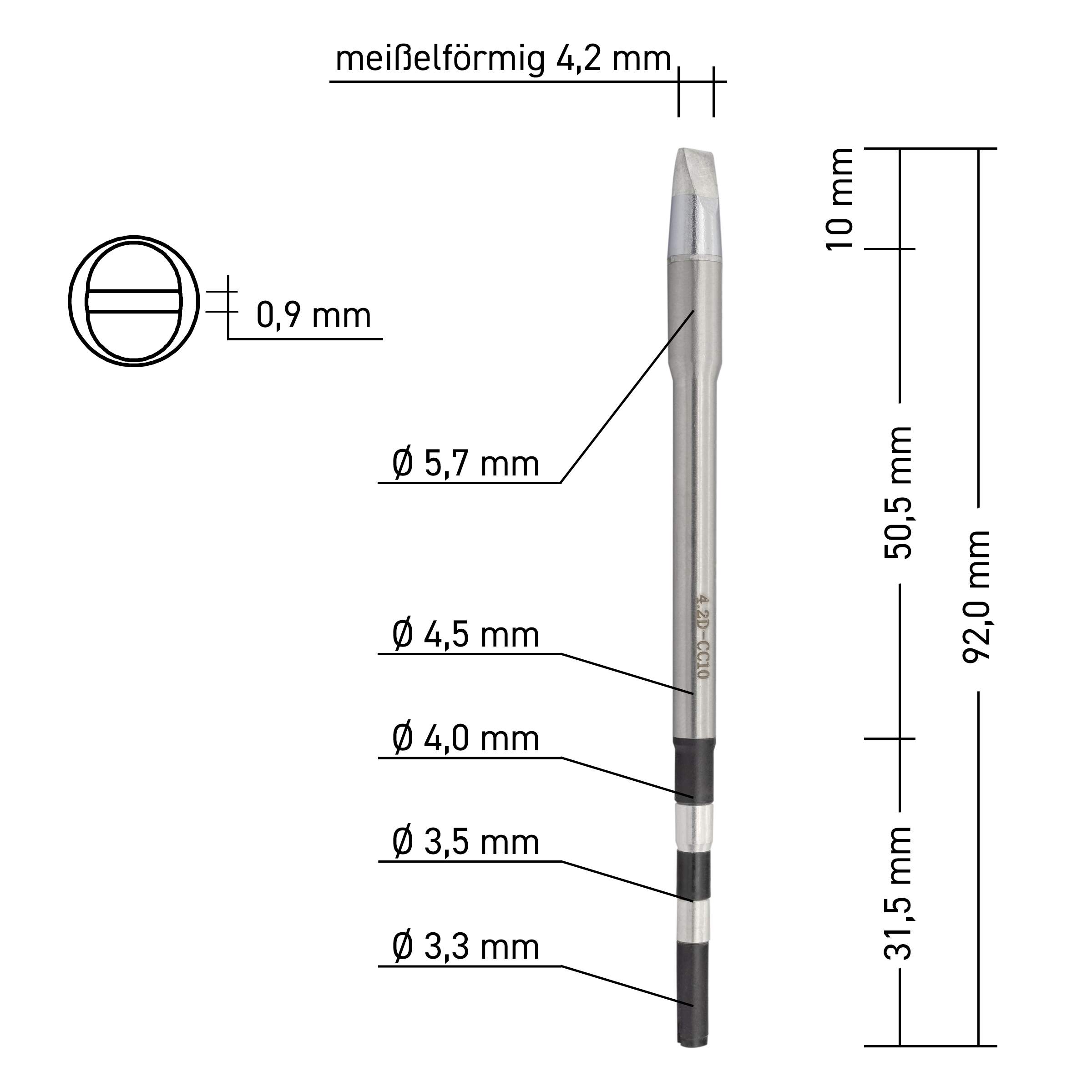

Kartuschenlötspitze für TS8, gerade, kurzer Kegel, meißelförmig stumpf 4,2 mm breit x 0,9 mm, 5 mm Lot-benetzt - Quick TSS08-4.2D

On connectors and terminals every missing millimetre of contact area costs time. The TSS08-4.2D puts 4.2 mm of chisel width on the joint, clearly more than the 3 mm shapes, while a 0.9 mm blade keeps the profile low enough for closely spaced neighbours.

Operating benefits

• 4.2 mm chisel width, wide pads and terminal tabs are heated in one placement instead of several.
• Blade thickness of 0.9 mm, the tip still passes between adjacent components despite its width.
• Short cone as the transition, a short path from heater to the wide working face.
• 5 mm of pre-tinned length, enough wetting for wire ends and strands laid alongside.
• Thermocouple in the tip unit, correction starts with the heat drawn by the large joint.
• Chip with the calibration value in the cartridge, the displayed temperature stays reliable after a change.

Technical data

Application, scope of delivery and compatibility

For connectors, screw and spring terminals, cable lugs, tinning stranded wire and pads with a large copper connection. Scope of delivery, one cartridge soldering tip. It sits in the QUELKTSS80A handpiece of the Quick TS8 and TS8+ stations and can be exchanged within the TSS08R series for narrower chisels when the assembly changes. At the same width a flatter 0.5 mm blade is available.
