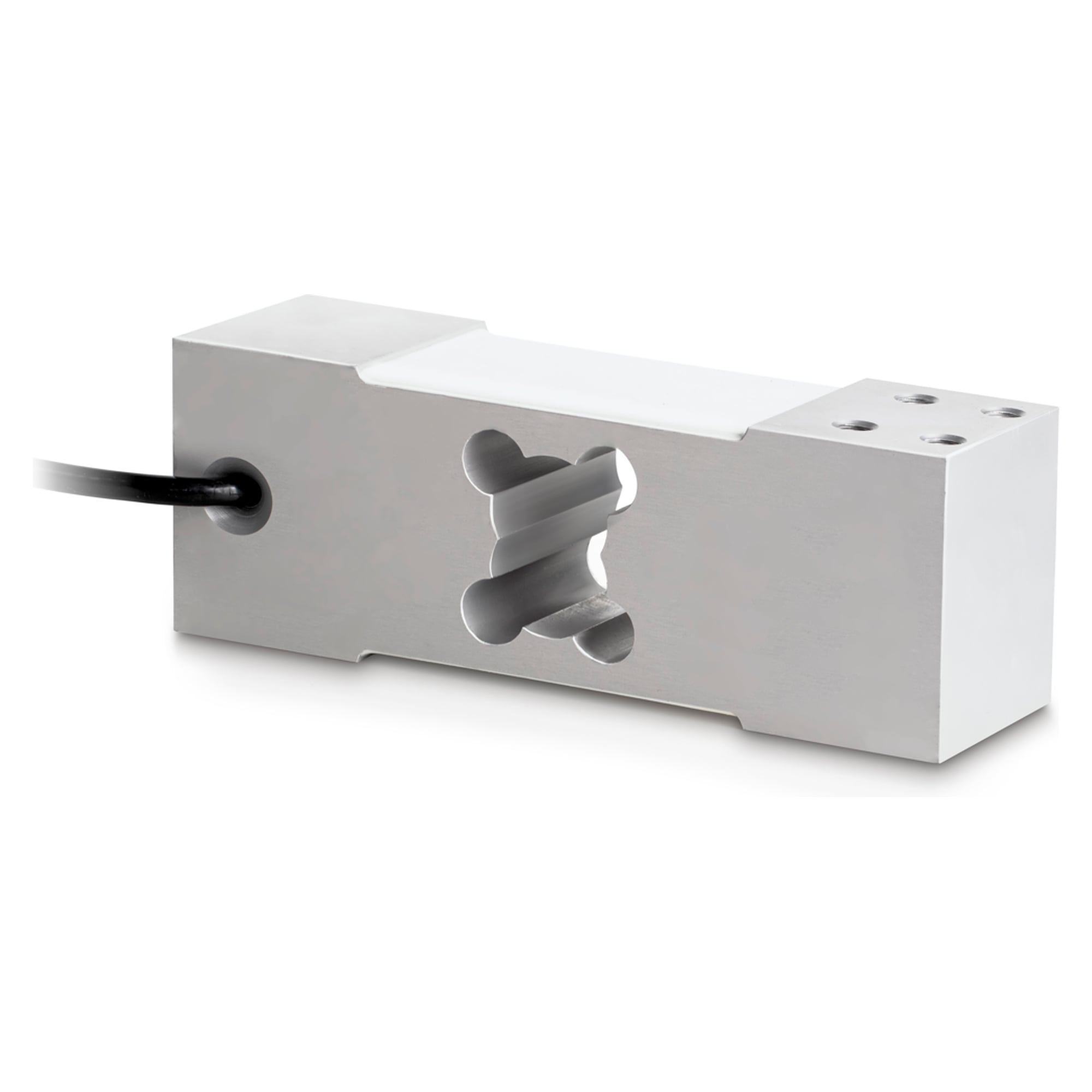

Load Cell 600 kg - SAUTER CP 600-3P8
The SAUTER CP 600-3P8 is a single-point load cell in aluminium for building verifiable bench and platform scales up to 600 kg. With OIML class C3 and 3000 divisions it delivers legally usable readings and carries a platform up to 600×600 mm. It is read out over a 6-wire connection with a 3 m cable.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CP 600-3P8 is a single-point load cell in aluminium for building verifiable bench and platform scales up to 600 kg. With OIML class C3 and 3000 divisions it delivers legally usable readings and carries a platform up to 600×600 mm.
Benefits
- Suitable for verified scales: OIML class C3 with 3000 divisions (e)
- Light, corrosion-protected body: made from aluminium
- Platform up to 600×600 mm: fits price-computing, bench and platform scales
- Ready to wire: 3 m cable, 6-wire technology
- Wide temperature range: -35 to 65 degrees Celsius
- Higher accuracy on request: OIML R60 class C4/C5
Applications
Typical fields of use are industry and manufacturing, the packaging industry, food and pharma, mechanical and plant engineering and research and development.
Compliance and origin
EAN 4045761308404, customs tariff number 84239010, country of origin China.
Technical data
| Rated capacity (Max) | 600 kg |
|---|---|
| OIML class | C3 |
| Resolution (verifiable) | 3000 e |
| Y-value | 10000 |
| Force direction | compression |
| Max. platform size | 600×600 mm |
| Cable length | 3 m |
| Connection | 6-wire |
| Operating temperature | -35 to 65 degrees Celsius |
| Weight | 1,8 kg |
| Material | aluminium |
| Manufacturer | Sauter |
| EAN | 4045761308404 |
| HS-Code | 84239010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 600000 |
