Compression Load Cell 5 kg / 50 N, Stainless Steel, IP67 - SAUTER CO 5-Y4

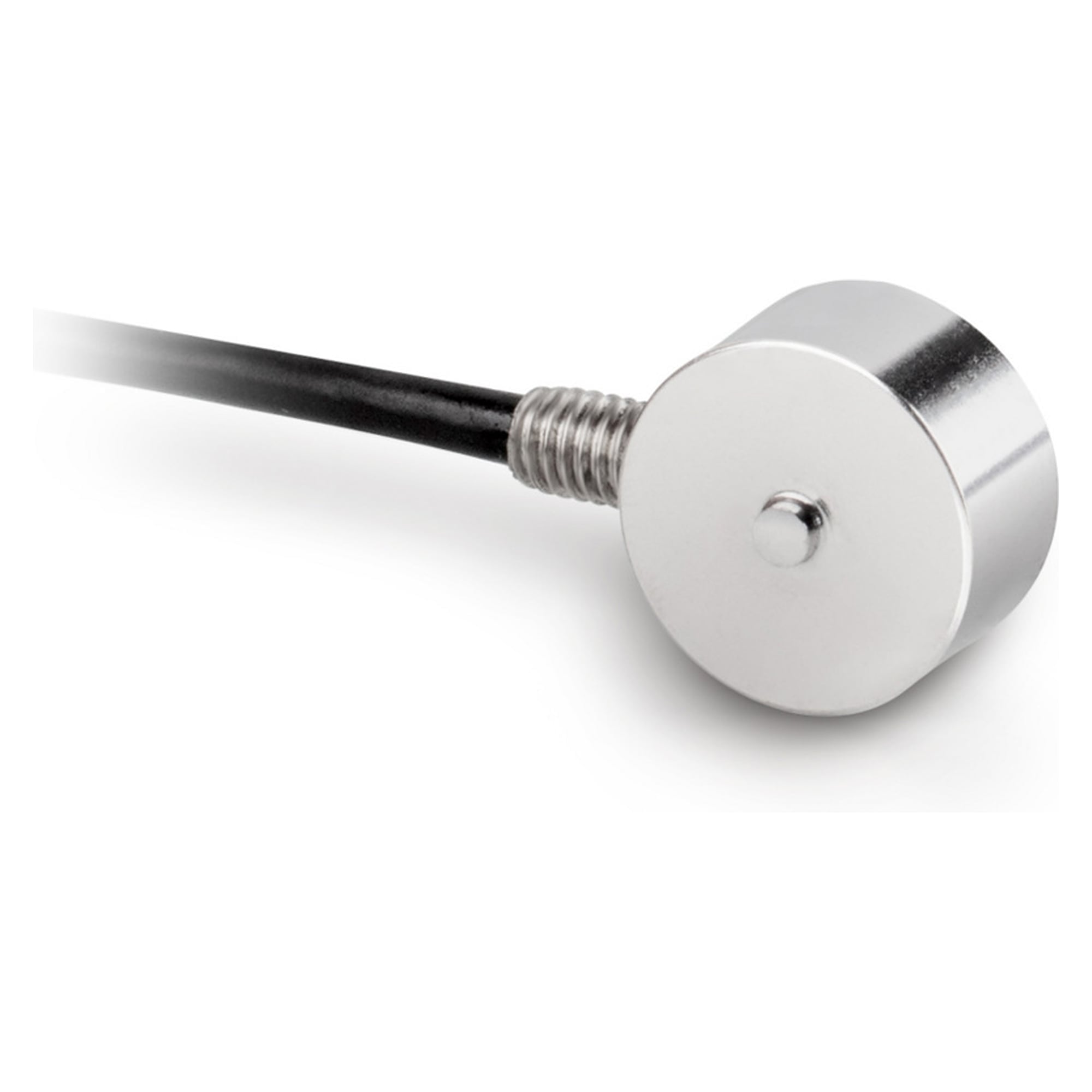

Miniature stainless steel button load cell for compressive forces up to 50 N or 5 kg with a combined error of 0.5%. The flat IP67 cell suits small forces in test stands and fixtures. It connects to SAUTER FS 2 force gauges and the KERN CE HSN evaluation unit.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CO 5-Y4 records compressive forces up to 50 N and masses up to 5 kg with a combined error of 0.5% of full scale. Load is applied through a customer-side thrust piece and dissipated via a mould nest. This lets the button cell fit setups where larger sensors have no room.
Advantages
- For small forces: measuring range up to 50 N

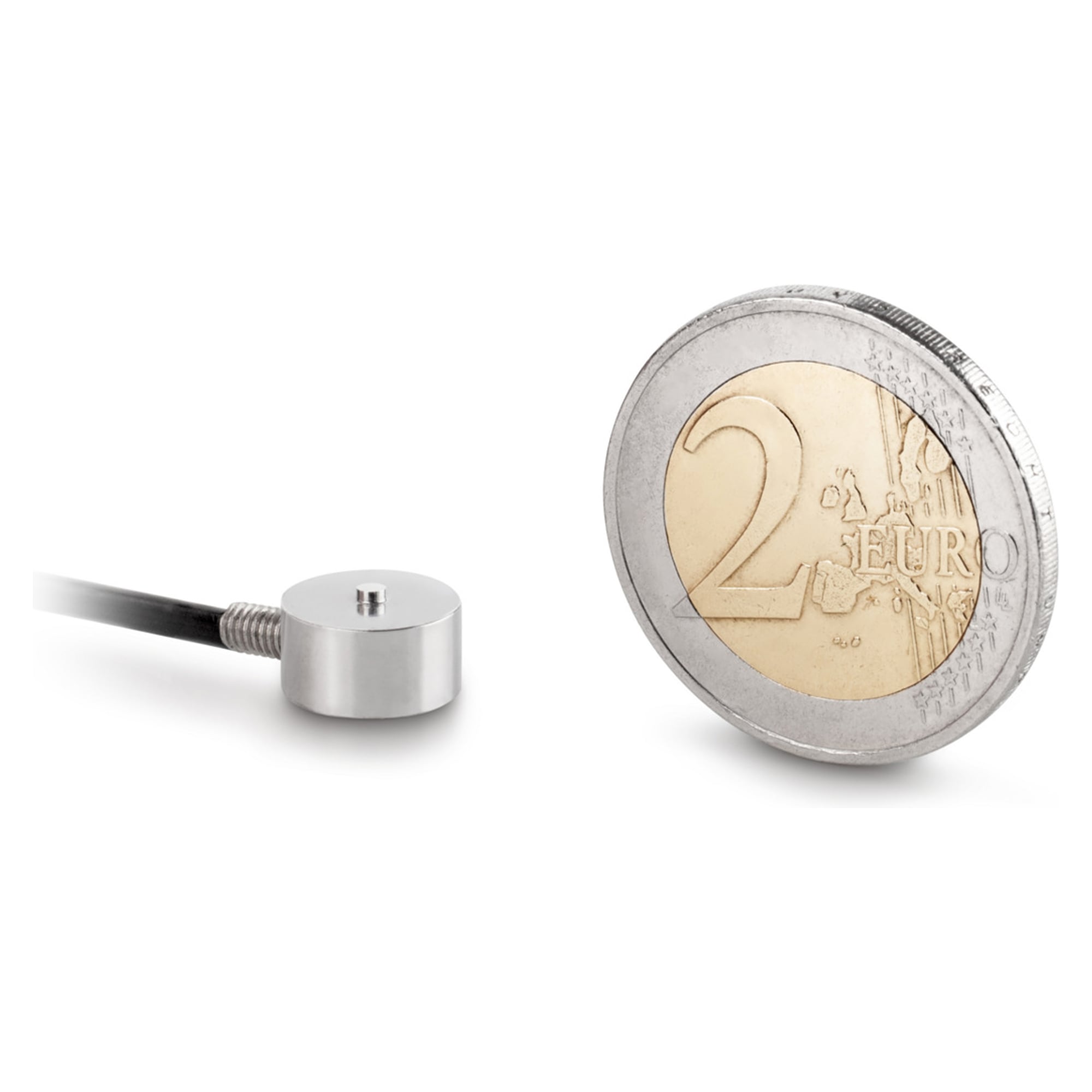

- Compact button design: minimal installation space
- Sealed: stainless steel and IP67
- System-ready: works with SAUTER FS 2 force gauges and KERN CE HSN
Applications
Research and development, mechanical engineering and testing, the automotive and supplier industry, medical technology and biomechanics, and calibration and test equipment manufacturing.
Conformity and origin
EAN 4045761232884. Warranty 24 months.
Technical data
| Weighing capacity (Max) | 5 kg |
|---|---|
| Force measuring range (Max) | 50 N |
| Design | button load cell |
| Direction of force | compression |
| Measuring applications | force, mass |
| Combined error | 0.5% |
| OIML class | G5 |
| Nominal rated output | 1 mV/V |
| Protection class | IP67 |
| Material | stainless steel |
| Connection | 4-wire |

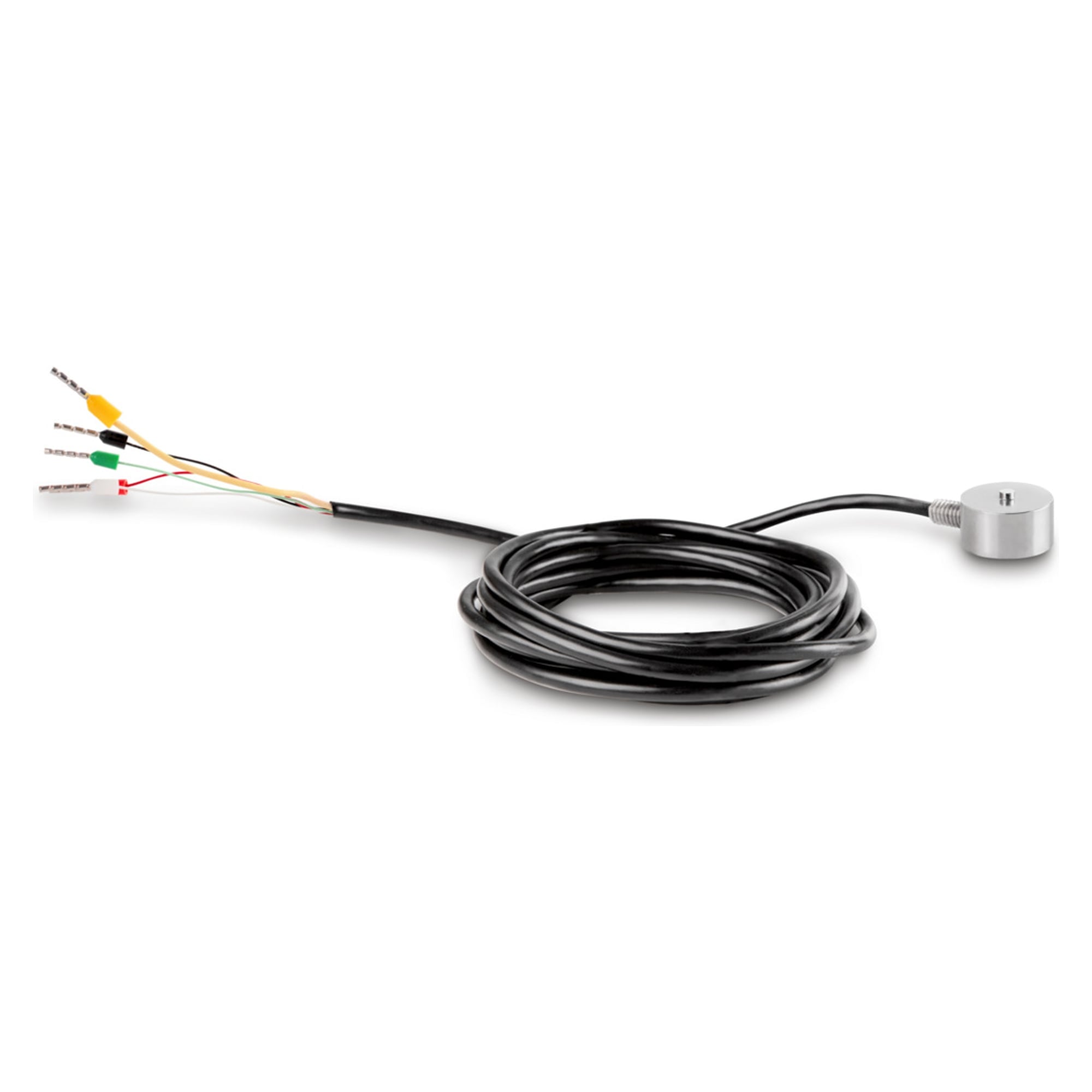

| Cable length | 2 m |
| Force application | thrust piece (customer side) |
| Force dissipation | mould nest |
| Manufacturer | Sauter |
| EAN | 4045761232884 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
