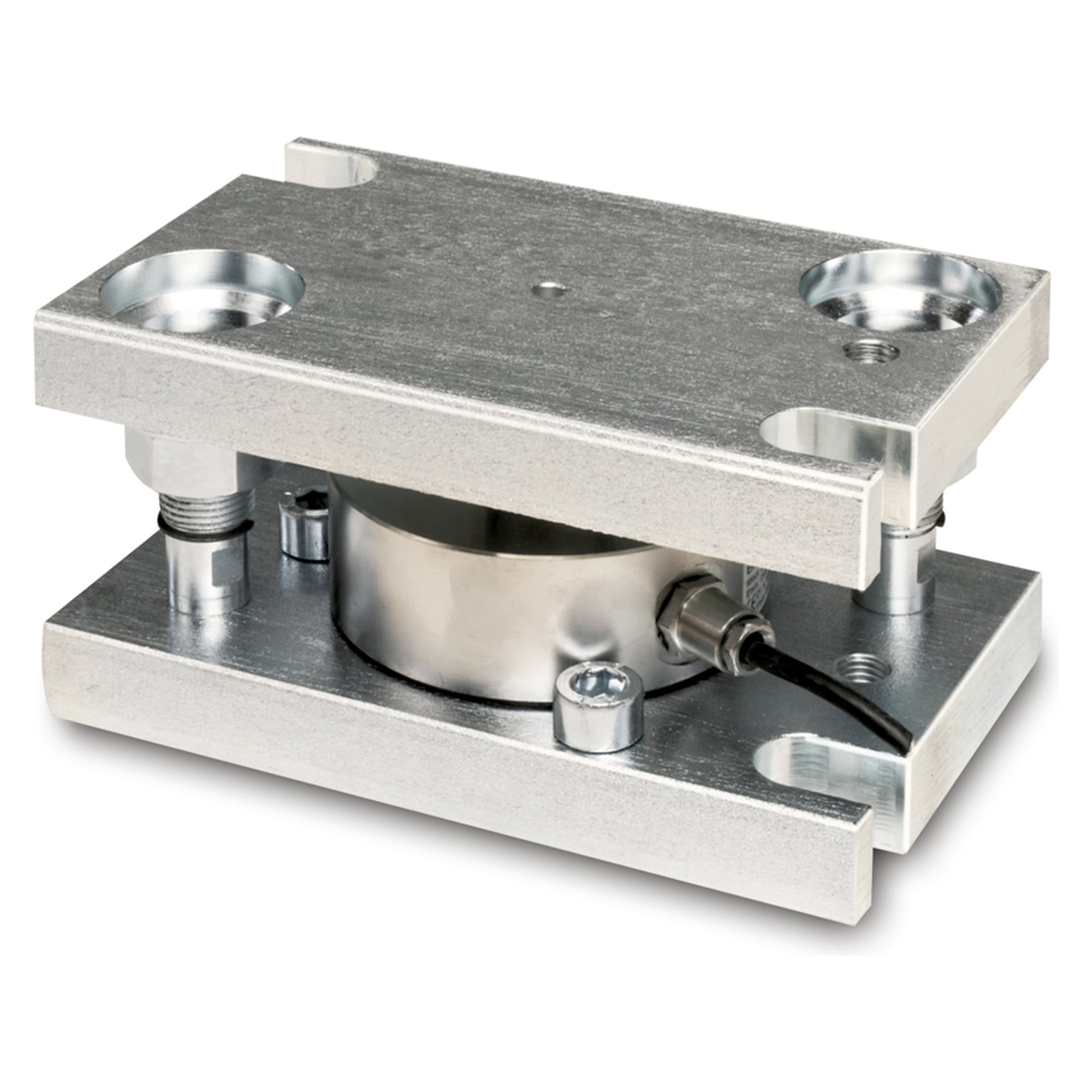

Load Cell 10000 kg - SAUTER CR 10000-1Q1
Verifiable stainless steel load cell from SAUTER for compression forces up to 10000 kg (100 kN). OIML class C1 with 1000 e, built for vehicle and hopper scales. Wide temperature range from -50 °C to 70 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CR 10000-1Q1 measures compression forces up to 10000 kg (100 kN) and is verifiable ex works to OIML class C1 with 1000 e. Its stainless steel load button is built for tough continuous duty on vehicle and hopper scales.
Benefits
- Verifiable ex works (OIML class C1, 1000 e): legally compliant weighing in regulated applications.
- Stainless steel load button: corrosion-resistant and sturdy for continuous field use.
- Rated load 10000 kg / 100 kN: designed for compression measurement on vehicle and hopper scales.
- Wide temperature range (-50 °C to 70 °C): reliable in frost and heat alike.
- Cable length 10 m: flexible routing to the indicator.
Applications
The CR 10000-1Q1 is used on vehicle scales, hopper scales and test rigs across industry, manufacturing and agriculture.
Compliance and origin
EAN 4045761222120. Customs tariff code 90249000. Country of origin: Spain.
Technical data
| Rated capacity (Max) | 10000 kg |
|---|---|
| Force range (Max) | 100 kN |
| Force direction | Compression |
| OIML class | C1 |
| Verifiable resolution | 1000 e |
| Y value | 10000 |
| Operating temperature | -50 °C to 70 °C |
| Dimensions (Ø×H) | 82×44 mm |
| Connection | 4-wire |
| Cable length | 10 m |
| Material | stainless steel |
| Net weight | 1,2 kg |
| Weight | 1.4 kg |
| Manufacturer | Sauter |
| EAN | 4045761222120 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| Wägebereich max (g) | 10000000 |
Downloads
Accessories
Plug for FS measuring cells up to 120 kN, mounted and adjusted - SAUTER FS 407
Item KER-FS 407
