The SAUTER CS 150-3Q1 is an S-type weighing and force load cell up to 150 kg (1,5 kN) with a six-wire connection. The sense lines compensate lead resistance so the calibratable C3 accuracy (3000 e) is maintained even over longer cables.

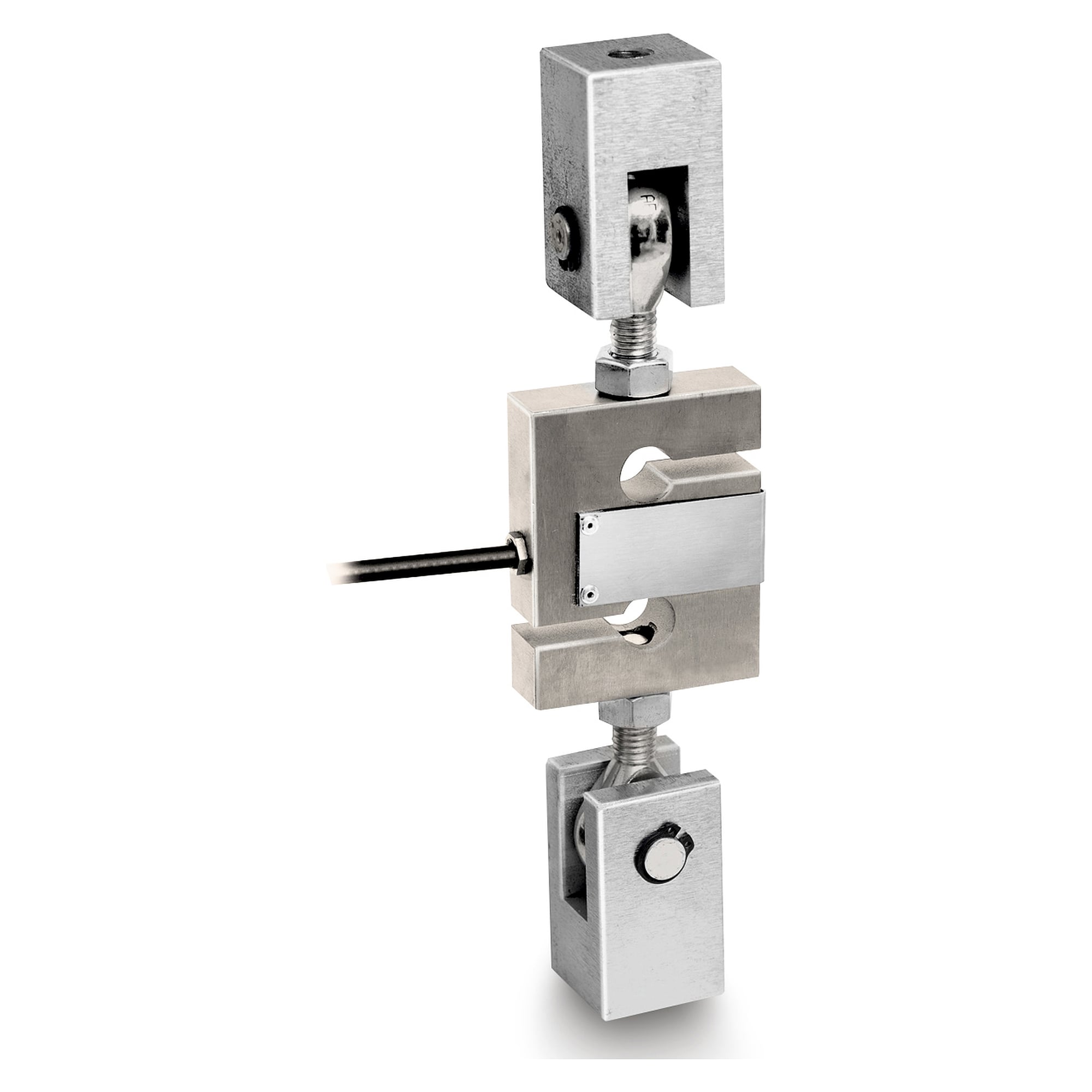

Load Cell 150 kg - SAUTER CS 150-3Q1
SAUTER
Original product
Net price (excl. VAT)
€168.56
Item
KER-CS 150-3Q1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
EAN4045761222113
Country of originSpain
Customs tariff number90249000
ConditionNew
Article
KER-CS 150-3Q1
Frequently Bought Together
-
This Item:
€168.56
-
Load Cell 5000 kg - SAUTER CT 5000-3P2
€97.22
-
Static Torque Sensor - SAUTER DC 50-Y2
€384.16
Total price
With its six-wire connection, the SAUTER CS 150-3Q1 keeps readings stable up to 150 kg (1,5 kN) in tension and compression even over longer cable runs.
Benefits
- Tension and compression in one cell: captures forces up to 1,5 kN in both directions
- Calibratable accuracy: OIML class C3 with 3000 verification intervals (e)
- Six-wire connection: compensates lead resistance for stable readings over longer cables
- Corrosion-protected: nickel-plated steel body
- Defined temperature range: -10 °C to 40 °C
Technical data
- Weighing range (max): 150 kg
- Force range (max): 1,5 kN
- Force directions: tension and compression
- Accuracy class (OIML): C3
- Verification interval: 3000 e
- Y value: 10000
- Connection: 6-wire
- Cable length: 5 m
- Operating temperature: -10 °C to 40 °C
- Material: nickel-plated steel
- Net weight: 0,80 kg
Applications
The load cell is used in machine and plant engineering, testing and materials testing, conveyor and logistics systems, tank and silo weighing as well as in medical technology and research.
Compliance and origin
EAN 4045761222113, customs tariff code 90249000, country of origin Spain.
| Manufacturer | Sauter |
|---|---|
| Country of Manufacture | Spain |
| EAN | 4045761222113 |
| Weight | 0.900000 |
| HS-Code | 90249000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Wägebereich max (g) | 150000.000000 |
| Position sensing | No |
