Scale Kit 9000 kg - SAUTER CW 9000R
The SAUTER CW 9000R is a scale building kit for custom floor scales up to 9000 kg under especially wet conditions. Its four CT 3000-3Q1 load cells are protected to IP68/IP69K and the CJ X467 junction box is made of stainless steel. It builds platform, hopper or silo scales that withstand high-pressure cleaning.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For scales that are cleaned regularly with water and high pressure, the SAUTER CW 9000R supplies the matching load cell set: four cells for 9000 kg rated load rated IP68/IP69K plus a stainless steel junction box.
Benefits
- Free scale building: for platform, hopper, silo and floor-recessed scales in your own dimensions.
- Top wet protection: load cells rated IP68/IP69K, also suited to high-pressure cleaning.
- Load cells to OIML R60 C3: four CT 3000-3Q1 cells in alloy steel, rated output 2 mV/V.
- Corrosion-proof wiring: CJ X467 junction box in stainless steel rated IP67.
Applications
The kit suits machine and plant construction, logistics and packaging, the food industry, maintenance and workshop, container and silo weighing as well as chemical and pharmaceutical uses. For a readout it pairs with SAUTER indicators such as KFS-TM, YKV or CE HS.
Compliance and origin
EAN 4045761256668, customs tariff number 84231090, country of origin China.
Technical data
| Capacity (Max) | 9000 kg |
|---|---|
| Accuracy class | III |
| Weighing system | strain gauge |
| Load cells | 4 × SAUTER CT 3000-3Q1, OIML R60 C3 |
| Load cell protection | IP68/IP69K |
| Junction box | SAUTER CJ X467, IP67 |
| Load cell connection | 4-wire |
| Net weight | 10 kg |
| Weight | 11 kg |
| Manufacturer | Sauter |
| EAN | 4045761256668 |
| HS-Code | 84231090 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 9000000 |
| Verification class | III |
Downloads
Accessories
Sauter
Elastomer bearing with hold-down device for SAUTER CT 3000-3Q1 and CT 5000-3Q1 - SAUTER CE RQ35910
Item KER-CE RQ35910
€281.60
Sauter

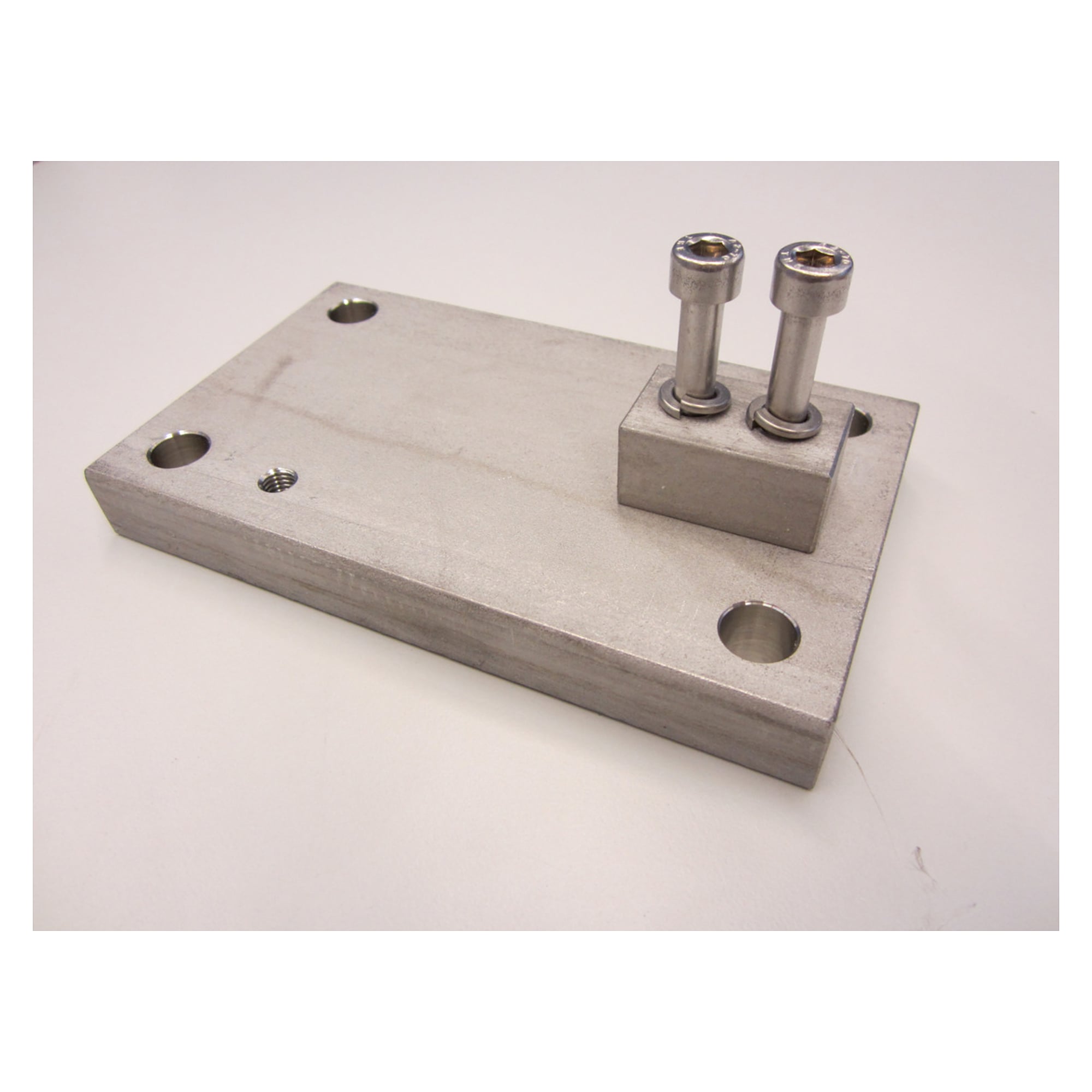

Base plate for SAUTER CT 3000-3Q1 and CT 5000-3Q1 - SAUTER CE RQ35912
