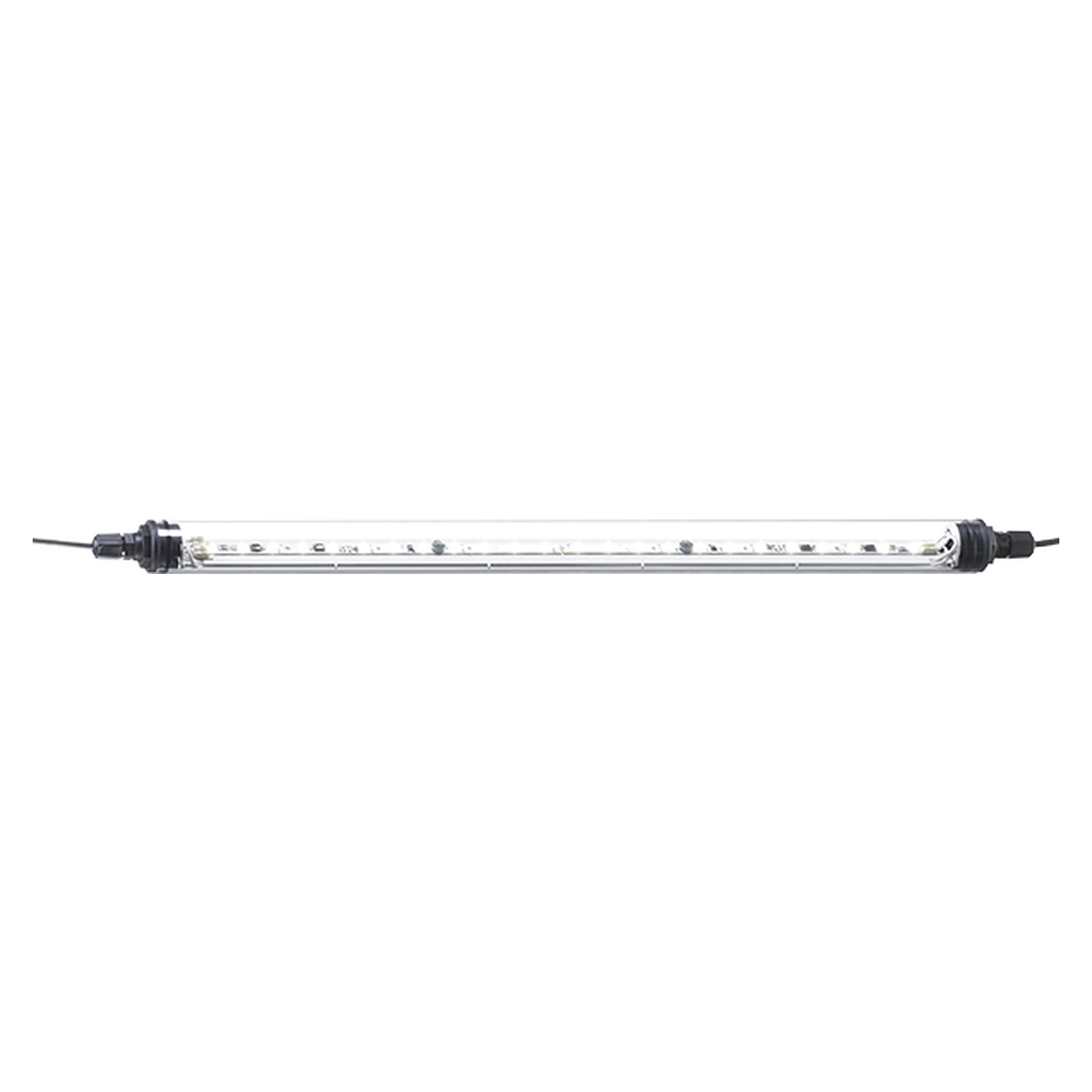

LED tube luminaire RL40LE-24 D, 10 W, 1150 lm, clear, through-wired, 652 mm - Waldmann 113019000-00694189

Maximum luminous flux per module plus through-wiring: the RL40LE-24 D with clear tube supplies 1150 lm at 10 W and a 120° beam angle, and links with further luminaires via QUICKON 3 to form longer light lines.

Benefits

• Through-wired: several luminaires can be daisy-chained on one supply line
• Clear tube with 120° beam angle, approx. 93 % direct component, for maximum useful light on the workpiece
• Daylight white light at 5400 K and CRI ≥ 80 for reliable detail recognition
• IP67 protection and class III: dust-tight and protected against water jets for use inside machines
• Direct connection to 16-32 V DC machine voltage, no ballast in the luminaire
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Interiors of larger machines
• Conveyor lines and plant peripherals
• Woodworking machines and integrated production and test systems
• Continuous light lines from several daisy-chained luminaires

Installation and accessories

• Fastening via luminaire brackets from the accessory range (luminaire bracket, luminaire bracket set)
• Connection via QUICKON 3 built-in plug, side part with plug for onward wiring
• For mains voltage: operating device 100-240 V / 24 V DC with 30 W or 100 W, alternatively operating device 220-240 V / 24 V DC constant voltage IP67
