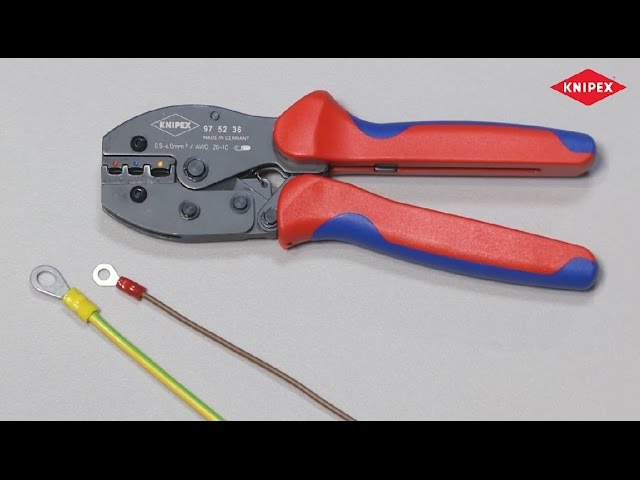

PreciForce crimping pliers for insulated cable connectors 0.5 to 6.0 mm², calibrated pressure, 220 mm - Knipex 97 52 36

Insulated cable lugs and connectors only hold for good when the pressing force is the same on every crimp. The PreciForce crimping pliers 97 52 36 work with a factory calibrated crimping pressure and cover 0.5 to 6.0 mm² with three dies.

Benefits

• Precision dies and an unlockable ratchet secure a consistently high crimping quality, the ratchet opens only after a complete crimp.
• The crimping pressure is calibrated at the factory, no setting is required on site.
• Efficient lever action delivers a high crimping force with little effort at the handles.
• Three dies cover 0.5 to 6.0 mm², which corresponds to AWG 20 to 10.
• Short design, favourable handle position and ergonomically shaped multi-component grips at 487 g make longer runs more comfortable.
• The crimping die is built in and not exchangeable, so using the wrong die is ruled out.

Technical data

Areas of use

Electrical installation, control cabinet and control system building, vehicle electrics and service work on wiring harnesses. The pliers are the right choice wherever insulated cable connectors from 0.5 to 6.0 mm² are processed in series with a traceable pressing force.

Standards and conformity

The manufacturer does not state a tool standard for this model. According to the manufacturer the tool contains substances of very high concern under REACH. The RoHS directive does not apply.
