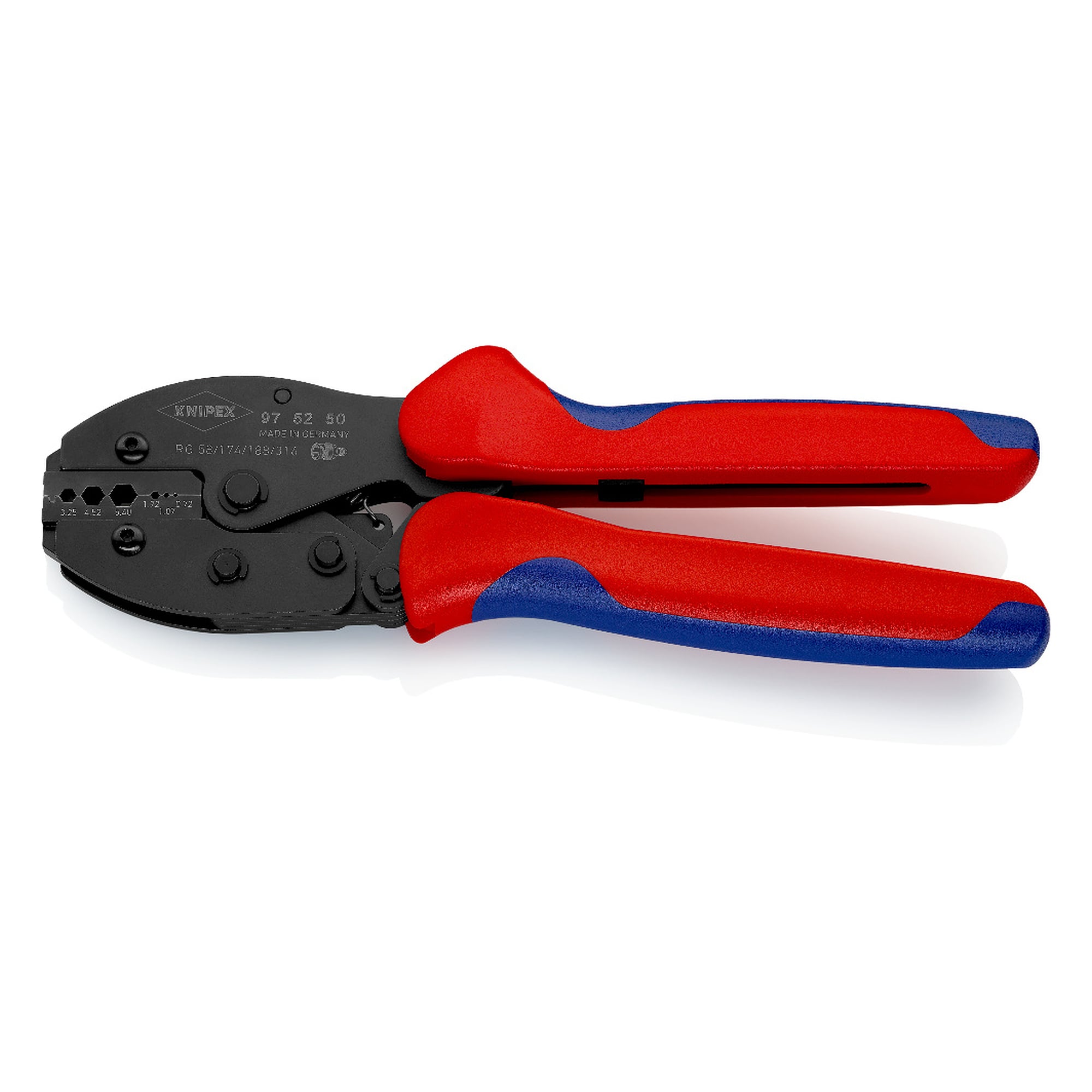

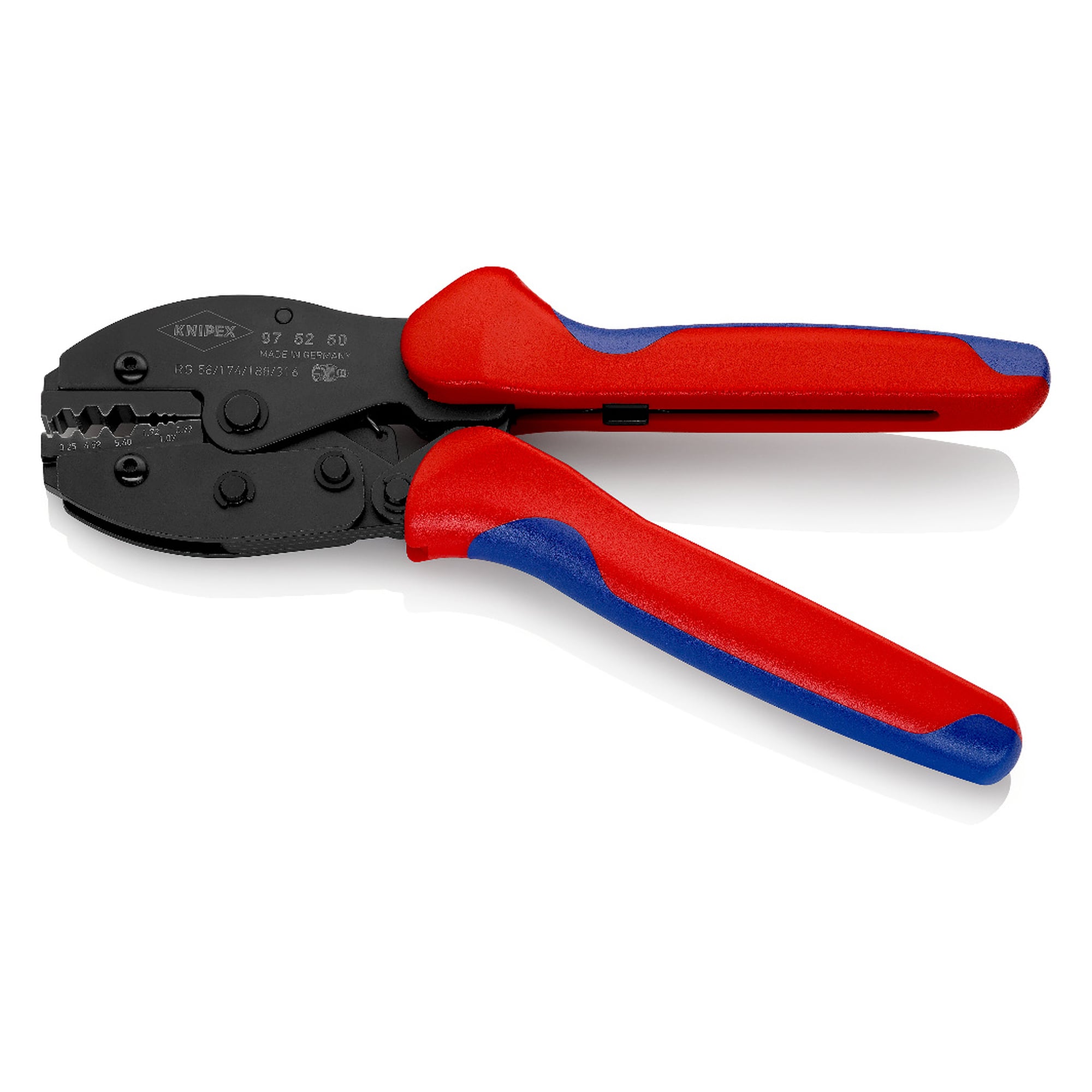

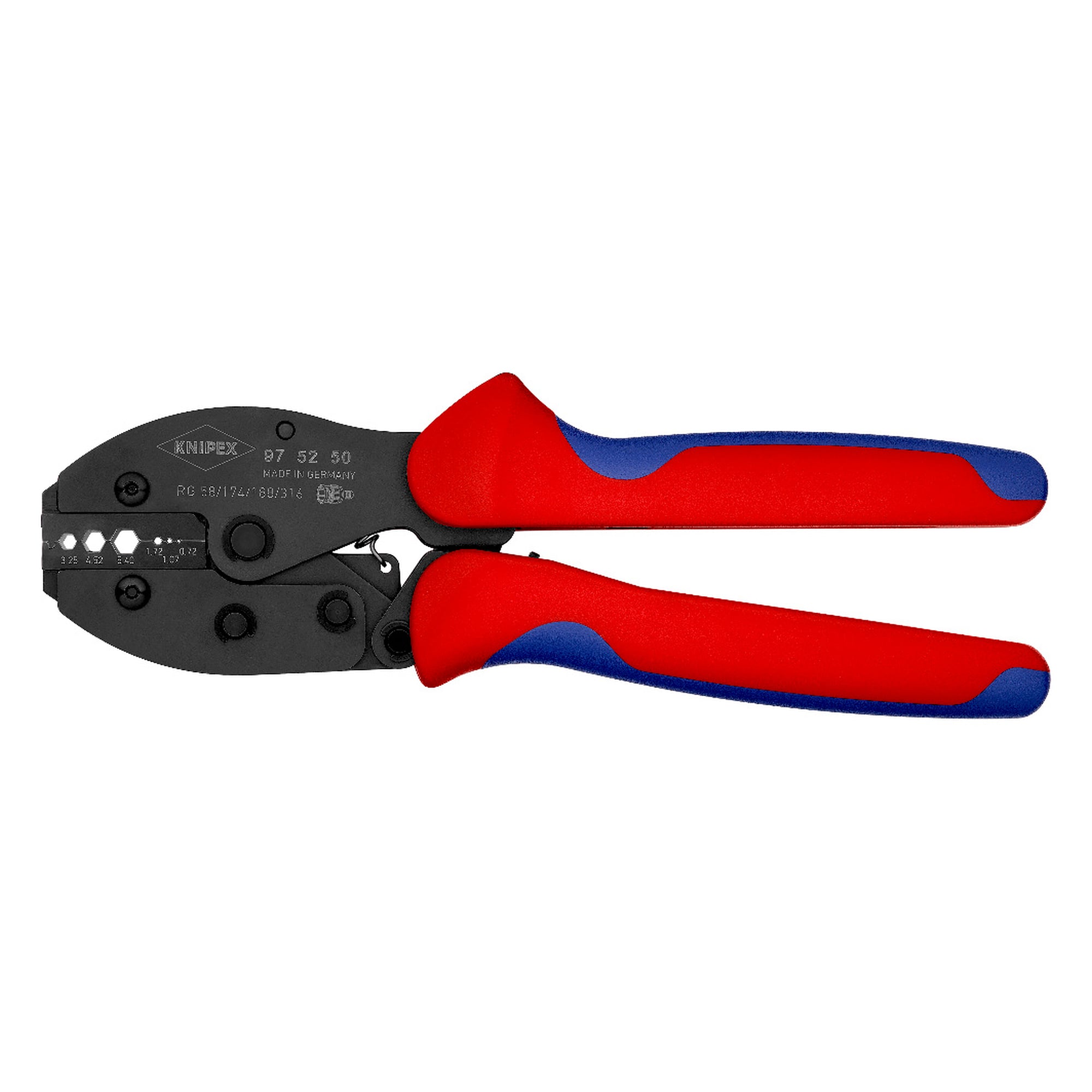

Crimping pliers PreciForce for coaxial BNC connectors, 6 crimping nests, 220 mm - Knipex 97 52 50

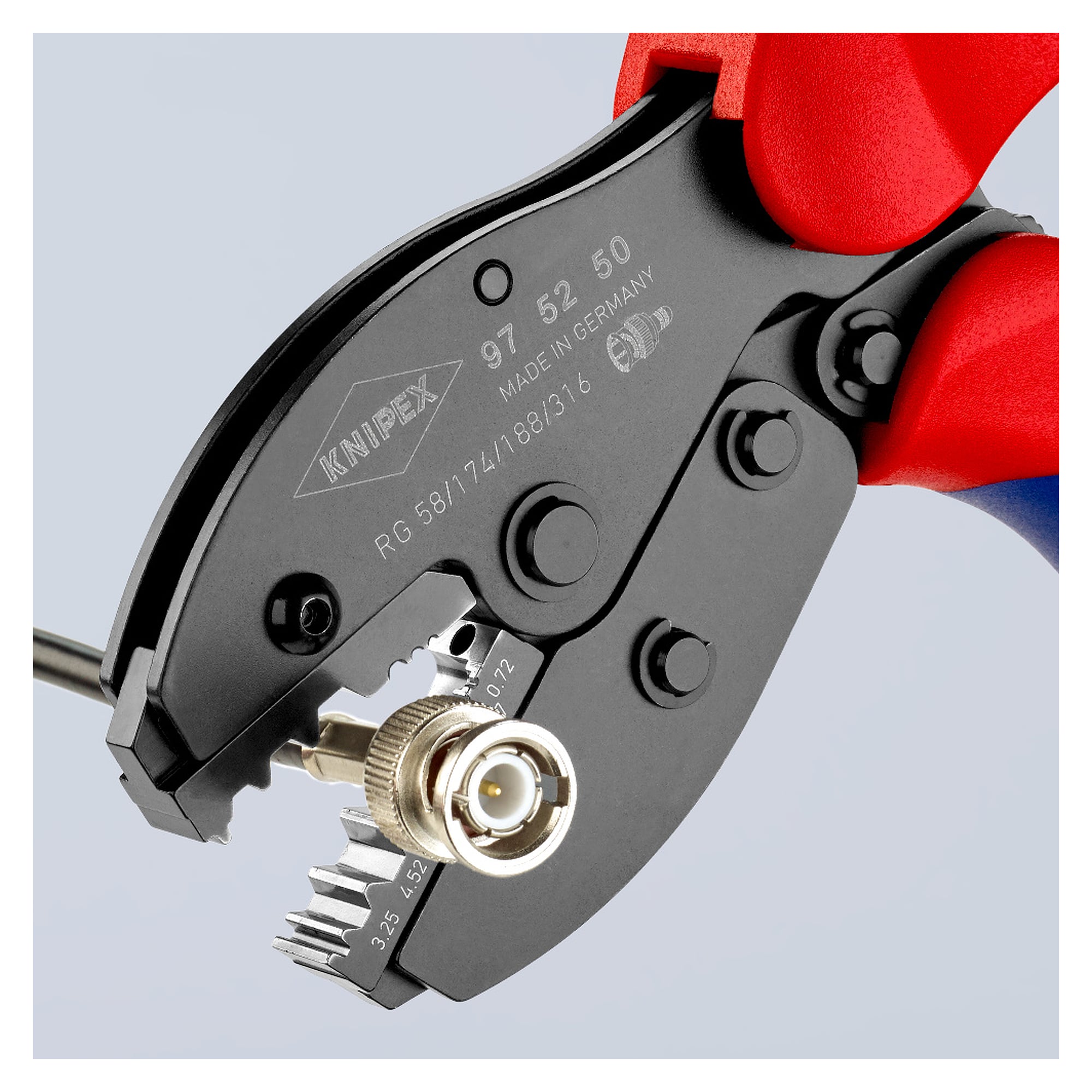

A BNC connector is only as reliable as the crimp that put it on the coaxial cable. The KNIPEX PreciForce 97 52 50 therefore works with a factory calibrated crimping pressure and a releasable ratchet that opens only once the crimp cycle is completed. Six nests cover the crimp widths 0.72, 1.07, 1.72, 3.25, 4.52 and 5.4 mm.

Benefits

• Consistently high crimping quality thanks to precision dies and an unlockable ratchet mechanism.
• Crimping pressure precisely set and calibrated at the factory, so results are reproducible without any adjustment.
• High crimping force from the efficient lever action, also on the larger widths across flats.
• Six nests for coaxial BNC connectors of cable types RG 58, 174, 188 and 316.
• Good handling due to the favourable handle position, the short 220 mm design and ergonomically shaped multi-component sleeves.
• Black oxide finished pliers, the crimping die is permanently fitted and therefore always ready to use.

Technical data

Areas of use

Assembly of coaxial cables in communications and measurement technology, antenna and video installations, network technology, laboratory and test bays. The calibrated ratchet also makes the pliers usable where crimps have to be documented.

Standards and conformity

According to the manufacturer the pliers contain substances of very high concern under REACH. The RoHS directive does not apply to this product.
