Running eight soldering positions off one unit only works if each keeps a stable extraction rate. The Zero Smog 6V delivers up to 615 m³/h at 3000 Pa and trims turbine speed automatically through Constant Flow Control. At 51 dBA and 460 x 460 x 655 mm it can stand right in the work area.
Solder fume extractor 615 m³/h for up to 8 workstations, Zero Smog 6V - Weller T0053666699N
WELLER
Original product
Net price (excl. VAT)
€4,120.66
Item
WL30714
Manufacturer no.
T0053666699N
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.T0053666699N
ConditionNew
Article
WL30714
Frequently Bought Together
-
This Item:
€4,120.66
-
Solder fume extraction unit Zero Smog 4V 230 m³/h for 4 workstations - Weller T0053660699N
€2,063.33
-
F7 fine dust filter for Zero Smog TL, 255 x 255 mm, 10 pieces - Weller T0058762857
€77.97
Total price
Expanding a soldering line raises the question of how many positions one extraction unit really covers. The Weller Zero Smog 6V serves up to eight workstations with a maximum flow rate of 615 m³/h and uses Constant Flow Control to keep the set extraction rate at every single position.
Benefits
- Flow rate up to 615 m³/h at a maximum vacuum of 3000 Pa for up to 8 workstations
- Automatic CFC speed control extends filter life and lowers energy demand
- Electronic filter monitoring with optical and acoustic filter alarm, efficiency test via USB
- Noise level of 51 dBA and a compact housing allow installation directly in the work area
- Remote control via RS 232 interface, 4 castors for flexible use
Technical data
| Item number | WL30714 |
| Model | Zero Smog 6V |
| Manufacturer | Weller |
| Manufacturer item number | T0053666699N |
| Dimensions (LxWxH) | 460 mm x 460 mm x 655 mm |
| Order unit | piece |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Fuse | T3.15 A |
| Max. vacuum | 3000 Pa |
| Max. volume flow | 615 m³/h |
| Noise level | 51 dBA |
| Workstations | up to 8 |
| Interface | RS 232, USB |
Applications
Central solder fume extraction in electronics manufacturing, on repair and rework lines and at test or laboratory benches with several positions occupied at the same time.
Compatibility and scope of delivery

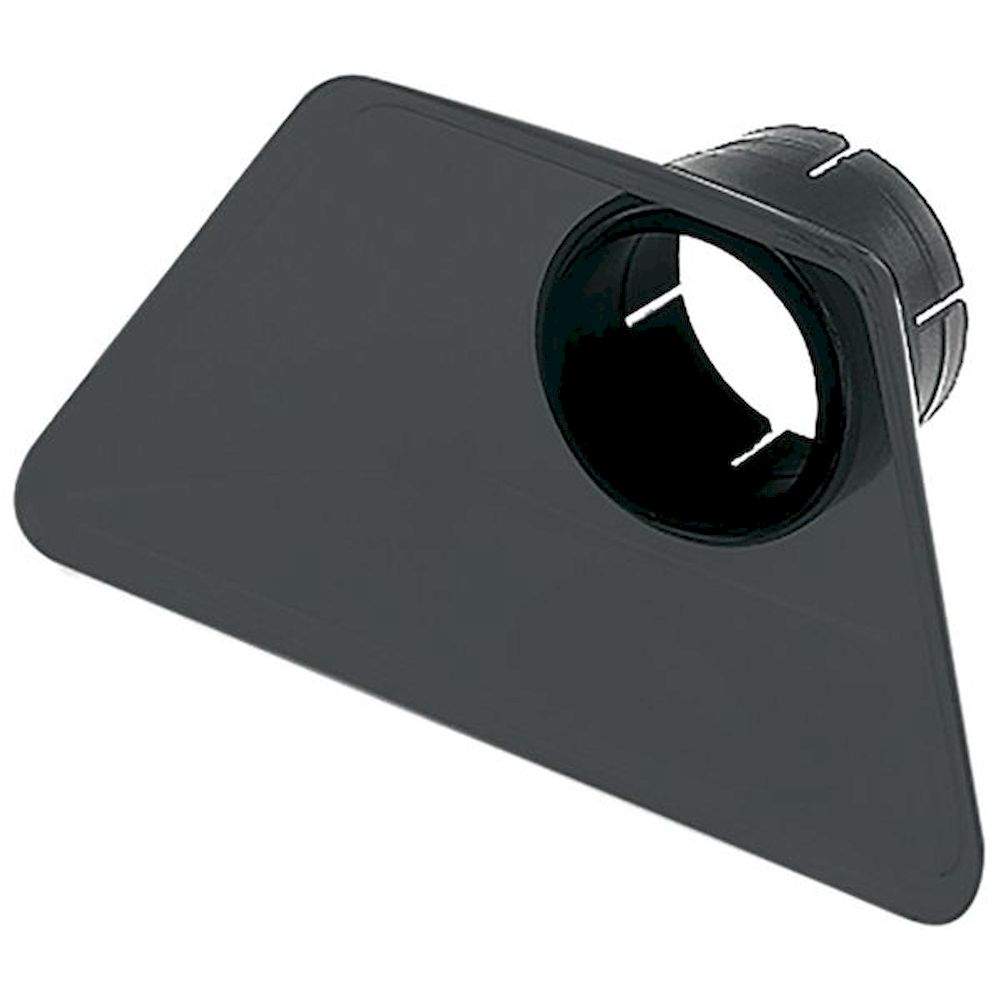

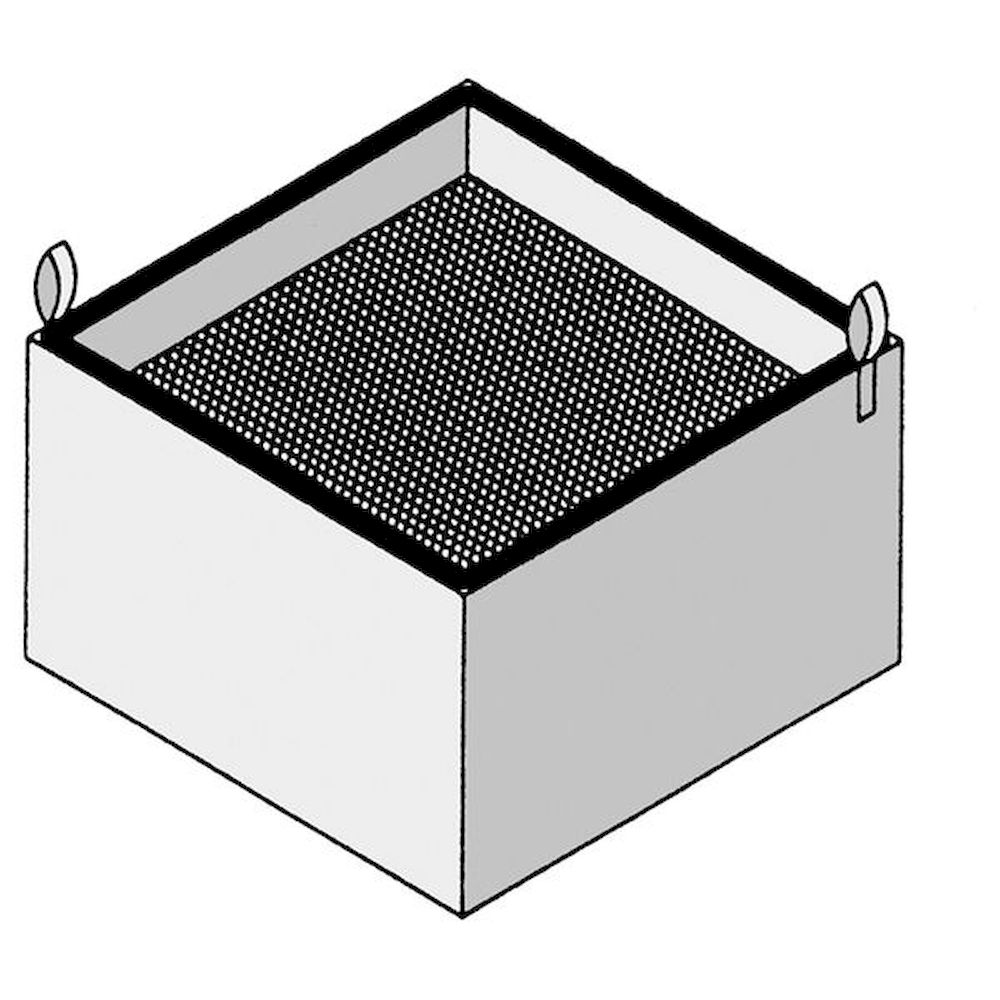

An external prefilter can be connected to raise the filter capacity. Installation and filter changes need no special tools, and the maintenance-free variable speed turbine is electronically controlled. Extraction arms, nozzles and hoses are ordered separately.
| Manufacturer Nr. | T0053666699N |
|---|---|
| Manufacturer | Weller |
| Weight | 0.100000 |
| GPSR manufacturer information | WELLER Tools GmbH Carl-Benz-Strasse 2 DE-74354 Besigheim www.weller.eu |
| Article authenticity | Original product |
| Condition of article | New |
