ZeroSmog Shield Black Edition solder fume extraction 32 m³/h with EPA E10 filter - Weller FT91019190

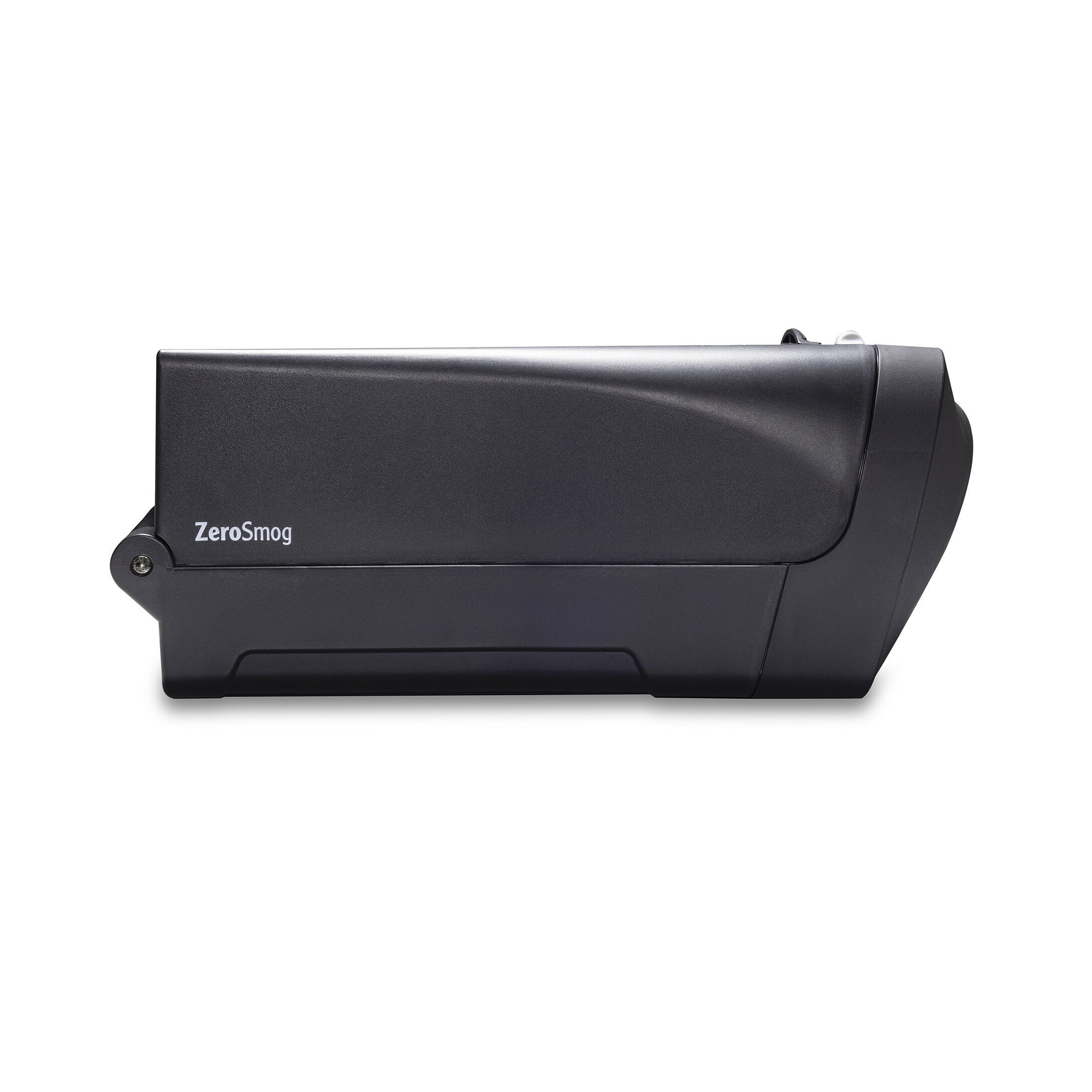

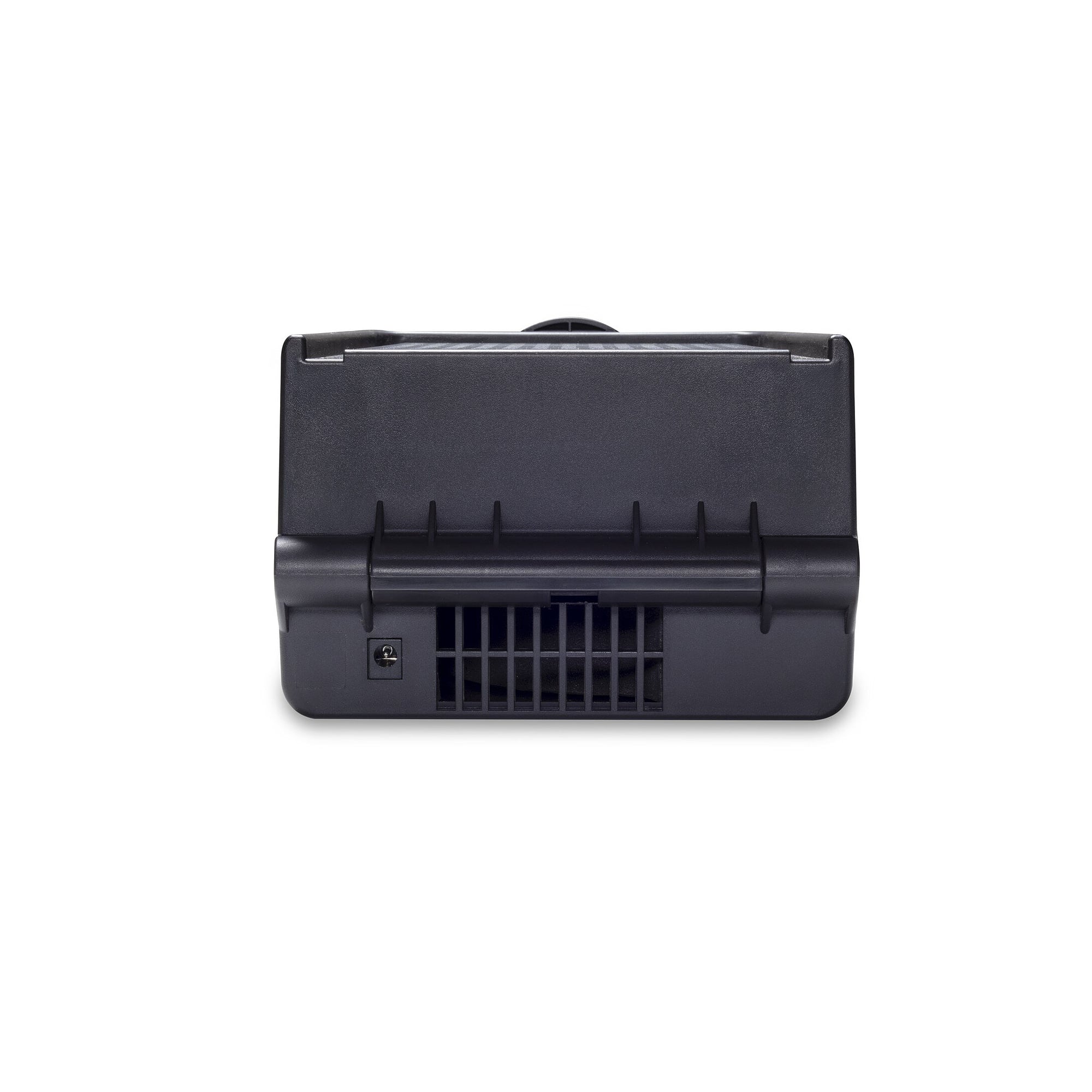

Solder fume rises straight into the breathing zone unless it is captured where it forms. The ZeroSmog Shield in the Black Edition moves 32 m³/h directly at the bench and, at 270 x 212 x 110 mm, occupies little more than a hand width of table space.

Benefits in use

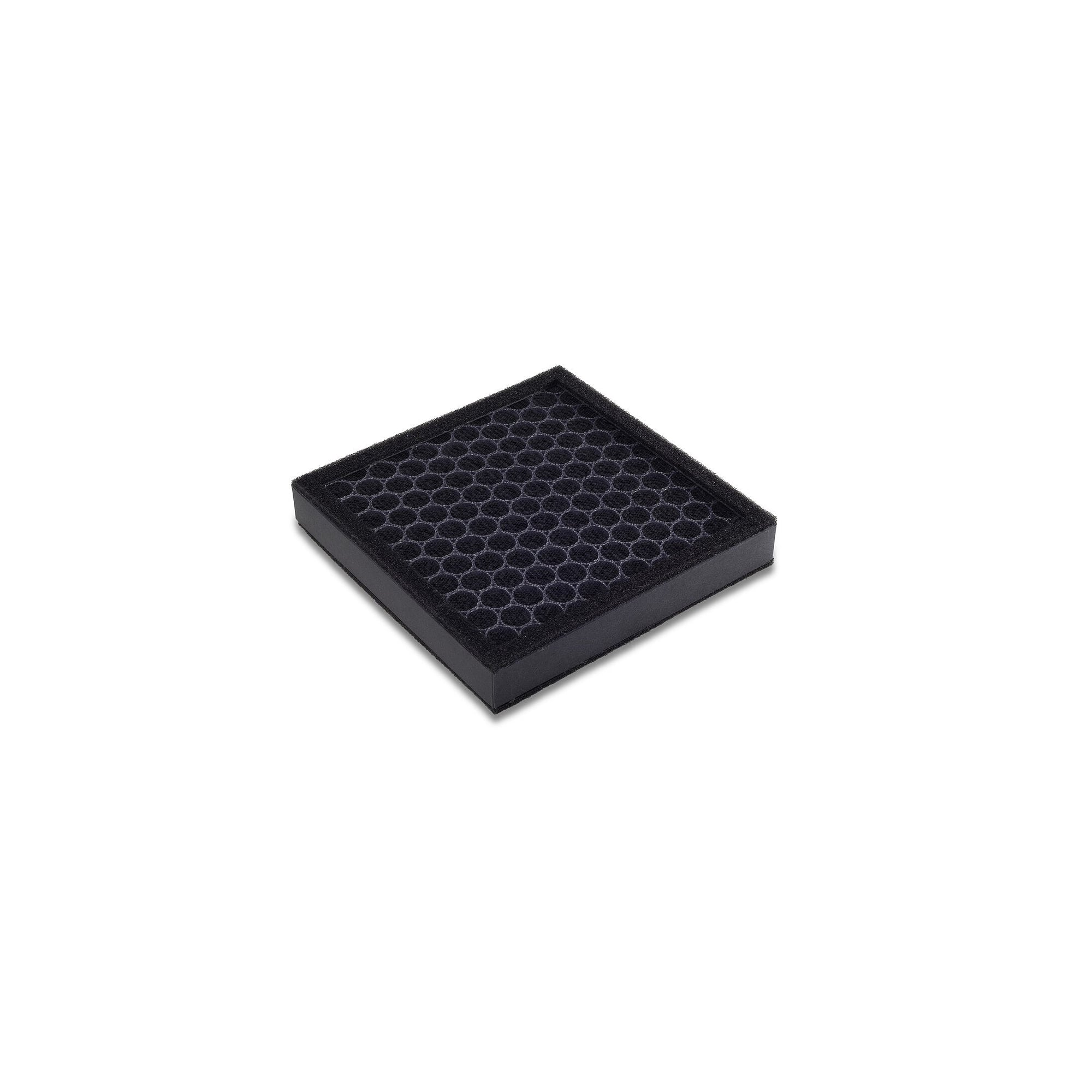

• Combi filter with an EPA E10 particle stage and activated carbon, so particles and gases are retained in one element.
• Flow rate of 32 m³/h at a maximum vacuum of 285 Pa, sized for a single soldering position rather than a central system.
• Noise level of 50 to 59 dBA, so the unit stays within normal office sound levels even at full speed.
• Stackable with soldering stations up to a footprint of 13 x 18 cm, which keeps the bench free for the actual work.

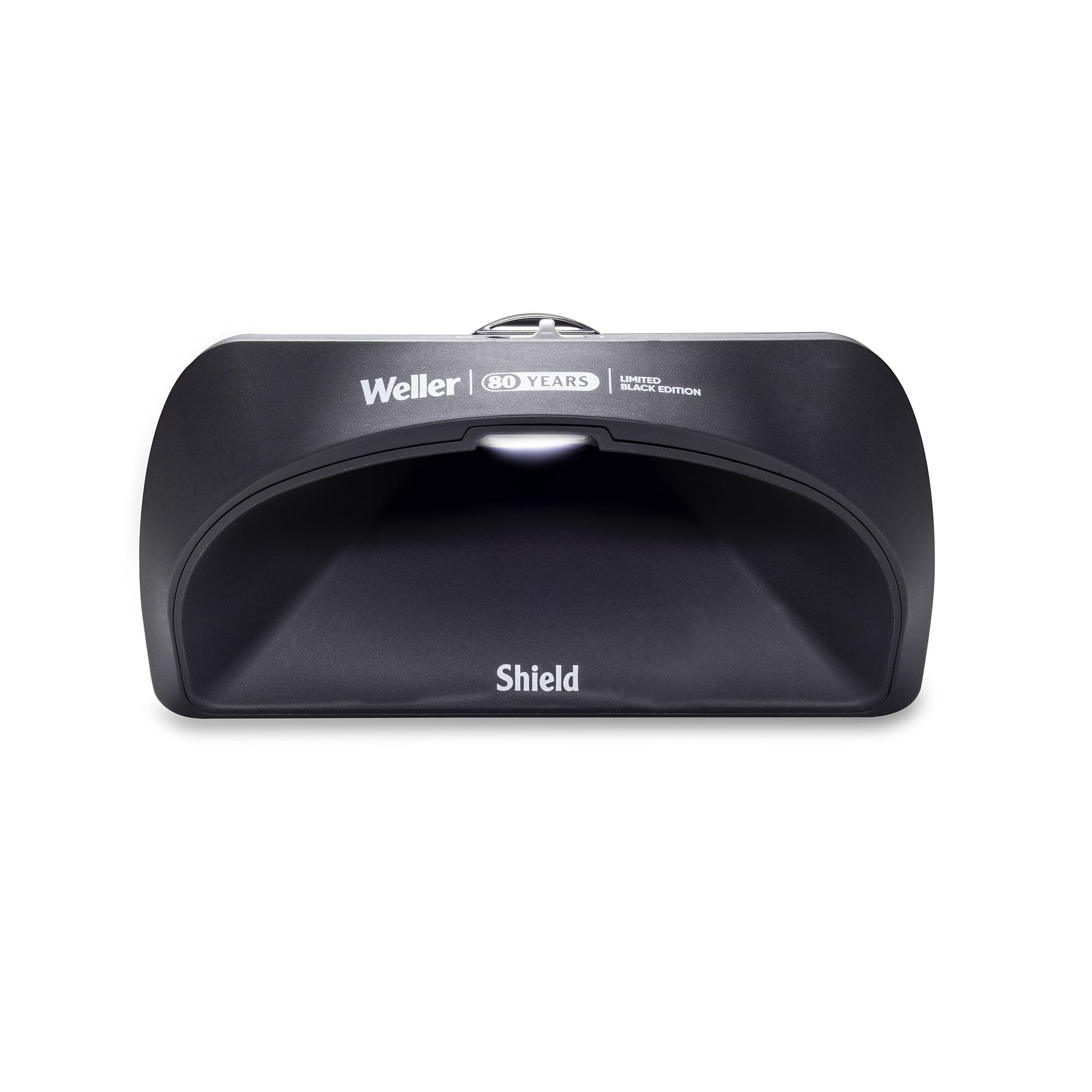

• A work light marks the effective extraction zone, so the operator can see where fume is actually captured.
• Antistatic housing and continuous filter monitoring, plus a wide range supply for 100 to 240 V.

Technical data

Applications

Single soldering positions in laboratories, workshops, repair and small series production. Training rooms and mobile service work are covered as well, because the unit weighs 2 kg and runs on any mains voltage between 100 and 240 V.

Compatibility and scope of delivery

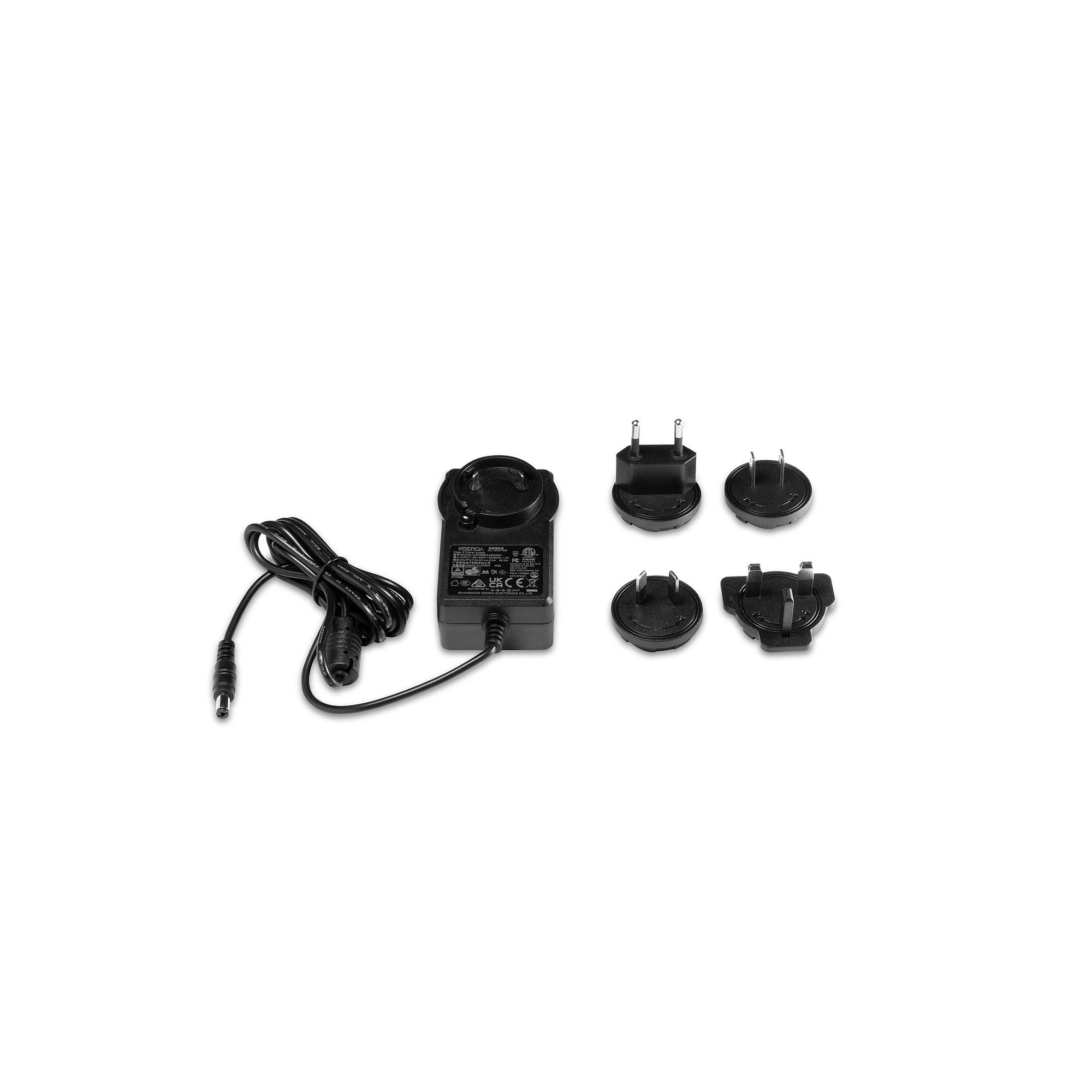

Supplied are the Shield extraction unit in the Black Edition, one EPA E10 filter, a mains plug and the operating manual. The unit stacks with soldering stations of any brand as long as their footprint stays within 13 x 18 cm.
