Solder fume extractor up to 1,000 m³/h, 4-stage H13 - ULT LRA 400 MD.17 HA14

Manual and robot soldering release a mixture of sticky aerosols, particles and gases from evaporating flux, solder and outgassing boards. The mobile ULT LRA 400.1 MD.17 with main filter module HA14 captures this solder fume at source, moves up to 1,000 m³/h and runs at a nominal point of 300 m³/h at 2,500 Pa. Cleaning is done in four stages, up to the H13 HEPA particle filter cassette and the activated-carbon adsorption filter.

Benefits

• Two Ø 80 mm inlet ports serve two capture points from one unit, further nominal diameters are available as an option.
• Up to 2,600 Pa vacuum and 1,000 m³/h keep a pressure reserve for loaded filters or longer hose runs.
• Four-stage storage filter system with 99.95 % particle separation to DIN EN 1822 binds aerosols, particles and gases in a single pass.
• The expanded-metal pre-filter retains cooled sticky aerosols, can be cleaned in an industrial washer and is reusable, which cuts replacement filter cost.
• Infinitely variable airflow control and ecoflow CS compensate automatically for rising filter loading and a changing number of capture points.
• The optical particle filter loading indicator signals a nearly saturated and a saturated particle filter on the LED status ring, the M12 interface passes operating and filter status to the machine control.
• Below 60 dB(A) at 50 to 100 % air performance, IP54, powder-coated sheet steel housing on castors.
• Low-contamination filter change through the removable front panel and the change filter system.

Technical data

Applications

Extraction and filtration of solder fume in manual soldering, robot soldering and automated soldering systems, including special workstations. The cleaned air can be returned to the room in recirculation mode, so no heat is lost. Recirculation is not permitted for carcinogenic, mutagenic or reprotoxic substances, in which case the optional Ø 160 mm exhaust port is fitted on the outlet side.

Compatibility and replacement filters

Device variant LRA 400.1 MD.17 with main filter module HA14, replacement filter set ULT 1-00198. Individual filters: expanded-metal filter ULT 4-00875, M5 and F7 filter mat set ULT 4-00219 or as a set of ten ULT 4-00220, change frame with filter mats ULT 4-00867, H13 particle filter cassette ULT 4-00908 and A14 adsorption filter cassette ULT 4-00861.

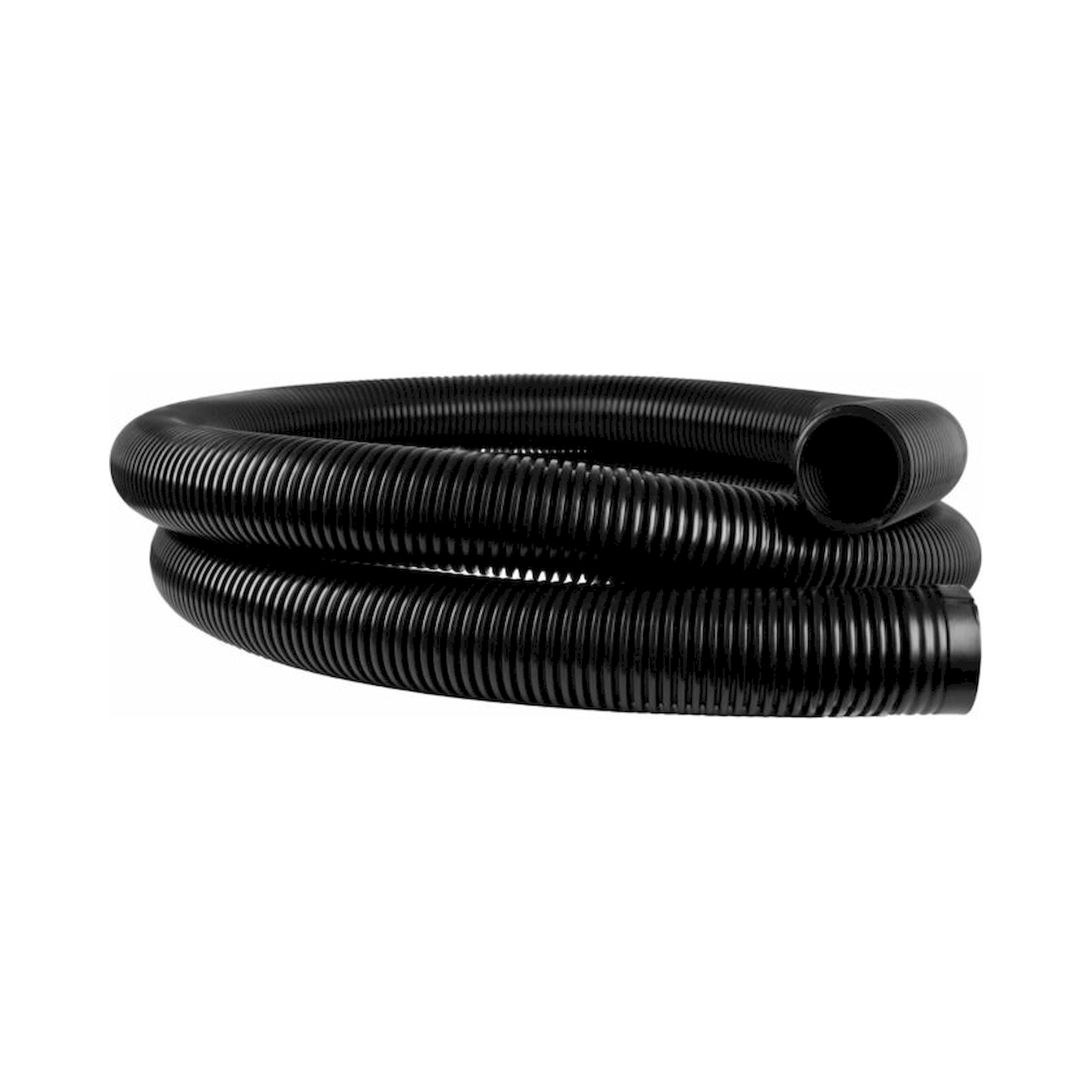

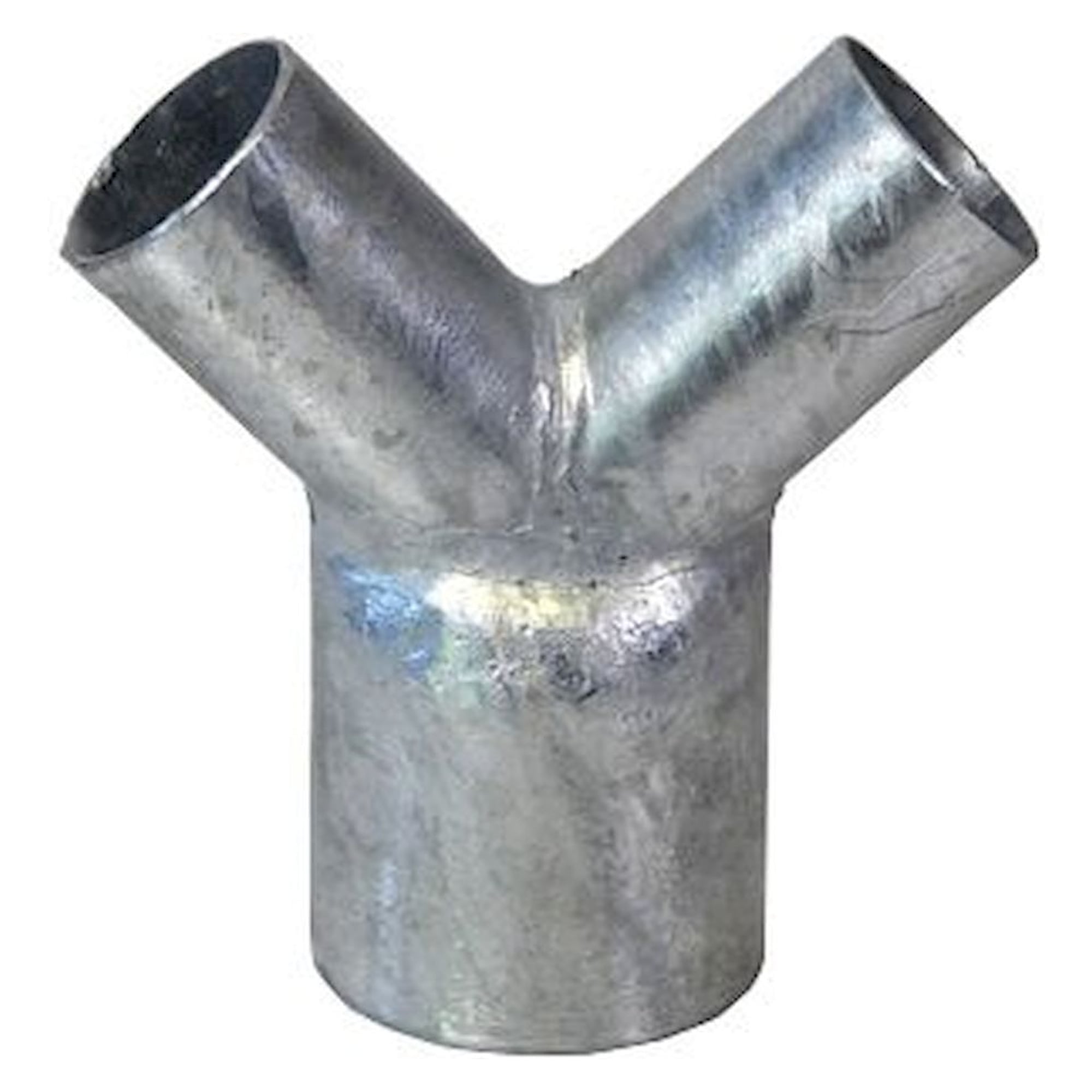

Accessories from the DN 80 extraction system: antistatic flexible hoses 2 m (ULT 3-00489), 3 m (ULT 3-00490) and 5 m (ULT 3-00491), each with bend, sleeve and worm drive clamps, reducer 1 x DN 80 to 2 x DN 50 (ULT 3-01319) and Alsident System 75 and System 100 extraction arms.

Manufactured by ULT AG, Am Göpelteich 1, 02708 Löbau, Germany. All electrical components in UL- and CE-compliant design.
