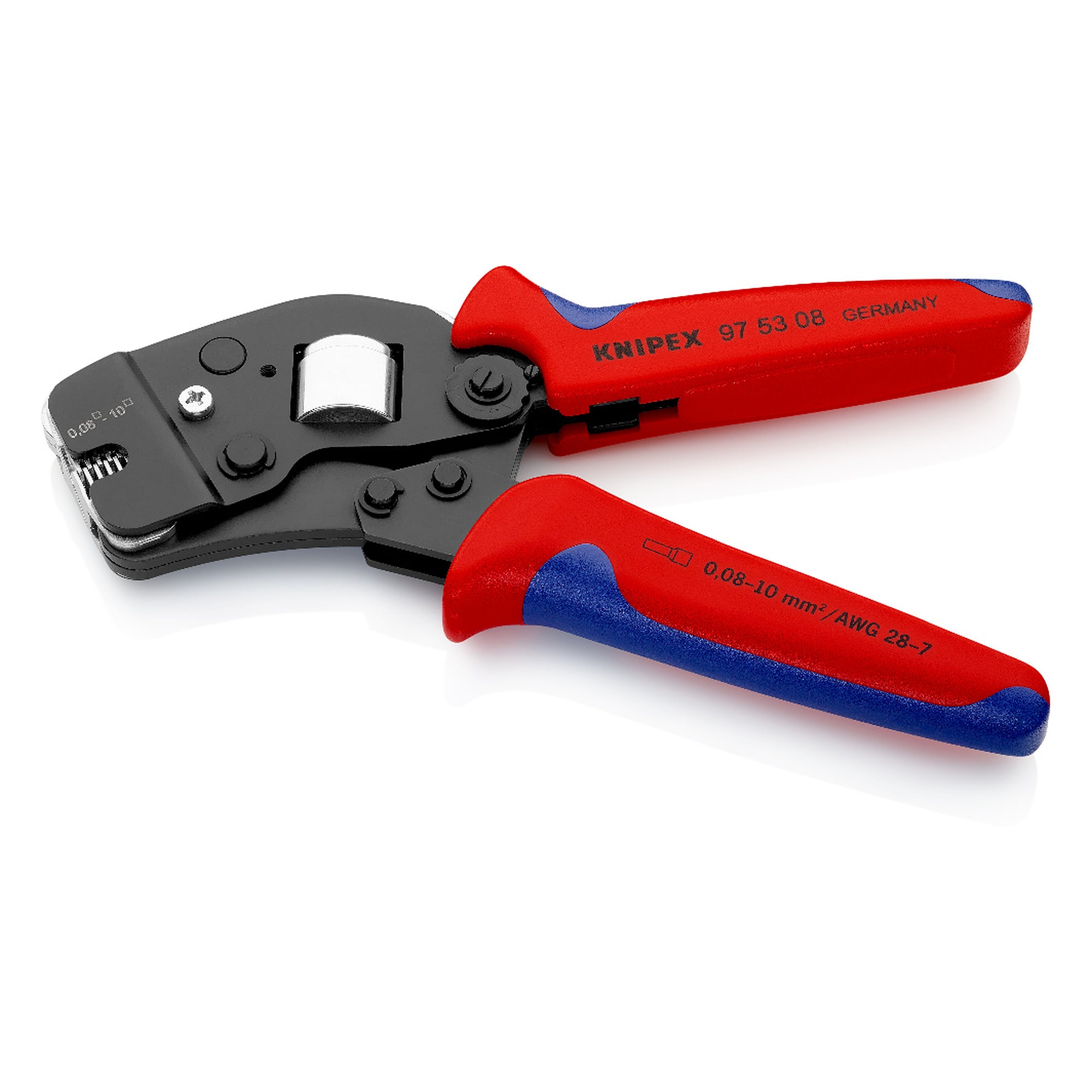

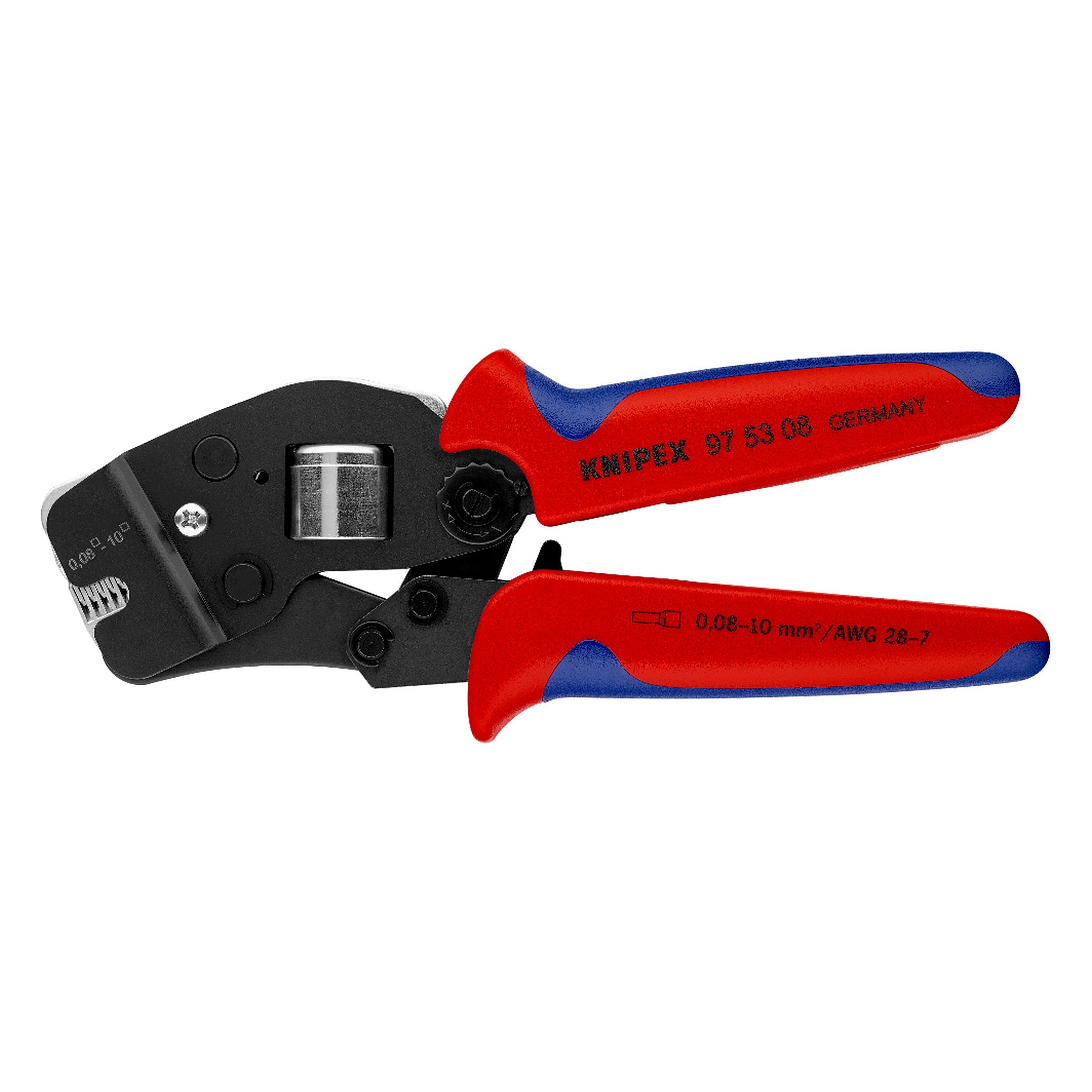

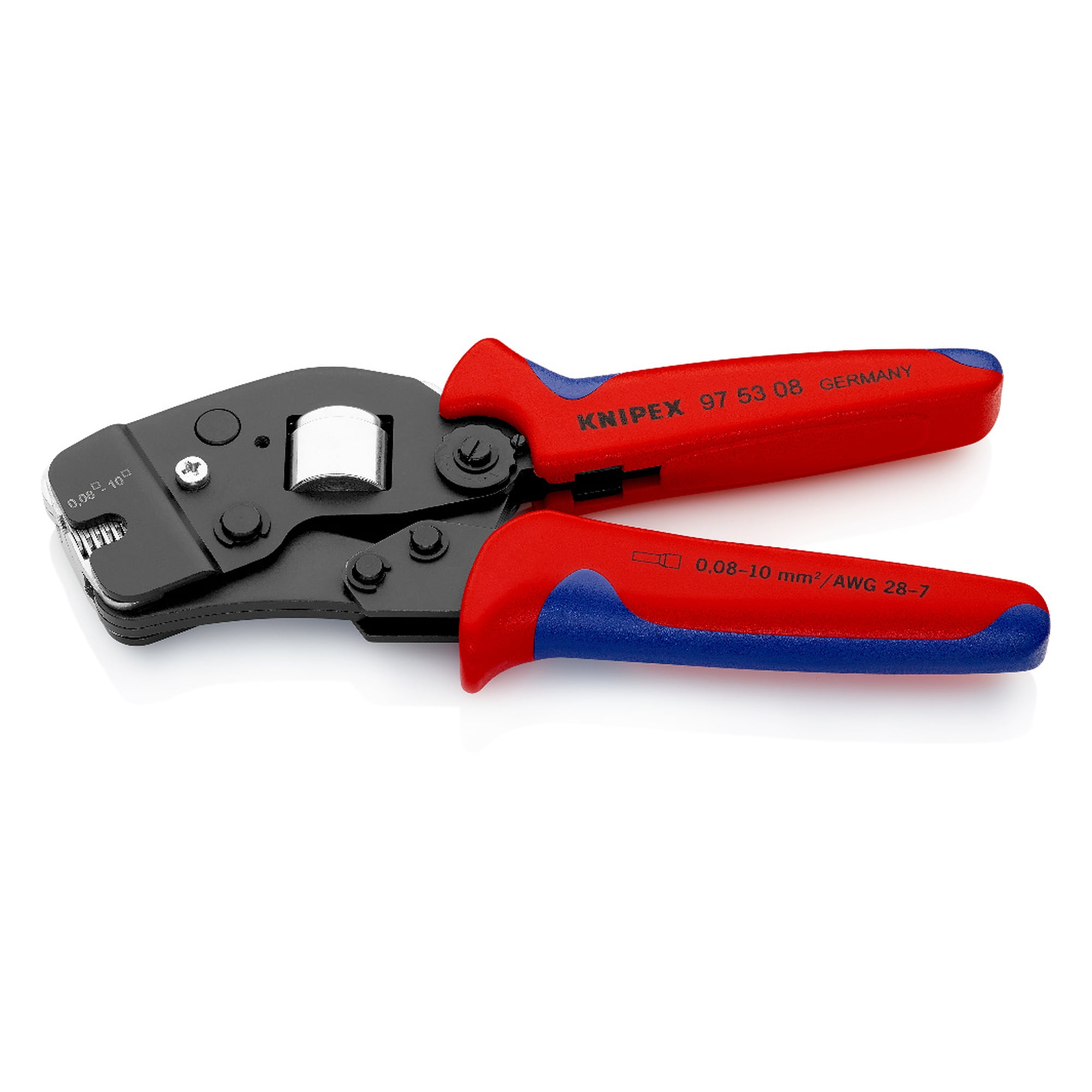

Self-adjusting crimping pliers for wire ferrules 0.08 to 10 mm² with front loading, 190 mm - Knipex 97 53 08

When making up a wiring harness there is rarely room beside the core. The self-adjusting crimping pliers 97 53 08 take the wire ferrule in from the front and crimp the whole range from 0.08 to 10.0 mm² in one single die.

Benefits

• Self-adjusting adaptation to the ferrule size, so no wrong crimps are caused by choosing the wrong die.
• One profile for 0.08 to 10.0 mm², equal to AWG 28 to 8, and suitable for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12.

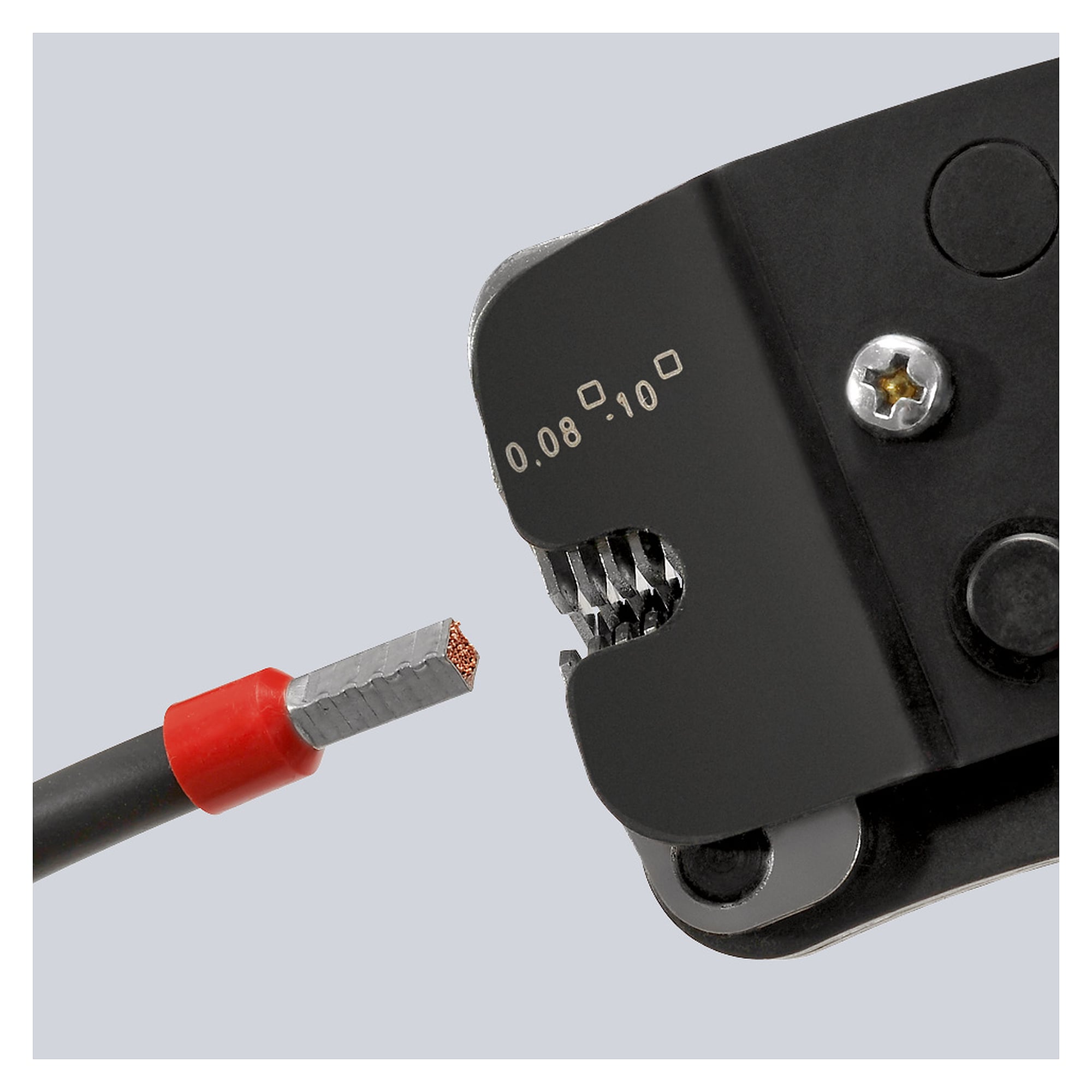

• Frontal insertion of the ferrules, and cross-sections up to 2.5 mm² can also be loaded parallelly from the side.
• Crimping according to DIN 46228 parts 1 + 4, UL approved in conjunction with KNIPEX wire ferrules 97 99 330 to 399.
• Unlockable ratchet and factory calibrated crimping pressure secure a repeatable, high crimping quality.
• Handy shape at 477 g and efficient lever action keep the effort low.

Technical data

Areas of use

Control cabinet and control system building, electrical installation, cable assembly and service work. Front loading pays off wherever the core runs straight towards the tool and no space is left at the side, for example in densely populated terminal boxes.

Standards and conformity

Crimping follows DIN 46228 parts 1 + 4. In conjunction with KNIPEX wire ferrules 97 99 330 to 399 the crimp is UL approved. According to the manufacturer the tool contains substances of very high concern under REACH. The RoHS directive does not apply.
