Tweezer handpiece for shops already running a TMT-9000PS, STSS or a Metcal MX power unit that want to add dual sided desoldering to the bench. Both arms are heated, so chip parts lift off without pulling on the pads. The RMP-1 protection pad for tip removal is part of the delivery.
ESD solder tweezer handpiece for TMT-9000S and Metcal MX - Thermaltronics SHP-MTZ
THERMALTRONICS
Original product
Net price (excl. VAT)
€175.59
Item
WL37512
Manufacturer no.
SHP-MTZ
ESD · IEC 61340-5-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.SHP-MTZ
ConditionNew
Article
WL37512
Frequently Bought Together
A bench that only has a soldering iron on its Metcal MX or Thermaltronics TMT-9000S needs a second tool for two terminal SMD parts. The SHP-MTZ fills exactly that gap and runs from the same power units.
Benefits
- Both arms are heated, so the part releases evenly instead of being levered off on one side
- Runs on TMT-9000PS and STSS as well as Metcal MX-500, MX-5000 and MX-5200
- ESD safe and RoHS compliant for handling sensitive assemblies
- RMP-1 protection pad for tip removal included in the delivery
- Uses the existing power unit, so no extra bench space is needed
Technical data
| Item number | WL37512 |
| Model | SHP-MTZ |
| Manufacturer | Thermaltronics |
| Manufacturer item number | SHP-MTZ |
| Handpiece type | Soldering tweezers |
| Suitable control unit | TMT-9000PS, STSS, MX-500, MX-5000, MX-5200 |
| Dimensions with packaging (LxWxH) | 230 mm x 120 mm x 100 mm |
| Dimensions with packaging in inches (LxWxH) | 9.1 in x 4.7 in x 3.9 in |
| Weight | 0.1 kg |
| Scope of supply | Solder tweezer handpiece with RMP-1 protection pad for tip removal |
| Order unit | Piece |
| ESD safe | Yes |
| RoHS compliant | Yes |
Applications
Removing and replacing chip resistors, capacitors, diodes and small packages during repair, rework and fault finding. It also helps when a component has to come off undamaged for later analysis.
Compatibility and scope of delivery

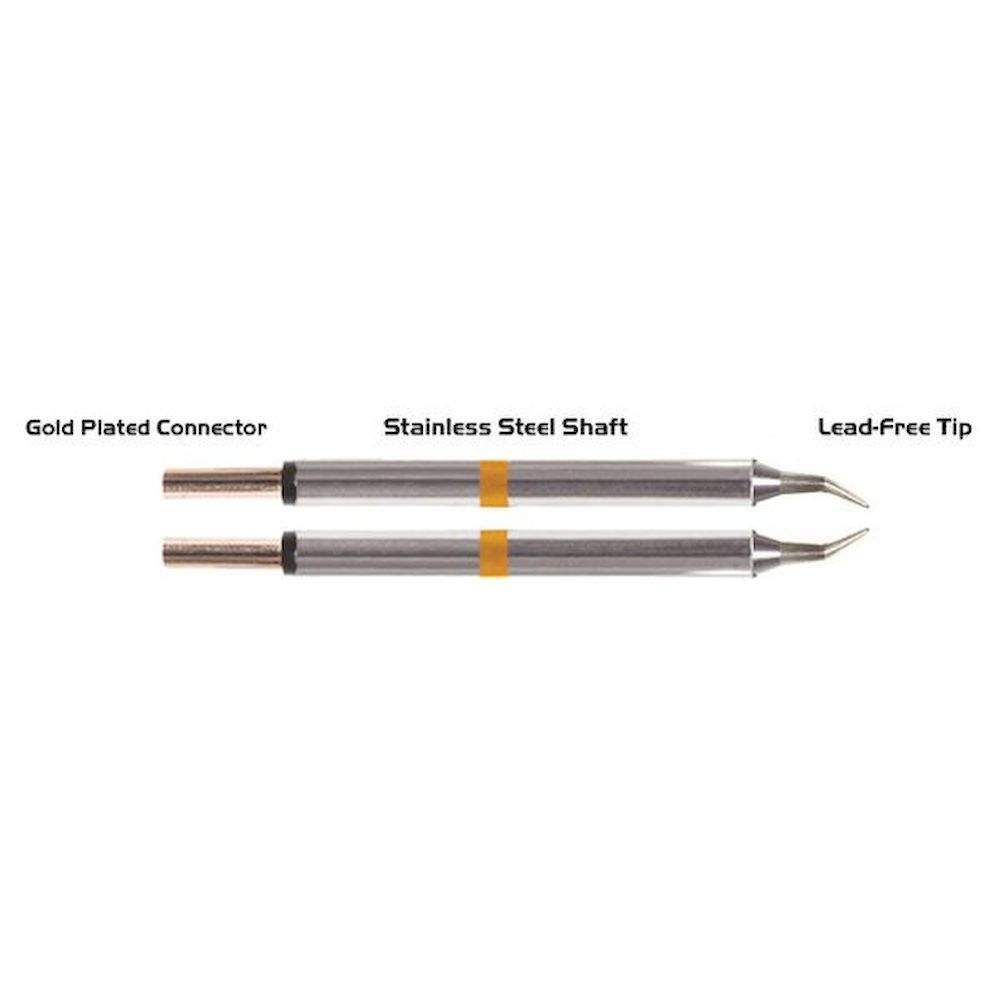

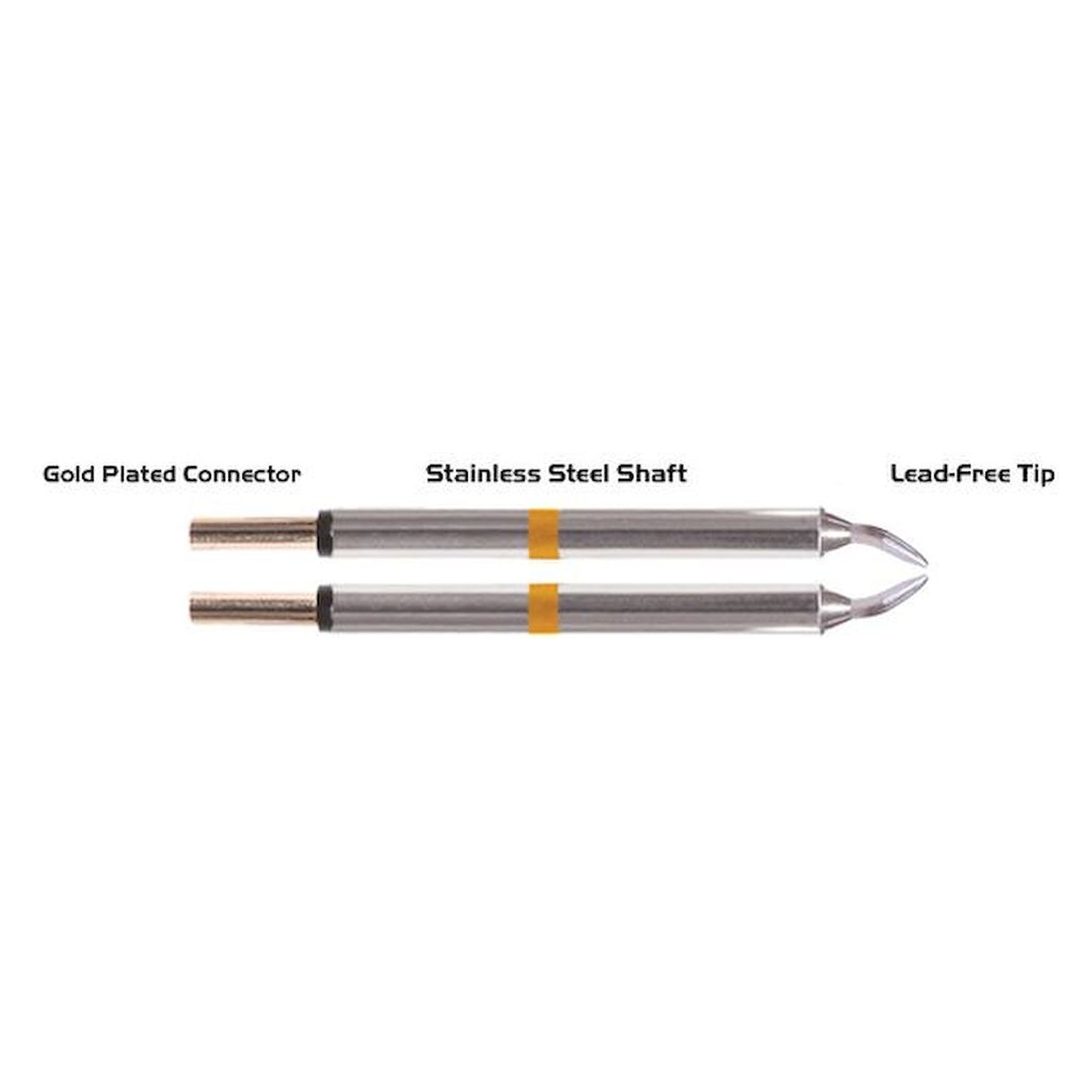

Connects to the Thermaltronics TMT-9000PS and STSS power units and to Metcal MX-500, MX-5000 and MX-5200. Supplied as the tweezer handpiece with the RMP-1 protection pad for tip removal, sold by the piece. Tweezer cartridges are used in pairs and available separately.
The ESD safe version suits workstations run as an EPA to IEC 61340-5-1.
| Certification | IEC 61340-5-1 |
|---|---|
| Manufacturer Nr. | SHP-MTZ |
| Manufacturer | Thermaltronics |
| Weight | 0.100000 |
| GPSR manufacturer information | AMS Ltd, Unit 3 Norse Trade Park, Congleton CW12 1GW, www.ams-electronics.co.uk |
| Article authenticity | Original product |
| Condition of article | New |
| Temperature range | 325-475 °C |
| Temperature (max.) | up to 500 °C |
