Solder tweezer kit with SHP-MTZ handpiece for TMT-9000S - Thermaltronics TZ-KIT-1
- This Item: €227.45

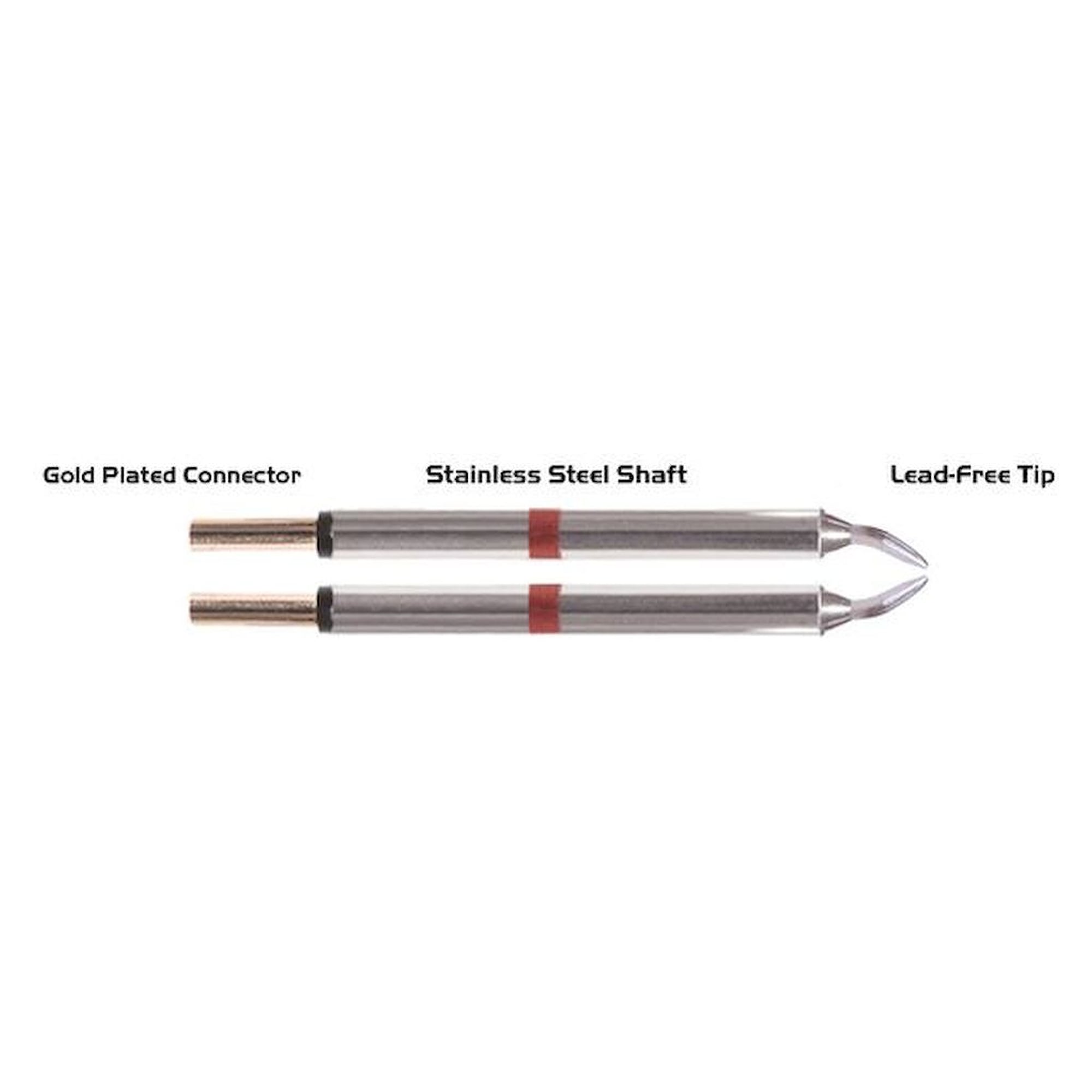

- Soldering tweezer tips, chisel 1.5 mm for SHP-MTZ - Thermaltronics M80TZ015 €28.64

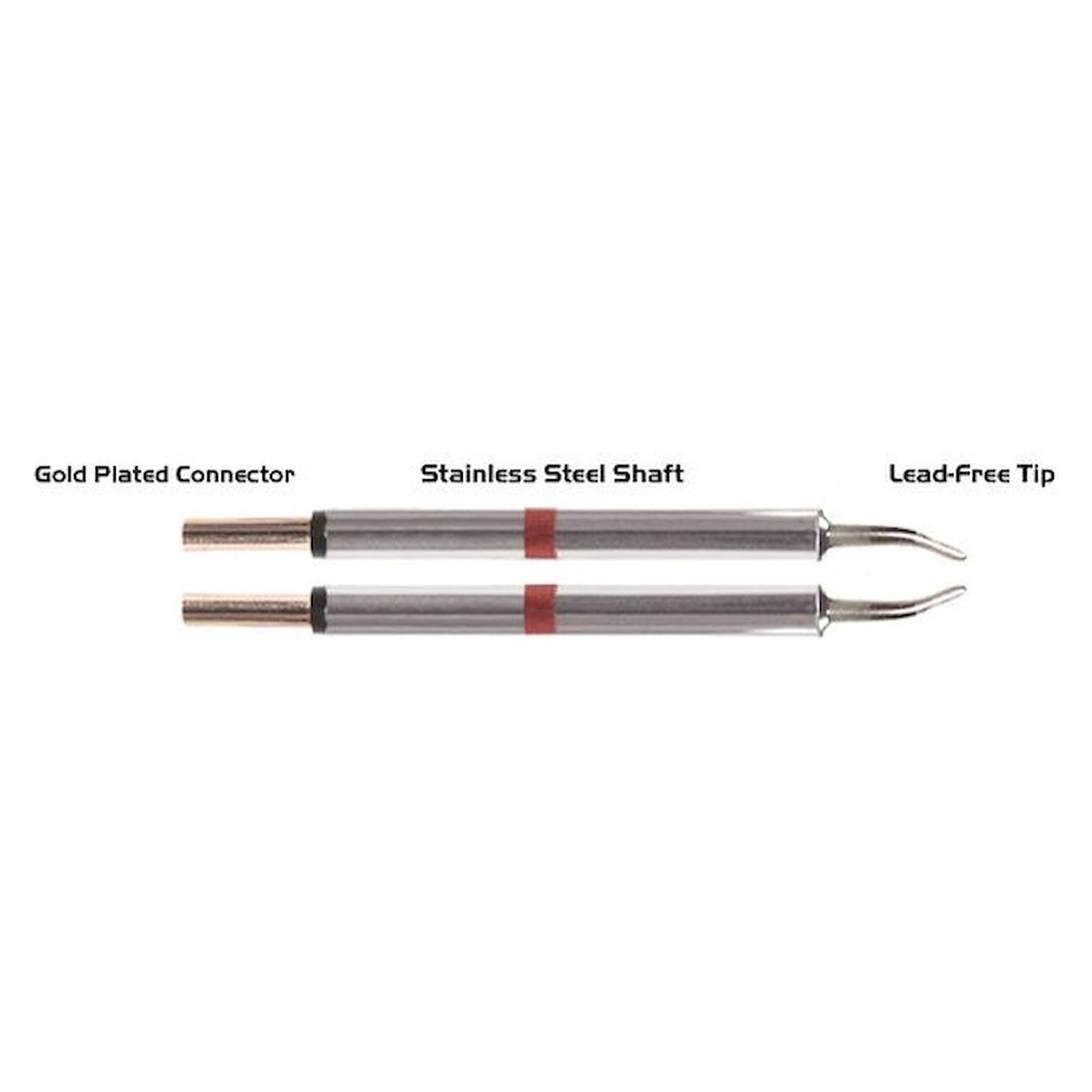

- Soldering tweezer tips, chisel long reach 1.78 mm for SHP-MTZ - Thermaltronics M80TZ018 €27.92
Chip resistors, capacitors, MELF and SOT packages release only when both joints are liquid together. The TZ-KIT-1 gives an existing TMT-9000S power unit exactly that ability: an ergonomic SHP-MTZ tweezer handpiece with two heated arms, the matching SHH-MTZ stand and the mount for TZ-series tweezer tips.
Benefits
- Heating from both sides makes repair soldering possible even on very small packages
- Both arms lock and the tips adjust horizontally and vertically for precise part pick-up
- Ergonomic hand part suited to longer rework sessions at the repair bench
- ESD-safe construction and lead-free operation
- Complete kit including the SHH-MTZ stand, ready to run on the station
Technical data
| Item number | WL37537 |
| Model | TZ-KIT-1 |
| Manufacturer | Thermaltronics |
| Manufacturer item number | TZ-KIT-1 |
| Handle type | Soldering tweezers |
| Matching station | TMT-9000S |
| Suitable tips | TZ-series tweezer tips |
| Included handpiece | SHP-MTZ |
| Included stand | SHH-MTZ |
| ESD safe | Yes |
| Lead-free | Yes |
| Dimensions with packaging (LxWxH) | 240 mm x 190 mm x 180 mm |
| Dimensions with packaging in inches (LxWxH) | 9.4 in x 7.5 in x 7.1 in |
| Order unit | Piece |
Applications
Removing and replacing chip components, MELF diodes, SOT packages and small connectors in board repair, prototype building and electronics service. Placing single parts during sample builds is also faster with tweezers than with two separate irons.
Compatibility and scope of delivery
The kit runs on the TMT-9000S soldering station and is supplied with the SHP-MTZ handpiece and the SHH-MTZ stand. TZ-series tweezer tips are chosen separately according to component size and are not included.
The ESD-safe design allows use at workstations built to IEC 61340-5-1.
| Manufacturer Nr. | TZ-KIT-1 |
|---|---|
| Manufacturer | Thermaltronics |
| Weight | 0.100000 |
| GPSR manufacturer information | AMS Ltd, Unit 3 Norse Trade Park, Congleton CW12 1GW, www.ams-electronics.co.uk |
| Article authenticity | Original product |
| Condition of article | New |
| Temperature range | 325-475 °C |
| Temperature (max.) | bis 500 °C |
| Position sensing | No |
