ESD floor tile X-LOG, conductive, PVC, light grey (RAL 7004), smooth, 497x497x7 mm, pack of 4 - Ecotile X500/7/ESD201

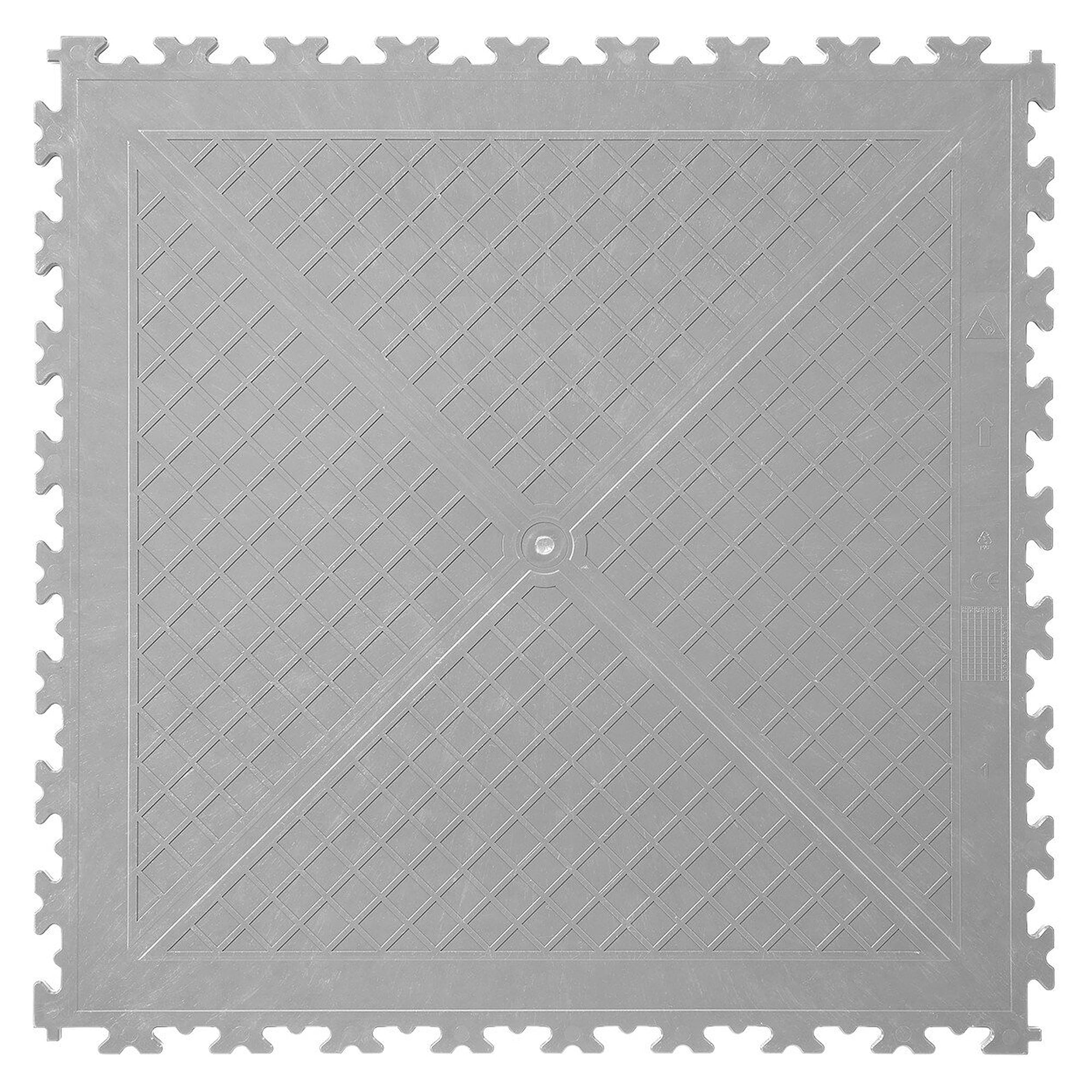

The Ecotile ESD X500 at 7 mm thickness creates a conductive floor for electrostatic protected areas (EPA), colour light grey (RAL 7004). Each tile measures 497 x 497 mm and a pack of 4 covers 0.99 m² at a weight of 8.40 kg/m². Stainless steel microfibres embedded in the PVC keep resistance between 3.4 x 10⁴ Ω and 5.0 x 10⁶ Ω, while the surface texture supports the ESD walking test and adds slip resistance.

Advantages

• Body voltage below 100 V, compliant with ANSI/ESD S20.20-2014 and IEC 61340-5-1

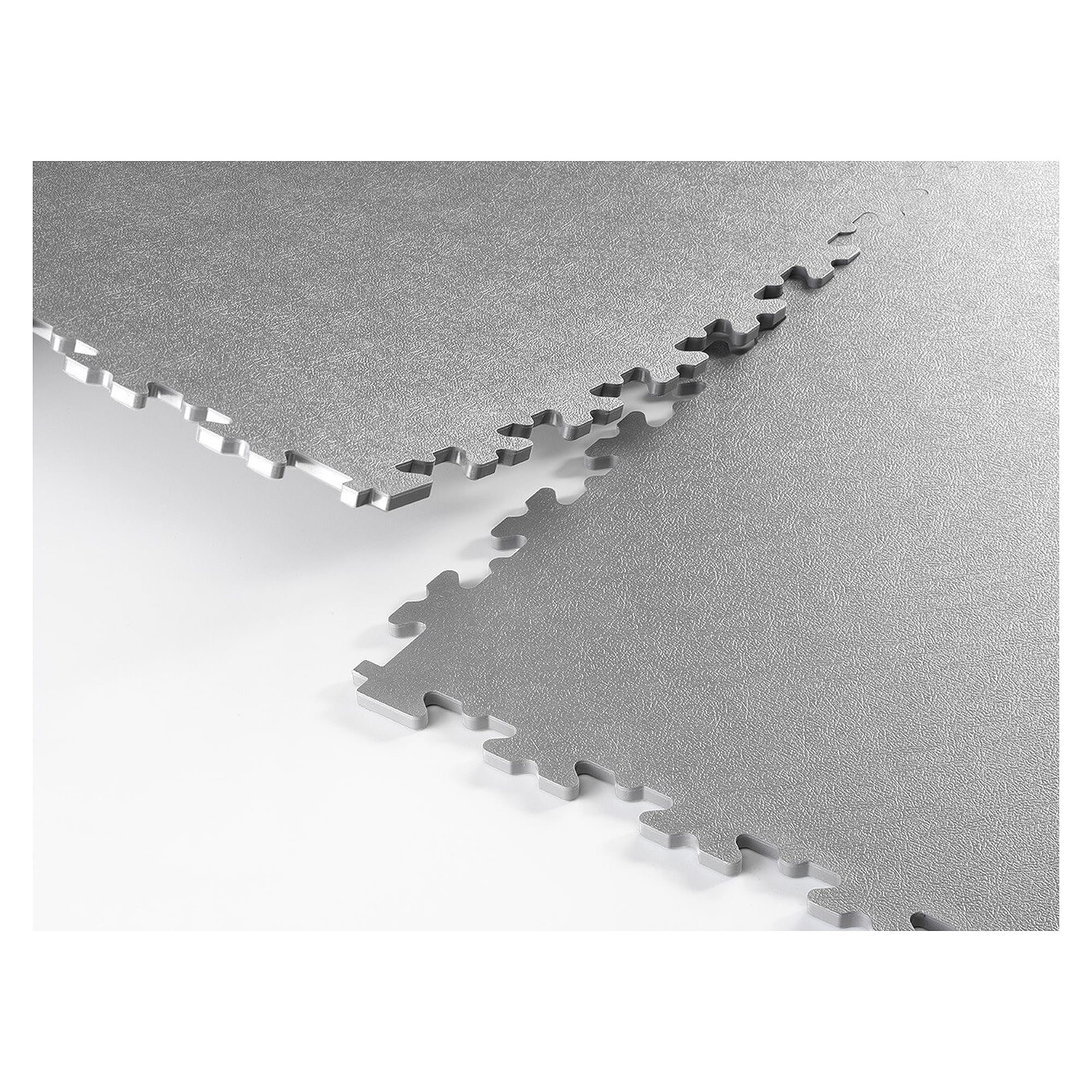

• X-LOG interlocking joint (manufacturer name X-Joint), installed without adhesive, screed or downtime
• Slip resistance R10 and reaction to fire class Bfl-s1
• Hardness Shore A 90-92, good chemical resistance to EN 13529
• 10-year manufacturer warranty, lifetime warranty on ESD performance

Technical data

Applications

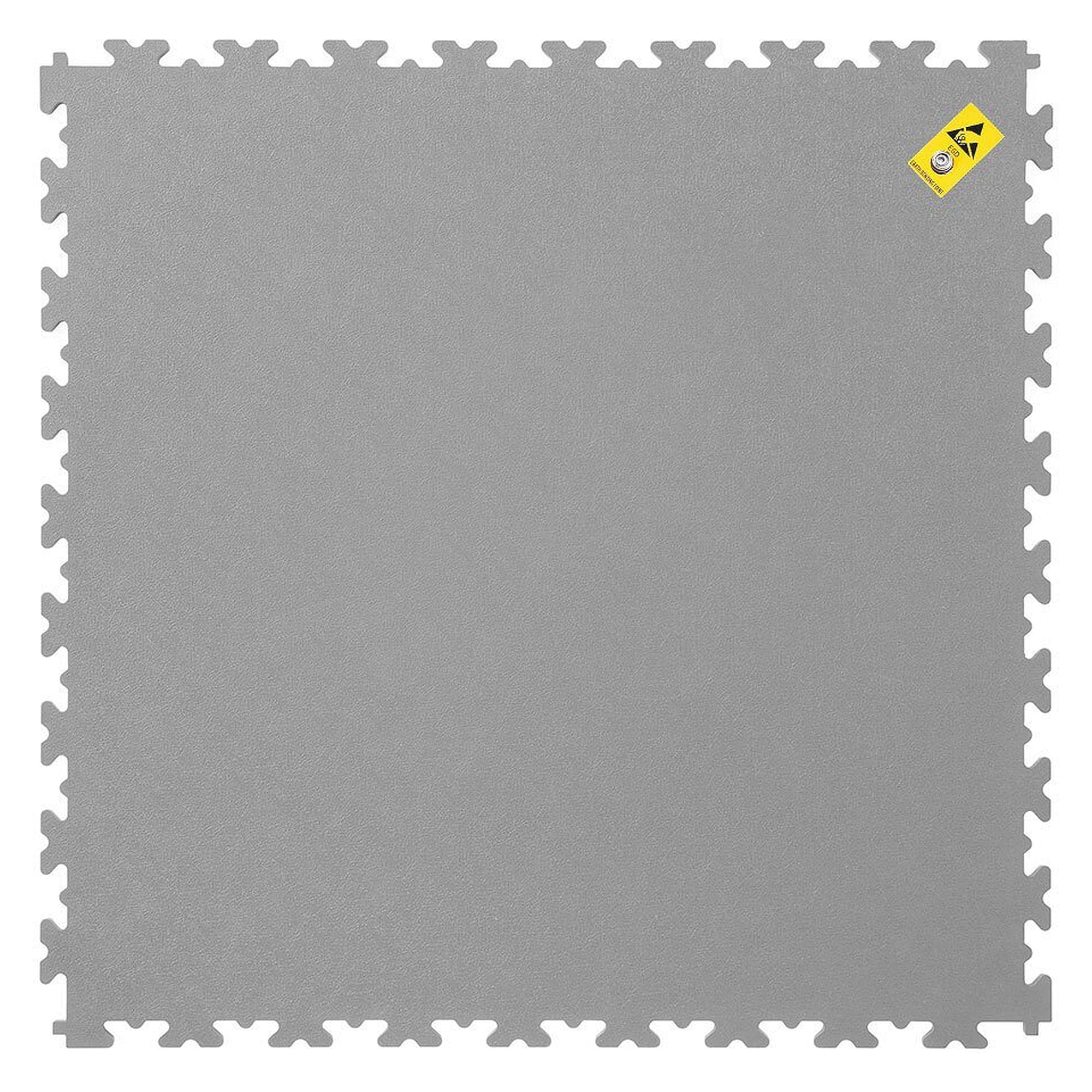

Cleanrooms, data centres, pharmaceutical facilities and electronics production and assembly. The tiles are bonded to each other with conductive earthing tape. Grounding runs through the grounding tile or through an earthing cable to an earthing plug or earthing rail as set out in the installation guide. Plan one ESD grounding tile per 60 m² of floor.

Compliant with IEC 61340-5-1, BS EN 61340-5-1 and ANSI/ESD S20.20-2014. Slip resistance R10, reaction to fire class Bfl-s1, chemical resistance to EN 13529. Made in the United Kingdom.
