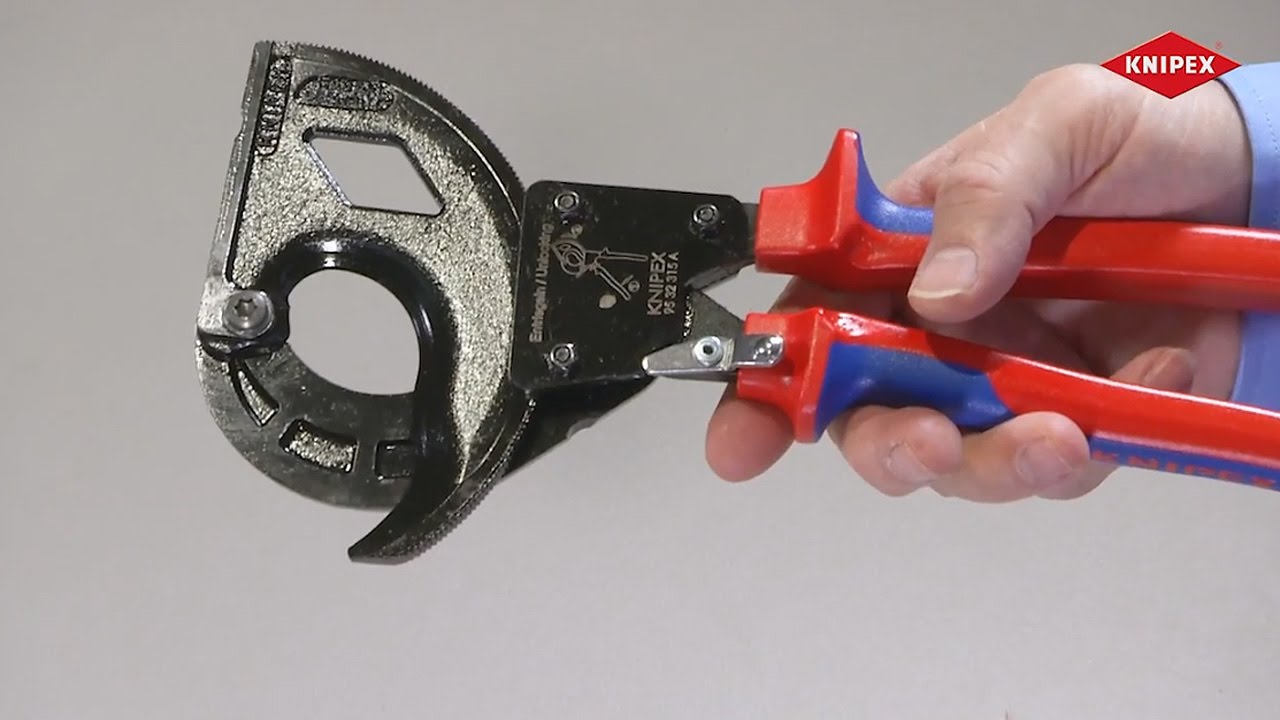

Cable cutter with three-stage ratchet drive for steel wire armoured SWA cables up to 45 mm dia., 315 mm - Knipex 95 32 315 A

Steel wire armoured cable puts an early end to ordinary cable shears. The 95 32 315 A cable cutter cuts through SWA cables up to 45 mm dia. or 380 mm², for example 4 x 95 mm², at a weight of only 800 g.

Benefits

• Innovative three-stage ratchet drive with high leverage for easy cutting in one-hand and two-hand operation.
• Induction-hardened and precisely milled cutting edges cut smoothly and neatly without crushing.
• Pinch guard reduces the risk of trapped fingers.
• Manual opening and emergency release are possible in any position.
• Lockable in the closed condition for transport, which saves space and protects the tool.
• Fixed handle with support area for putting the tool down while cutting, compact design at 315 mm and 800 g.

Areas of use

Underground and steel wire armoured cables in grid and plant construction, cable trenches, distribution boards and maintenance. Suitable for cables with single and multi-wire conductors of conductor classes 1 and 2. Not suitable for cutting ACSR cable and wire ropes.

Standards and conformity

Conductor classes 1 and 2 refer to DIN EN 60228, VDE 0295 and IEC 60228. The manufacturer states no tool standard for this non-insulated model. According to the manufacturer the cutter contains no substances of very high concern under REACH, and the RoHS directive does not apply.
