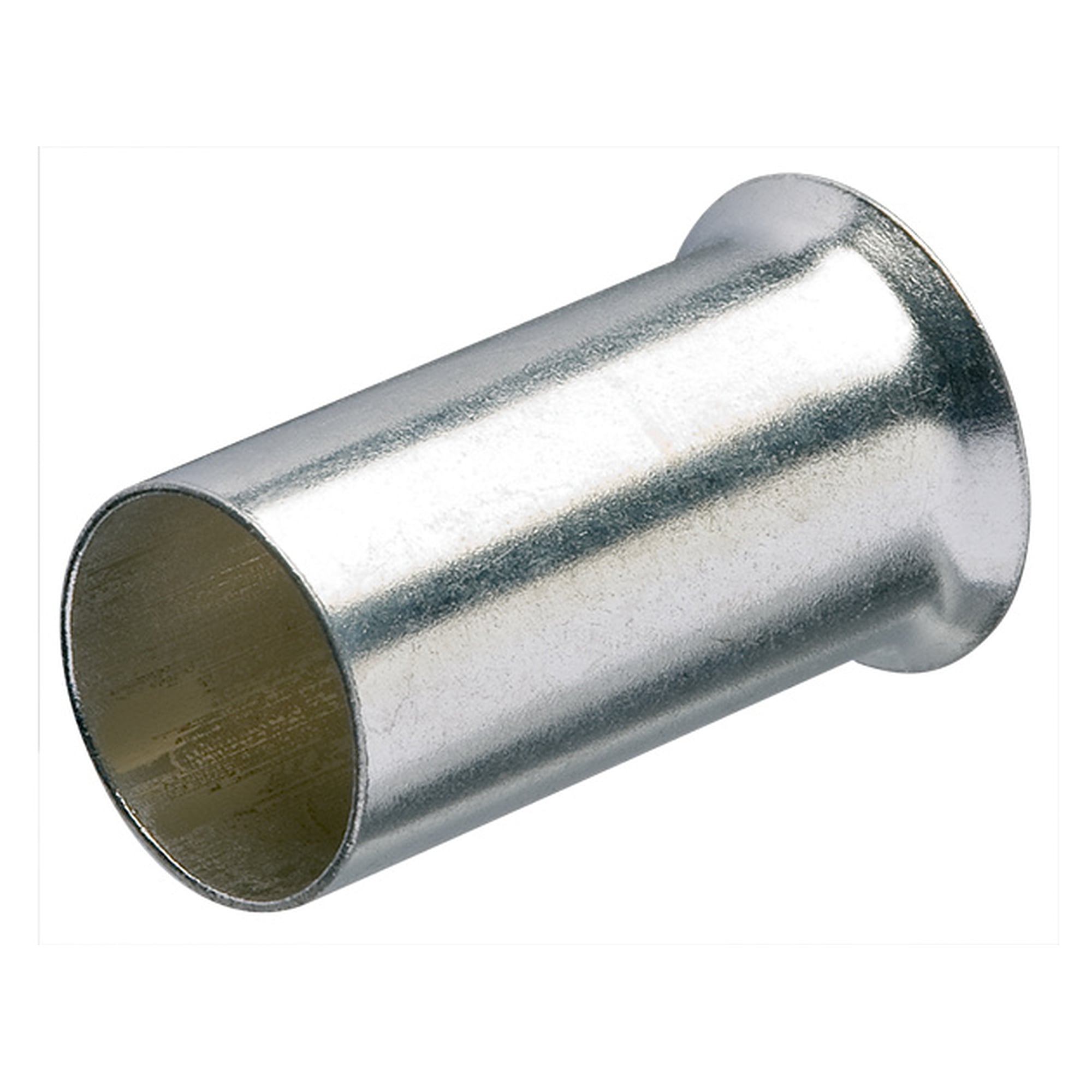

Non-insulated wire end ferrules 10 mm², electro tin plated to DIN 46228, 100 pieces - Knipex 97 99 397

Anyone landing fine-stranded conductors on screw or spring terminals must keep the wire end from splaying apart. This non-insulated ferrule for 10 mm² gathers the single strands into one dimensionally stable end and is made to DIN 46228. With 100 pieces the pack covers longer wiring runs as well.

Benefits

• E-Cu material keeps the contact resistance at the terminal low.
• Electro tin plated surface with a minimum coating thickness of 3 µm protects the contact against corrosion.
• Nominal size 10 mm², so the ferrule fits the conductor cross-section without rework.
• UL certified and therefore usable in installations inspected to American rules.
• Non-insulated design without a plastic collar stays short and fits into narrow terminal chambers.

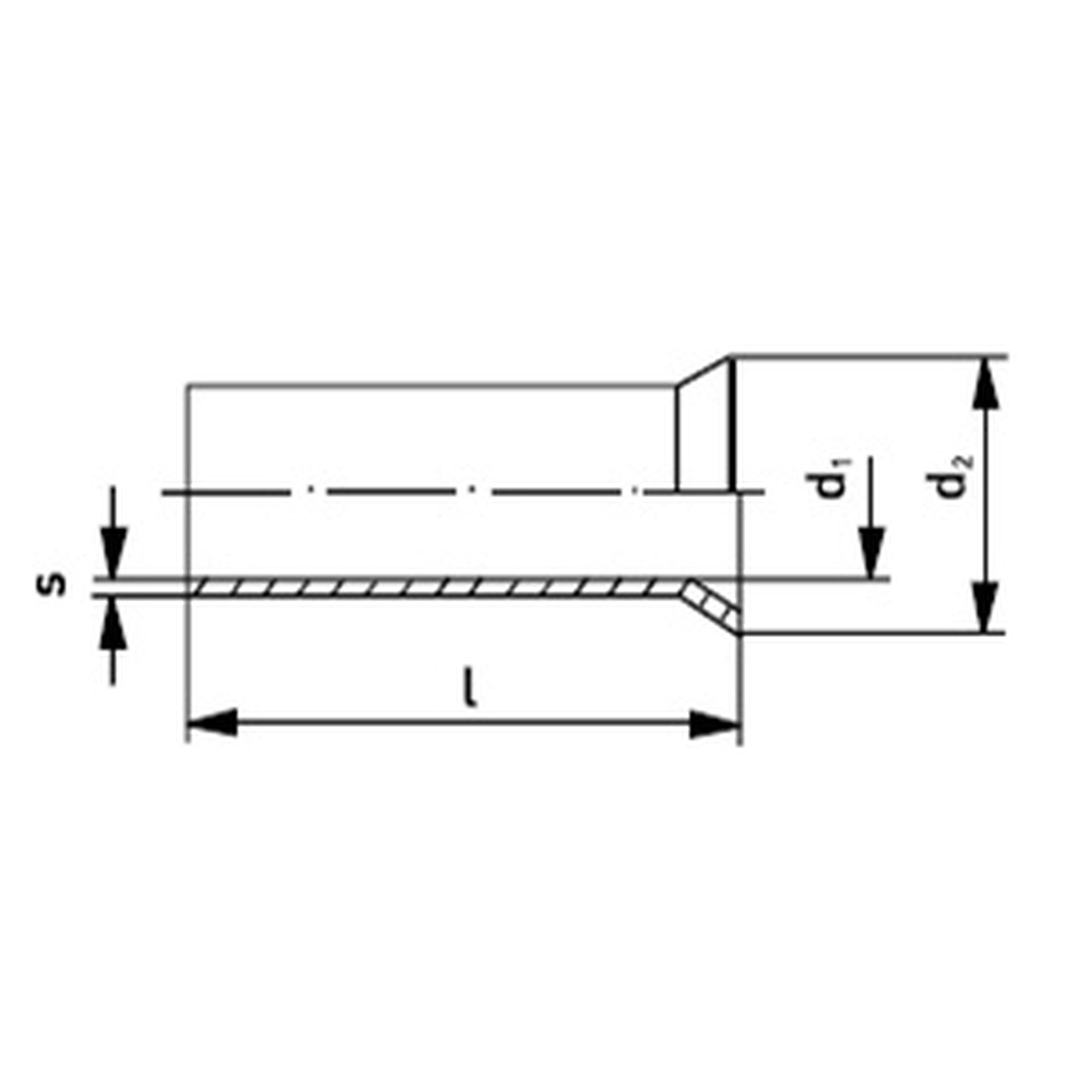

• Dimensions to DIN 46228, which keeps the ferrule interchangeable across manufacturers.

Technical data

Areas of use

Electrical installation, control cabinet and control system building and machine service, wherever fine-stranded 10 mm² conductors are landed on terminal blocks, motor protection switches or device connections. The non-insulated version is the first choice when the plastic collar of an insulated ferrule leaves no room inside the terminal.

Standards and conformity

The ferrule is made to DIN 46228 and is UL certified. According to the manufacturer it contains no substances of very high concern under REACH and it complies with the RoHS directive.
