Cable knife with replaceable blade and hinged blade guard, 50 mm blade, VDE insulated, 190 mm - Knipex 98 56
Cable knife with a straight, specially sharpened blade that can be replaced once it wears. The hinged blade guard is captive in the handle and the back of the blade is plastic coated to avoid short circuits. Blade length 50 mm, VDE tested to DIN EN 60900 and IEC 60900, 190 mm long at 64 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Stripping cable every day calls for a sharp edge without buying a new knife each time. The 98 56 cable knife therefore works with a replaceable straight blade of 50 mm length and special sharpening, backed by a hinged blade guard that is integrated captive in the handle.
Benefits

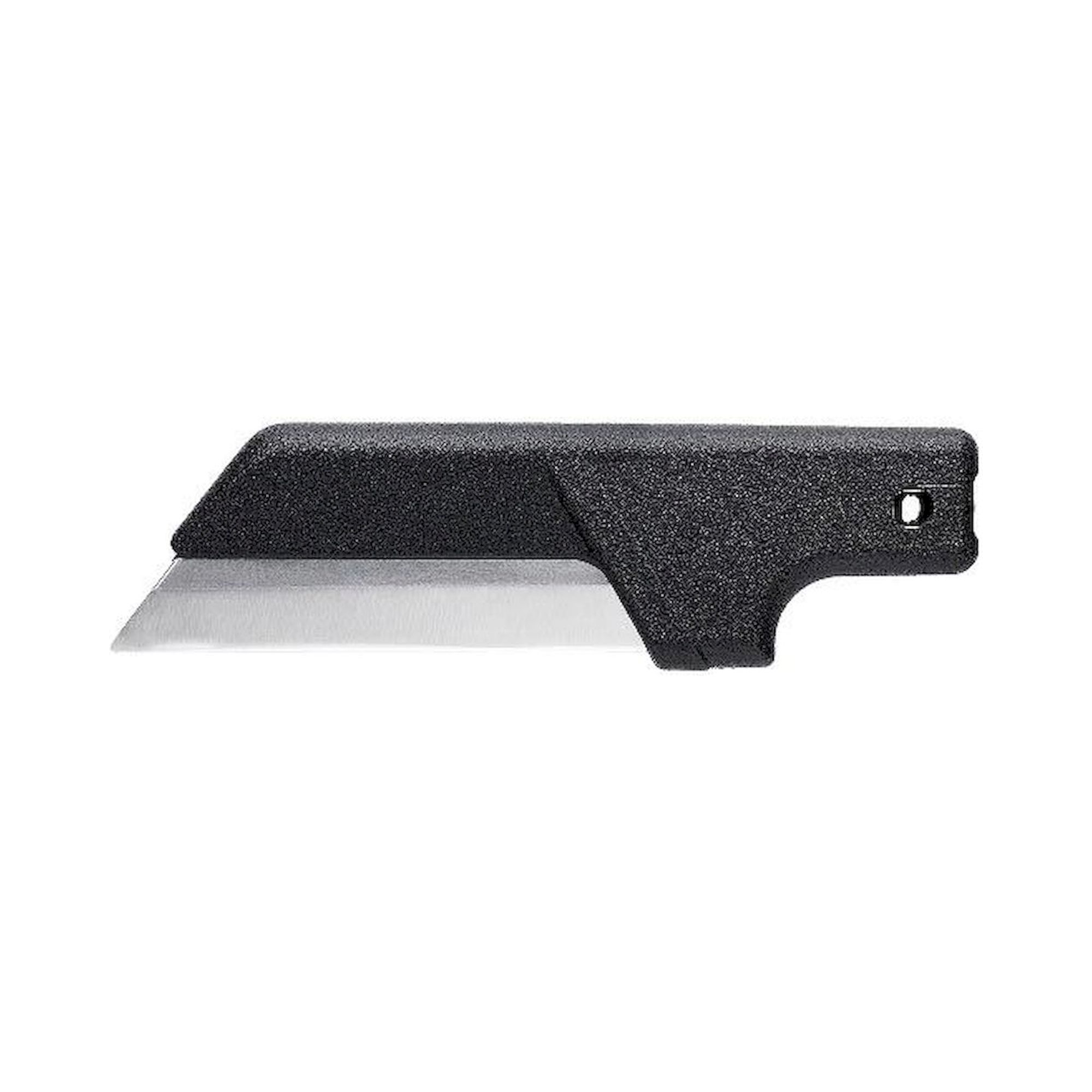

- Straight blade with special sharpening, replaceable, matching spare blade Knipex 98 56 09.
- 50 mm blade length for the lengthways cut in the cable sheath.
- Hinged blade guard integrated captive in the handle, no separate pouch needed.
- Back of the blade is plastic coated to avoid short circuits.
- Handle with anti-slip protection keeps the hand behind the blade while pulling.
- VDE tested to DIN EN 60900 and IEC 60900 for live working.
Areas of use
Electrical installation, distribution board and control cabinet building, cable assembly, service and maintenance. Particularly economical in continuous use because only the blade is exchanged once the edge is dull.
Standards and conformity
The knife is tested to DIN EN 60900 and IEC 60900 for insulated hand tools used for live working. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
Technical data
| EAN | 4003773026570 |
|---|---|
| Weight | 64 g |
| Dimensions | 190 x 45 x 24 mm |
| Standard | DIN EN 60900, IEC 60900 |
| Blade length | 50 mm |
| VDE tested | yes |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Weight | 0.064000 |
| Manufacturer | Knipex |
| Manufacturer Nr. | 98 56 |
| HS-Code | 82119200 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Italy |
| Height | 24 mm |
| Width | 45 mm |
| Norm | DIN EN IEC 60900 |
| Certification | IEC 60900 |
| Overall length [mm] | 190.000000 |
