CutiX universal knife with extendable stabilisation bar, magnesium housing, 165 mm - Knipex 90 10 165 BK
Utility knife with a variably extendable stabilisation bar that supports the blade and lets you press on the back of the blade without bending or breaking it. The magnesium housing weighs only about 142 g at a length of 165 mm. It takes standard 18 mm snap-off blades, and two spare blades sit in the handle drawer and can be changed without tools.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Snap-off blades break exactly when side pressure hits the exposed cutting edge. The CutiX utility knife 90 10 165 BK answers that with a variably extendable stabilisation bar that supports the blade along its length, so pressure can be applied to the back of the blade while pushing and scraping. The knife is 165 mm long and weighs around 142 g.
Benefits
- Variably extendable stabilisation bar for versatile use, faster work and precise cuts.
- Targeted pressure on the back of the blade without risk of injury, no unintentional bending or breaking of the blade.
- Robust magnesium housing, as light as plastic and as strong as die-cast aluminium, approx. 142 g in total at a length of 165 mm.
- High-quality blade locking and a hardened steel pin in the blade holder keep the blade seated while cutting, pushing and scraping.

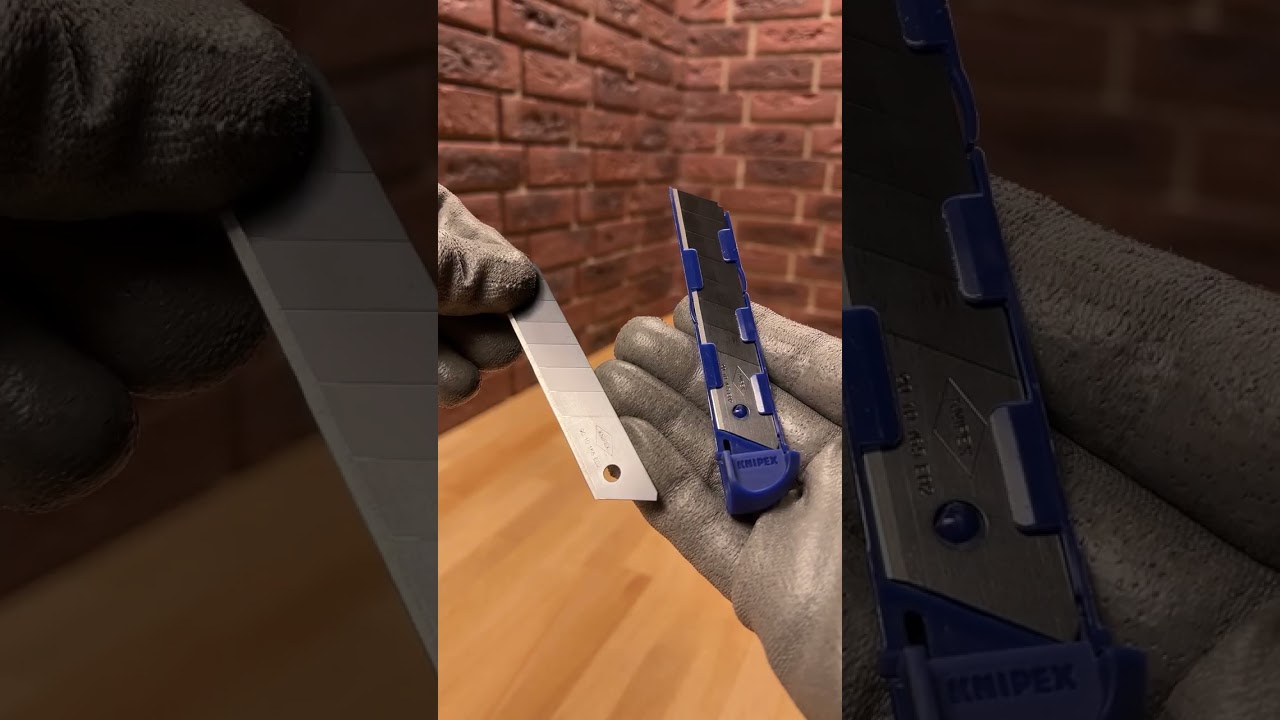

- Suitable for standard 18 mm blade shapes, smooth, curved or hooked, with two spare blades stored in the handle drawer and changed without tools.
- Flat, separate slides for blade and stabilisation bar, and the closed rear end of the handle keeps slide and blade from slipping out.
- Attachment eyelet for tool securing with the KNIPEX Tethered Tools system.
Areas of use
Electrical and plumbing installation, drywall work, packaging and warehouse tasks, cutting cables and insulation, and every job where scraping and pushing come on top of cutting. The attachment eyelet makes the knife ready for work at height.
Standards and conformity
The manufacturer does not state a tool standard for this product. According to the manufacturer the knife contains no substances of very high concern under REACH, and the RoHS directive does not apply.
Technical data
| EAN | 4003773087533 |
|---|---|
| Weight | 142 g |
| Dimensions | 165 x 40 x 19 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Weight | 0.142000 |
| Manufacturer | Knipex |
| Manufacturer Nr. | 90 10 165 BK |
| HS-Code | 82119300 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Height | 19 mm |
| Width | 40 mm |
| Overall length [mm] | 165.000000 |
