Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Wire stripper station for thermostable insulations such as teflon, kapton and silicone rubber from 40 to 14 AWG. Temperature reaches up to 800 °C, with preset power levels for each material type. The station is supplied with the WS140 precision tweezers.

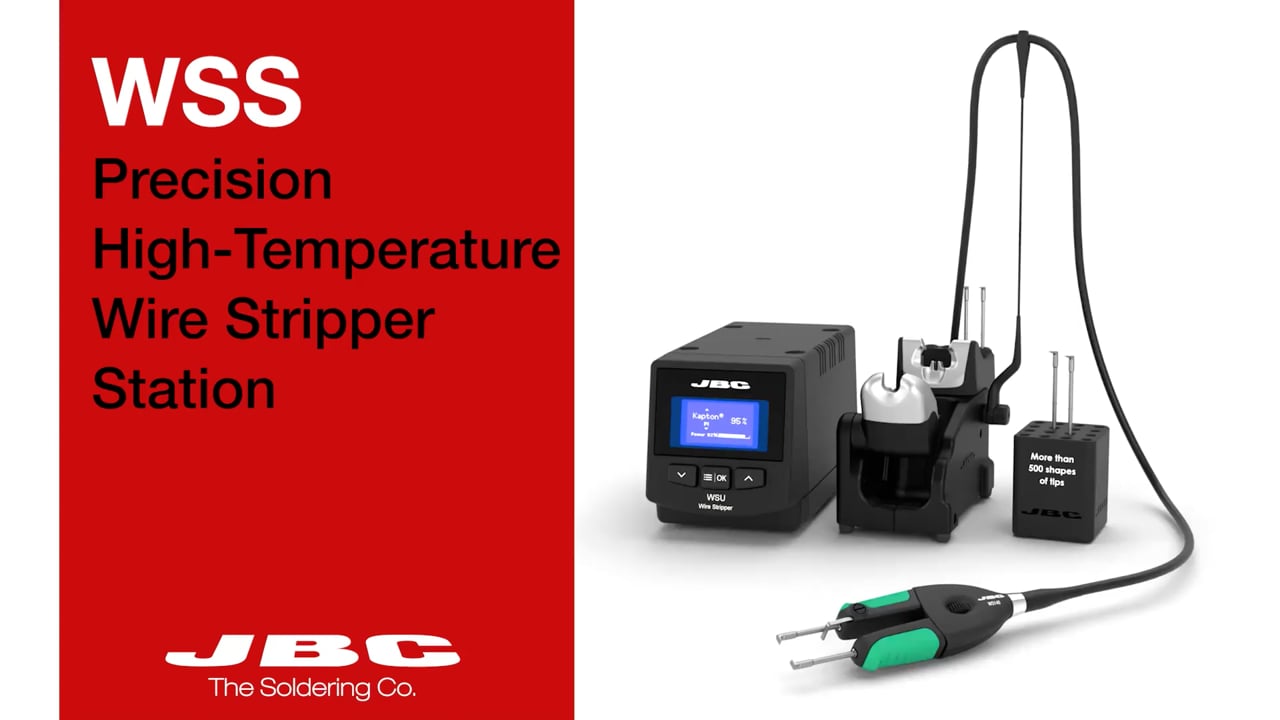

High-temperature wire stripper station 800 °C with WS140-A tweezers - JBC WSS-2B
JBC
Original product
Net price (excl. VAT)
€1,031.37
Item
WL71676
Manufacturer no.
WSS-2B
ESD · IEC 61340-5-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.WSS-2B
ConditionNew
Article
WL71676
Frequently Bought Together
-
This Item:
€1,031.37
-
ESD repair station with DR560, T245, JT-T2A hot air 700 W and MSE module - JBC RMSE-2QJ
€4,523.55
-
Automatic-feed soldering station without wire perforation, 150 W, 0.6 to 0.64 mm wire - JBC ALE-206A
€1,432.46
Total price
The WSS-2B is designed for stripping wire insulations made of thermostable materials such as teflon, kapton and silicone rubber from 40 to 14 AWG (0.08 to 1.63 mm) at temperatures up to 800 °C. It offers preset power levels for each material type plus a customizable power level mode.
Benefits
- Maximum temperature 800 °C / 1470 °F for thermostable insulations
- Preset and customizable power levels for each material type
- Stripping range 40 to 14 AWG (0.08-1.63 mm)
- Supplied with WS140 precision tweezers, compatible with the W140 blade cartridge range
- USB-B for firmware upgrade and optional equipotential bonding to the EPA
Technical data
| Item no. | WL71676 |
| Manufacturer item no. | WSS-2B |
| Manufacturer | JBC |
| Model line | Premium Line |
| Station type | wire stripper station |
| Max. temperature | 800 °C / 1470 °F |
| Peak power | 75 W |
| Stripping range | 40-14 AWG (0.08-1.63 mm) |
| Operating temp. range | 10-50 °C (50-120 °F) |
| Connectivity | USB-B (front), firmware upgrade |
| Equipotential bonding | optional connection to EPA |
| Dimensions with packaging (LxWxH) | 387 x 352 x 190 mm |
| Order unit | piece |
| ESD safe | yes |
Applications
Thermal stripping of high-temperature wires in aerospace, medical and electronics manufacturing where mechanical stripping would damage the conductor.
Compatibility and scope of delivery
Supplied with the WS140 precision tweezers. Compatible with the W140 blade cartridge range, whose cartridges can be customized for special requirements.
ESD safe for use at workplaces in accordance with IEC 61340-5-1. Made in Spain.
| Certification | IEC 61340-5-1 |
|---|---|
| Manufacturer Nr. | WSS-2B |
| Manufacturer | JBC |
| Weight | 0.100000 |
| GPSR manufacturer information | JBC Soldering SL, Ramón y Cajal 3, ES-08750 Molins De Rei, www.jbctools.com |
| Article authenticity | Original product |
| Condition of article | New |
