Solder fume extraction ZeroSmog Guard Kit 100 m³/h with 0F15 arm and ALFA nozzle - Weller FT91025699

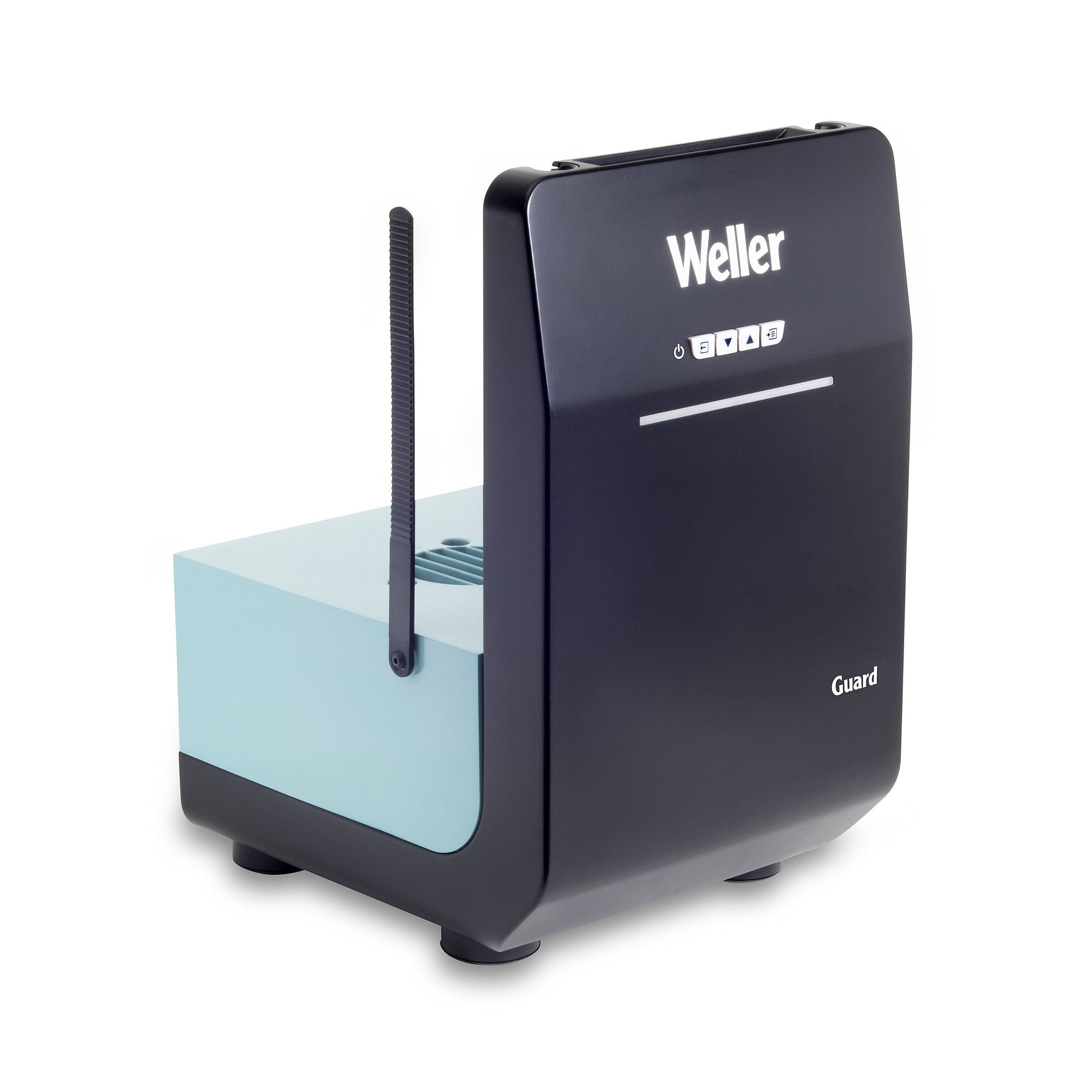

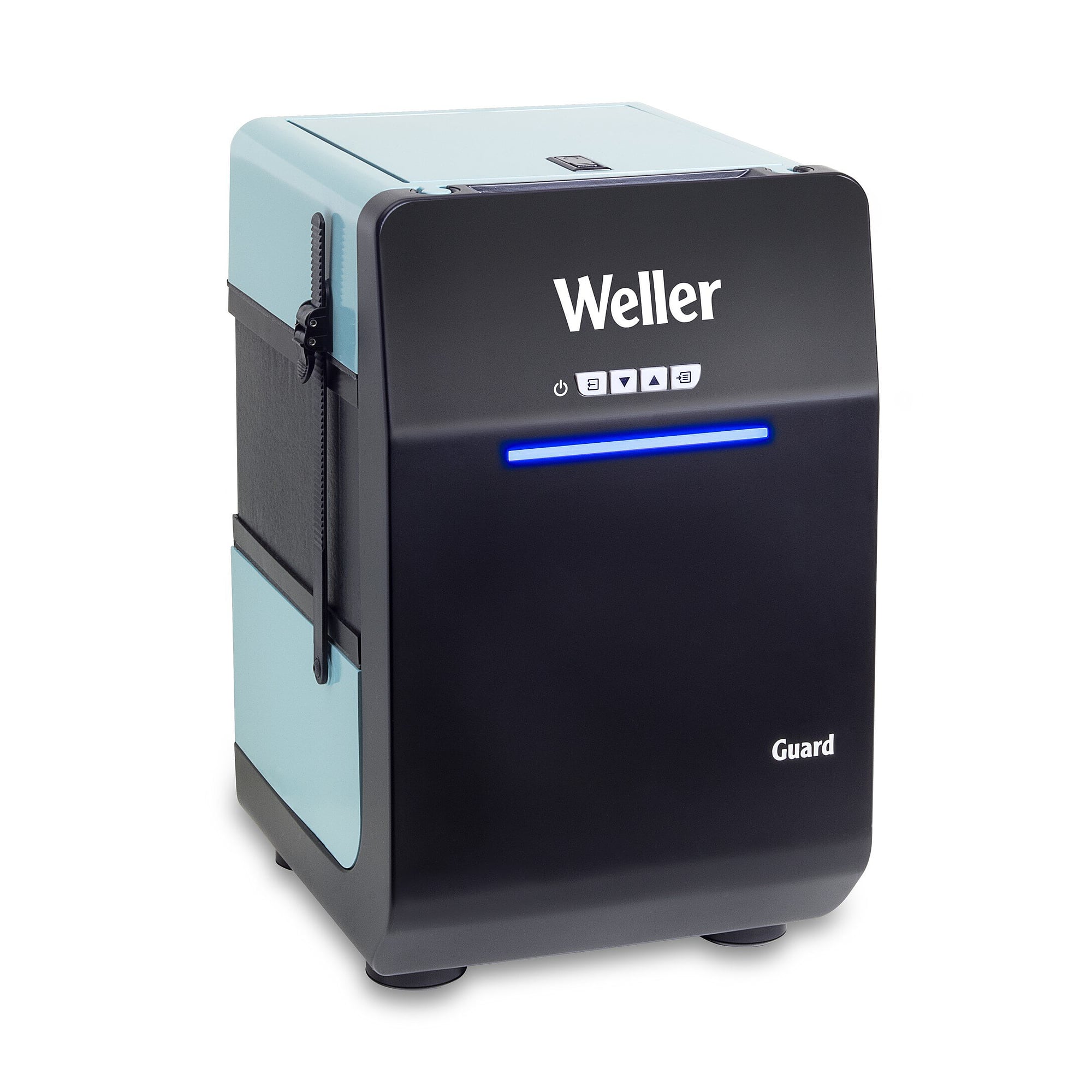

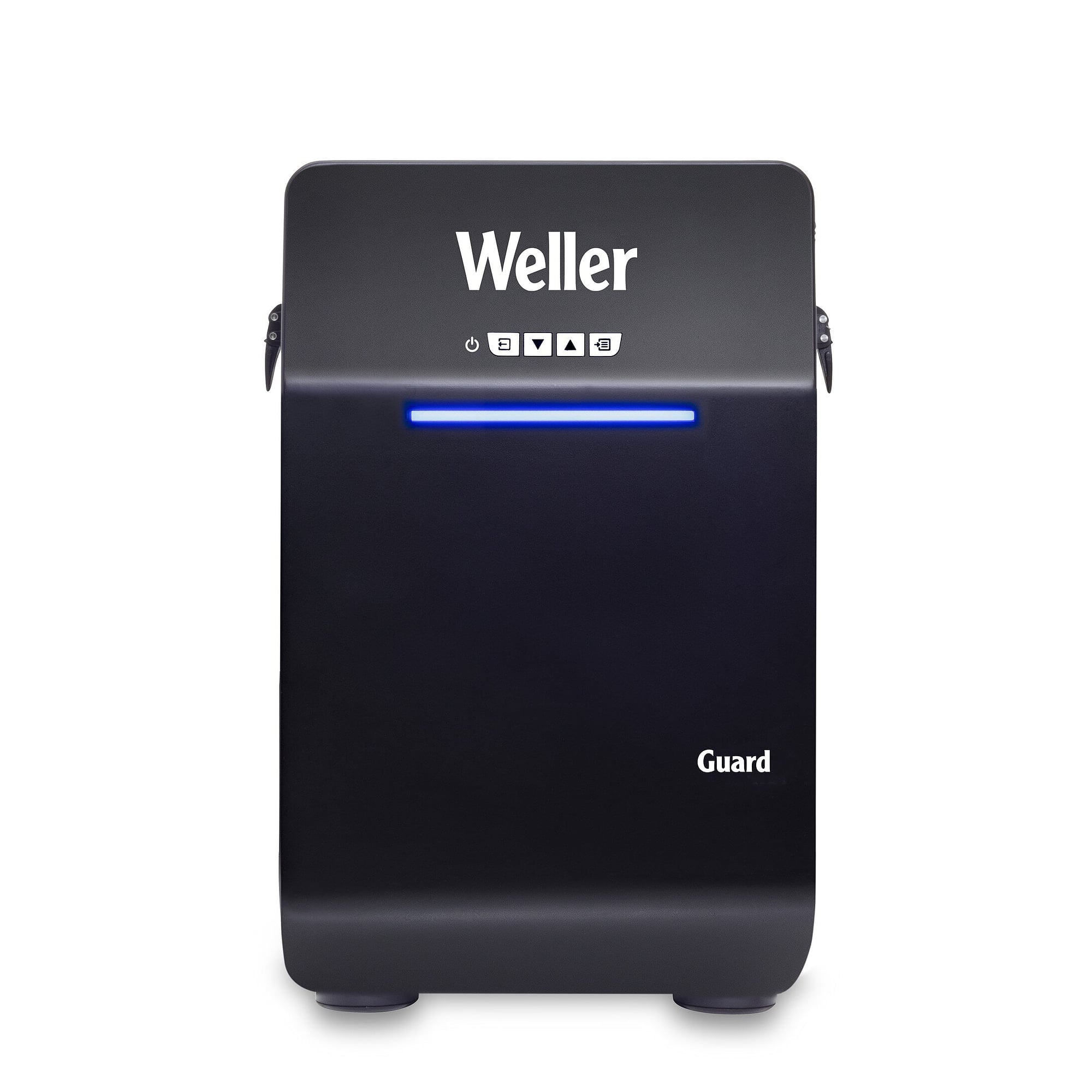

Solder fume should disappear where it forms, not be diluted across the room. The ZeroSmog Guard Kit supplies filter unit, extraction arm and funnel nozzle as one package and works at 100 m³/h with 2700 Pa. Power consumption is 74 W from 220 to 240 V.

Key benefits

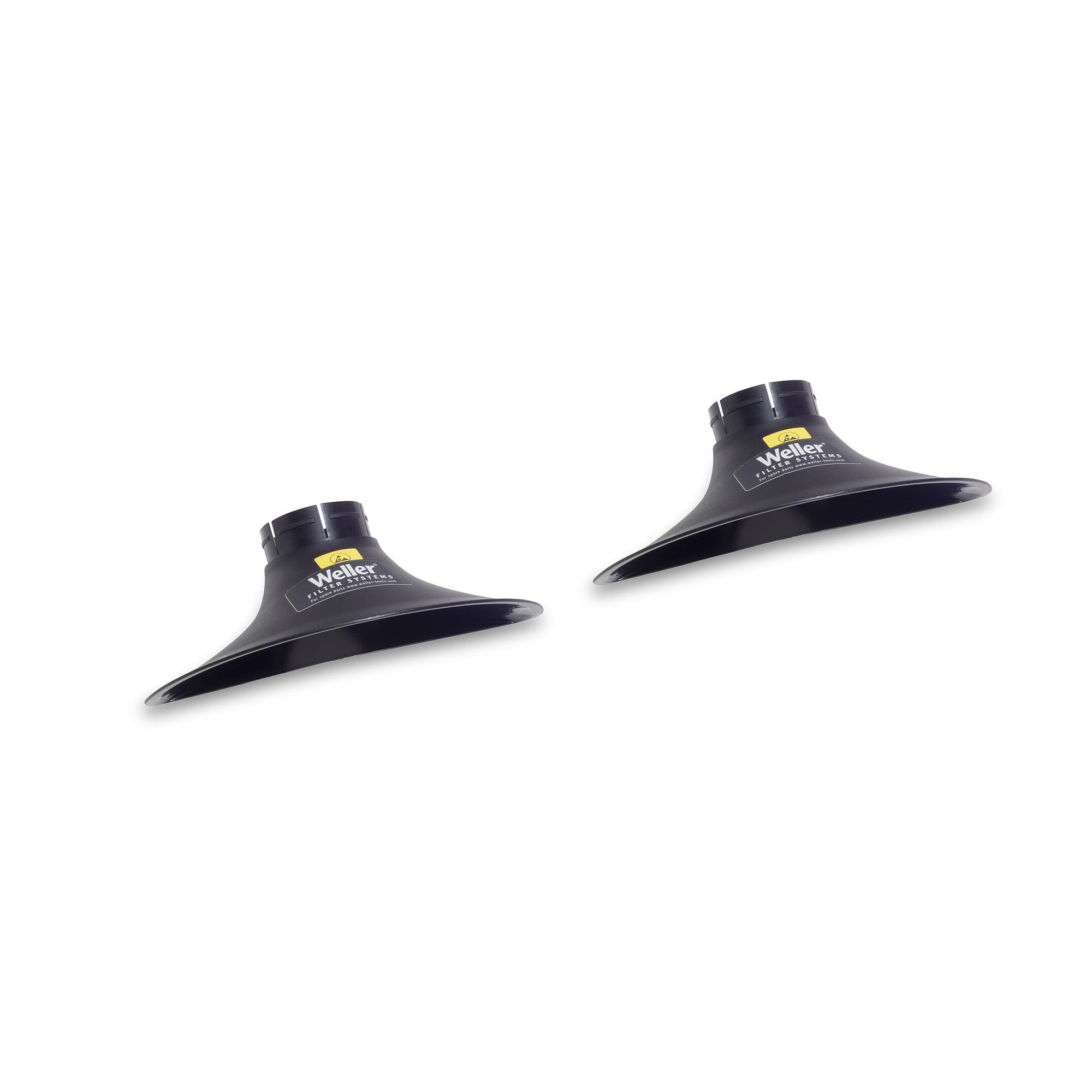

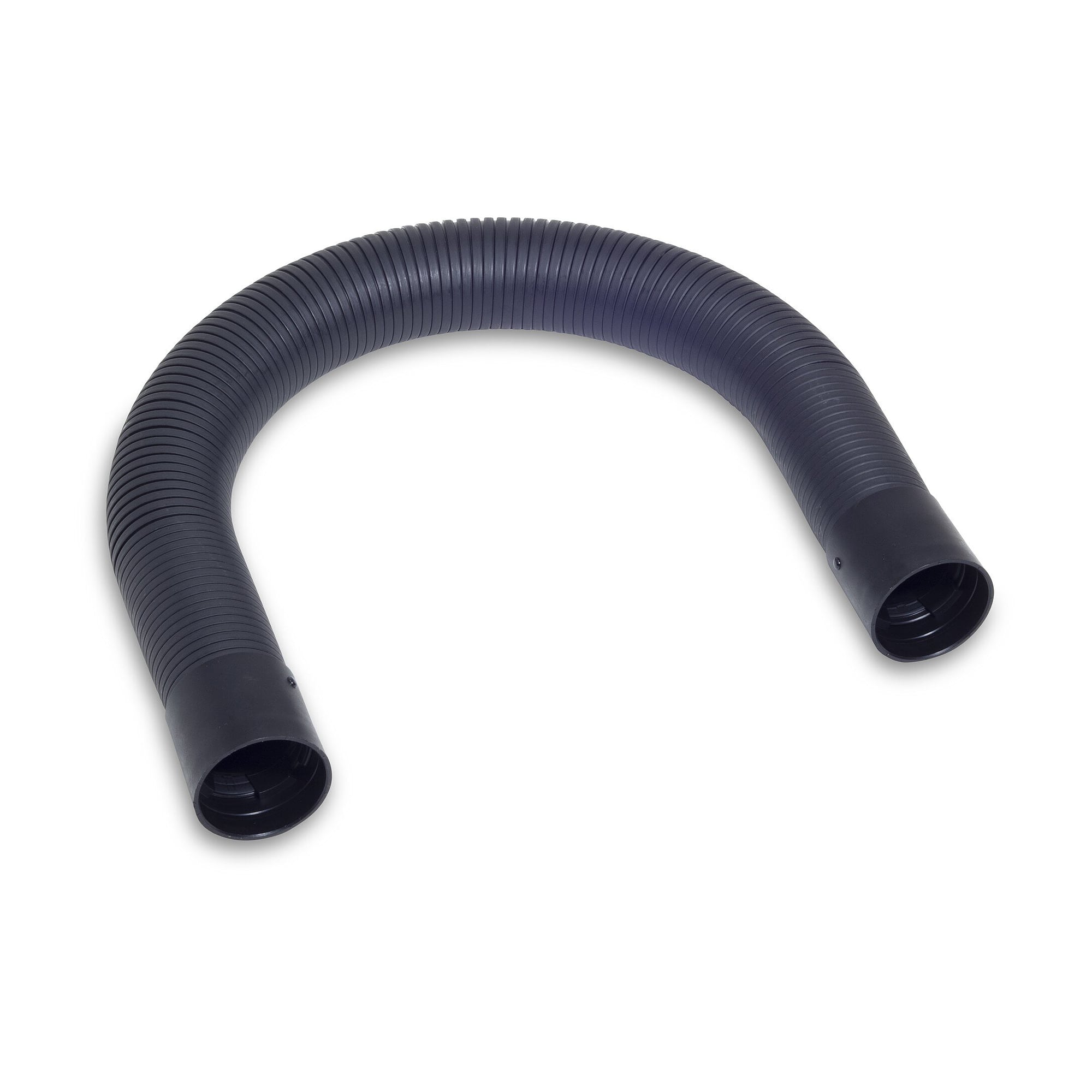

• A 1.5 m 0F15 extraction arm and the ALFA funnel nozzle, 230 x 100 mm, are included.
• A bench clamp for mounting at the edge of the workbench comes with the set.
• Main filter with HEPA H13 particle stage and activated carbon for particles and flux gases.
• 100 m³/h of volume flow and 2700 Pa of vacuum for one hand soldering position.
• Five ePM1-75 % pre-filters are supplied, and filters change without tools.
• ESD-safe design with an Easy-Click 60 connection for further accessories.

Technical data

Applications

Hand soldering benches in electronics production, repair and test areas, laboratory and prototype work as well as training positions. The unit stands under or next to the workbench and serves one workstation.

Connection and scope of delivery

Arm and nozzle are plugged in through Weller Easy-Click 60 and can be swapped for other nozzle shapes. Supplied are the 230 V filter unit, one main filter with HEPA H13 and activated carbon, five ePM1-75 % pre-filters, one ALFA nozzle, one 0F15 hose and one bench clamp.

Manufacturer and compliance

ESD-safe design for electronics workplaces according to the manufacturer's specification table. The manufacturer is WELLER Tools GmbH, Carl-Benz-Strasse 2, DE-74354 Besigheim, Germany.
