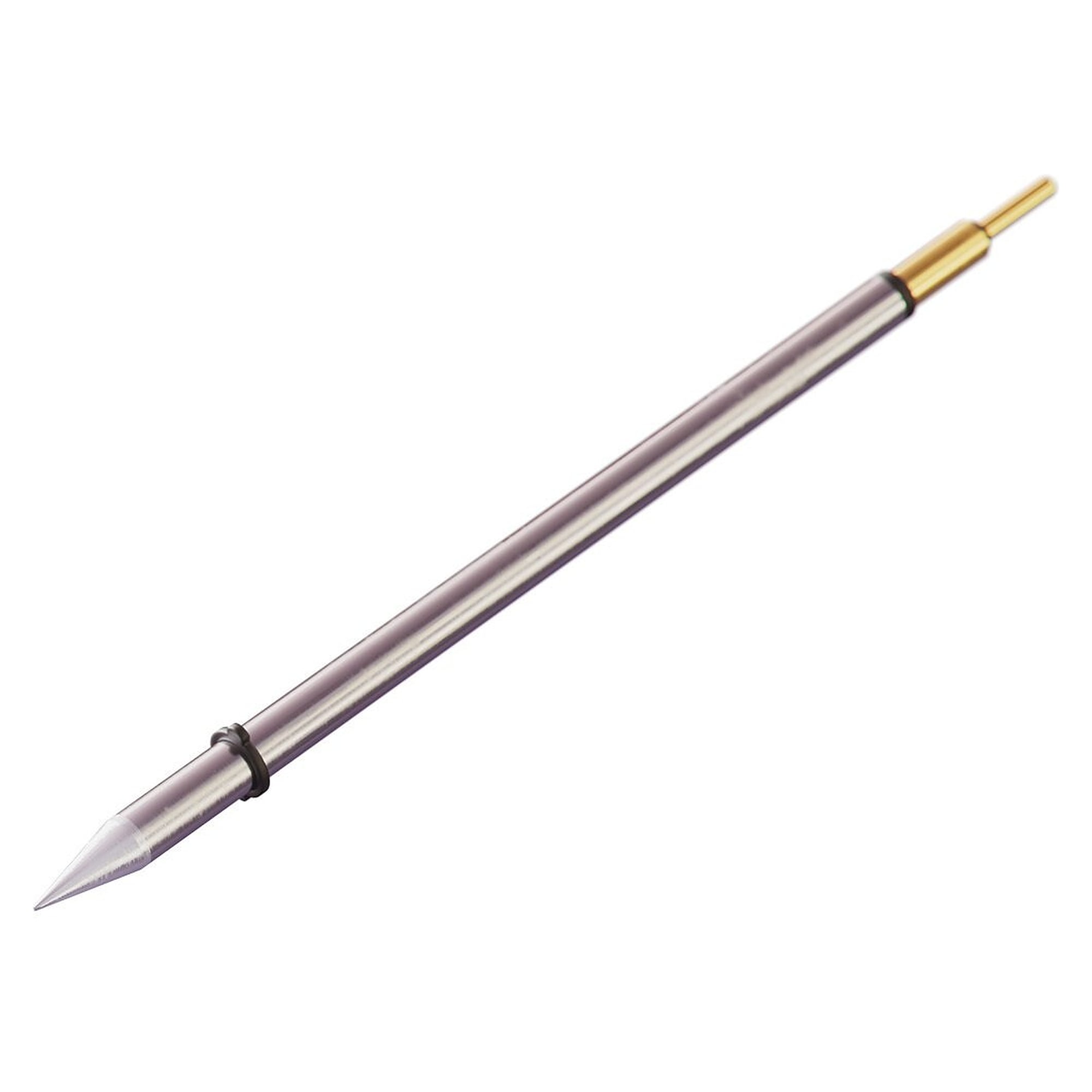

MicroFine soldering tip cartridge, chisel, 0.2 x 5 mm, 413 °C, 700 series - Metcal MFTC-7CH5002

Soldering the finest joints under a microscope calls for a tip that stays small without losing heat. The MFTC-7CH5002 is a MicroFine cartridge with a chisel tip, 0.2 mm wide and 5 mm long, that regulates itself at 413 °C.

Benefits

• Constant 413 °C: Metcal SmartHeat adjusts power automatically during every joint, and the cartridge temperature is fixed by the 700 series.

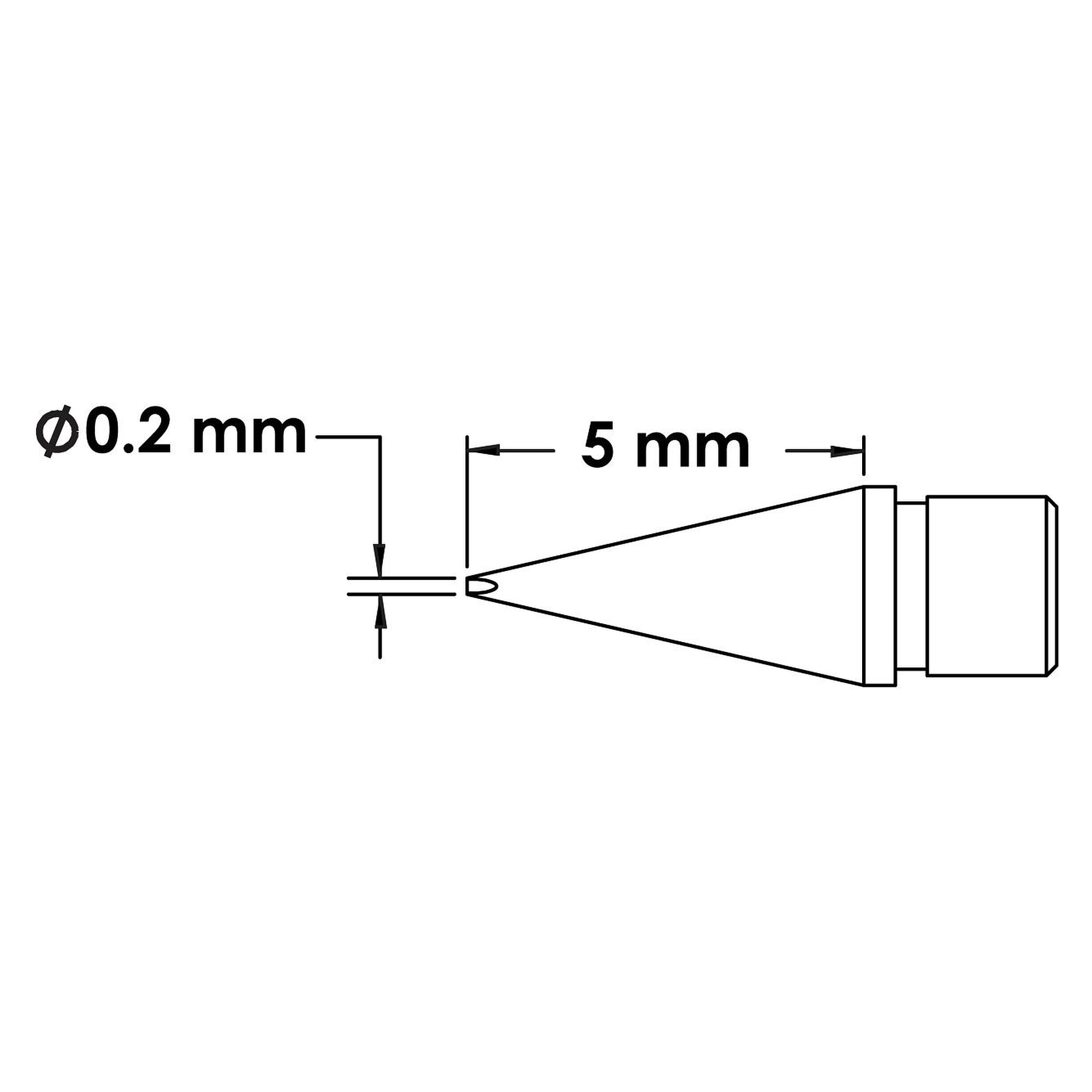

• Fine geometry: 0.2 mm wide, 5 mm long, chisel style. The flat chisel edge spreads heat evenly across fine pins and small SMD pads.
• Built for the microscope: The MicroFine range is designed for soldering under magnification. According to Metcal the 700 series covers most general applications.
• Quick tip change: Heater and tip form one cartridge that is swapped as a unit in the MX-H9-MFH or CV-H9-MFH handpiece.

Applications

Soldering under the microscope in electronics production, repair and rework, for example on fine-pitch parts and small SMD packages.

Compatibility and scope of delivery

For the MX-H9-MFH and CV-H9-MFH handpieces on all MX and CV systems. Supplied as one soldering tip cartridge.
