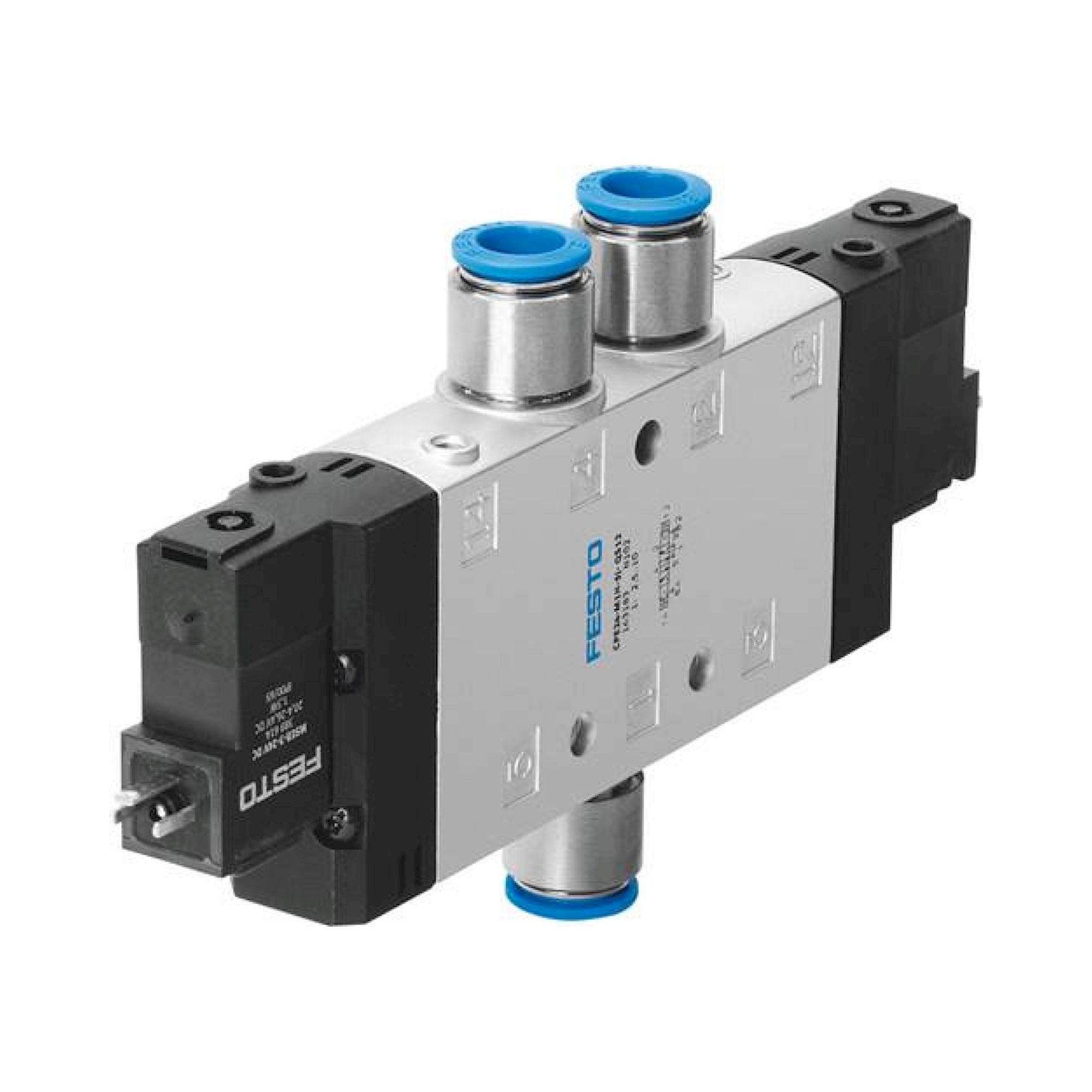

Festo CPE18-M2H-5J-1/4 (163763) Solenoid Valve
€18,091.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-163763
Manufacturer Nr.
CPE18-M2H-5J-1/4
Solenoid Valve
Frequently Bought Together
-
This Item:
€18,091.00Excl. 19% VAT , excl. Shipping Cost
-
Festo CPE18-M2H-5LS-1/4 (163766) Solenoid Valve
€13,637.00Excl. 19% VAT , excl. Shipping Cost
-
Festo CPE18-M3H-5L-1/4 (163786) Solenoid Valve
€13,278.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | 5/2 bistable |
| Actuation type | Electrical |
| Build.width [mm] | 18 |
| Normal nominal flow [l/min] | 1.500 |
| Operating pressure [bar] | 2 to 10 |
| Construction set up | Piston pusher |
| Permission | c UL us - Recognized (OL) |
| Maritime classification | see Certificate |
| Protection category | IP65 With Socket acc. to IEC 60529 |
| Nominal width [mm] | 8 |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation | With Accessories ratcheting tentative |
| Control type | pilot operated |
| Control air supply | Internal |
| Flow direction | Not reversible |
| Valve space - labelling | Sign carrier |
| Überdeckung | positive Überdeckung |
| Power-on time | 100 % |
| Max. positive test impulse at 0 signal [µs] | 3.300 |
| Max. negative test impulse for 1 signal [µs] | 3.100 |
| Coil characteristic value | 110 V AC: 50/60 Hz, pull-in power 3 VA, holding power 2.4 VA |
| Permitted voltage oscillations | -15 % / +10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Oscillation strength | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Medium temperature [°C] | -5 to 50 |
| ambient temperature [°C] | -5 to 50 |
| Product weight [g] | 270 |
| Electrical connection | Wiring diagram Form C acc. to EN 175301-803 |
| Fastening type | With throughway bores |
| Exhaust control connection 82 | M5 |
| Control air 12 connection | M5 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G1/4 |
| Pneumatic connection 3 | G1/4 |
| Material information | RoHs compliant |
| Seals material | NBR |
| Housing material | Aluminium die casting |
| Exhaust function | Can be throttled |
| Exhaust control connection 84 | M5 |
| Control air 14 connection | M5 |
| Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 |
| Shifting time um [ms] | 13 |
| Manufacturer Nr. | CPE18-M2H-5J-1/4 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568135195 |
| Weight | 0.280000 |
| HS-Code | 84812090 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
