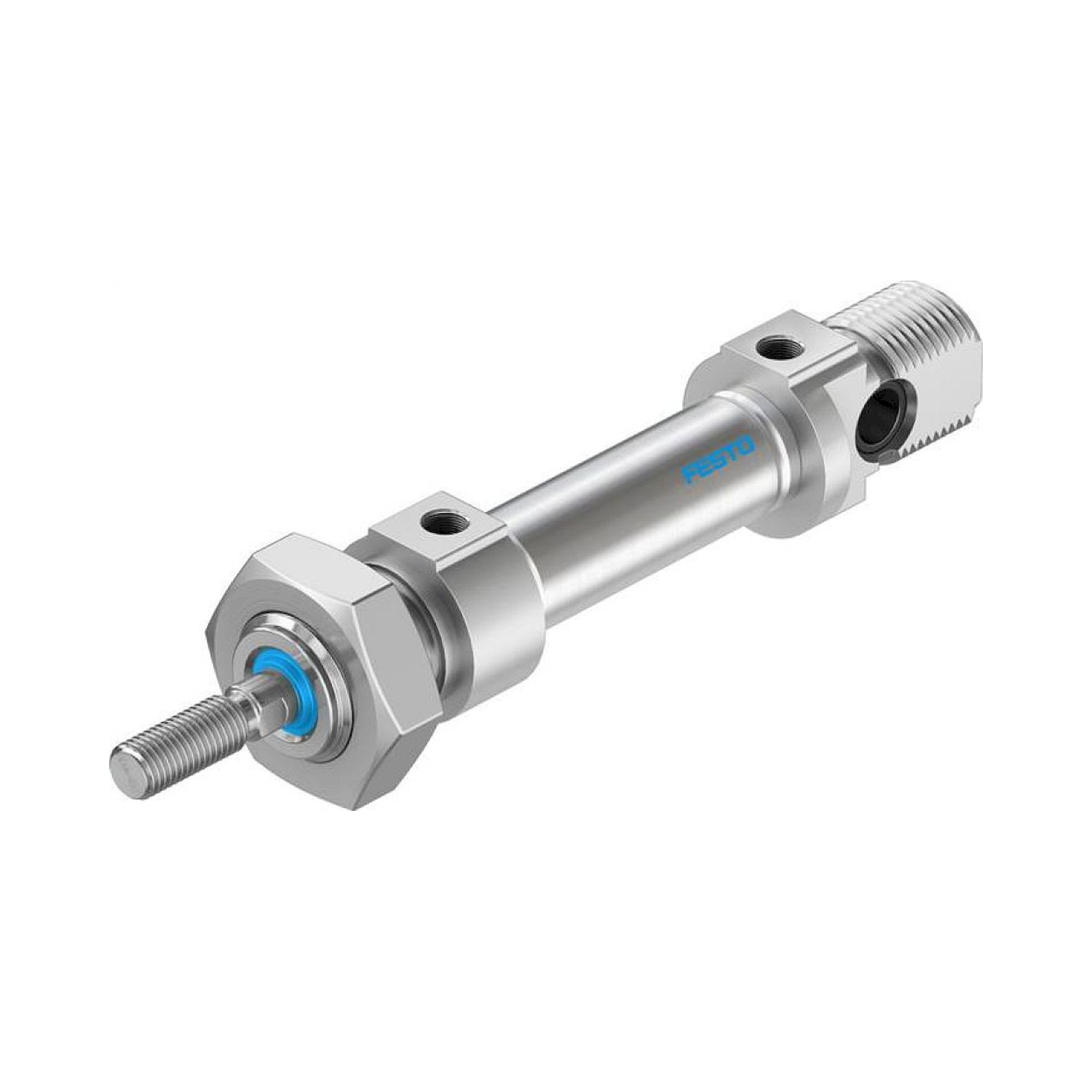

Festo pneumatic cylinder for precise linear motion and defined force in automation.
Standards-Based Cylind ESNU-8-50-P-A - Festo 19256
FESTO Original product
Net price (excl. VAT)
€36.16
Item FES-19256
Manufacturer no. ESNU-8-50-P-A
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.ESNU-8-50-P-A
EAN4052568067144
Customs tariff number84123100
ConditionNew
Article
FES-19256
Frequently Bought Together
- This Item: €36.16
- Round Cylinder DSNU-32-200-P-A - Festo 195987 €64.20
- Round Cylinder DSNU-50-250-P-A - Festo 196008 €100.44
Total price
Festo pneumatic cylinder for precise linear motion and defined force in automation. The key technical data of this genuine Festo article are listed below.
| Stroke [mm] | 50 |
| Piston diameter | 8 mm |
| Piston rod thread | M4 |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Complies to standard | CETOP RP 52 P<br>ISO 6432 |
| Piston rod end | Male thread |
| Construction set up | Piston<br>piston rod<br>cylinder tube |
| Position detection | For proximity switch |
| Variants | One-sided piston rod |
| Operating pressure [bar] | 1.5 to 10 |
| Principle of operation | Pressing<br>single action |
| Maritime classification | see Certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| Impact energy at the end positions [J] | 0,03 |
| Theoretical force at 6 bar, flow [N] | 24,6 |
| Moving mass at 0 mm stroke [g] | 7,5 |
| Weight supplement per 10 mm stroke [g] | 2,4 |
| Base weight at 0 mm stroke [g] | 35,0 |
| Supplement moved mass per 10 mm stroke [g] | 1 |
| Fastening type | With Accessories |
| Pneumatic connection | M5 |
| Material information | RoHs compliant |
| Cover material | Aluminium wrought alloy<br>No-colour anodised |
| Seals material | NBR<br>TPE-U(PU) |
| Piston rod material | High-alloyed stainless steels |
| Cylinder tube material | High-alloyed stainless steels |
| Norm | ISO 6432 |
|---|---|
| Manufacturer Nr. | ESNU-8-50-P-A |
| Manufacturer | Festo |
| EAN | 4052568067144 |
| Weight | 0.047000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
| Temperature (max.) | 80 |
| Ausführung | einseitige Kolbenstange |
| Bohrung (mm) | 8.000000 |
| Betriebsdruck max [bar] | 10.000000 |
| Pneumatischer Anschluss | M5 |
| Serie | ESNU |
| Hub [mm] | 50.000000 |
| Dichtmaterial | NBR, TPE-U(PU) |
| Medium | Druckluft |
| Funktion | drückend |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| Mounting position | arbitrary |
| Design | Piston, piston rod, cylinder tube |
| Position sensing | Yes |
| Cushioning | P: Elastic silencer rings / plates double-sided |
