Festo valve for fast, reliable control of compressed-air direction and flow.

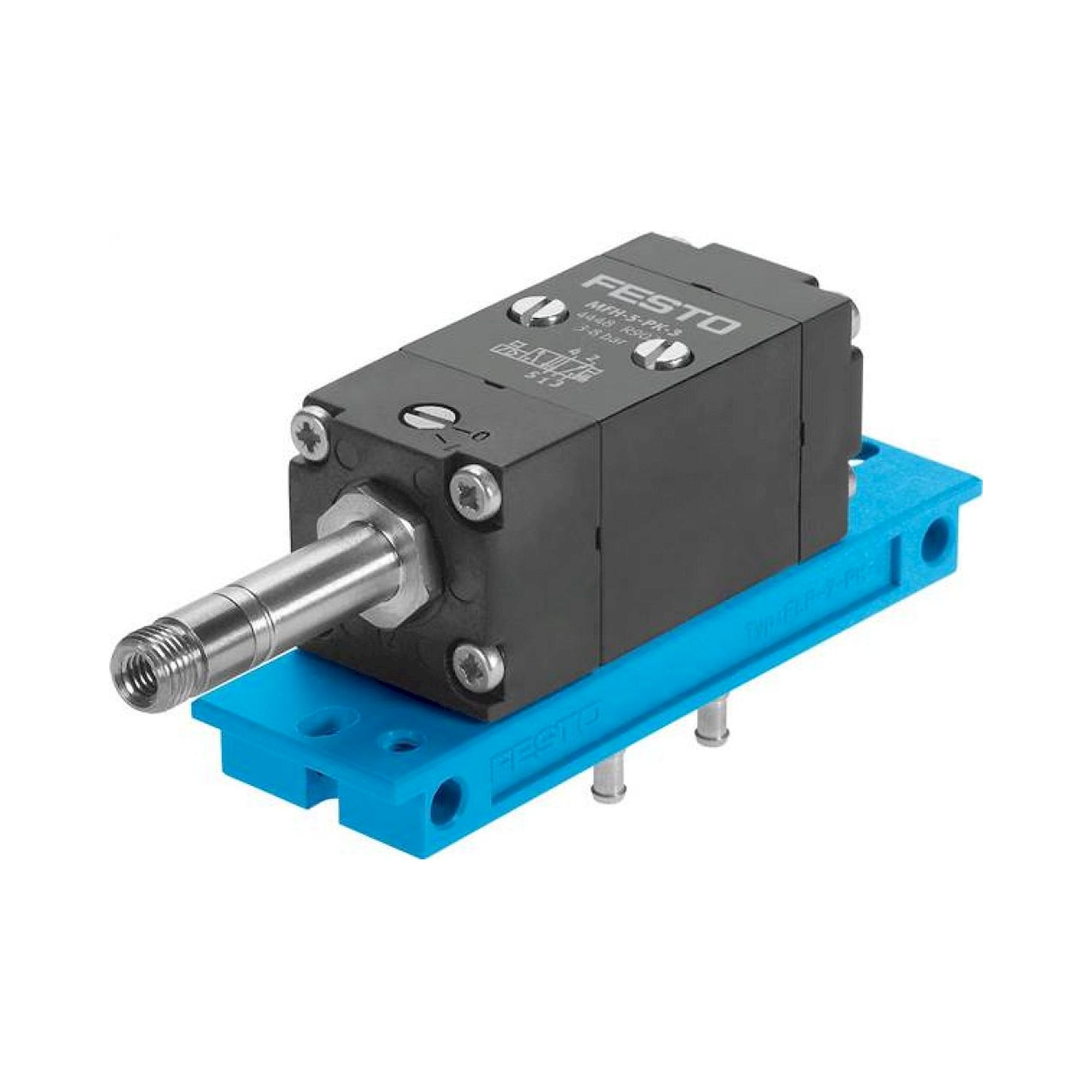

Pneumatic Valve J-5-PK-3 - Festo 4503
FESTO
Original product
Net price (excl. VAT)
€178.16
Item
FES-4503
Manufacturer no.
J-5-PK-3
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.J-5-PK-3
EAN4052568000639
Customs tariff number84812090
ConditionNew
Article
FES-4503
Frequently Bought Together
-
This Item:
€178.16
-
Solenoid Valve MHP2-M1H-3/2G-M5 - Festo 196122
€60.50
-
Vacuum Valve MHA1-2X2/2G-1,5-3-3-3 - Festo 562051
€101.20
Total price
Festo valve for fast, reliable control of compressed-air direction and flow. The key technical data of this genuine Festo article are listed below.
| Valve function | 5/2 bistable |
| Normal nominal flow [l/min] | 105 |
| Operating pressure [bar] | 1 to 8 |
| Construction set up | Plate seat |
| Nominal width [mm] | 2,5 |
| Shifting time um [ms] | 9 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| ambient temperature [°C] | 0 to 60 |
| Product weight [g] | 130 |
| Fastening type | on connection plate<br>on mounting frames<br>With throughway bores<br>Selectively: |
| Pneumatic connection 1 | PK-3 |
| Pneumatic connection 4 | PK-3 |
| Pneumatic connection 5 | PK-3 |
| Material information | RoHs compliant |
| Connection plate material | brass<br>PPS reinforced |
| Seals material | NBR |
| Housing material | plastic<br>Zinc pressure cast |
| Pneumatic connection 2 | PK-3 |
| Pneumatic connection 3 | PK-3 |
| Operating conditions | ISO 8573-1 |
|---|---|
| Manufacturer Nr. | J-5-PK-3 |
| Manufacturer | Festo |
| EAN | 4052568000639 |
| Weight | 0.150000 |
| HS-Code | 84812090 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
| Temperature (max.) | 60 |
| Material | Die-cast zinc |
| Betriebsdruck max [bar] | 8.000000 |
| Nennweite DN [mm] | 2,5 |
| Dichtmaterial | NBR |
| Medium | Compressed air |
| Funktion | 5/2 bistable |
| Durchfluss [l/min] | 105 |
| Design | Plate seat |
