Festo VOFC-L-M52-M-FG14-F19A (4514924) Valve
€31,348.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-4514924
Manufacturer Nr.
VOFC-L-M52-M-FG14-F19A
Valve
Frequently Bought Together
-
This Item:
€31,348.00Excl. 19% VAT , excl. Shipping Cost
-

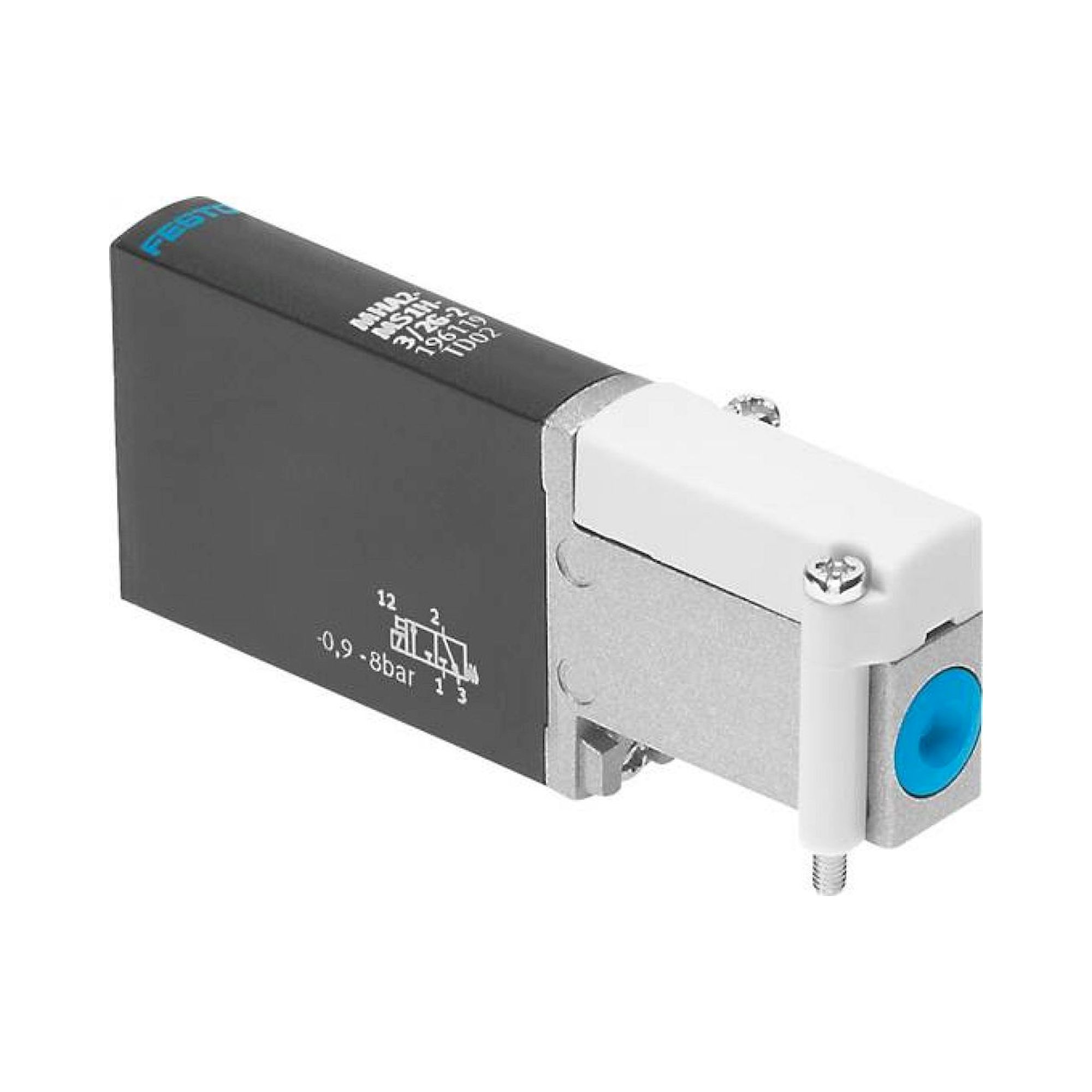

Festo MHA2-MS1H-3/2O-2 (196139) Solenoid Valve
€7,933.00Excl. 19% VAT , excl. Shipping Cost
-

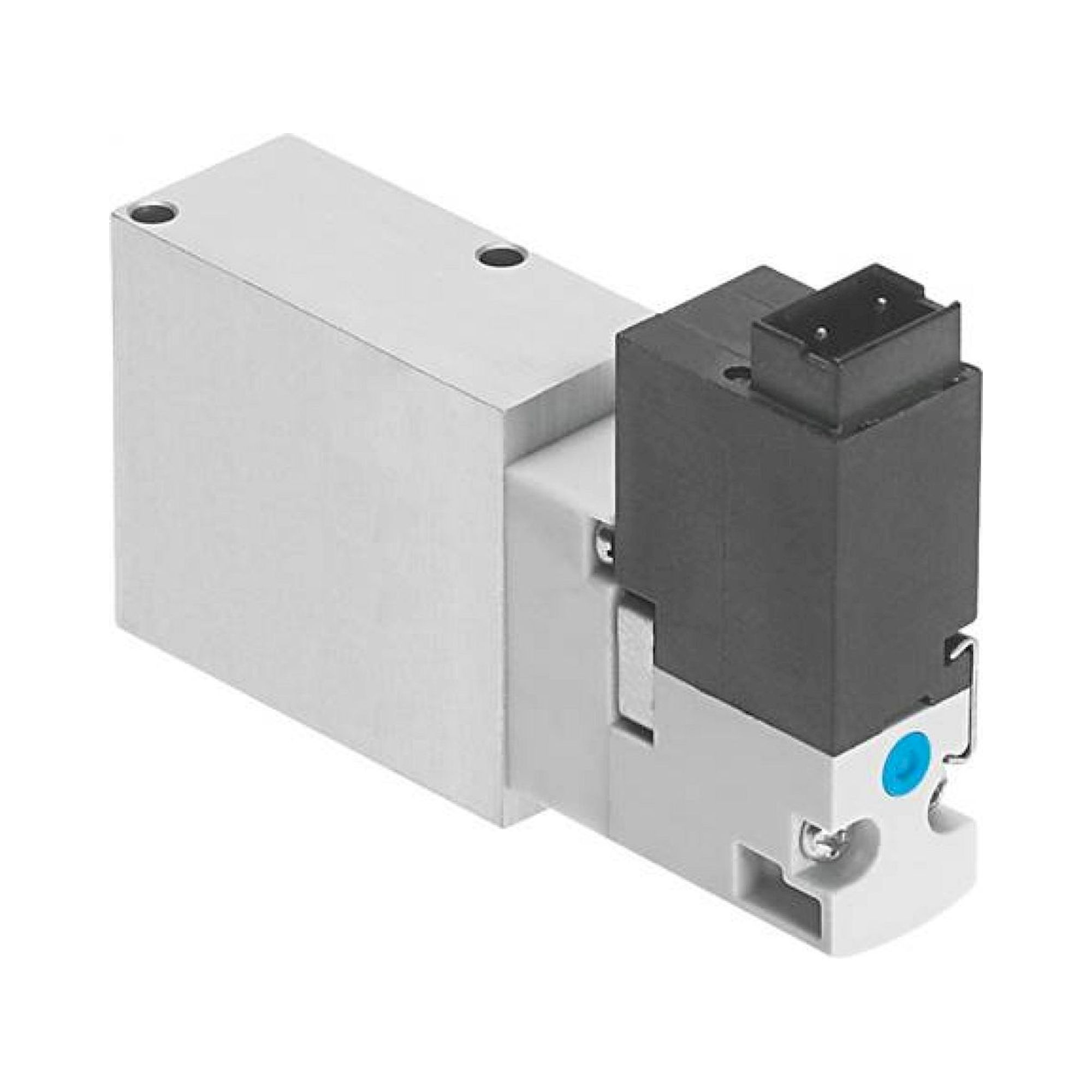

Festo VOVG-B12-M32C-AH-F-1H3 (560710) Solenoid Valve
€6,065.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | 5/2 monostable |
| Actuation type | Electrical |
| Build.width [mm] | 40 |
| Normal nominal flow [l/min] | 1.030 |
| Operating pressure [bar] | 2.5 to 8 |
| Construction set up | Piston pusher |
| Reset mode | Mechanical spring |
| Protection category | IP65 |
| Nominal width [mm] | 6 |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation | none |
| Control type | pilot operated |
| Control air supply | Internal |
| Flow direction | Not reversible |
| Safety Integrity Level (SIL) | Product can be used in SRP/CS up to SIL 2 Low Demand Product can be used in SRP/CS up to SIL 2 High Demand |
| Flow Kv venting [m³/h] | 1,08 |
| Flow Kv venting [m³/h] | 1,08 |
| Normal nominal flow 2-3 [l/min] | 978 |
| Shifting time off [ms] | 22 |
| Shifting time on [ms] | 26 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistant class KBK | 4 - particularly severe corrosion stress |
| Medium temperature [°C] | -25 to 60 |
| ambient temperature [°C] | -25 to 60 |
| Product weight [g] | 520 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | NAMUR wiring diagram Flange 1/4 |
| Pneumatic connection 3 | G1/4 |
| Material information | LABS containing materials included RoHs compliant |
| Seals material | NBR |
| Housing material | Aluminium ematal coated |
| Pneumatic connection 4 | NAMUR wiring diagram Flange 1/4 |
| Pneumatic connection 5 | G1/4 |
| Manufacturer Nr. | VOFC-L-M52-M-FG14-F19A |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568274795 |
| Weight | 0.650000 |
| HS-Code | 84812090 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
