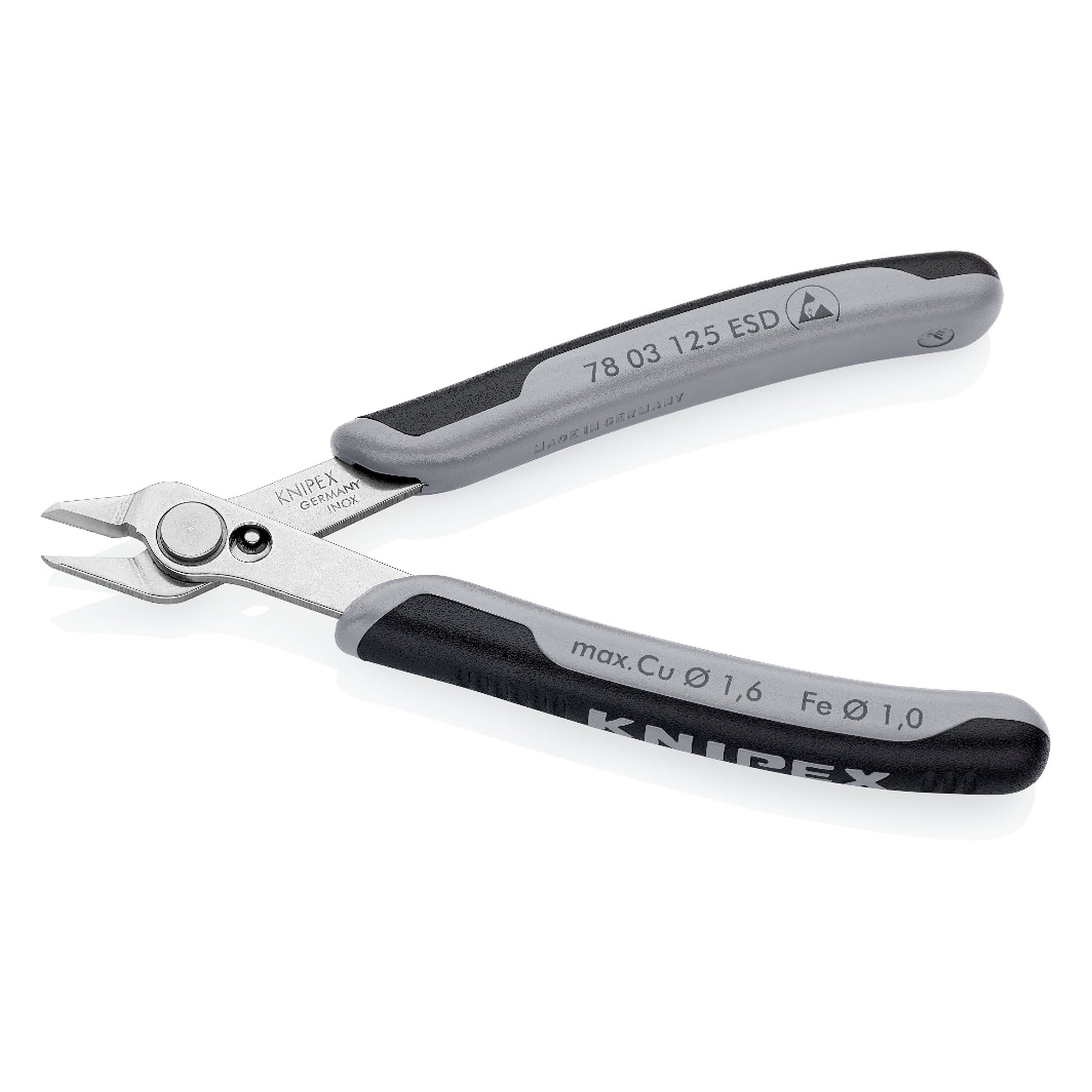

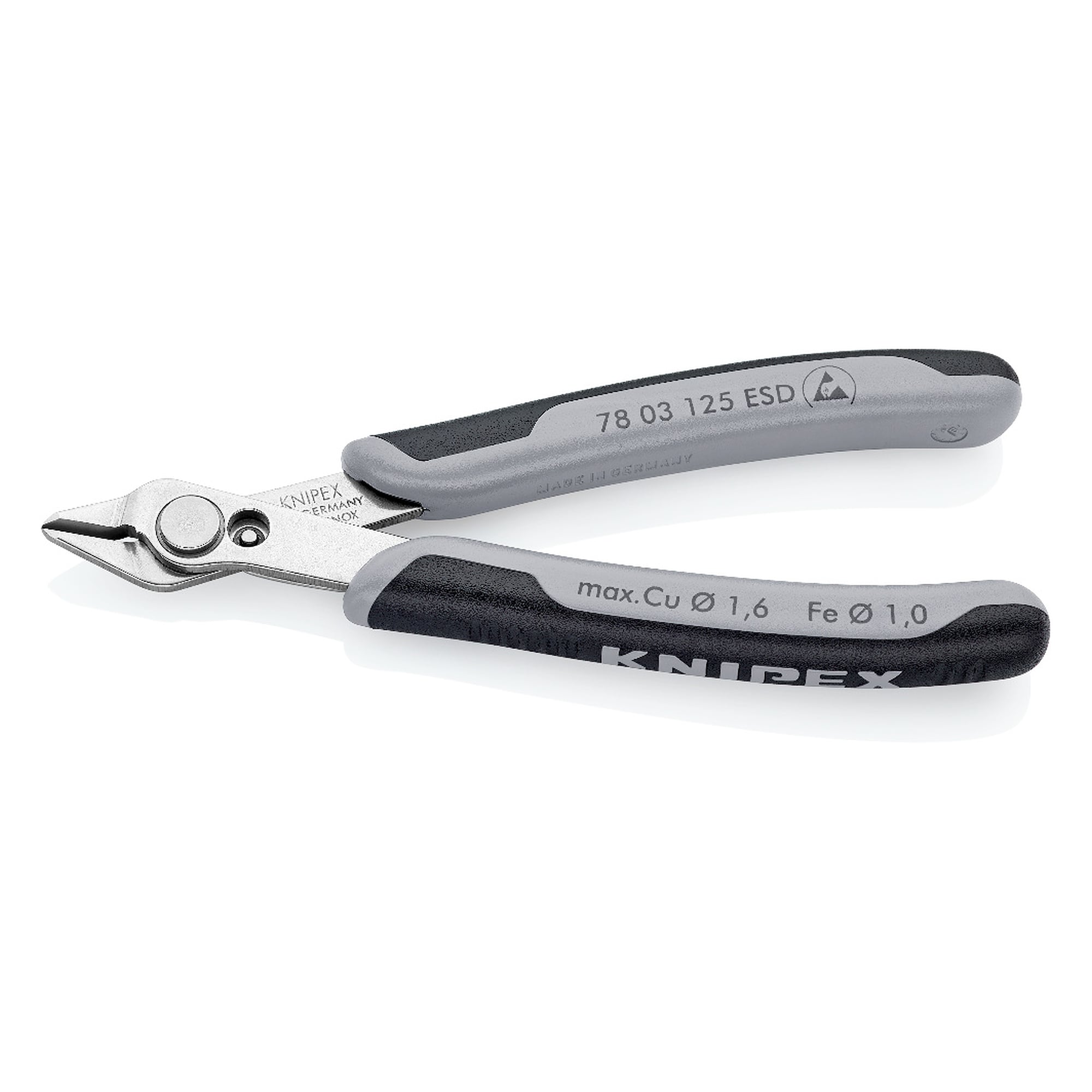

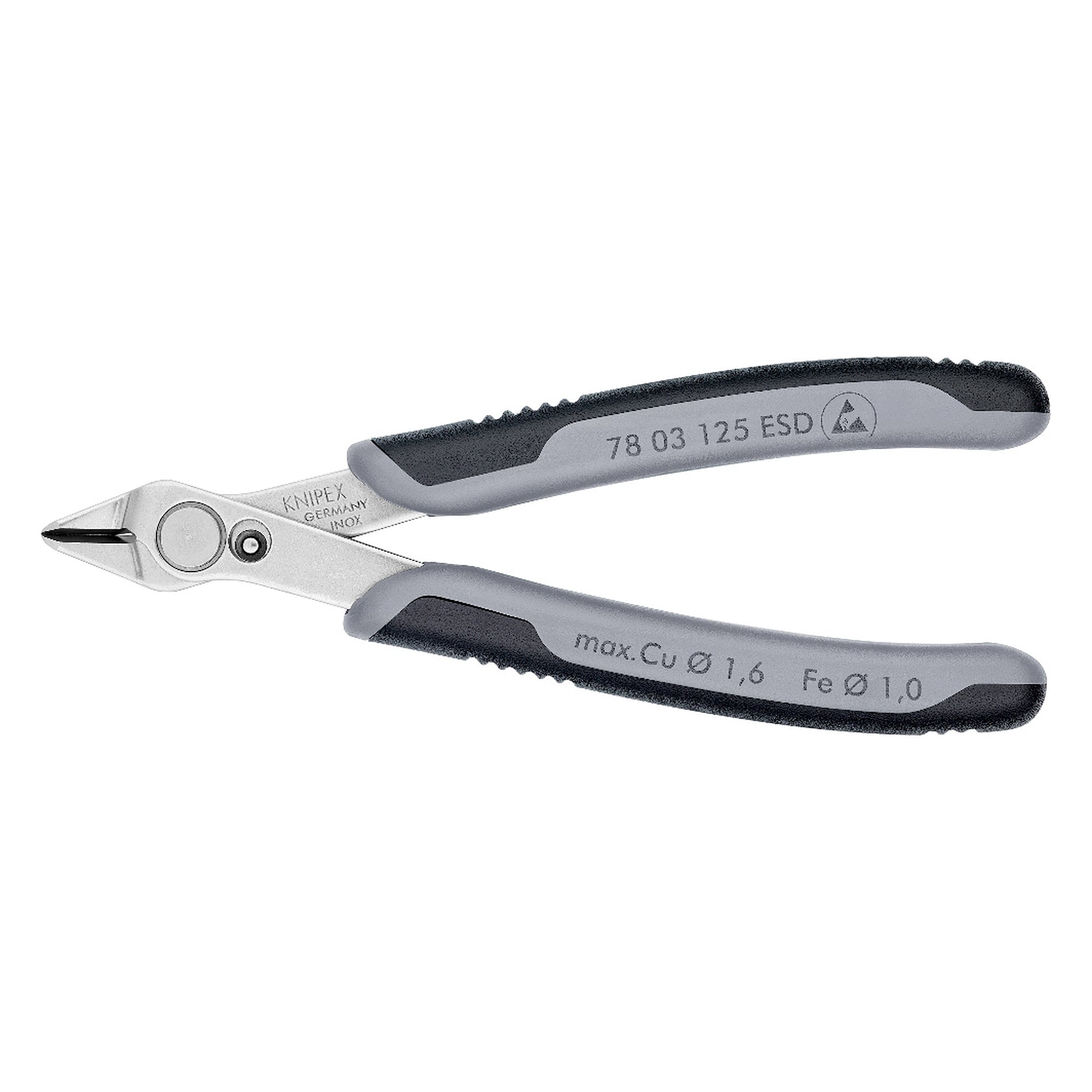

Electronic Super Knips ESD, dissipative handles, edges without bevel, 125 mm - Knipex 78 03 125 ESD

At an EPA workstation no tool may hold the charge that destroys the component. The 78 03 125 ESD Electronic Super Knips therefore has electrically dissipative handles and still cuts as finely as the standard version: flush-lying wires from 0.2 mm dia., soft wire up to 1.6 mm dia.

Benefits

• Electrically dissipative handles, designed for workstations to DIN EN 61 340-5.
• Shear cut with a controlled micro offset of the cutting edge for long service life and an ultra precise cut even on the thinnest wires.
• Ground, very sharp cutting edges without bevel, edge hardness approx. 54 HRC.

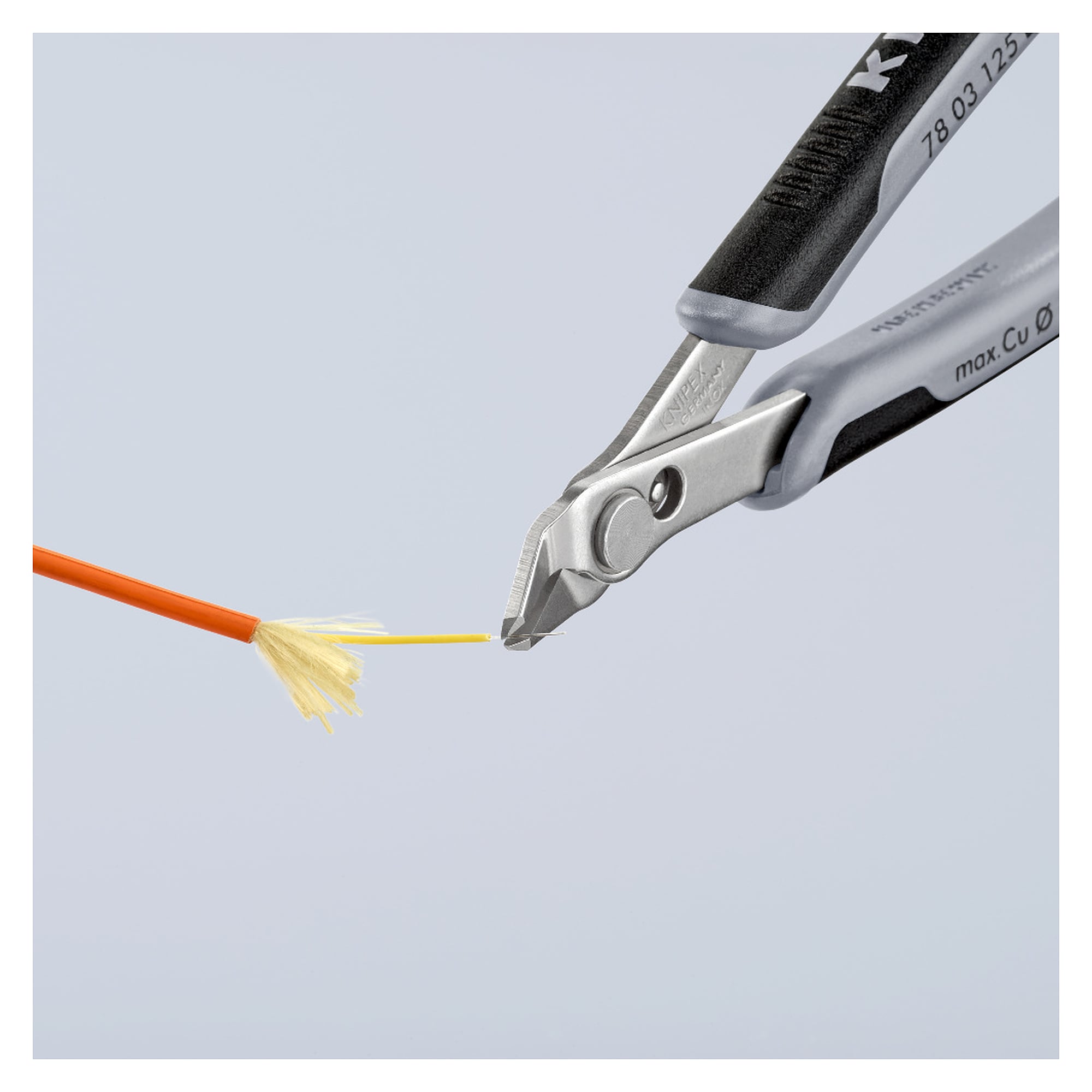

• Exactly shaped tips at a head width of 13.5 mm also cut flush-lying wires from 0.2 mm dia.
• Extremely smooth action with opening spring and opening limiter for fatigue-free work.
• Joint with a stainless steel rivet, INOX tool steel, weight only 55 g.

Technical data

Areas of use

Assembly and repair of modules inside the EPA, semiconductor production, laboratory work and prototyping. Whenever electrostatic sensitive devices are handled and a clean fine cut is still required.

Standards and conformity

The pliers comply with DIN ISO 9654 and DIN EN 61 340-5. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
