Electronics diagonal cutter for ESD workstations with a pointed mini head and a small bevel. The jaws are only 10.5 mm long and 6 mm thick at the joint, soft wire is cut from 0.3 to 0.8 mm dia. Laser hardened edges of approx. 62 HRC, meets DIN EN 61 340-5, 115 mm at 65 g.

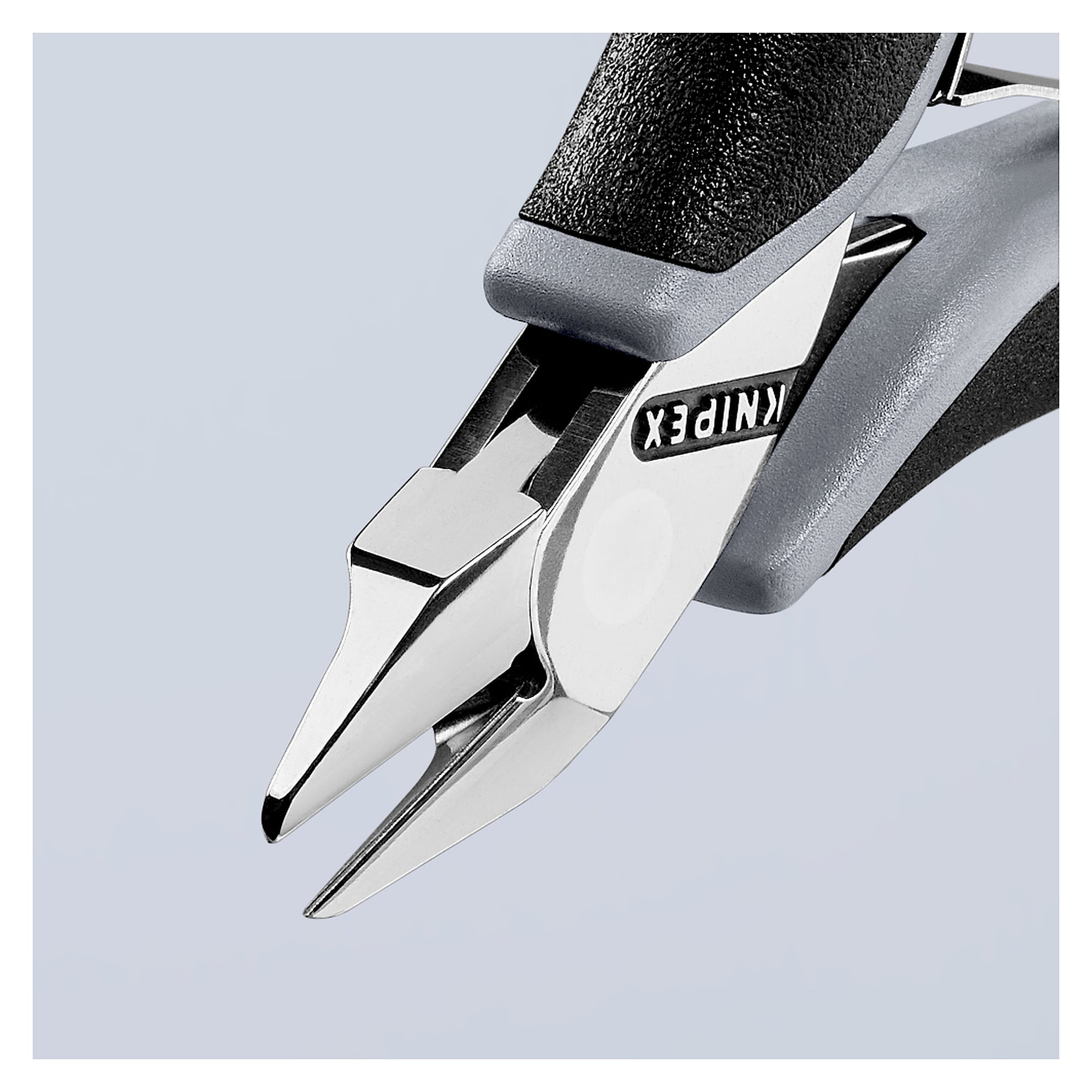

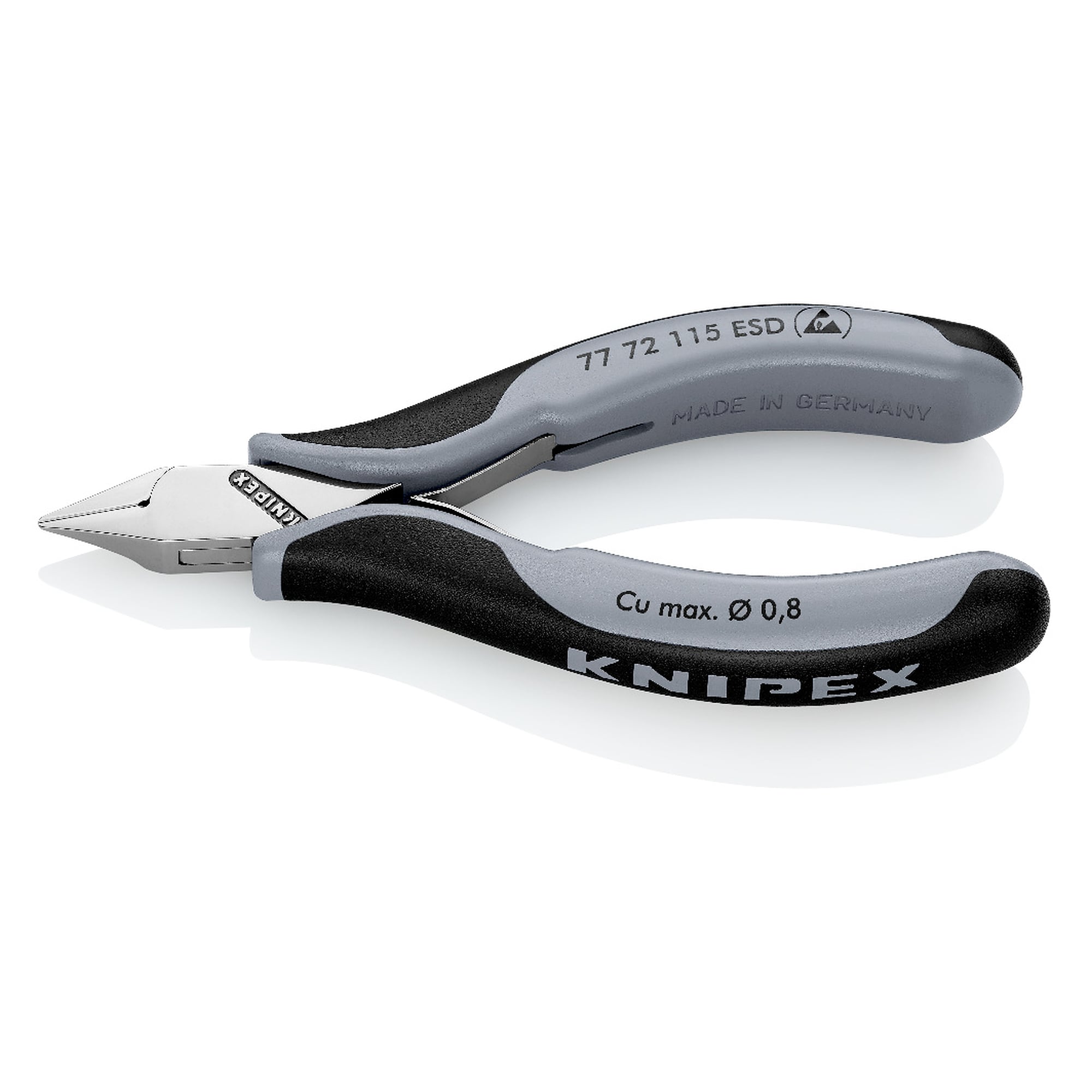

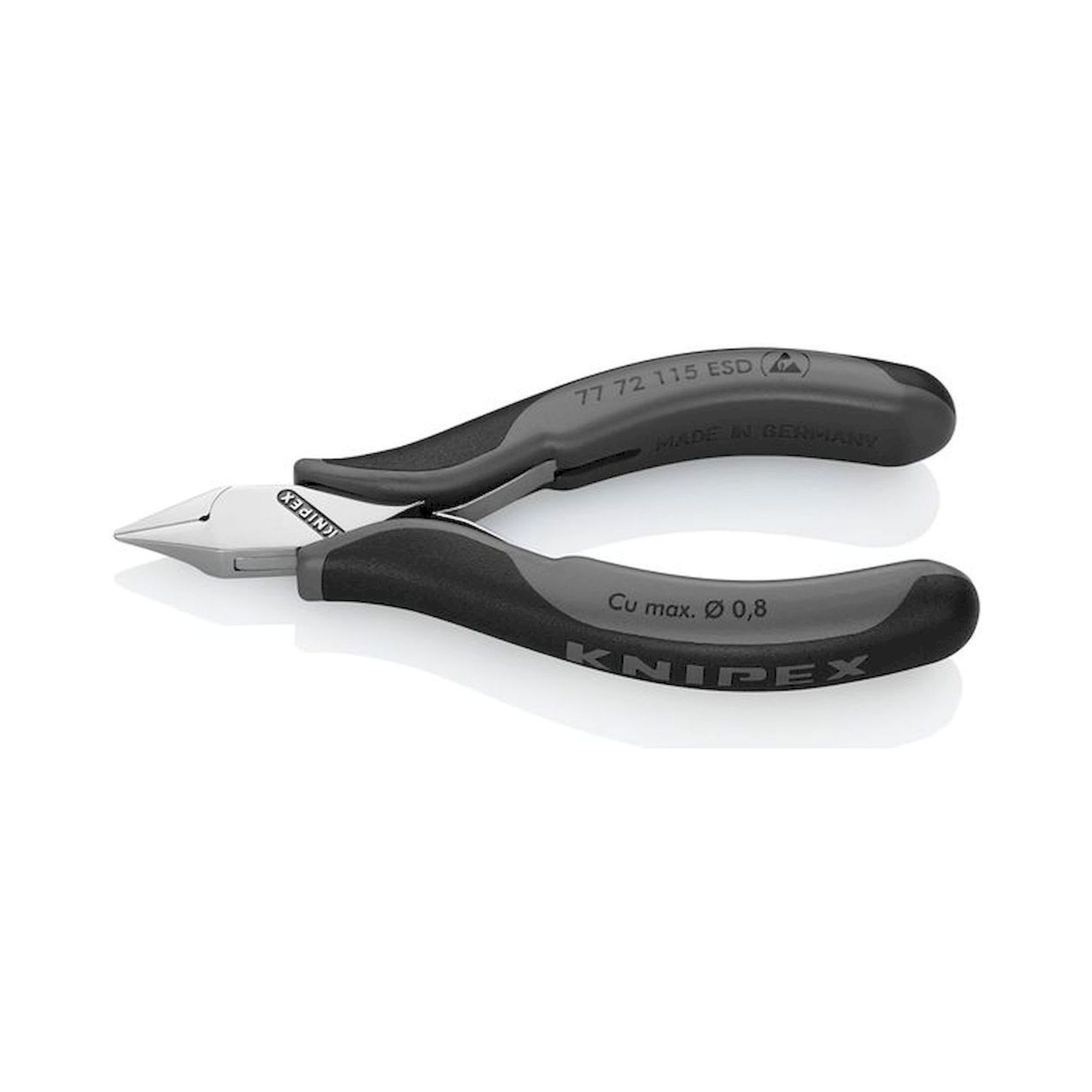

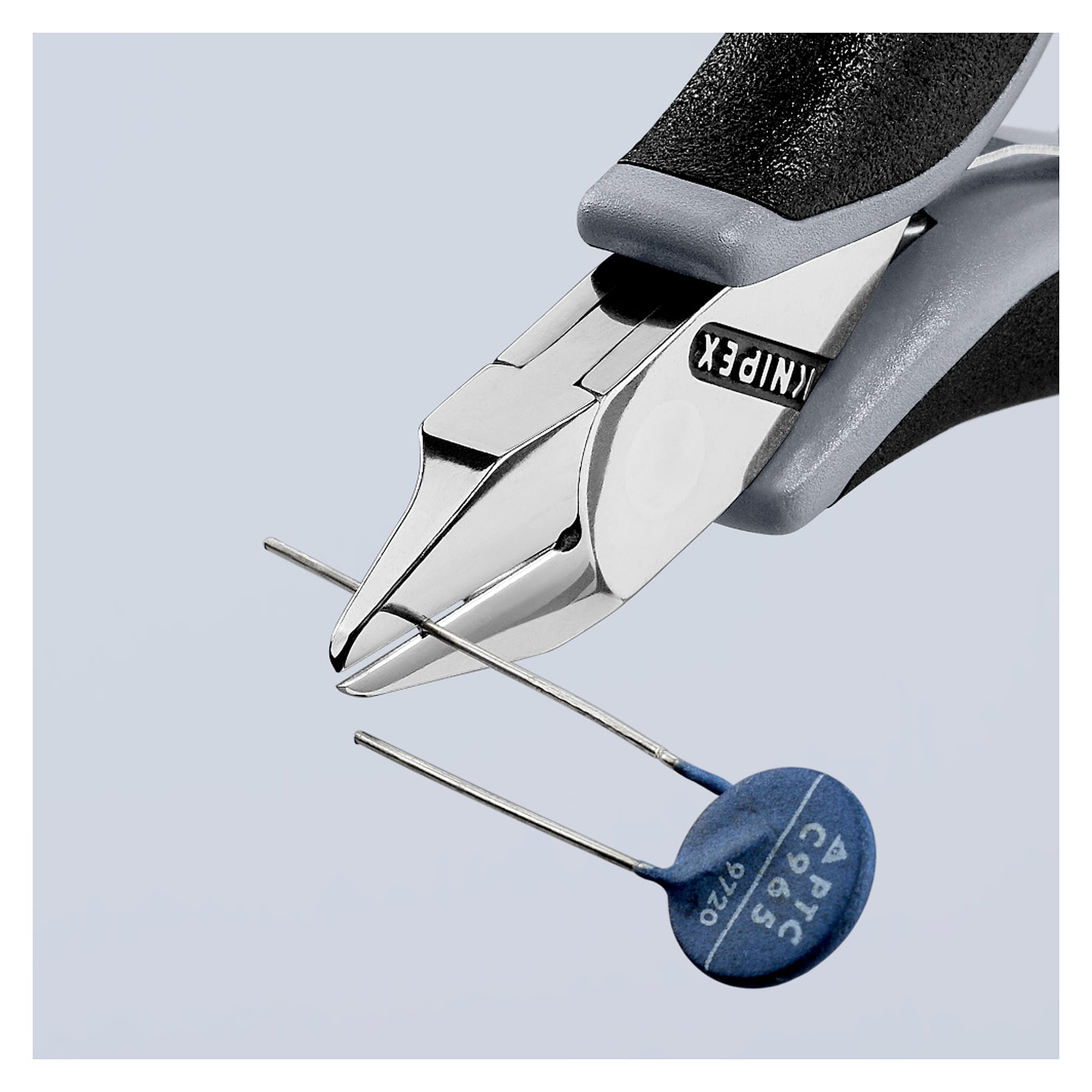

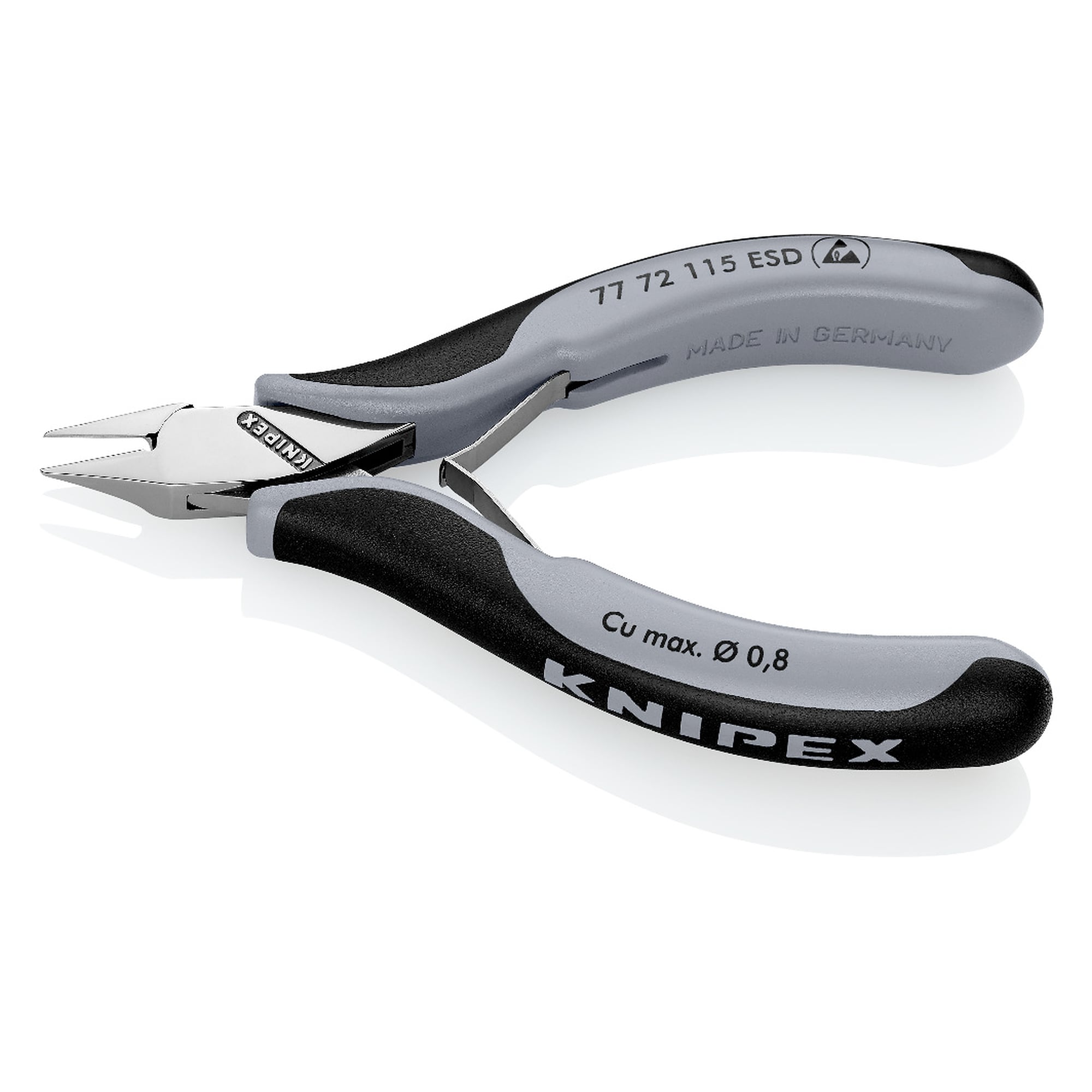

Electronics diagonal cutter ESD pointed mini head with small bevel, 115 mm - Knipex 77 72 115 ESD

KNIPEX Original product
Net price (excl. VAT)
€40.04
Item WL19491
Manufacturer no. 77 72 115 ESD
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.77 72 115 ESD
EAN4003773024330
ConditionNew
Article
WL19491

Inside an EPA assemblies are often densely populated and electrostatic sensitive at the same time. The 77 72 115 ESD electronics diagonal cutter answers that with a pointed mini head of only 10.5 mm jaw length and 6 mm jaw thickness at the joint. Its laser hardened edges of approx. 62 HRC cut soft wire from 0.3 to 0.8 mm dia.

Benefits

  • ESD compliant to DIN EN 61 340-5 and therefore suitable for handling electrostatic sensitive devices.
  • Pointed mini head with a small bevel, jaw length 10.5 mm, reaches between closely spaced components.
  • Slim jaws of only 6 mm thickness at the joint keep the view on the cutting point clear.
  • Durable, load-optimised design with a backlash-free box joint that gives a more direct feel when working.
  • Slim sleeves drawn up towards the head allow fine and comfortable gripping between thumb and index finger.
  • Mirror polish with a fine oil film protects against rust. No chrome flakes come loose that could cause circuit faults.

Technical data

EAN4003773024330
Headmirror polished
Handleswith multi-component sleeves
Weight65 g
Dimensions115 x 66 x 17 mm
StandardDIN ISO 9654, DIN EN 61 340-5
Cutting capacity soft wire (diameter)Ø 0.3 - 0.8 mm
Jaw length (B)10.5 mm
Jaw thickness at joint (D)6 mm
Head width (A)11 mm
ESDyes
REACH conformitycontains no SVHC
RoHS conformitynot applicable

Areas of use

Very fine cutting work on boards, in precision mechanics, laboratories and prototyping inside EPA zones. The mini head is the choice when access between components and housing walls is especially tight and only soft wire has to be cut.

Standards and conformity

The cutter complies with DIN ISO 9654 and DIN EN 61 340-5. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.

More Information
Norm DIN ISO 9654
ESD version ESD (antistatic)
Manufacturer Nr. 77 72 115 ESD
Manufacturer Knipex
EAN 4003773024330
Weight 0.065000
Height 17 mm
Width 66 mm
GPSR manufacturer information KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de
Article authenticity Original product
Condition of article New
Overall length [mm] 115.000000
