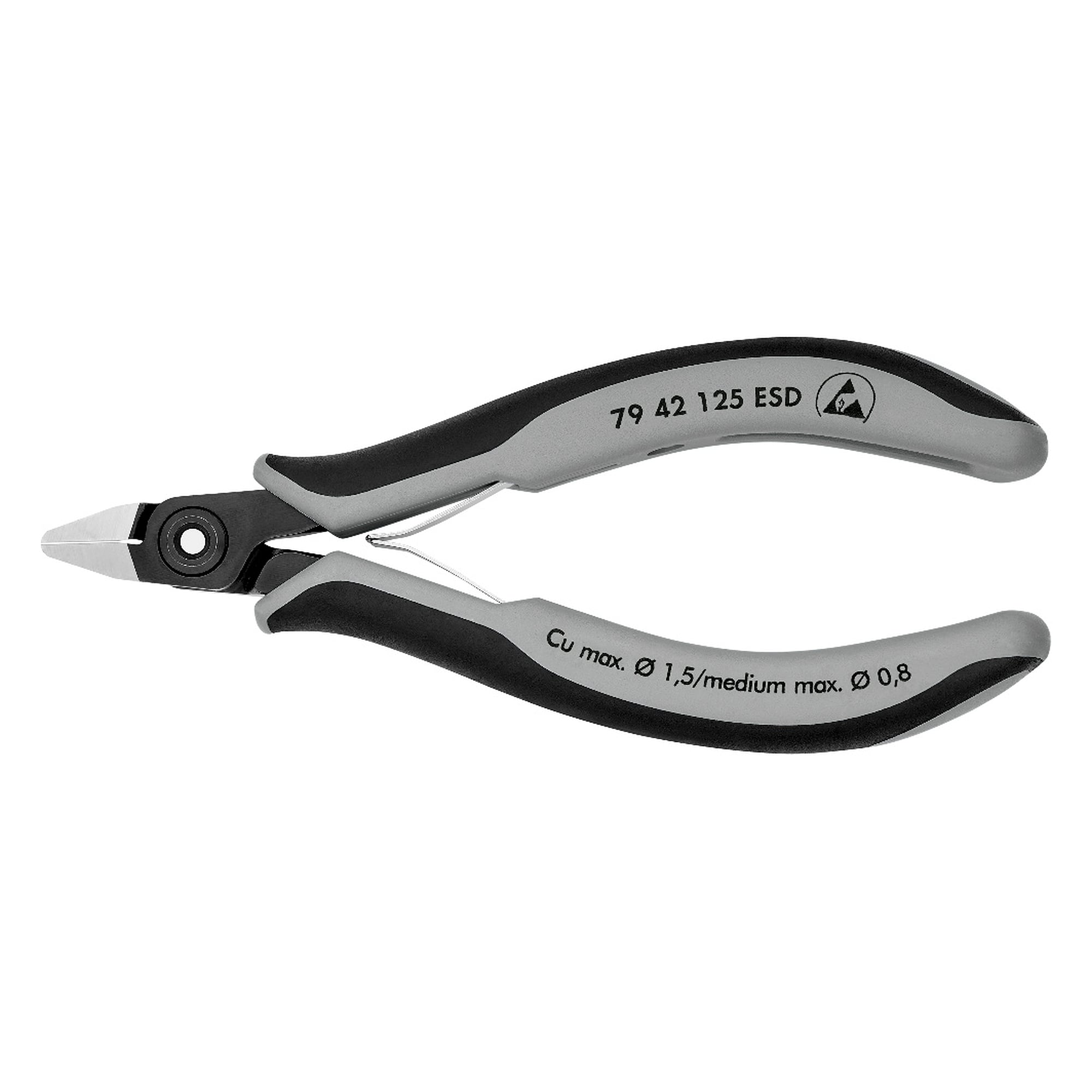

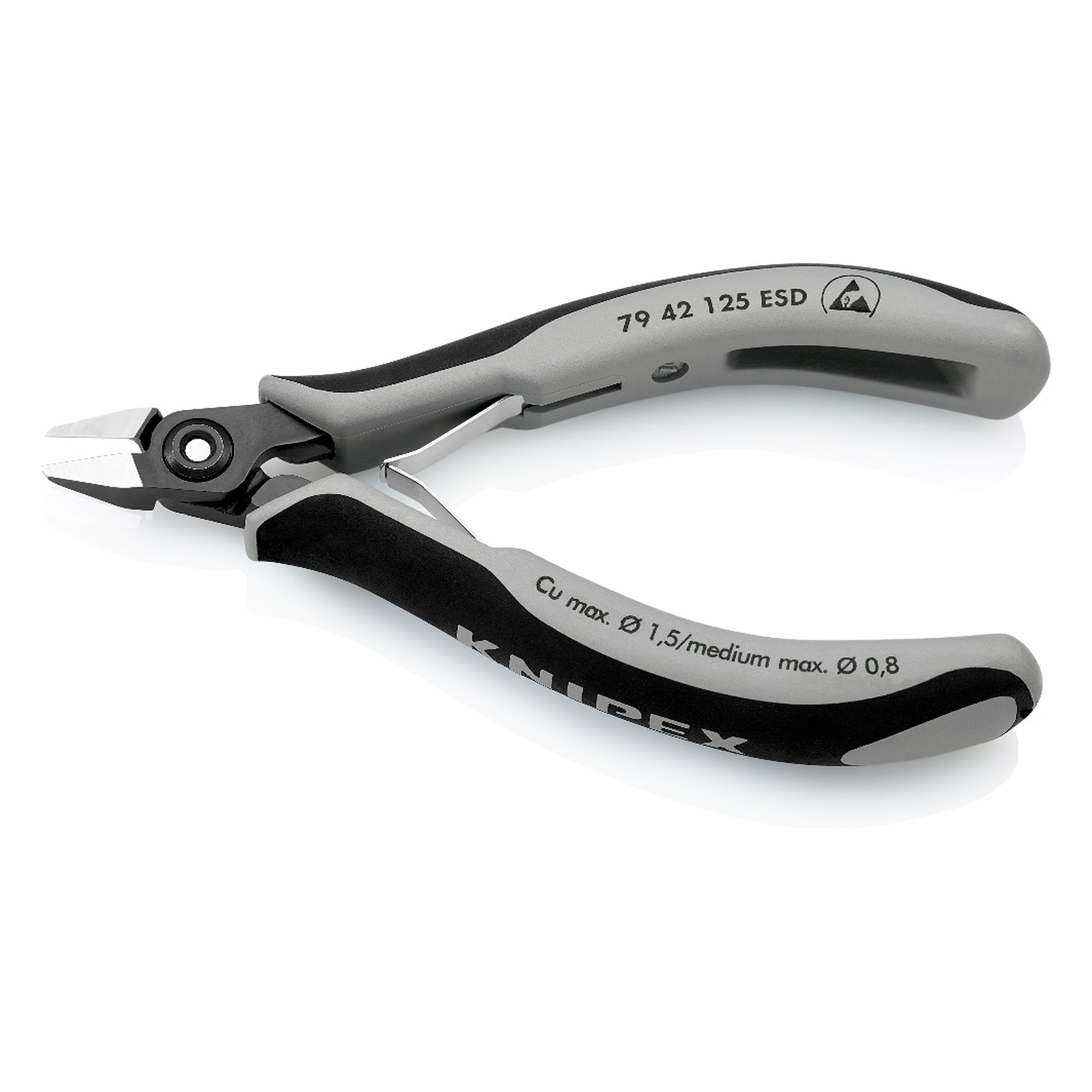

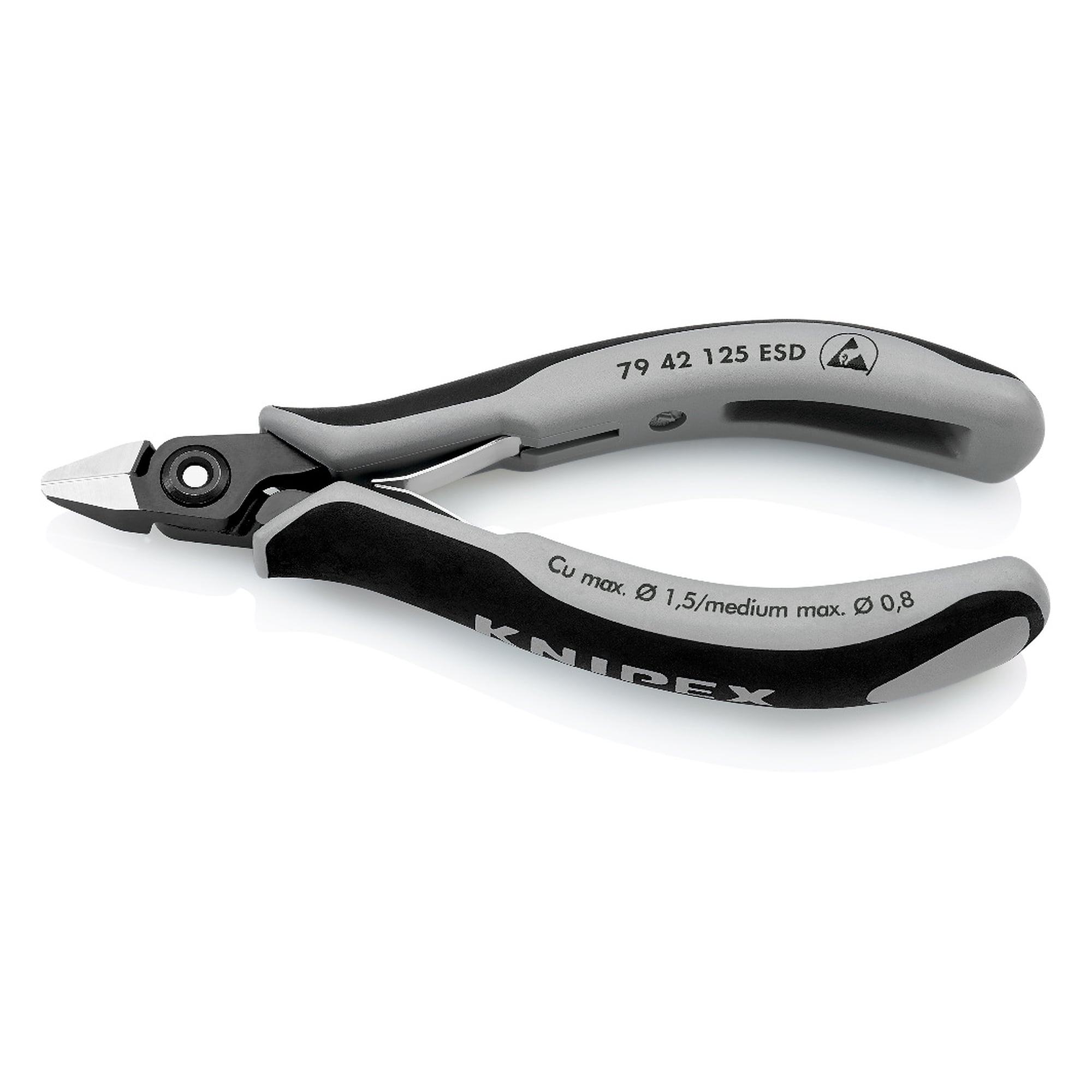

ESD precision electronics diagonal cutter pointed without bevel, 125 mm - Knipex 79 42 125 ESD

Between closely spaced components every millimetre of head width counts, and in an ESD area the tool must not carry charge onto the assembly. The 79 42 125 ESD precision electronics diagonal cutter therefore has a pointed head 11 mm wide, works without a bevel and comes with electrically dissipative handles.

Benefits

• Pointed head without bevel, 11 mm head width and 11 mm jaw length, for access to tightly packed component areas.
• Handles electrically dissipative to DIN EN 61 340-5 for use in electrostatic protected areas.
• Very accurately ground, sharp cutting edges for exact cuts on sensitive electronic components, soft wire from 0.1 to 1.5 mm dia.
• Precision edges additionally induction hardened, cutting edge hardness approx. 64 HRC, medium hard wire up to 0.8 mm dia.
• Bolted joint with particularly carefully machined joint faces for an even, low-friction movement over the whole opening range.
• Approx. 20 % lighter than conventional electronics pliers at 58 g, plus a smooth-running double spring and ergonomically optimised multi-component sleeves.

Technical data

Areas of use

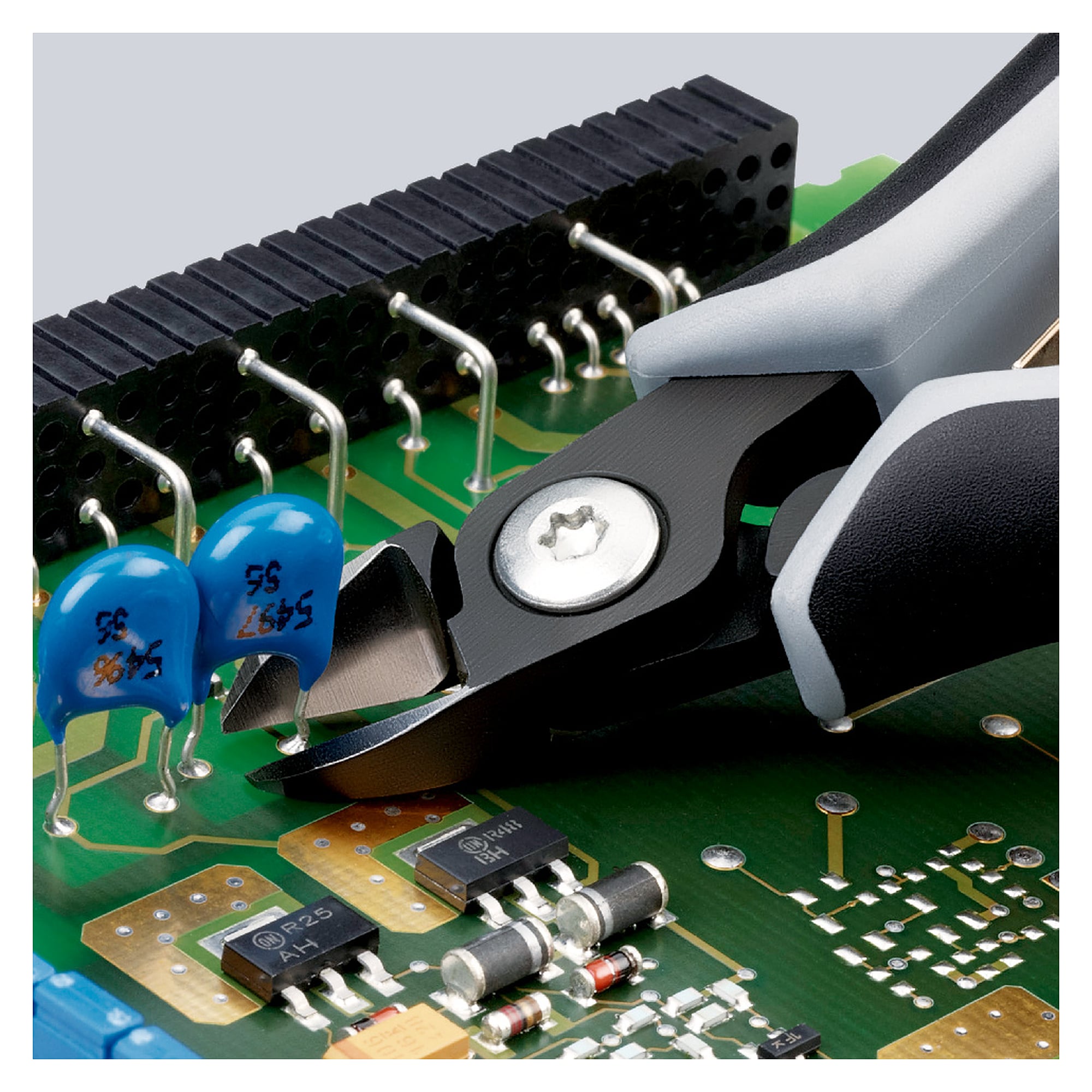

The finest cutting work in electronics and precision mechanics, board assembly and repair in ESD protected workplaces, laboratory work and prototyping. The pointed head reaches places a round head can no longer get to.

Standards and conformity

The cutter complies with DIN ISO 9654 and DIN EN 61 340-5. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
