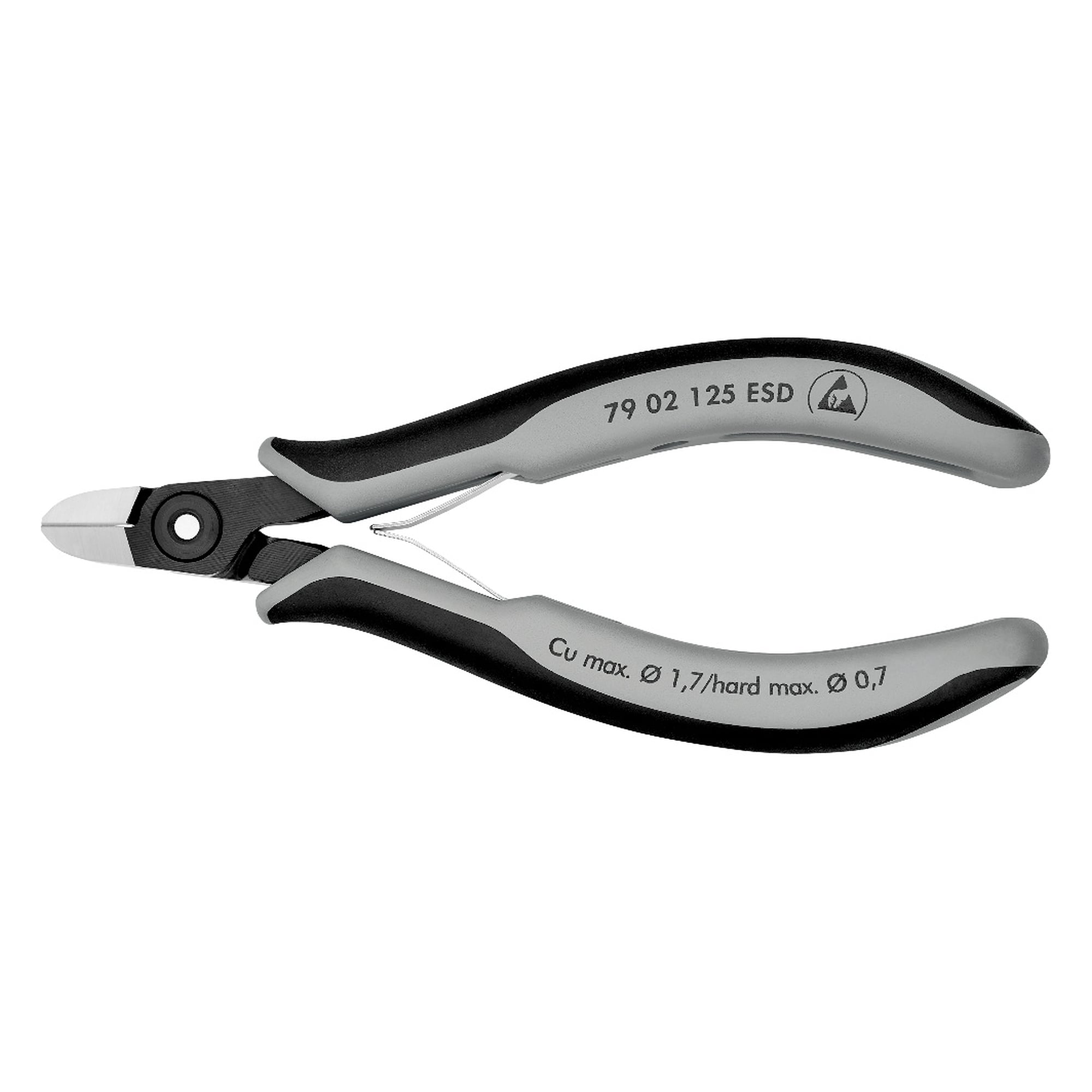

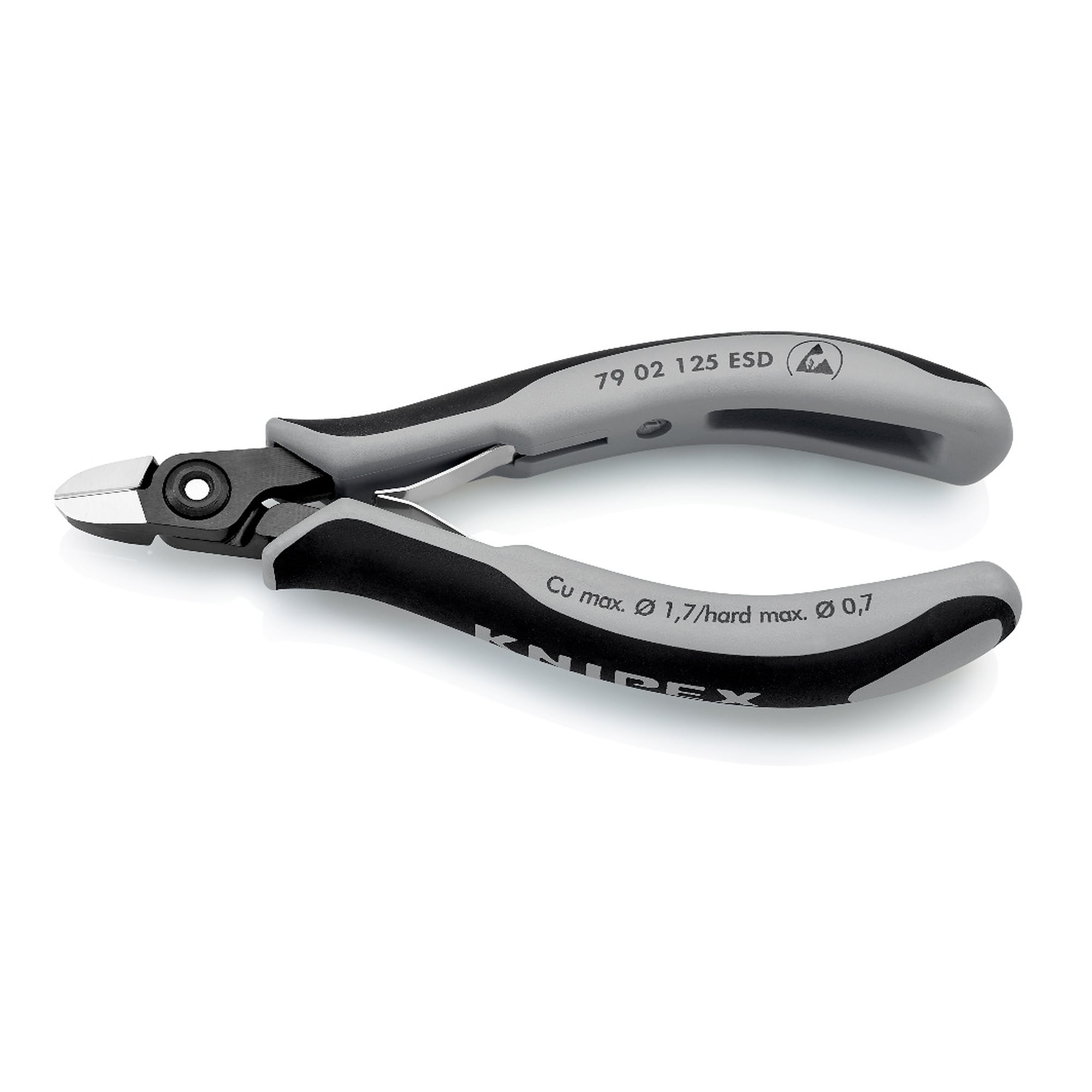

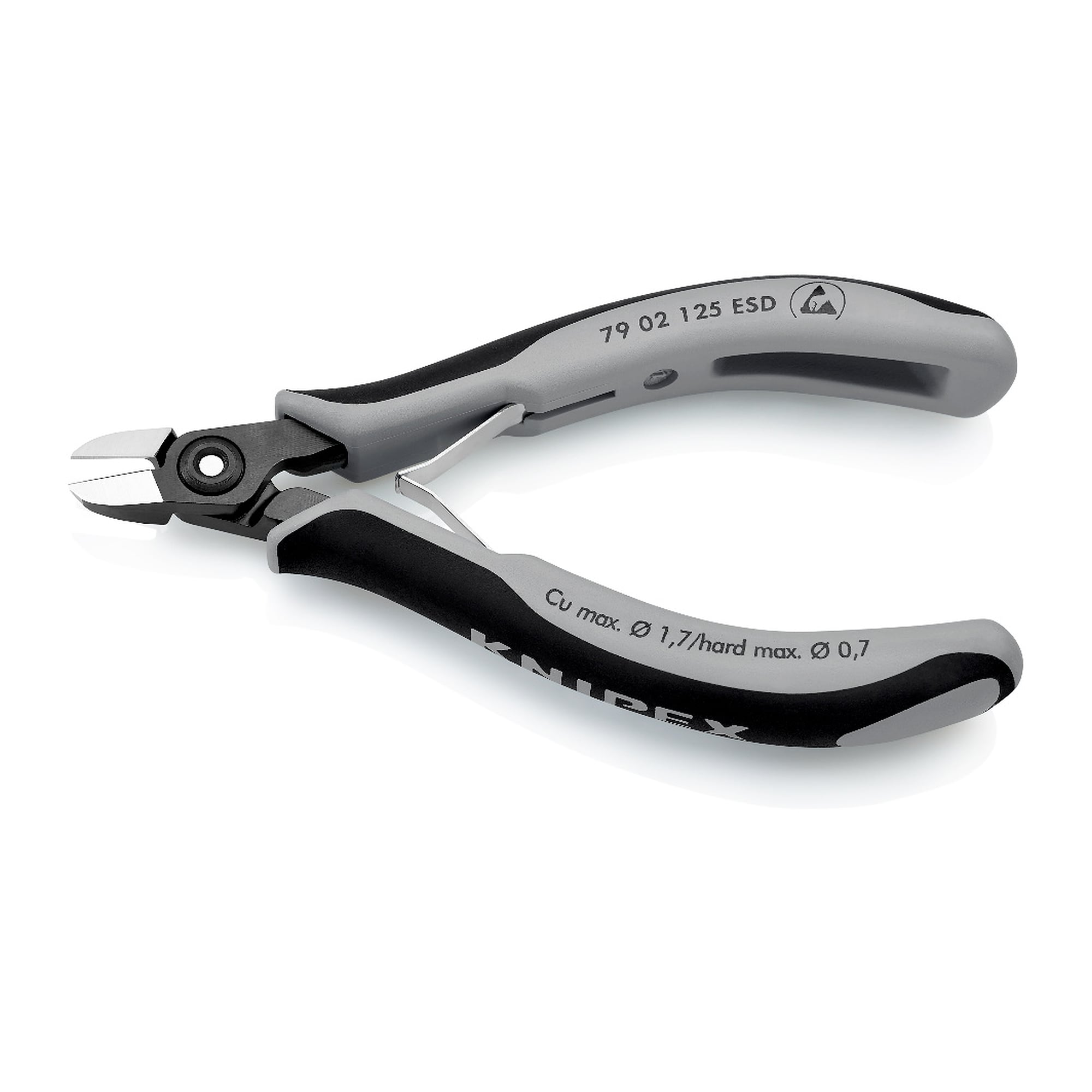

ESD precision electronics diagonal cutter round head, edges 64 HRC, 125 mm - Knipex 79 02 125 ESD

Anyone cutting wire all day in an ESD area needs a head that takes the load and handles that carry no charge onto the assembly. The 79 02 125 ESD precision electronics diagonal cutter combines a round head 11 mm wide with electrically dissipative handles and edges of approx. 64 HRC that cut hard wire up to 0.7 mm dia.

Benefits

• Handles electrically dissipative to DIN EN 61 340-5 for use in electrostatic protected areas.
• Round head with 11 mm head width and 10 mm jaw length, the most robust head shape of the range.
• Precision edges additionally induction hardened, cutting edge hardness approx. 64 HRC, soft wire from 0.2 to 1.7 mm and medium hard wire up to 1.3 mm dia.
• Very accurately ground, sharp cutting edges for exact cuts on sensitive electronic components.
• Bolted joint with particularly carefully machined joint faces for an even, low-friction movement over the whole opening range.
• Approx. 20 % lighter than conventional electronics pliers at 61 g, plus a smooth-running double spring and ergonomically optimised multi-component sleeves.

Areas of use

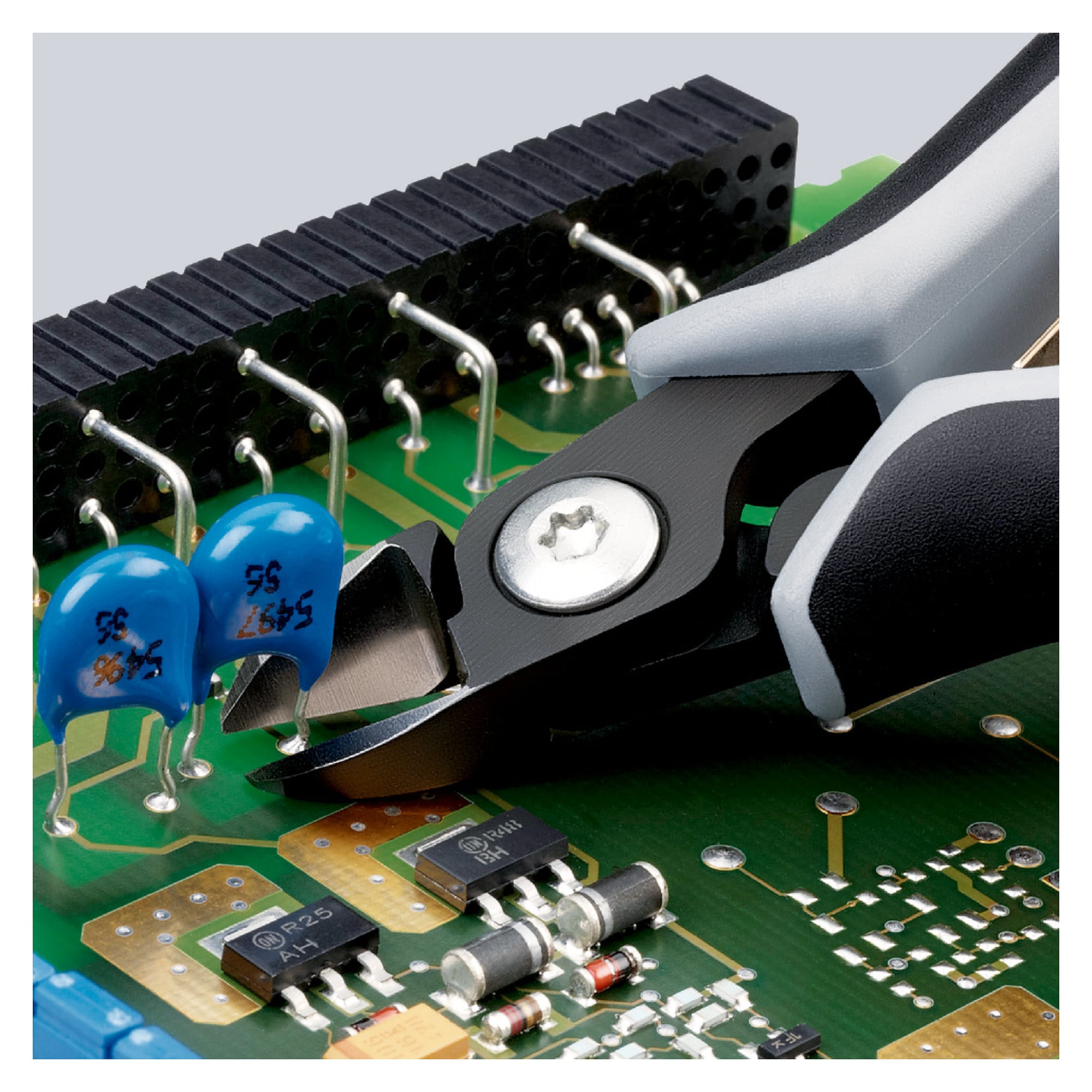

The finest cutting work in electronics and precision mechanics, board assembly and repair in ESD protected workplaces, laboratory work and prototyping. The round head is the choice for continuous use and for slightly heavier wire.

Standards and conformity

The cutter complies with DIN ISO 9654 and DIN EN 61 340-5. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
