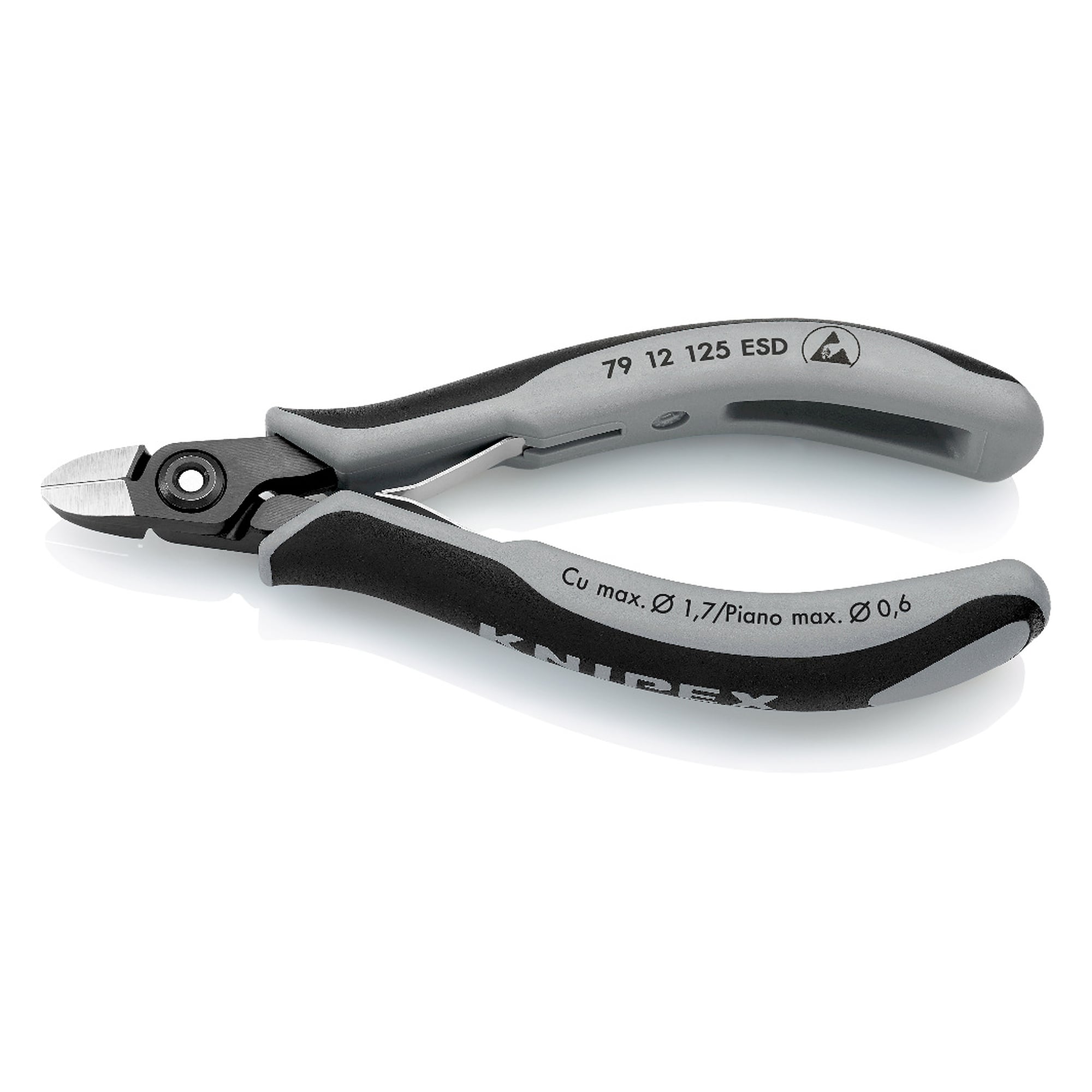

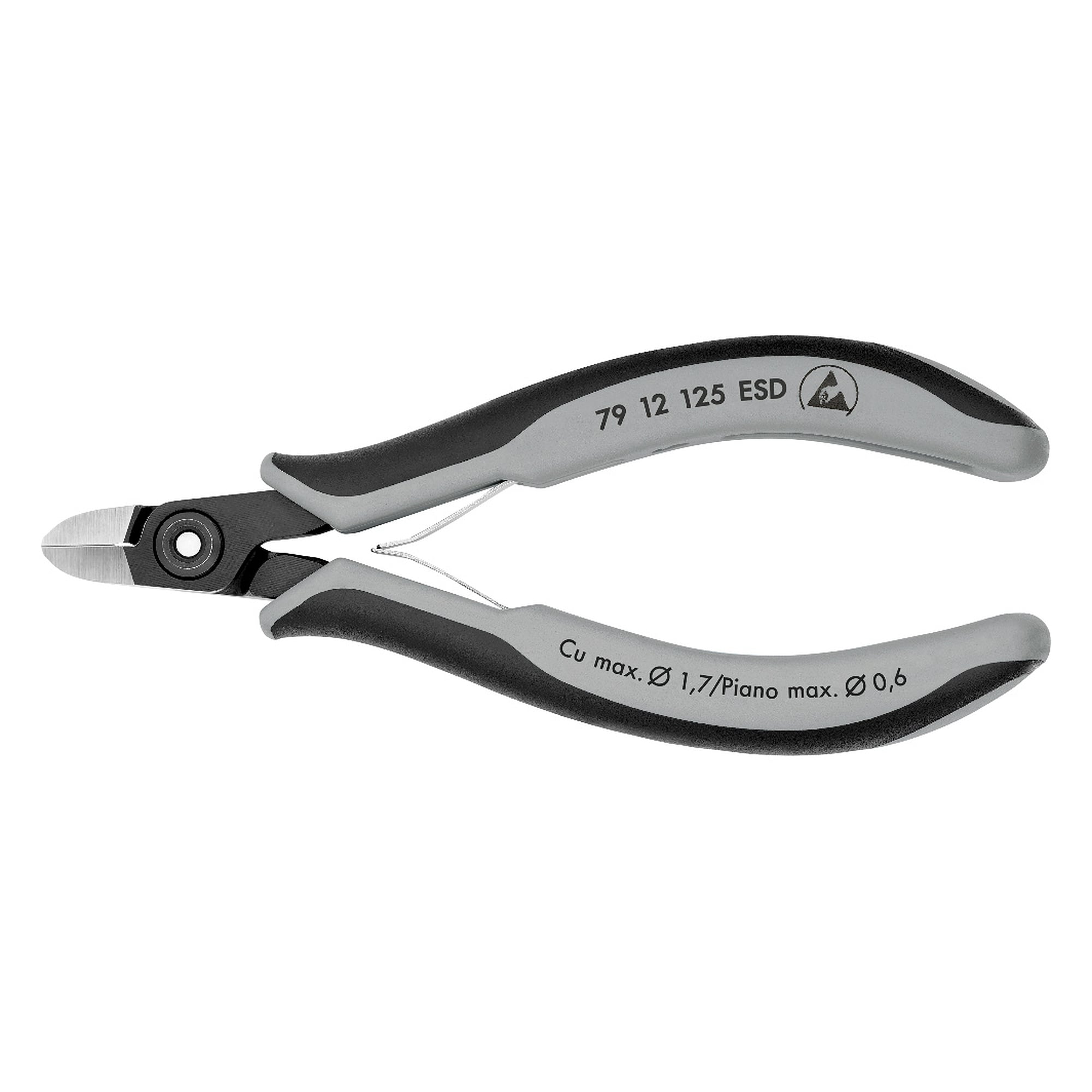

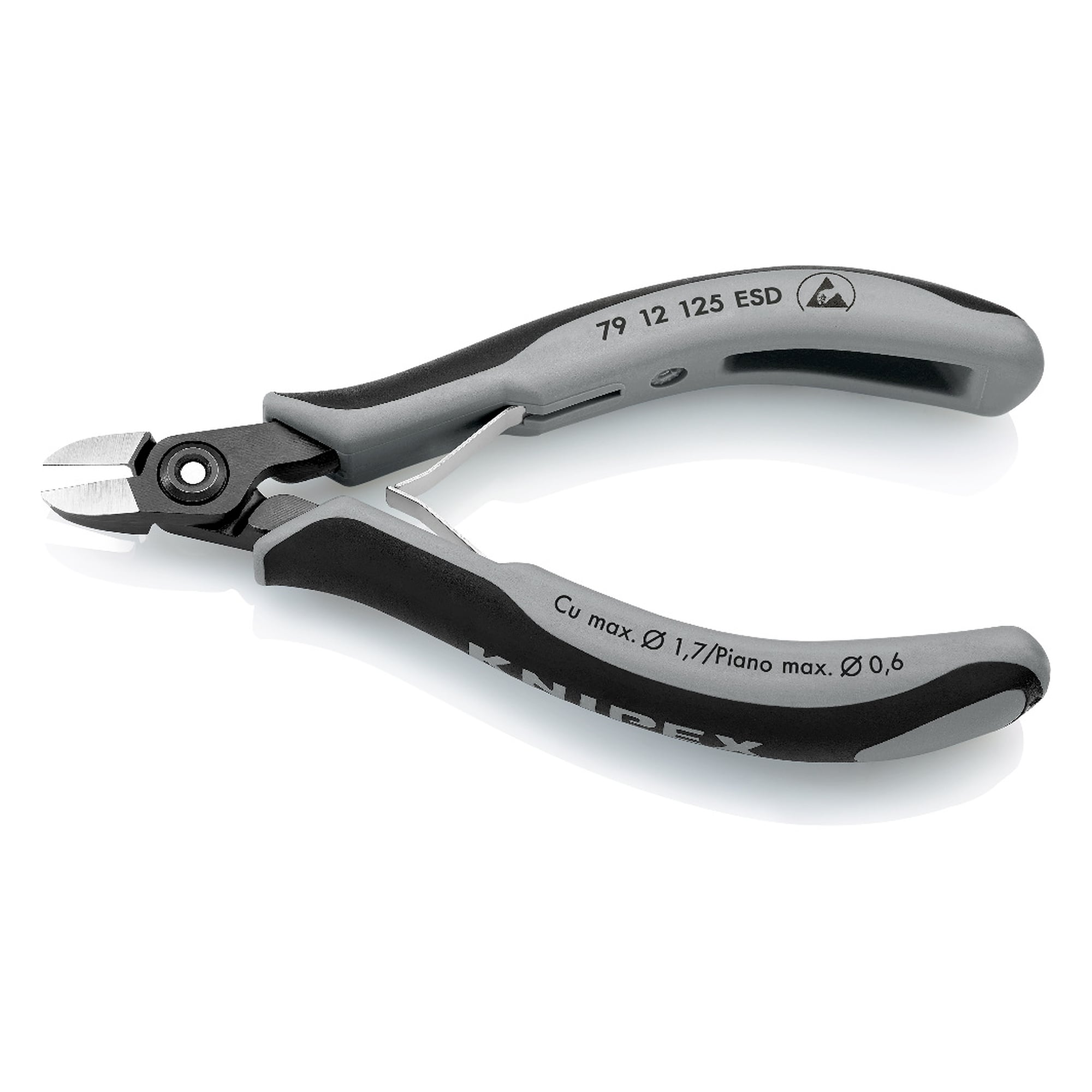

ESD precision electronics diagonal cutter with very small bevel, hard wire up to Ø 1.0 mm, 125 mm - Knipex 79 12 125 ESD

At an ESD protected workstation the tool has to be part of the discharge path and must not stress delicate components. The 79 12 125 ESD precision electronics diagonal cutter has electrically dissipative handles, weighs only 61 g and cuts hard wire up to Ø 1.0 mm and piano wire up to Ø 0.6 mm.

Benefits

• Electrically discharging, dissipative handles suitable for workstations to DIN EN 61 340-5.
• Very precisely ground, sharp cutting edges for exact cuts on delicate electronic components, additionally induction-hardened to approx. 64 HRC.
• Made specifically for cutting hard wire and piano wire, with a very small bevel for an almost flush cut.
• Approximately 20 % lighter than conventional electronics pliers, which relieves the hand during long runs.
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range.
• Smooth-running double spring for gentle opening, together with ergonomically optimised multi-component handles.

Technical data

Areas of use

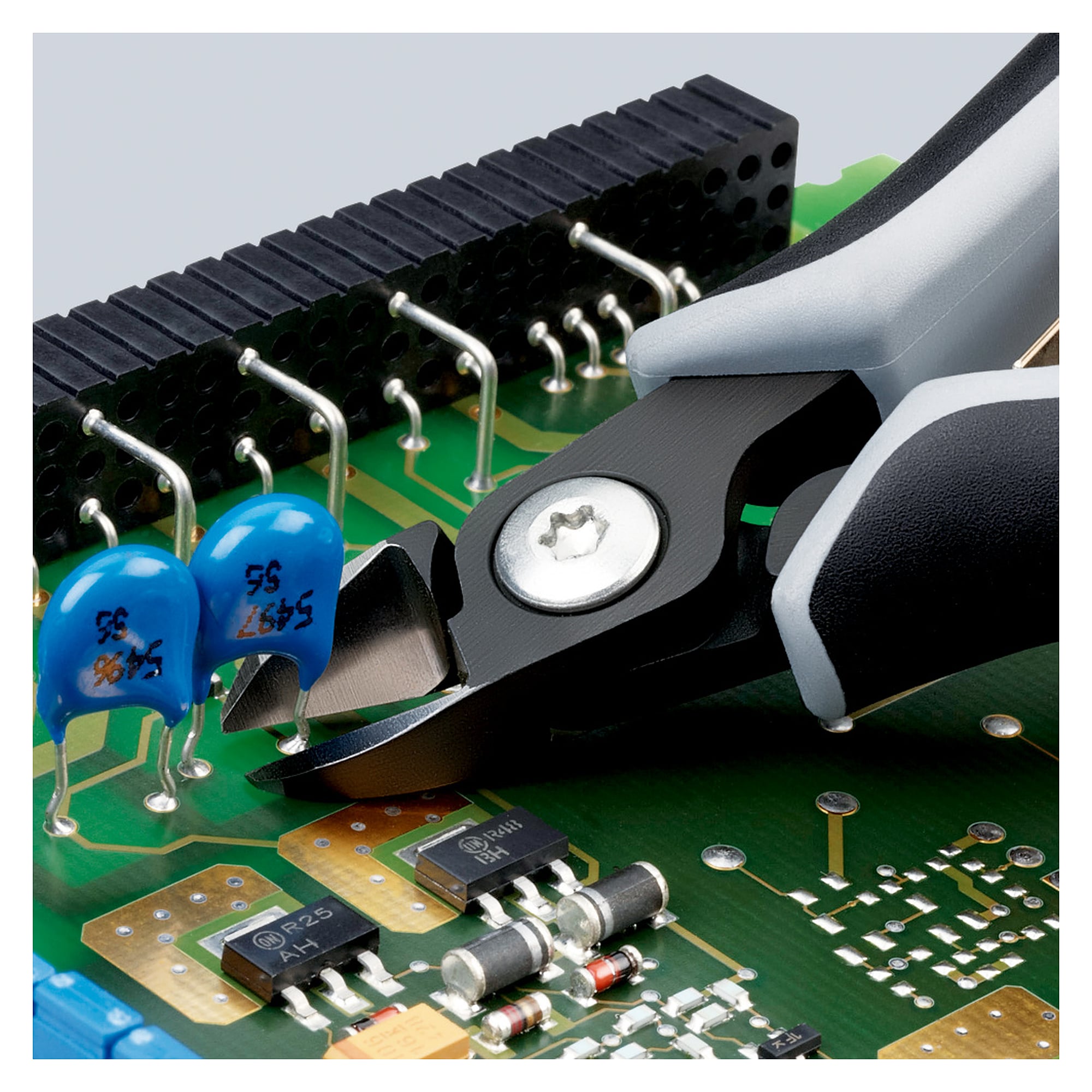

Ultra fine cutting work in electronics and precision mechanics, assembly and repair of printed circuit boards, and prototype building at ESD protected workstations. The small bevel and the head width of 11 mm allow cuts close to the board.

Standards and conformity

The pliers comply with DIN ISO 9654 and are declared an ESD tool to DIN EN 61 340-5. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply.
