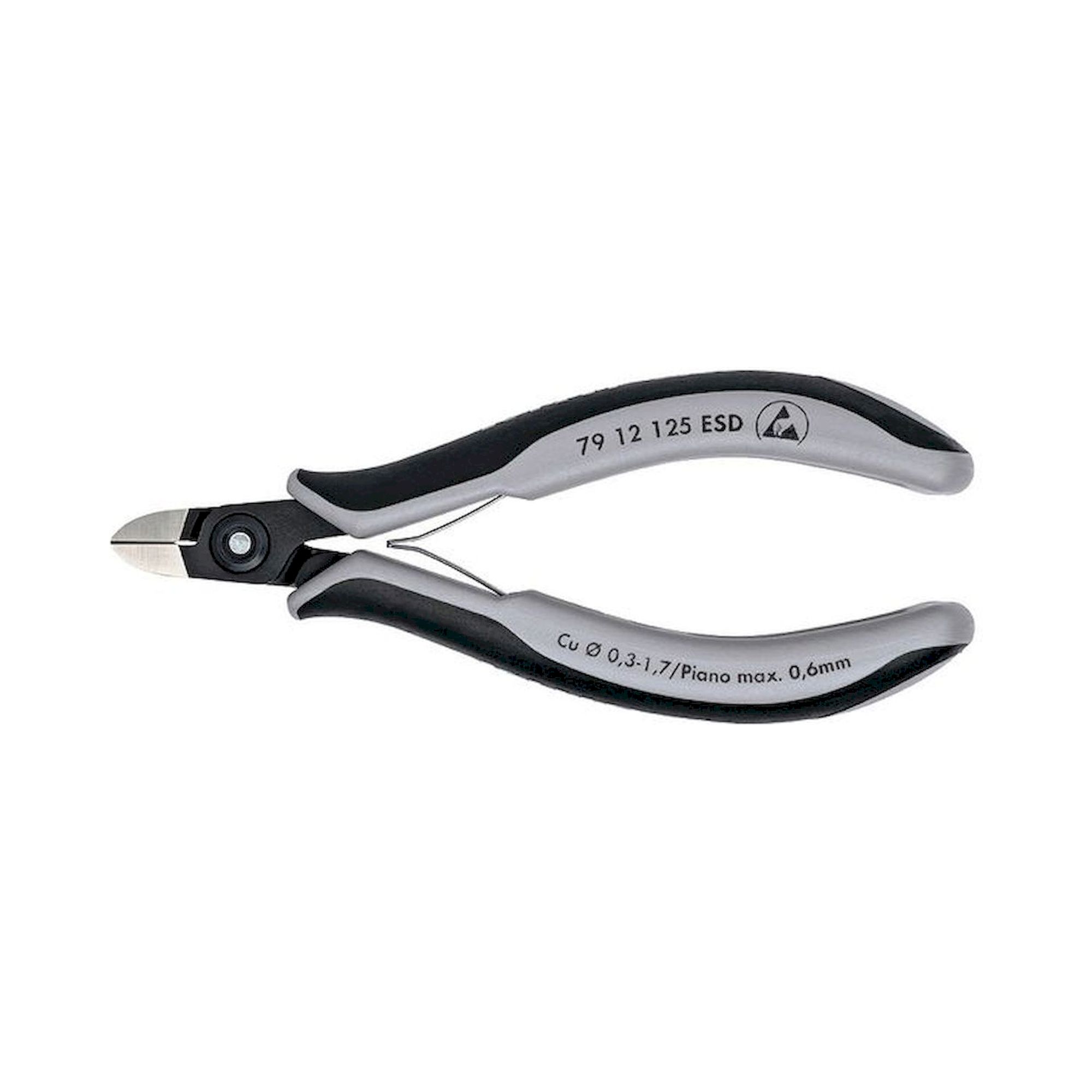

Precision electronics diagonal cutter for hard wire up to 1.0 mm, 125 mm - Knipex 79 12 125

Trimming component leads close above the board must damage neither the pad nor the neighbouring part. The 79 12 125 precision electronics diagonal cutter works with very precisely ground edges and a very small bevel, cutting hard wire up to 1.0 mm and piano wire up to 0.6 mm in diameter.

Benefits

• Very precisely ground, sharp cutting edges for exact cuts on delicate electronic components.
• Cutting edges additionally induction-hardened to about 64 HRC, which gives a long service life even on hard material.
• Made specifically for cutting hard wire and piano wire, with a very small bevel for cuts close to the assembly.
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement across the entire opening range.
• Smooth-running double spring for a gentle and even opening during repetitive work.
• Ergonomically optimised multi-component grips, about 20 % lighter than conventional electronics pliers.

Technical data

Areas of use

Board assembly and rework, fine mechanics, prototype and laboratory assembly, and model making. The small bevel helps wherever connecting wires have to be trimmed flush with the board.

Standards and conformity

The cutter is manufactured to DIN ISO 9654. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
