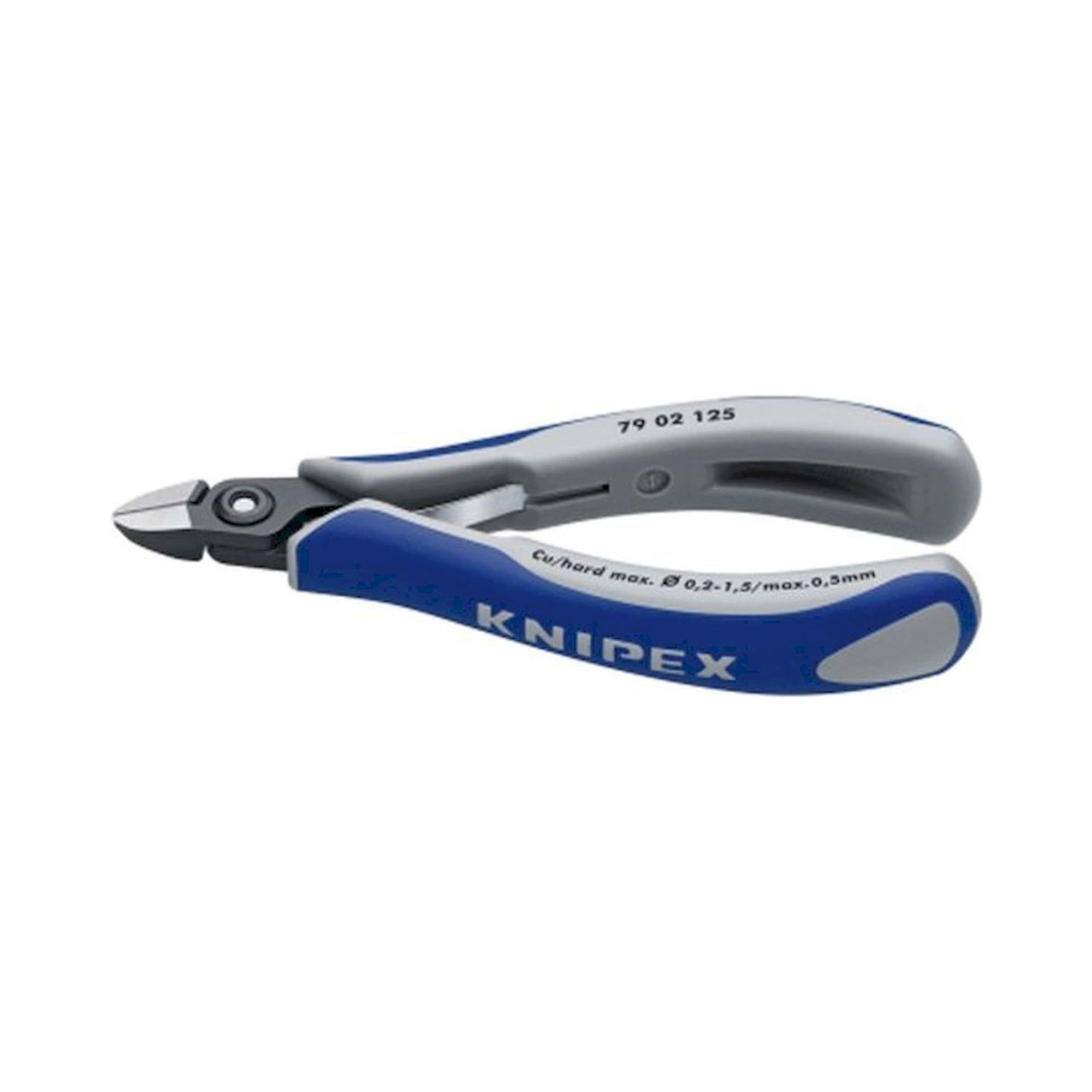

Precision electronics diagonal cutter, round head, small bevel, 64 HRC, 125 mm - Knipex 79 02 125

Anyone trimming component leads all day needs a head that fits between the parts and still cuts firmly. The 79 02 125 precision electronics diagonal cutter combines a round head of 11 mm width with cutting edges of approx. 64 HRC for soft wire from 0.2 to 1.7 mm dia.

Benefits

• Round head with 11 mm head width and 10 mm jaw length offers more cutting edge than the mini head without fouling neighbouring components.
• Very precisely ground, sharp cutting edges for exact cuts on sensitive electronic components.
• Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC, with a very small bevel for cuts close to the board.
• Bolted joint with particularly carefully machined joint surfaces for even, low-friction movement across the whole opening range.
• Smooth-running double spring opens the pliers gently and evenly, while ergonomically optimised multi-component sleeves relieve the hand.
• Approx. 20 percent lighter than conventional electronics pliers, here 59 g at 125 mm length.

Technical data

Areas of use

Board assembly and repair, precision mechanics, laboratory work, model making and prototyping. The round head is the all-round shape of the series and covers most jobs, from thin jumper wire to heavier component leads.

Standards and conformity

The cutter complies with DIN ISO 9654. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
