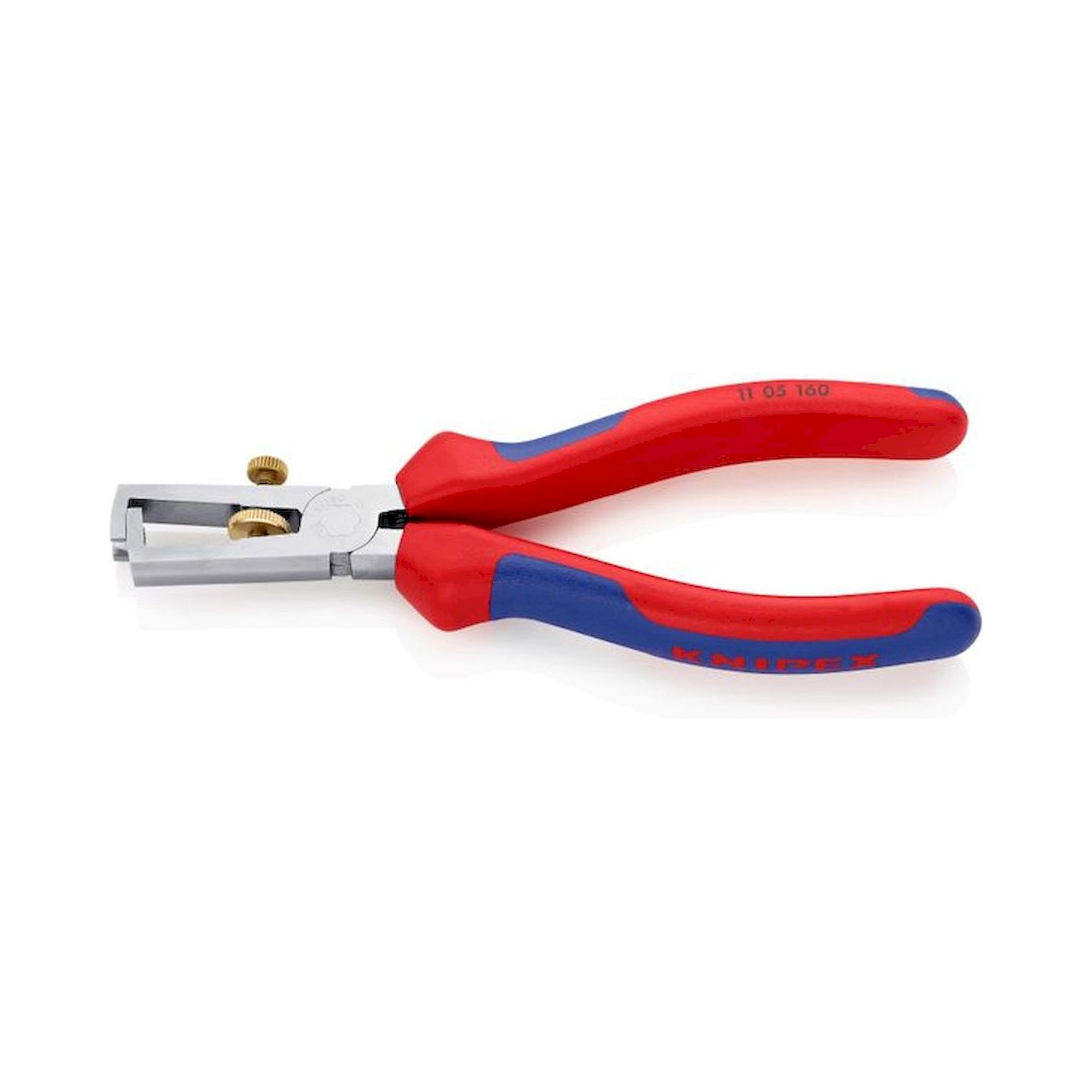

Insulation stripper universal with opening spring for conductors up to Ø 5 mm or 10 mm², 160 mm - Knipex 11 05 160

Anyone stripping conductors of changing diameters wants to set the tool once and then leave it alone. The 11 05 160 insulation stripper is set to the wire or strand diameter on a knurled screw and secured by a lock nut, and its working range reaches Ø 5 mm or 10 mm².

Benefits

• For solid, stranded and fine stranded conductors with plastic or rubber insulation, one tool for the common conductor types.
• Working range up to Ø 5 mm or a conductor cross-section of 10 mm², equal to AWG 8.
• Easy adjustment to the required diameter of solid or stranded wire by knurled screw, the lock nut keeps the setting in place.
• Opening spring, so the tool returns to its starting position after every stroke.
• Pliers and head chrome-plated, protected against corrosion in the tool case and in the service van.
• Handles with multi-component grips and a weight of only 170 g at 160 mm length.

Areas of use

Electrical installation, control cabinet and control system building, service and maintenance. Useful wherever conductors of different types up to 10 mm² are prepared and the setting once found has to stay the same over many cuts.

Standards and conformity

The manufacturer does not state a tool standard for this product. According to the manufacturer the tool contains no substances of very high concern under REACH, the RoHS directive does not apply.
