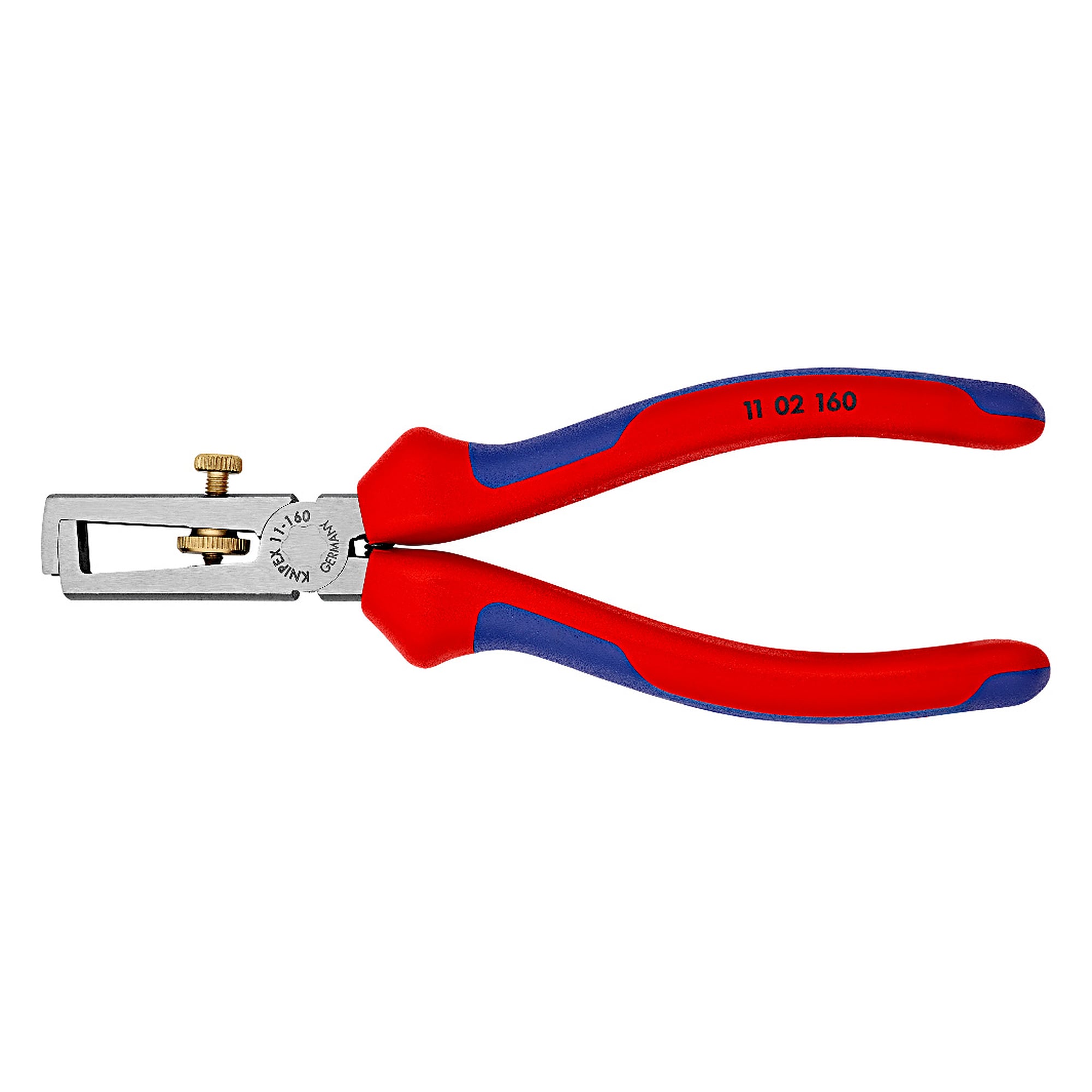

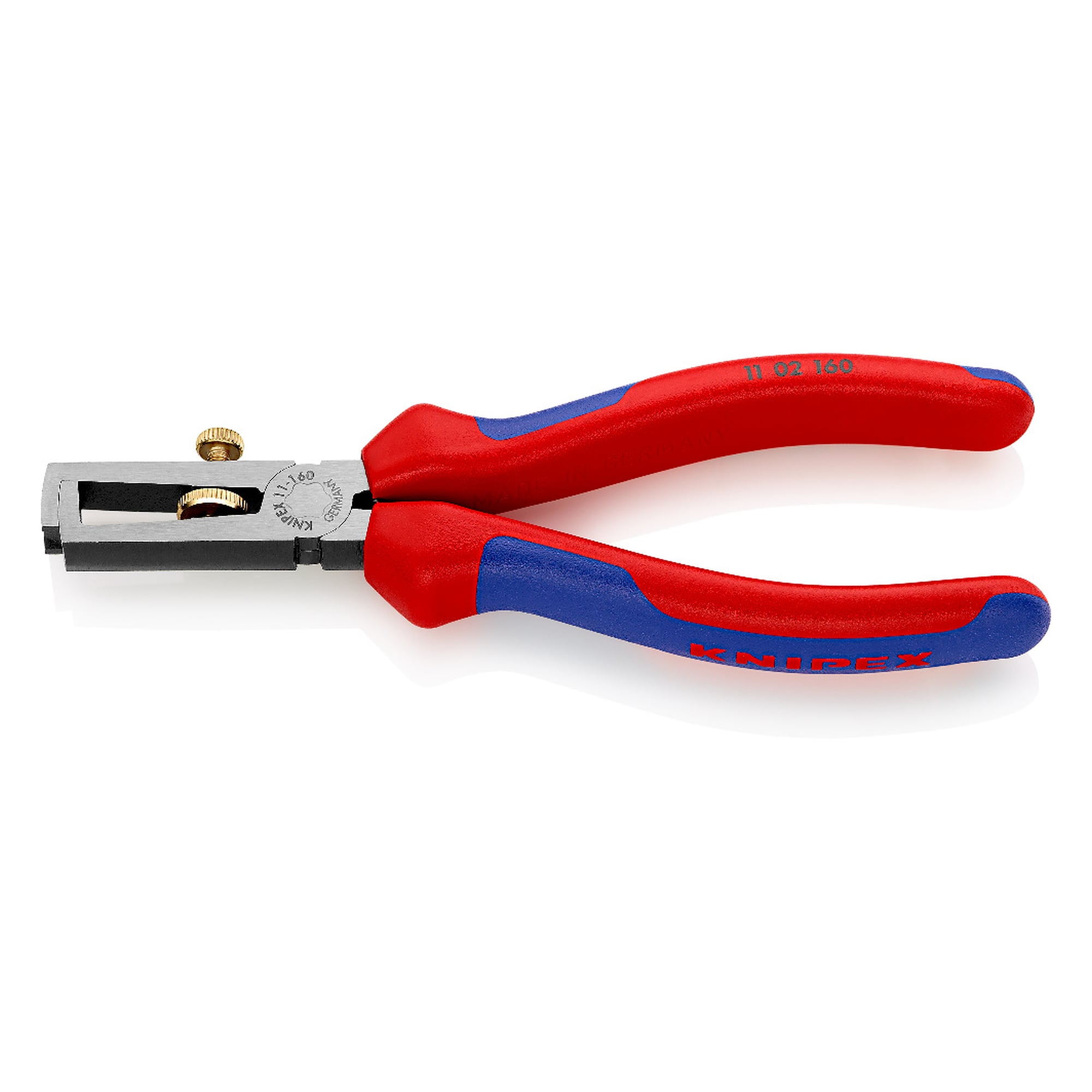

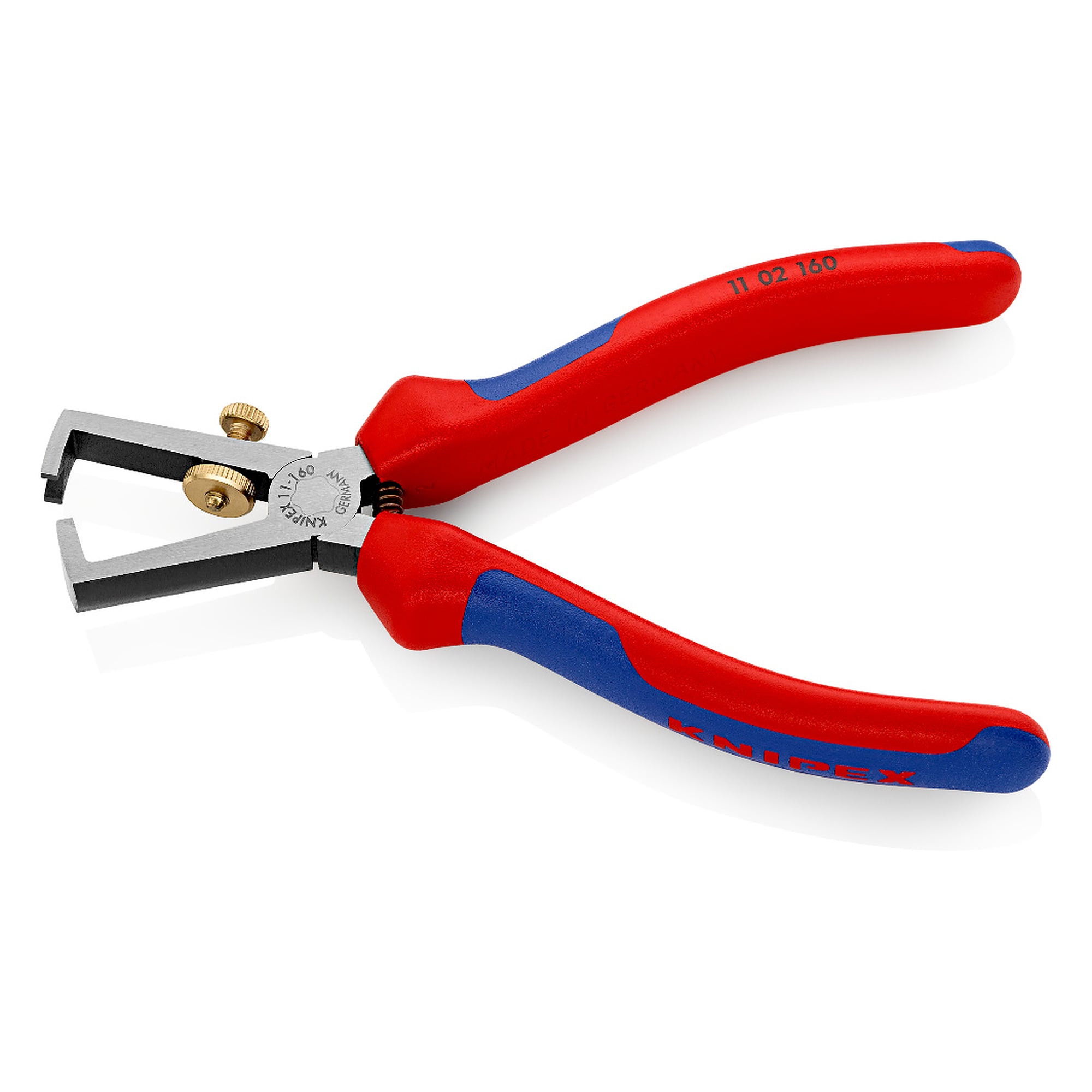

Universal insulation stripper with opening spring, up to 10 mm² and 5.0 mm dia., 160 mm - Knipex 11 02 160

Anyone preparing cables all day needs a stripper that is set to the conductor once and keeps that setting through the whole batch. The 11 02 160 works up to 10 mm² conductor cross section or 5.0 mm outer diameter and is fixed by a knurled screw with a lock nut.

Benefits

• For solid, stranded and fine stranded conductors with plastic or rubber insulation, maximum 5.0 mm dia. or 10 mm² cross section.

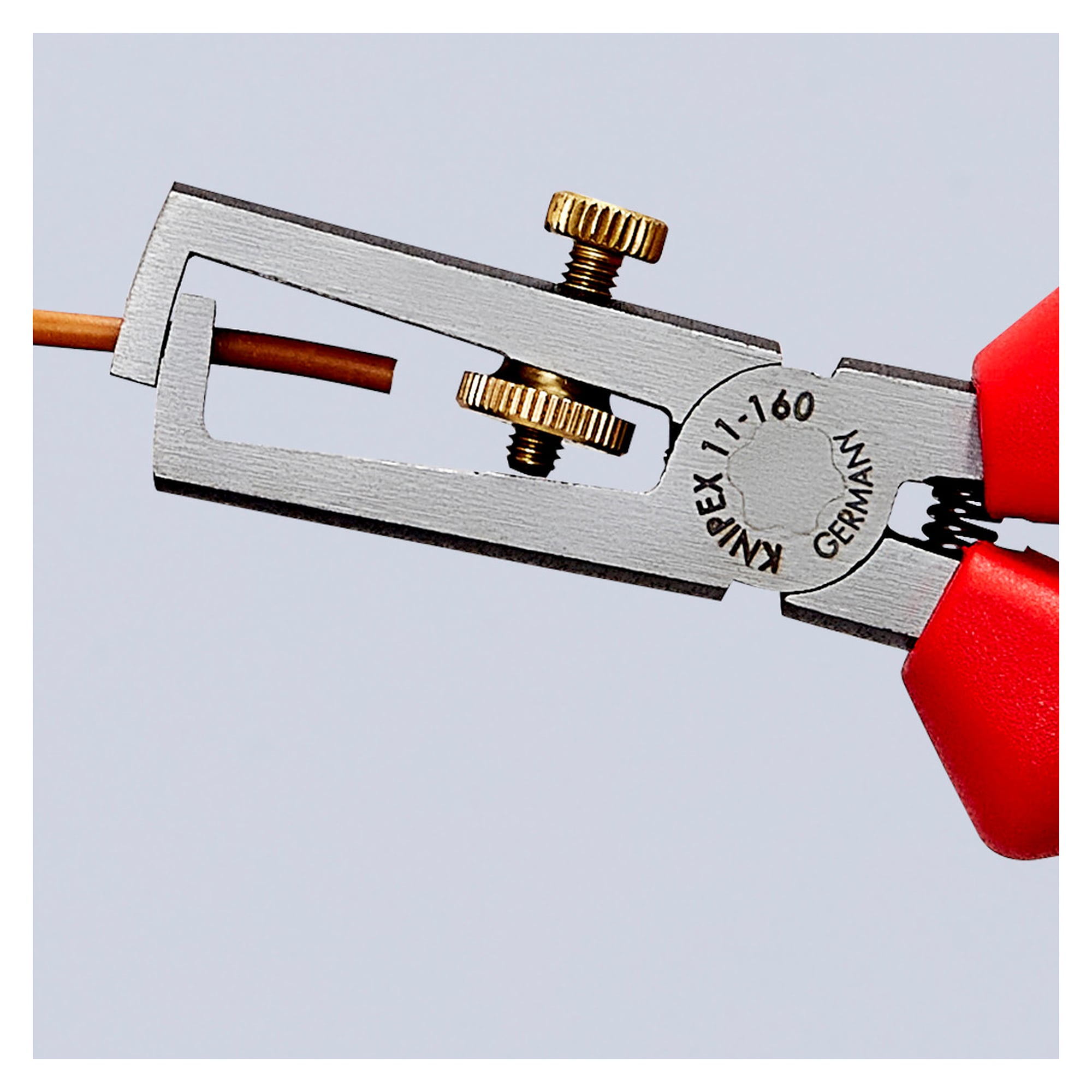

• Easy adjustment to the required solid or stranded wire diameter by knurled screw and lock nut, so the setting stays repeatable.
• The opening spring makes the plier spring open after every cut and speeds up batch work.
• Black atramentised body with polished head, handles with multi-component sleeves for a secure grip.
• One tool covers the common installation range up to AWG 8.

Technical data

Areas of use

Electrical installation, control cabinet building, service work on machines and vehicles, workshop and training. It suits every job where changing cross sections up to 10 mm² have to be stripped and a fixed setting per batch saves time.
